RCA Cable Wiring Diagram: Understanding Signal, Shield and Connector Construction
This is a free printable rca cable wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

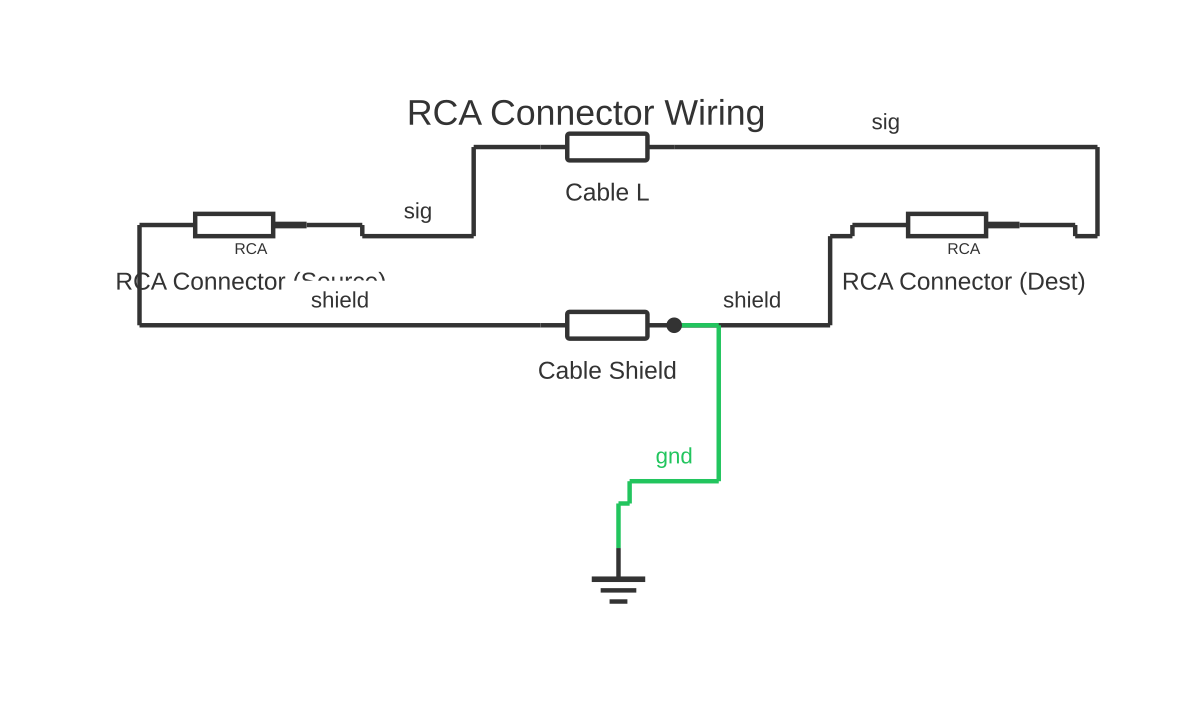

An RCA cable carries audio or composite video on a centre conductor surrounded by a coaxial shield, with the signal on the tip and ground on the outer collar.
The RCA connector — developed by the Radio Corporation of America in the 1940s — remains one of the most widely used analogue audio and video interconnects in consumer and semi-professional electronics. Despite its age, understanding its internal wiring correctly is essential for repair, custom cable assembly, and signal integrity troubleshooting.
An RCA cable is a coaxial structure. At the core is the signal conductor: a stranded or solid copper wire typically 24–28 AWG for audio, slightly heavier for video. Surrounding the signal conductor is a polyethylene or foamed-PE dielectric that determines the cable's characteristic impedance. Wrapped around the dielectric is the shield — either braided copper (higher flexibility, good coverage) or foil with a drain wire (thinner, lighter, better HF shielding). The outer jacket, usually PVC, protects the assembly.
At each end, the signal conductor solders to the centre pin of the RCA plug (the male tip that protrudes from the connector body). The shield — whether braided or a foil drain wire — connects to the outer cylindrical collar of the RCA plug. This collar makes the ground connection when the plug is inserted into an RCA socket. The connector body is typically a metal cylinder that also forms the ground path.
For audio use, the characteristic impedance of the cable is not tightly specified because audio frequencies are far too low for impedance to matter in typical cable lengths. Composite video RCA cables, however, should use 75 Ω coaxial cable to match the 75 Ω video source and load impedances — failure to do so causes ghosting, reflections, and colour errors at longer cable runs.
Colour coding convention: red RCA connectors carry right-channel audio; white (or black) carry left-channel audio; yellow carries composite video. These are purely convention; the internal wiring is identical in each.
How to wire rca cable wiring diagram
- Strip the outer jacket Using a coaxial cable stripper or sharp knife, remove 25–30 mm of the outer PVC jacket without cutting into the braided shield beneath. Slide the RCA plug's outer barrel and any strain-relief collar onto the cable at this point — they cannot be added after the plug is soldered.
- Prepare the shield If the cable has a braided shield, fold the braid back over the jacket to expose the inner dielectric. Twist the braid strands together into a neat pigtail drain wire. If the cable uses foil shielding, locate the drain wire (a bare conductor running alongside the foil) — this becomes your ground connection.
- Strip the inner dielectric Remove 8–10 mm of the inner dielectric to expose the centre signal conductor. Avoid nicking the conductor — each nick reduces mechanical strength and can become a break point. Twist stranded conductors tightly and tin them with solder before proceeding.
- Solder the centre pin Insert the tinned signal conductor into the centre pin cup of the RCA plug. Apply a hot, clean iron tip briefly to the cup and feed solder until the cup fills cleanly. The joint should be shiny and smooth. A cold or dull joint indicates poor contact and must be reflowed.
- Solder the shield to the outer collar Bring the shield pigtail or drain wire to the ground tab or rear collar of the RCA plug. Solder cleanly, again keeping heat brief. Visually confirm that no shield strands have contacted the centre pin — this would short signal to ground and kill the output.
- Secure the strain relief Slide the plug body and strain-relief collar into their final positions. Crimp or tighten the strain relief firmly around the cable jacket so that any pull on the cable is arrested at the jacket, not the solder joints. Reassemble the plug body.
- Test continuity and isolation With a multimeter in continuity mode, verify: centre pin to centre pin (signal through); outer collar to outer collar (shield/ground through); and critically, no continuity between centre pin and outer collar at either end. A short between these two points means a shield strand is bridging and must be corrected.
Specifications
| Signal conductor (audio cable, typical) | 24–28 AWG stranded copper |
|---|---|
| Characteristic impedance (video cable) | 75 Ω ± 2 Ω |
| Signal level (line-level audio) | −10 dBV (consumer) / +4 dBu (semi-pro) |
| Composite video signal level | 1 V peak-to-peak into 75 Ω (0.7 V picture + 0.3 V sync) |
| Connector body outer diameter (standard RCA) | Approximately 8 mm |
| Centre pin diameter (standard RCA) | Approximately 3.18 mm (1/8 in) |
| Maximum recommended audio cable run (unbalanced) | 5–10 m (longer runs subject to noise pickup) |
| Maximum recommended composite video run | 15 m with 75 Ω cable; beyond this, use active distribution or a signal booster |
Safety warnings
- RCA cables carry low-voltage analogue signals and are not inherently hazardous. However, always power off and disconnect mains-connected equipment before disconnecting or reconnecting RCA cables on amplifiers or powered equipment. Hot-swapping can induce transient spikes that damage input stages.
- Never attempt to open or repair mains-powered equipment (amplifiers, receivers, TVs) without proper electrical safety training. Internal voltages — particularly in amplifier power supply sections — can exceed 400 V DC even when unplugged, due to stored charge in capacitors. Allow equipment to discharge before opening.
- Ground loop currents flowing through incorrectly wired shields can be a symptom of a safety earthing fault elsewhere in the installation. If hum is accompanied by a tingle when touching equipment, disconnect immediately and have the mains earthing checked by a licensed electrician before further use.
Tools needed
- Coaxial cable stripper or sharp blade
- Soldering iron (15–25 W, temperature-controlled preferred)
- Rosin-core solder
- Digital multimeter (continuity and resistance)
- Wire cutters and needle-nose pliers
- Heat gun or lighter (for heat-shrink tubing)
Common mistakes
- Forgetting to thread the plug barrel and strain-relief sleeve onto the cable before soldering — these cannot be added afterwards without desoldering the completed joint.
- Allowing shield strands to bridge from the ground collar to the centre pin, creating a short circuit that eliminates the signal entirely.
- Using too much heat or dwelling too long with the iron, melting the inner dielectric so that the centre conductor moves and can touch the shield internally.
- Confusing the composite video yellow RCA with the left-channel audio white RCA — the cables are physically identical; label both ends clearly.
- Using standard audio coax for composite video runs — unmatched 75 Ω impedance causes reflections and ghosting on long runs, and is resolved only by using proper 75 Ω video cable.
Troubleshooting
- No signal at the receiving end despite cable appearing connected
- Cause: Open circuit on the centre conductor — broken internal strand, failed solder joint at the centre pin, or the centre pin did not make contact with the socket Fix: Check continuity tip-to-tip with a multimeter. Reflow or redo the centre pin solder joint. Inspect the plug body for a centre pin that has been pushed back into the connector body by insertion force.
- Constant hum or buzz on the audio output
- Cause: Ground loop between two separately earthed pieces of equipment sharing the RCA signal ground Fix: Insert a ground loop isolator (audio isolation transformer) in the signal path. Alternatively, lift the mains earth on one piece of equipment — only if local electrical code permits and equipment safety is not compromised. Identify and consolidate earth points.
- Composite video shows ghosting or double image
- Cause: Impedance mismatch because non-75 Ω cable was used, causing signal reflections Fix: Replace the cable with properly rated 75 Ω coaxial cable. On long runs also verify that both the source and the display present 75 Ω termination — some older equipment requires an external 75 Ω terminator on unused video outputs.
Frequently asked questions
Which terminal of an RCA connector is signal and which is ground?
The centre pin (tip) carries the signal. The outer cylindrical collar is the ground or shield connection. When soldering a plug, the signal conductor goes to the centre pin and the coaxial shield (braided or drain wire) solders to the outer shell or ground tab.
Does it matter which cable type I use for RCA audio versus RCA composite video?
For audio, cable impedance is not critical because audio frequencies produce negligible reflections even in mismatched cables. For composite video (and S-video component), use 75 Ω rated coaxial cable to match the video standard. Mismatched impedance on video runs longer than about 1–2 metres causes ghosting and signal degradation.
Why do my RCA cables hum even though they are connected correctly?
Hum is usually a ground loop — two pieces of equipment sharing a signal ground via the RCA cable while also being grounded to mains earth at different points, creating a circulating current at mains frequency. Solutions include a galvanic isolation transformer on the audio path, a ground loop isolator, or ensuring all equipment shares a single mains earth point.
Can I extend an RCA cable by joining two cables together?
Yes, with an RCA barrel coupler (female-female adaptor). Each joint adds a small amount of capacitance and a contact resistance of typically 5–20 mΩ. For audio this is rarely audible. For video, minimise the number of joints and keep total cable length under 10–15 metres for composite video to avoid signal loss.
What is the correct soldering technique for an RCA plug?
Tin the centre pin cup and the outer shell ground tab separately before assembly. Keep heat brief — less than 3 seconds per joint — to avoid melting the inner dielectric. Secure the cable's outer jacket in the strain-relief clamp before the centre pin joint cures, so mechanical pull is not transferred to the solder joint.
