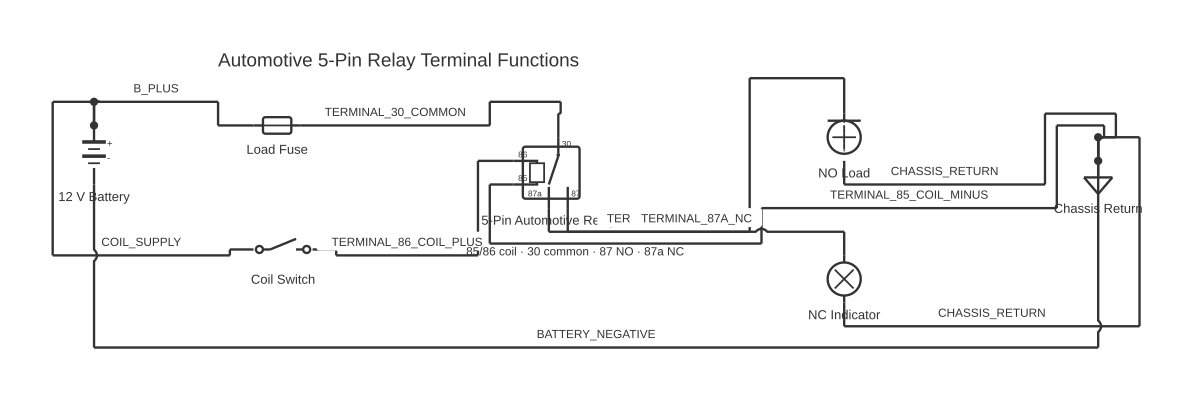

Relay Pinout Guide: What Every Terminal Does and How to Wire It Correctly — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable relay pinout: download the diagram as SVG or open it and print to paper or PDF.

Understanding a relay's pinout means knowing which of its five terminals controls the coil, which carries the load, and which switches between normally open and normally closed states.

A relay functions as a remote-controlled switch. Its pinout — the assignment of function to each physical pin or blade terminal — is the key to understanding how to incorporate it correctly into any control circuit. While the DIN 72552 terminal numbering system provides a standardised language for relay terminals across automotive, industrial, and electronics applications, the physical arrangement of those terminals on the relay body varies between relay styles and manufacturers. Understanding the function of each terminal allows a technician to verify any relay installation regardless of the physical pin layout.

The relay's five terminals divide clearly into two functionally independent circuits that share only a mechanical linkage. The coil circuit consists of terminals 85 and 86: apply the rated coil voltage across these two terminals and the electromagnetic coil pulls the armature, changing the state of the contacts. The contact circuit consists of terminals 30, 87, and 87a: terminal 30 is the common input shared by both contact states; terminal 87 closes to terminal 30 when the coil is energised (normally open); terminal 87a is already connected to terminal 30 at rest and opens when the coil is energised (normally closed).

The physical isolation between coil and contact circuits is a core benefit of the relay. A 5 V logic signal from a microcontroller — after passing through a transistor driver to handle the coil current — can safely switch a 240 V AC load or a 60 A DC motor, with complete galvanic separation between the control voltage and the load voltage. The only link is the magnetic field.

In practice, the majority of relay applications use only terminals 30, 85, 86, and 87 — the four-pin NO configuration. The normally closed contact (87a) becomes relevant in motor reversing circuits, transfer switching between redundant supplies, fail-safe applications where the load must activate when control power is lost, and change-over switching applications.

Identifying which physical pin corresponds to which terminal number requires reading the number markings on the relay body or consulting the relay's datasheet. On the standard ISO mini relay footprint used in automotive fuse boxes, the blade positions follow a consistent pattern that becomes familiar with practice — but always verify against the relay body markings before wiring.

How to wire relay pinout

Determine the load's voltage, current, and switching logic requirement Before selecting a relay, establish: what voltage does the load operate on; what current does it draw; and should the load activate when the control signal is active (use terminal 87, normally open) or when the control signal is absent (use terminal 87a, normally closed). This determines whether a four-pin or five-pin relay is required.
Select a relay with appropriate coil voltage and contact current rating The coil voltage must match the control circuit supply (12 V, 24 V, or 5 V for electronics). The contact current rating must exceed the load's steady-state current, with additional margin for inrush current (motor or capacitive loads have high start-up current). Consult the relay datasheet for contact ratings at the load's operating voltage.
Verify the physical pin layout against the terminal markings Locate the terminal numbers moulded into the relay body — they are typically embossed on the underside near each blade contact. Confirm which physical position corresponds to which DIN 72552 number before making any connections. Do not assume the layout matches a diagram for a different relay model.
Wire the coil circuit (terminals 85 and 86) Connect terminal 86 to the coil supply positive (or the control output, for a high-side switched coil). Connect terminal 85 to ground (0 V) or the transistor collector (for a low-side switched coil). Add a flyback diode across 85–86 (anode to 85, cathode to 86) if not integrated, to protect the switching transistor.
Wire the contact circuit (terminals 30, 87, and/or 87a) Connect terminal 30 to the supply for the load (fused appropriately). Connect the load from terminal 87 (for normally open, activate-on-energise) or 87a (for normally closed, activate-at-rest) to its ground or return. Ensure the fuse protecting this circuit is rated for the load current.
Test the operation and verify contact switching Apply the rated coil voltage between terminals 85 and 86. Confirm a crisp click (not a buzz). Measure continuity between 30 and 87 (should close) and between 30 and 87a (should open). Remove coil voltage and confirm the contacts return to their rest state. Check for any voltage at the load terminal to confirm the supply is correctly switched.

Specifications

Terminal standard	DIN 72552 (terminal numbering for automotive electrical components)
Terminal 30	Common contact — switching supply input (battery + or fused supply)
Terminal 85	Coil terminal — conventionally connected to ground or switching device output
Terminal 86	Coil terminal — conventionally connected to positive supply
Terminal 87	Normally open (NO) contact — closes to terminal 30 when coil is energised
Terminal 87a	Normally closed (NC) contact — open from terminal 30 when coil is energised (five-pin relays only)
Typical coil pickup voltage (12 V relay)	75–80% of rated voltage (≈ 9–9.6 V minimum for reliable pickup)
Typical electromechanical relay operate time	5–15 ms from coil energisation to contact closure

Safety warnings

The load circuit (terminal 30 and 87/87a) operates at the load voltage, which may be mains AC or a high DC voltage in some applications. Follow all applicable electrical safety requirements for the load voltage, including isolation, fusing, and qualified person requirements.
In automotive applications, disconnect the battery negative terminal before making permanent wiring changes to the vehicle's electrical system.
Relay contact arcing generates brief electromagnetic interference. In safety-critical systems (medical, aviation, industrial control), relay selection and circuit layout must comply with the applicable EMC and functional safety standards.
Do not use a relay to switch currents significantly below its minimum switching current specification. Low-current applications cause the contacts to fail to clear the arc products and the contact surfaces to oxidise, increasing contact resistance over time. Use a solid-state relay or reed relay for very low signal-level switching.
Relays rated for DC switching have different contact arc characteristics than AC relays. AC arcs self-extinguish at the current zero crossing; DC arcs sustain. Use relays specifically rated for DC contact switching at the applied DC voltage and current.

Tools needed

Digital multimeter (resistance, continuity, DC voltage functions)
Bench power supply or 12 V test supply (for isolated relay testing)
Ratchet crimping tool and spade crimp connectors
Wire strippers
Flathead screwdriver
Datasheet for the specific relay type (for coil voltage, contact rating, and pin layout)

Common mistakes

Assuming the physical pin positions on the relay body always match the same diagram — they do not. Always verify terminal numbers from the markings on the relay itself.
Sizing the fuse to the relay's maximum contact rating rather than the actual load current — the fuse should be the smallest practical rating that will carry the load without nuisance tripping.
Driving the relay coil directly from a microcontroller GPIO pin that cannot supply sufficient current — the GPIO will saturate, voltage will drop at the coil, and the relay will not fully pick up or will buzz intermittently.
Not accounting for the relay's response time in time-critical switching applications — electromechanical relays have operate times typically of 5–15 ms and release times of 1–5 ms. For faster switching, solid-state relays are required.
Connecting the load ground to the relay body instead of through terminal 87 or 87a — the relay body is not a circuit element; all electrical connections must be through the numbered blade terminals.

Troubleshooting

Relay energises correctly but load only works intermittently: Cause: High contact resistance due to oxidised or arced contacts; intermittent connection at terminal 30 or the load terminal crimp; load current exceeding contact rating, causing contact bounce or partial welding Fix: Measure DC voltage between terminal 87 and ground with the load connected and energised — excessive voltage drop across the relay contacts indicates high contact resistance. Replace the relay. Verify the load current is within the relay's contact rating. Check crimp connections at all load circuit terminals.
Control circuit board component fails when relay coil is switched: Cause: Missing or incorrectly connected flyback diode; back-EMF spike from coil de-energisation destroying the switching transistor or GPIO driver Fix: Add or verify the flyback diode orientation (anode to terminal 85, cathode to terminal 86). Consider adding a small ceramic capacitor (100 nF) across the transistor collector-emitter junction for additional transient suppression. Use a relay with an integrated suppression diode.
Relay contacts weld closed and load cannot be switched off: Cause: Sustained overcurrent through contacts; high inrush current from motor or capacitive load at the moment of contact closure without current-limiting; contact voltage rating exceeded Fix: Replace the relay. Measure the load's inrush current (use a current clamp with peak-hold function). Upgrade to a relay with a higher contact current and voltage rating, or add a current-limiting element (NTC thermistor for resistive loads) to reduce inrush.

Frequently asked questions

How do I identify which pin is which on an unmarked relay?

Use a multimeter set to resistance (Ω). The two pins with a resistance of 50–200 Ω between them are the coil terminals (85 and 86). Of the remaining three pins, the normally closed pair (terminals 30 and 87a) will show near-zero resistance between them with no coil voltage applied. Energise the coil with the rated voltage and confirm that the 30–87a continuity opens and 30–87 closes.

What happens if I connect a load to terminal 87a instead of 87 by mistake?

The load will operate in reverse logic: it will be active when the relay coil is de-energised (the default state) and will switch off when the coil is energised. In most applications this is incorrect — but in fail-safe designs (where the load must operate if the control circuit loses power), 87a is the intentional choice. Swap the connection to 87 to restore normally open (coil energised = load on) behaviour.

Can I use a 12 V automotive relay on a 24 V system?

No. A 12 V coil on a 24 V supply draws excessive current, overheats the coil winding, and burns out the relay. A relay must be rated for the coil supply voltage of the system it is installed in. 24 V automotive relays (common in trucks, buses, and commercial vehicles) have the same terminal numbering (DIN 72552) but a different coil resistance to suit the higher supply.

Why does my relay coil buzz instead of clicking solidly?

Buzzing indicates the armature is oscillating rather than latching fully closed. Common causes: supply voltage significantly below the relay's rated pickup voltage; excessive resistance in the coil supply wiring dropping the voltage at the coil; or an AC supply voltage being applied to a DC relay coil. Measure the voltage directly across terminals 85 and 86 — it should be close to the relay's rated coil voltage.

What is the pickup voltage and drop-out voltage of a relay?

Pickup voltage is the minimum coil voltage at which the relay will reliably close its contacts — typically 75–80% of rated coil voltage. Drop-out voltage is the coil voltage below which the relay releases its contacts — typically 10–30% of rated voltage. A relay operating near its pickup voltage will be slow and unreliable. The coil supply should comfortably exceed the pickup voltage under worst-case supply conditions.
