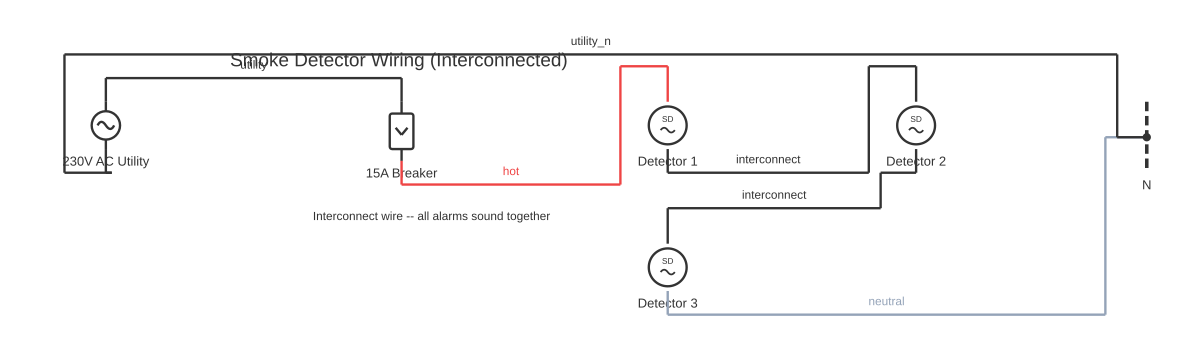

Smoke Detector Circuit Diagram: Mains Power, Battery Backup, and Interconnected Alarm Wiring

Smoke Detector Circuit Diagram: Mains Power, Battery Backup, and Interconnected Alarm Wiring — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable smoke detector circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

Learn how mains-powered smoke detectors are wired with battery backup and three-wire interconnection so that any triggered detector sounds every alarm in the building.

A residential smoke alarm system does far more than simply beep when it detects smoke. A properly designed and installed system ensures that when any one detector is triggered, every detector in the building sounds simultaneously — even if the occupant is in a room remote from the fire source. This interconnect function is the most safety-critical aspect of residential smoke alarm wiring, and it is the part most frequently done incorrectly.

Modern residential smoke detectors intended for mains installation are supplied by three wires. The first is the permanent live (typically switched from a dedicated circuit or from the last luminaire in a lighting circuit, depending on the code and jurisdiction). The second is the neutral. The third is the interconnect wire, which is sometimes called the alarm wire or the trigger wire.

The interconnect wire operates as follows: when a detector's sensing chamber detects ionisation products (ionisation detector) or light scattering from smoke particles (photoelectric detector), it triggers its own sounder and simultaneously drives the interconnect wire to a specified voltage level. All other detectors wired in parallel on the same interconnect wire detect this voltage and trigger their own sounders — even if those detectors are not sensing any smoke themselves.

This means all detectors in an interconnected system must share the same interconnect wire, which runs daisy-chained from one detector to the next throughout the building. Each detector's interconnect terminal connects to the single interconnect wire. The interconnect wire must not be paralleled with live or neutral conductors — it occupies a dedicated core in the three-core cable used for smoke alarm wiring.

The battery backup provides a secondary power source so that the alarm continues to function during a mains power failure. The battery is typically a 9 V PP3 (6F22) type or a sealed lead-acid pack, housed within the detector body. A low-battery chirp — a brief, periodic single beep at approximately one-minute intervals — is the detector's alert that the battery requires replacement.

In multi-storey buildings and in commercial settings, the complexity of the smoke detection system increases significantly, and design, installation, and certification must be performed by a qualified fire protection engineer and licensed installer in accordance with the applicable standard (BS 5839-1, NFPA 72, or AS 1670).

How to wire smoke detector circuit diagram

Plan the detector locations before running cable Locate detectors per the applicable standard for your jurisdiction. In a typical residential installation this means: on every storey of the building, in every corridor or hallway that serves sleeping areas, and in any habitable room where a fire could originate (some codes require this in living rooms and rooms with fuel-burning appliances). Detectors must be mounted on the ceiling (preferred) or on a wall within 150–300 mm of the ceiling, away from corners, external walls, air supply vents, and areas subject to humidity or cooking fumes.
Identify the mains supply circuit Smoke alarms must be connected to a dedicated branch circuit (in some jurisdictions) or may be connected to an existing lighting circuit (in others). The specific requirement depends on the applicable code. The circuit must not be switched — that is, the alarm must receive mains power whenever the main panel's circuit breaker is on, regardless of light switch positions. Some codes prohibit connecting smoke alarms to a GFCI-protected circuit or to a circuit that can be inadvertently de-energised.
Run three-core cable between all detector positions Use three-core-and-earth cable (3-core + earth) between each detector position. The three current-carrying conductors carry: live (L), neutral (N), and the interconnect signal wire. In North American convention, three-wire cable (12/3 or 14/3 NM-B) provides black (hot), white (neutral), red (interconnect), and bare (ground) conductors. Confirm the conductor designations match the detector's terminal labels before making connections.
Connect each detector in the daisy-chain At each detector position, connect: Live (from the incoming cable's live conductor and from the outgoing cable's live conductor) to the Live terminal. Neutral (from the incoming and outgoing neutral conductors) to the Neutral terminal. Interconnect (from the incoming and outgoing interconnect conductor) to the Interconnect terminal. Earth (from the incoming and outgoing earth conductors) to the earth terminal on the mounting base. Use wire connectors (wire nuts or terminal blocks inside the box) to join the two cable's conductors at each terminal rather than double-tapping the terminal screw, unless the detector's instructions permit double connection.
Install the battery backup before first test Insert a new battery of the manufacturer's specified type into the detector before closing the housing. A flat or missing battery will cause a low-battery chirp immediately after power is applied, which can be mistaken for a fault. Record the battery installation date on the detector's label or inside the housing for maintenance tracking.
Test the interconnect function After all detectors are installed and powered, test the interconnect by holding the test button on each detector in turn for the duration required to trigger the alarm. When one detector triggers, all interconnected detectors must sound simultaneously. If any detector fails to respond to the interconnect trigger, check the continuity of the interconnect wire at that detector's terminal and confirm the interconnect wire is connected (not the live or neutral terminals).
Commission and record the installation For residential installations, test all detectors and record the test date. For commercial or larger residential installations, prepare a commissioning record per the applicable standard (BS 5839-1, NFPA 72, or AS 1670 as relevant). Provide occupants with the alarm sound characteristics, the chirp low-battery warning, and the monthly self-test procedure.

Specifications

Applicable product standard (UK)	BS EN 14604 (smoke alarm devices); installation per BS 5839-6
Applicable product standard (USA)	UL 217 (single and multi-station smoke alarms); installation per NFPA 72
Applicable product standard (Australia/NZ)	AS 3786 (smoke alarms using scattered light, transmitted light or ionisation); installation per AS 1670.6 or state-specific requirements
Detector service life	Typically 10 years from date of manufacture; check manufacturer's specification and local code
Battery type (most common)	9 V PP3 (6F22) alkaline; some models use sealed lead-acid or lithium; always use manufacturer-specified type
Interconnect voltage (typical)	9 V DC to 12 V DC (varies by manufacturer; mixing brands not recommended)
Minimum ceiling mounting clearance from wall	300 mm from wall to outside edge of detector (BS 5839-6 guidance; verify per applicable standard)

Safety warnings

Mains-wired smoke alarm installation is electrical work and must comply with the applicable wiring standard for your jurisdiction (BS 7671 in the UK, NFPA 70 in the USA, AS/NZS 3000 in Australia and New Zealand). In most jurisdictions this work must be performed by or inspected by a licensed electrician. Verify local requirements before starting any work.
Always isolate the supply circuit at the circuit breaker and verify the circuit is dead with a voltage tester before connecting or disconnecting any smoke alarm wiring. The live terminal in a smoke alarm back-box is at full mains voltage and is a serious shock hazard.
Never disable or remove a smoke alarm because it produces nuisance alarms. Nuisance alarms are caused by installation in an inappropriate location (near a kitchen, bathroom steam source, or air vent) or by a detector that is past its service life. Relocate the detector or replace it with a model suited to the environment — do not remove the protection it provides.
Smoke detectors have a finite service life, typically 10 years from the date of manufacture. The sensing chamber degrades over time and may not trigger reliably near the end of its service life. Check the manufacture date printed on the detector body and replace the unit when it reaches the end of its rated life, regardless of apparent function.
The interconnect wire in a smoke alarm system carries a trigger voltage that is energised momentarily when any detector on the loop triggers. This voltage is low (typically 9 V to 12 V DC) and presents no shock hazard, but the interconnect wire must not be connected to the mains live or neutral conductors — doing so will damage all detectors on the loop when the system is powered.

Tools needed

Non-contact voltage tester (for verifying circuit is de-energised before working)
Digital multimeter (for verifying supply voltage and interconnect continuity)
Insulated screwdrivers (for terminal connections at the detector base)
Wire strippers matched to the cable gauge
Drill and hole saw or flat bit (for cable routing through ceiling joists)
Fish tape or cable rodding system (for routing cable through ceiling cavities)
Detector test button (built into the detector) or canned smoke spray for full functional test

Common mistakes

Connecting the interconnect wire to the live or neutral terminal instead of the designated interconnect terminal — a mistake that energises the interconnect wire at mains voltage and damages every detector on the loop when powered on.
Installing only one detector per storey and not providing coverage to hallways serving sleeping areas — the most common installation deficiency in existing residential properties, leaving sleeping occupants unprotected.
Using two-core cable (live and neutral only) without a dedicated interconnect conductor, then trying to add interconnect function by bridging the live — this does not provide the correct interconnect function and is a wiring error.
Failing to test the interconnect function after installation by triggering each detector in turn — an interconnect wire that is incorrectly routed or not connected at one detector means that detector will not trigger when the others alarm.
Installing the detector within 300 mm of a ceiling corner, within 1 m of an air supply vent, or directly above a cooker or toaster — these locations cause excessive nuisance alarms or dead zones where smoke may not reach the sensing chamber.

Troubleshooting

One detector does not sound when another is triggered (interconnect not working): Cause: Interconnect wire not connected at that detector's terminal, open circuit in the interconnect wire between two detectors, or interconnect wire connected to a wrong terminal Fix: Isolate the circuit. At the non-responding detector, remove the head from the base and use a multimeter to confirm continuity between the interconnect terminals of the incoming and outgoing cables. Reconnect and confirm the interconnect wire is on the correct terminal (labelled INT or similar). Restore power and retest.
Constant chirping on one detector after battery replacement: Cause: Wrong battery type installed (too low a voltage or incorrect chemistry), battery not fully seated in the contacts, or a fault within the detector sensing chamber requiring replacement of the unit Fix: Confirm the battery type matches the manufacturer's specification. Remove and reseat the battery, ensuring both contacts are fully engaged. If chirping continues with a correct, new battery and confirmed good contacts, the detector has reached end of life or has developed an internal fault — replace the unit.
Entire system triggers repeatedly for no apparent reason (nuisance alarms): Cause: One or more detectors installed in an inappropriate location (near kitchen, bathroom, or air supply vent), a detector near the end of its service life with a degraded sensing chamber, or a detector affected by insects or dust contamination inside the chamber Fix: Identify which detector is initiating the alarm (most mains systems with interconnect show a fault LED on the triggering unit, or the unit closest to the source will sound a moment before the rest). Inspect that detector's location relative to heat, steam, cooking fumes, and air vents. If the location is appropriate, clean or replace the detector. Check the manufacture date — a detector over 10 years old should be replaced regardless.
All detectors lose power simultaneously: Cause: The circuit breaker feeding the smoke alarm circuit has tripped, or the supply circuit has lost power (mains failure) Fix: Check the circuit breaker at the main panel. If it has tripped, identify and correct the cause before resetting — a smoke alarm circuit should never trip its breaker under normal conditions. If a mains failure is the cause, the battery backup should activate in each detector; if the detectors do not switch to battery backup, the batteries are flat and must be replaced.

Frequently asked questions

How many mains-wired smoke detectors can be interconnected on a single interconnect wire?

The maximum number of interconnected detectors on a single loop depends on the manufacturer's specification for the specific detector model. Exceeding this limit can mean that the interconnect wire cannot source sufficient current to trigger all detectors simultaneously. A common limit is 12 to 24 detectors, but this varies — always check the detector's installation instructions for the maximum interconnect load.

Can I mix different brands of interconnected smoke detectors?

In general, no. The interconnect signal voltage and polarity must be compatible between all detectors on the loop. Even where the interconnect voltage is nominally the same (typically 9 V or 12 V), some manufacturers use proprietary trigger logic or pulse-coded signals that are not compatible with other brands. Use a single manufacturer's product range throughout any interconnected installation, and confirm compatibility with the manufacturer before mixing models.

Why does my smoke detector chirp periodically even though it is mains-powered?

A periodic single chirp at approximately one-minute intervals on a mains-powered detector indicates the backup battery is low and requires replacement. This chirp continues until the battery is replaced, regardless of mains power being present, because the low-battery warning circuit monitors battery voltage independently. Replace the battery with the manufacturer's specified type and test the alarm after replacement.

Is a battery-only smoke detector an acceptable alternative to a mains-wired interconnected system?

In new residential construction in most jurisdictions with current codes (NEC 210.12, BS 5839-6, AS 3786), mains-powered smoke alarms with battery backup and interconnection are mandatory at specified locations. Battery-only alarms may be permitted only in existing buildings where a wired system cannot reasonably be installed, and the specific allowances depend entirely on local regulations. Always check the applicable code and obtain guidance from the local fire authority.

What is the difference between an ionisation and a photoelectric smoke detector?

An ionisation detector contains a small radioactive source (typically Americium-241) that ionises the air inside a sensing chamber; smoke particles disrupt the ion flow and trigger the alarm. Ionisation detectors respond more quickly to fast-flaming fires. A photoelectric detector uses a light source and a light sensor; smoke particles scatter the light into the sensor and trigger the alarm. Photoelectric detectors respond more quickly to slow, smouldering fires. Many codes now recommend or require one of each type or a combination (dual-sensor) detector in each location.
