Socket Wiring Diagram: Outlet Terminal Connections for Ring and Radial Circuits

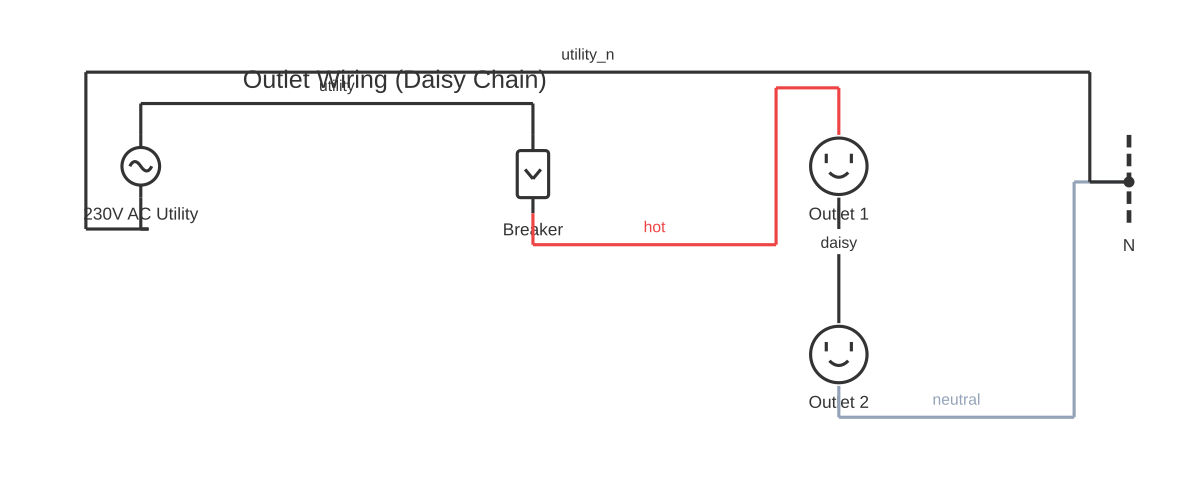

Socket Diagram — circuit diagram showing component connectionsBreakerOutlet 1Outlet 2230V AC UtilityOutlet Wiring (Daisy Chain)
Socket Wiring Diagram: Outlet Terminal Connections for Ring and Radial Circuits — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable socket diagram: download the diagram as SVG or open it and print to paper or PDF.

A reference wiring diagram for mains electrical socket outlets, covering terminal connections, ring final circuit and radial circuit wiring, and standard residential socket arrangements.

An electrical socket outlet (wall outlet or receptacle) connects appliances to the mains distribution system. Though the socket face looks simple, the wiring arrangement — particularly in UK ring final circuit installations — has specific requirements that differ significantly from the radial circuits used in most other countries.

**Socket terminal connections:** Every socket has three terminals: - **L (Live):** carries the active mains conductor (brown in modern IEC/UK wiring; black in older UK installations; black or red in US wiring). - **N (Neutral):** carries the return conductor (blue in modern IEC/UK; red in older UK; white in US). - **E (Earth):** connects to the protective earth (green/yellow in UK/IEC; bare copper or green in US).

**UK Ring Final Circuit (RFC):** The ring final circuit is a distinctly UK wiring method. Two cable sets leave the consumer unit on the same MCB/fuse: they run around the floor or room visiting each socket in turn, and both ends return to the same MCB — forming a complete ring. Each socket therefore has two sets of L, N, and E conductors terminating in its terminals (or in a three-way connector block if the socket has only one L, N, and E terminal per pole). The advantage is redundancy and lower impedance — fault current has two parallel paths. Ring circuits are typically protected at 32 A and serve a floor area up to 100 m².

**Radial Circuit:** A single cable leaves the MCB, visits each socket in sequence, and terminates at the last socket. No return cable to the panel. Standard in most countries outside the UK. Protected at 20–32 A depending on cable cross-section and circuit length. Simpler to install, easier to fault-find.

**Spur from a ring:** A spur is a branch added from any socket on a ring final circuit. An unfused spur may feed one single or one twin socket. A fused connection unit (fused spur) allows extending to further outlets. Spurs are regulated — consult BS 7671 for allowable spur counts on a ring circuit.

**Double socket wiring:** Both outlets share the same L, N, and E terminals internally. The wiring connection is the same as for a single socket.

Socket diagrams cover a broad family of connectors beyond standard power outlets, including structured-cabling sockets such as RJ45, and UK-specific types like double 13 A sockets, telephone master sockets, and shaver supply units. Each type has its own termination standard and wiring convention. Whether you are documenting a network cabinet, planning domestic socket circuits, or wiring a bathroom shaver point, you can build and export your socket diagram free online at circuitdiagrammaker.com.

How to wire socket diagram

  1. Isolate the circuit at the consumer unit Switch off the MCB or remove the fuse for the circuit you are working on. Use a non-contact voltage tester at the socket to verify zero voltage. Do not rely solely on the MCB label — test at the point of work. Apply a lockout device if there is a risk of the MCB being switched on by another person.
  2. Remove the existing socket faceplate Undo the two retaining screws and pull the faceplate forward. If the conductors are short, carefully extend by pulling the mounting box forward slightly. Take a photograph of the existing wiring before disturbing any connections.
  3. Identify the cable configuration Determine whether the socket is on a ring (two cable sets) or spur/radial (one cable set). Identify each conductor by colour: brown or red = Live, blue or black = Neutral (note: old UK black is neutral, not the same as IEC black which is Live — this is a known confusion point), green/yellow = Earth.
  4. Prepare cable conductors Strip conductor insulation by approximately 8–10 mm. Sleeve the bare earth conductor with green/yellow sleeving if not already present — bare copper earth is acceptable in some fittings but sleeving is best practice. Do not over-strip; exposed conductor outside the terminal is a hazard.
  5. Connect Earth conductor(s) first Insert the green/yellow earth conductor(s) into the E terminal and tighten firmly. On a ring circuit, both earth conductors from both cables terminate in the earth terminal. Verify the terminal clamp contacts all conductors — a floating earth conductor is a critical safety fault.
  6. Connect Neutral and Live conductors Connect blue (or black in old wiring) neutral conductors to the N terminal. Connect brown (or red in old wiring) live conductors to the L terminal. On a ring circuit, both conductors for each pole terminate together. Ensure no bare conductor is exposed outside the terminal.
  7. Test before re-making the installation Restore the MCB and use a socket tester (plug-in type) to verify correct polarity and earth connection. Alternatively, test with a multimeter: confirm Live to Earth reads approximately mains voltage (230 V UK; 120 V US), Neutral to Earth reads near 0 V, and Live to Neutral reads mains voltage. Verify RCD operation if the circuit is RCD-protected.

Specifications

UK ring final circuit cable2.5 mm² twin-and-earth (to BS 6004)
UK ring final circuit MCB rating32 A
UK ring final circuit max floor area100 m² (BS 7671 guidance)
RCD trip sensitivity (residential)30 mA
UK socket rating (BS 1363)13 A, 230–240 V
US receptacle (20 A circuit)20 A, 120 V; 12 AWG, 20 A breaker
Minimum conductor strip length8–10 mm at terminal

Safety warnings

Tools needed

Common mistakes

Troubleshooting

Socket tester shows incorrect wiring (Live/Neutral reversed)
Cause: Live and Neutral conductors connected to opposite terminals Fix: Isolate circuit. Open the faceplate and identify the brown (Live) and blue (Neutral) conductors. Swap them to the correct L and N terminals. Re-test with the socket tester before replacing the faceplate.
Socket has no power; others on the same circuit work
Cause: Loose terminal connection at the socket, or broken conductor in cable to this socket Fix: Isolate the circuit. Open the faceplate and check all terminal screws for tightness and conductor seating. If connections are firm, test continuity of the cable to the next socket in the circuit. A damaged conductor will show an open circuit.
RCD trips when appliance is plugged into this socket
Cause: Earth leakage fault in the appliance, or genuine fault on the socket circuit Fix: Test with a different known-good appliance. If RCD does not trip, the original appliance is faulty — have it serviced. If RCD trips with any appliance on this socket, there is an earth leakage on the circuit itself — test insulation resistance of the circuit wiring.

Frequently asked questions

What is the difference between a ring circuit and a radial circuit for sockets?

A ring circuit routes both ends of the cable back to the same MCB, forming a loop. Each socket has two cables entering it (except the last, where both ends meet at the MCB). A radial circuit runs from the MCB to each socket in sequence, terminating at the last outlet. Ring circuits are a UK-specific wiring method; radial circuits are standard elsewhere.

Can I add more sockets to an existing ring circuit?

Yes, by adding an unfused spur from an existing socket on the ring, or by breaking the ring and inserting the new socket mid-ring. An unfused spur from a ring can feed no more than one single or one twin socket (BS 7671). For longer extensions with multiple outlets, a fused connection unit is required. Always verify the ring is balanced before adding spurs.

Why does my socket have two sets of wires in it?

If the socket is part of a ring final circuit, it will have two cable sets — the incoming cable from one direction and the outgoing cable continuing the ring. Both sets terminate in the same L, N, and E terminals. This is normal for ring wiring. If only one cable is present, the socket is either at the end of a spur or on a radial circuit.

What cable size should I use for a socket circuit?

UK ring final circuits use 2.5 mm² twin-and-earth cable (three-conductor) protected at 32 A. UK radial circuits use 2.5 mm² at up to 20 A or 4 mm² at up to 32 A. In the US, 20 A receptacle circuits use 12 AWG with a 20 A breaker; 15 A circuits use 14 AWG with a 15 A breaker. Always verify against local wiring regulations.

Is it safe to use an extension lead permanently in place of a fixed socket?

Extension leads are for temporary use only. Permanently relied-upon extension leads can be overloaded, physically damaged over time, and create cable management hazards. They also do not provide the same level of fault protection as a fixed outlet on a dedicated circuit protected by an RCD. Fixed sockets installed by a qualified electrician are the correct solution.

What is the RJ45 socket wiring diagram for T568B?

T568B (the most common North American standard) terminates an RJ45 socket in pin order: 1 Orange/White, 2 Orange, 3 Green/White, 4 Blue, 5 Blue/White, 6 Green, 7 Brown/White, 8 Brown. T568A swaps the orange and green pairs (pins 1–2 become Green/White and Green; pins 3 and 6 become Orange/White and Orange). Use T568A for UK government installations and T568B for most commercial and residential work.

How do I wire a double socket in the UK?

A UK double 13 A socket connects brown (live) to the L terminal, blue (neutral) to N, and green/yellow earth to the E terminal — the same as a single socket. Both outlets share the same incoming cable at the back of the socket. On a ring main the socket will have two cable entries, with both live wires landed on L, both neutral wires on N, and both earths on E (or an earth block). Always isolate the circuit at the consumer unit before working.

How do I wire a telephone socket in the UK?

A standard UK BT-type master telephone socket (NTE5 or equivalent) has a line module with two main terminals: pin 2 (blue/white) and pin 5 (white/blue) carry the active line pair. The extension socket connects pins 2, 3, and 5 from the master. Modern installations use CW1308 cable with a four-pair colour code; only the blue pair is connected for a standard voice line.

How do I wire a shaver socket in the UK?

A UK shaver supply unit contains an isolating transformer rated at 20 VA and provides both 230 V and 115 V outputs on a two-pin socket. The incoming wiring uses standard 1.0 mm² or 1.5 mm² cable with brown live, blue neutral, and green/yellow earth. The shaver socket must comply with BS EN 61558-2-5 and is typically wired as a spur from a nearby ring circuit or from the bathroom lighting circuit. No switch is required because the transformer provides isolation.
