Soft Starter Circuit Diagram: Controlled Voltage Ramp for Three-Phase Motors

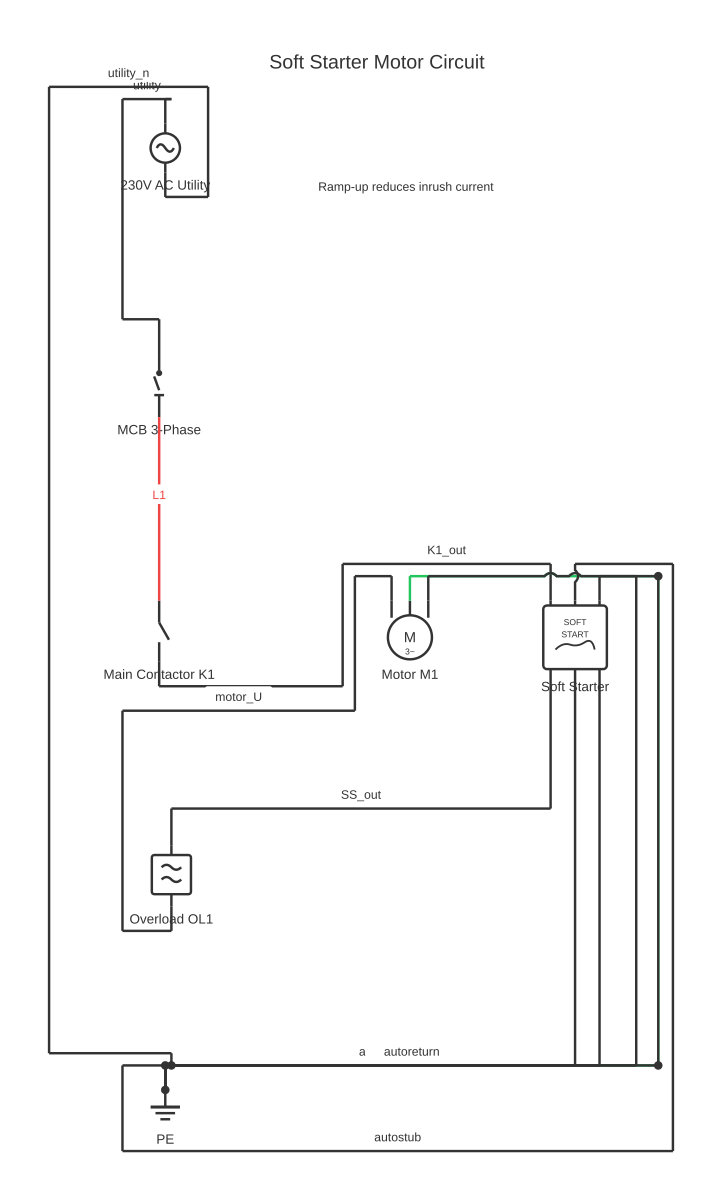

This is a free printable soft starter circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A soft starter circuit diagram shows how SCR pairs progressively increase voltage to a three-phase motor during start-up, limiting inrush current and mechanical shock.
A soft starter is a solid-state motor control device that controls the voltage applied to a three-phase induction motor during acceleration. It uses pairs of back-to-back SCRs (or SCR-diode combinations in simpler designs) — one pair per phase — to progressively increase the voltage from a reduced level to full line voltage over a controlled ramp time. This limits the inrush current spike that a direct-on-line (DOL) start would produce and reduces the mechanical torque shock on the driven machine.
When a three-phase induction motor starts DOL, it can draw 6–8 times its full load current for the first few seconds. This stresses switchgear, supply cables, fuses, and the motor itself. A soft starter typically limits starting current to 2–4 times full load current by controlling the firing angle of the SCR pairs — the same phase-angle firing technique used in SCR power controllers.
The firing angle starts at a high value (delivering low voltage to the motor) and decreases progressively over the programmed ramp-up time — typically 5–30 seconds — until the SCRs are fully conducting and the motor receives full line voltage. The control electronics measure motor current (and sometimes voltage) continuously during start and adjust the ramp rate to maintain a target current or torque profile.
Once the motor reaches full speed, a bypass contactor wired in parallel with the SCR stack closes, connecting the motor directly to the supply and removing the soft starter from the running circuit. This improves the running efficiency (no SCR voltage drop) and reduces heat generation in the soft starter.
On stopping, the soft starter can also control voltage ramp-down for applications where hydraulic water hammer or mechanical shock on stopping is a concern — this is called soft stop or ramp-down.
Protection functions integrated into modern soft starters include motor overload protection, phase loss detection, phase imbalance, over-temperature, and stall protection.
All installation must comply with IEC 60947, NEC Article 430, BS 7671, AS/NZS 3000, and the soft starter manufacturer's installation instructions.
How to wire soft starter circuit diagram
- Determine motor parameters Record the motor nameplate: kW/HP, full load current (FLA), voltage, and service factor. The soft starter must be rated for at least the motor FLA. Select the soft starter's current rating to match.
- Plan the power circuit The incoming three-phase supply passes through a main isolator (MCCB or isolating switch), then through a line contactor (if used for safety isolation during soft start bypass), then into the soft starter input terminals (L1, L2, L3). The soft starter output terminals (T1, T2, T3) connect to the motor.
- Wire the bypass contactor Connect the bypass contactor in parallel across the soft starter — input to input and output to output. The soft starter's internal control closes the bypass contactor output when full speed is reached. Verify this relay output wiring in the soft starter's manual.
- Wire the motor overload protection Most modern soft starters incorporate electronic overload protection. If an external overload relay is used, it must be wired in the line between the bypass contactor output and the motor, and its trip contact wired into the soft starter's fault input or control circuit.
- Connect the control circuit Wire the start and stop control signals to the soft starter's control terminals (typically Run/Stop, or digital inputs). Ensure the control circuit voltage matches the soft starter's input specification (often 24 V DC or 110–240 V AC).
- Configure soft starter parameters Using the soft starter's parameter interface, set the ramp-up time, initial voltage (pedestal voltage), current limit, and any required soft stop ramp-down time. Start with conservative settings and adjust for the specific load characteristics.
- Test with unloaded motor first Before connecting the driven load, run the motor uncoupled and observe starting current on a clamp meter. Verify the ramp time and current profile match expectations. Only then connect the driven load and repeat the test.
Specifications
| Starting current limit (typical) | 150–400% of motor FLA (adjustable) |
|---|---|
| Ramp-up time (typical adjustable range) | 1–60 seconds |
| Initial pedestal voltage (typical) | 30–60% of line voltage |
| SCR topology | Back-to-back SCR pairs, one pair per phase (six SCRs total for full three-phase control) |
| DOL starting current (for comparison) | 600–800% of motor FLA |
| Bypass contactor closing point | When motor reaches full speed, typically detected by current settling |
| Relevant standards | IEC 60947-4-2, NEC Article 430, AS/NZS 3000 |
Safety warnings
- Soft starters do not provide electrical isolation from the supply. Even with the motor stopped, the incoming terminals of the soft starter are live. The main isolator or MCCB must be opened and locked before working on any component.
- All motor control installation must comply with IEC 60947, NEC Article 430, BS 7671, AS/NZS 3000, and the manufacturer's installation manual. A qualified electrician must carry out the work.
- Heat sinks on soft starters reach high temperatures during operation. Ensure adequate ventilation clearance per the manufacturer's specification. Do not enclose soft starters in unventilated enclosures.
- Verify phase rotation of the supply before starting the motor on a driven load. Incorrect rotation may damage pumps, fans, or compressors.
- Do not use soft starters with capacitor power factor correction banks on the motor terminals. The capacitors interact with the SCR switching and can cause control instability or damage.
Tools needed
- Calibrated three-phase voltage tester
- Clamp meter (true RMS, sufficient current range for motor starting current)
- Phase rotation tester
- Insulated screwdrivers and torque screwdriver
- Multimeter
- Laptop or panel with soft starter programming interface if applicable
- Motor nameplate data and soft starter installation manual
Common mistakes
- Installing a soft starter rated below the motor's full load current — the SCRs will be thermally overstressed during starting.
- Setting the current limit too low for the connected load, causing the soft starter to extend the ramp time beyond acceptable limits or stall the motor.
- Not wiring the bypass contactor, leaving the soft starter's SCRs in the running current path continuously — overheating and premature SCR failure results.
- Connecting motor power factor correction capacitors on the load side of the soft starter — this causes SCR mistriggering.
- Omitting input supply protection (fuses or MCCB) appropriate to the soft starter manufacturer's specification.
Troubleshooting
- Motor fails to accelerate to full speed within ramp time
- Cause: Load torque exceeds motor starting torque at reduced voltage, or current limit set too restrictively Fix: Increase ramp-up time setting. Increase current limit if permissible for the installation supply. If motor consistently fails to start, assess whether a VSD is a more appropriate solution for the load type.
- Soft starter displays overcurrent fault on start
- Cause: Motor current exceeds the soft starter's trip threshold — possibly DOL inrush breaking through the ramp control due to incorrect parameter settings Fix: Verify pedestal voltage setting is not too high at start of ramp. Check that the starting ramp time is adequate. Confirm motor is not mechanically seized.
- Bypass contactor does not close after start
- Cause: Bypass contactor control wiring incorrect, or soft starter's relay output not configured for bypass duty Fix: Re-check bypass relay output wiring against the soft starter's schematic. Verify relay output configuration in soft starter parameters. Test relay contact operation independently.
Frequently asked questions
What is the difference between a soft starter and a variable speed drive (VSD)?
A soft starter only controls voltage during starting and stopping. Once at full speed, the motor runs directly on line voltage. A VSD (also called a variable frequency drive or inverter) continuously varies the output frequency and voltage, allowing precise speed control throughout the entire operating range. VSDs are more expensive and complex; soft starters are the right choice when variable speed is not required.
What is a bypass contactor and why is it used?
A bypass contactor is wired in parallel with the soft starter's SCR stack. After the motor accelerates to full speed, the bypass contactor closes, connecting the motor directly to line supply and shunting current around the SCRs. This eliminates voltage drop and heat generation across the SCRs during normal running, improving efficiency and extending soft starter life.
Can a soft starter reverse a motor?
No. A soft starter controls voltage magnitude but not phase sequence. It cannot reverse a motor. If reversing is required, a separate reverse-forward contactor circuit must be installed ahead of the soft starter, and the soft starter's ramp function applies to both directions of operation.
Why does a soft starter sometimes fail to accelerate a loaded motor to full speed?
A soft starter reduces starting voltage, which reduces starting torque. If the load torque exceeds the motor's available torque at the reduced voltage, the motor will not accelerate. High-inertia or heavily loaded machines may require the ramp time or current limit settings to be adjusted, or a different starting method (star-delta or VSD) may be more appropriate.
What is 'inside-delta' soft starter connection?
For large motors with delta-wound windings, the soft starter can be inserted inside the delta — one SCR pair per winding, connected between the winding terminals rather than in the incoming supply lines. This allows the use of soft starters rated for 58% of line current, reducing cost for large motor applications.
