Solar Installation Wiring Diagram: PV Array, Inverter, Battery and Grid Connection

Solar Installation Wiring Diagram: PV Array, Inverter, Battery and Grid Connection — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable solar installation diagram: download the diagram as SVG or open it and print to paper or PDF.

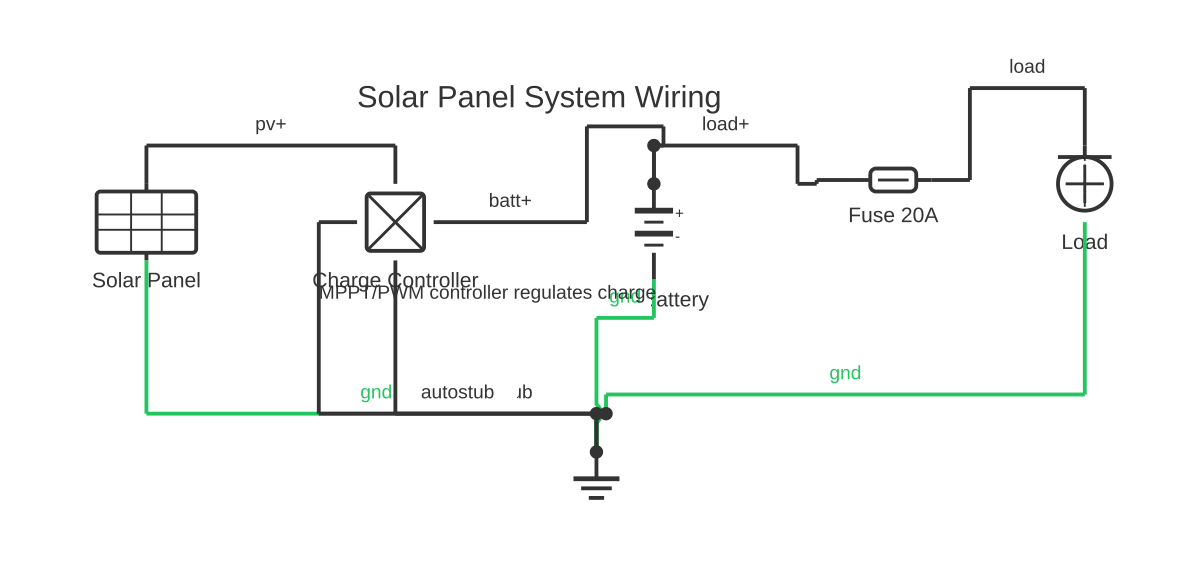

A solar installation diagram shows how PV panels, charge controllers, inverters, battery banks, and grid or load connections are wired together safely.

A solar photovoltaic (PV) installation diagram documents the electrical interconnection of all major system components from the solar array to the point of use or grid connection. The complexity of the diagram depends on the system type: grid-tied, off-grid (standalone), or hybrid.

In all PV systems, the solar array consists of individual PV modules wired in series (to form strings that increase voltage) and/or in parallel (to increase current). String voltage must remain within the maximum input voltage window of the inverter or charge controller, and must be calculated for the coldest expected ambient temperature — PV module open-circuit voltage (Voc) increases as temperature decreases.

A grid-tied system feeds the solar array DC output to a grid-tie inverter (also called a string inverter or micro-inverter). The inverter converts DC to AC at grid voltage and frequency, synchronises with the grid, and exports surplus energy. The AC output of the inverter connects through an AC isolator and generation meter to the consumer unit or distribution board. A grid-tie inverter incorporates anti-islanding protection: it disconnects automatically if the grid supply fails, preventing the hazard of back-feeding a de-energised grid (which would endanger lineworkers).

An off-grid system includes a solar charge controller (PWM or MPPT type) between the array and the battery bank. The charge controller manages the battery charging process — preventing overcharge (which damages batteries) and over-discharge. An inverter converts battery DC to AC for loads. System DC voltage is typically 12 V, 24 V, or 48 V.

A hybrid system combines grid connection with battery storage and a multi-mode inverter that can draw from and export to the grid, charge and discharge batteries, and manage PV generation simultaneously.

DC wiring uses dedicated PV (red/positive and black/negative) double-insulated cables rated for UV exposure and operating temperatures. MC4 or similar locking connectors join string cables. DC isolators must be rated for DC voltage (significantly different from AC-rated devices).

All solar installations must comply with applicable standards: IEC 62548, NEC Article 690 (USA), AS/NZS 5033 (PV arrays), AS/NZS 4777 (grid connection, Australia/NZ), and MCS standards (UK). Grid-connected systems must be installed by appropriately accredited installers.

How to wire solar installation diagram

Design and size the PV array Determine the number and configuration of PV modules. Calculate string voltage (Voc at minimum temperature) and string current (Isc). Verify both are within the inverter or charge controller's accepted input range.
Mount the PV array Install mounting rails and attach PV modules. All mounting hardware must be rated for structural loading including wind and snow loads. Earth-bond all metal mounting frames per applicable requirements.
Wire the PV strings Connect PV modules within each string using MC4 or equivalent locking connectors. Use dedicated UV-resistant, double-insulated PV cable (typically red positive, black negative). Route cables to avoid abrasion and maintain minimum bend radius.
Install and wire the DC isolator and combiner (if applicable) Mount the DC isolator at the point where the DC string connects to the inverter, accessible for emergency use. Multi-string systems use a combiner box with string fuses or combiners before the common DC isolator.
Connect the inverter Connect PV string positive and negative to the inverter DC input terminals, observing polarity. Connect inverter AC output through the AC isolator to the distribution board. Earth the inverter chassis.
Configure protection and monitoring Set inverter parameters for grid voltage and frequency limits per the applicable grid connection standard. Register the installation with the network operator where required. Connect monitoring communications (if fitted).
Commission and test Verify DC open-circuit voltage per string before connecting to the inverter. Commission the inverter per the manufacturer's procedure. Verify anti-islanding operation. Complete all required commissioning documentation.

Specifications

Standard test conditions (STC) for PV modules	1000 W/m² irradiance, 25°C cell temperature, AM1.5 spectrum
Typical residential system size	3 kWp–10 kWp (illustrative; varies by region and roof area)
DC cable standard	TUV 2 Pfg 1169 or equivalent double-insulated UV-resistant PV cable
Phantom power standard (grid-tie)	Anti-islanding per applicable grid standard (IEEE 1547, AS/NZS 4777, IEC 62116)
Typical MPPT efficiency	> 98% for quality inverters
Battery bank voltage (off-grid, typical)	12 V, 24 V, or 48 V DC
Relevant standards	IEC 62548, IEC 62446, NEC Article 690, AS/NZS 5033, AS/NZS 4777, BS 7671 Section 712

Safety warnings

PV arrays generate DC voltage whenever illuminated — including during installation, clouds, and emergency conditions. There is no way to de-energise a PV array without covering it. Treat all PV wiring as live at all times and use insulated tools.
Grid-connected solar systems must be installed by an accredited installer per applicable regulations (NEC Article 690, AS/NZS 4777, MCS in UK, or equivalent). Connection to the grid requires network operator approval.
DC arcing is sustained and does not self-extinguish. Use only DC-rated isolators, fuses, and switches. Never break a PV string circuit under load using an AC-rated device.
Battery banks in off-grid systems can deliver very high short-circuit currents. Always install correctly rated fuses at the battery terminals. Never short-circuit or work on a battery bank without appropriate PPE.
All installation must comply with applicable standards: IEC 62548, NEC Article 690, AS/NZS 5033/4777, BS 7671 with PV amendment, or applicable national regulations. All work must be carried out by a qualified and appropriately accredited electrician.

Tools needed

Calibrated DC multimeter and clamp meter
MC4 connector crimping and assembly tool
MC4 disconnect tool (for separating live connectors safely)
Insulated tools rated for DC working voltage
Torque screwdriver (for PV module and inverter terminals)
String open-circuit voltage tester
Personal protective equipment (insulated gloves, safety glasses)

Common mistakes

Connecting PV strings to the inverter DC input without first measuring string Voc — if polarity is reversed or Voc exceeds the inverter limit, the inverter can be destroyed.
Using AC-rated isolators in DC string circuits — insufficient contact gap for DC arc extinction.
Running positive and negative DC conductors in separate conduits — this creates a large loop area that increases electromagnetic interference and risk of differential fault.
Failing to calculate cold-temperature Voc — a string that appears within inverter limits at 25°C may exceed the maximum input voltage on a cold winter morning.
Not registering or notifying the grid connection with the distribution network operator, leaving the system operating without required approval.

Troubleshooting

Inverter shows DC undervoltage and does not start: Cause: String Vmp too low for inverter MPPT window, shading, failed module, or incorrect string configuration Fix: Measure string open-circuit voltage. Compare to calculated Voc for current temperature. Check all module connections and MC4 connectors for resistance. Inspect array for shading or module damage.
Inverter shows ground fault alert: Cause: Insulation failure in PV array wiring, DC cable damaged, or connector moisture ingress Fix: Isolate the DC input and measure insulation resistance of the array per IEC 62446. Inspect all MC4 connectors for moisture or damage. Identify the faulted string by testing each independently.
System generates significantly less power than expected: Cause: Shading on part of the array, soiled panels, incorrect inverter MPPT settings, or module mismatch Fix: Clean panel surfaces. Inspect for shadow sources at different times of day. Monitor individual string currents if combiner box has monitoring. Verify inverter MPPT voltage window encompasses array Vmp.

Frequently asked questions

What is MPPT and how does it differ from PWM charge control?

MPPT (Maximum Power Point Tracking) is an algorithm in a charge controller or inverter that continuously adjusts the input impedance to operate the PV array at the voltage where it produces maximum power. PWM (Pulse Width Modulation) controllers simply clamp the array voltage to near battery voltage, wasting the power difference. MPPT controllers are typically 15–30% more efficient, especially in partial shading or cold weather.

Why must DC isolators in solar systems be rated specifically for DC?

DC arcs are sustained and do not self-extinguish at current zero crossings (as AC arcs do every half cycle). DC-rated isolators have wider contact gaps and arc quenching mechanisms appropriate for DC. An AC-rated switch used in a DC circuit may arc and weld its contacts closed under load, creating a fire hazard.

What is anti-islanding protection?

Anti-islanding protection is a safety function in grid-tie inverters that detects the loss of the grid supply and disconnects the inverter from the grid within the time specified by the applicable standard (typically 0.2–2 seconds). This prevents the inverter from energising de-energised grid conductors, which would endanger utility workers attempting to restore supply.

How is string voltage calculated for a PV array?

Multiply the open-circuit voltage (Voc) per panel by the number of panels in series. Voc must be calculated at the minimum expected temperature, as PV Voc increases with decreasing temperature using the temperature coefficient specified on the module datasheet. The calculated cold-temperature Voc must not exceed the inverter's maximum DC input voltage.

What earthing is required in a solar installation?

Requirements vary by system type and jurisdiction. Grid-tied inverters in most jurisdictions require the inverter chassis earthed to the main earthing conductor. Some systems require array frame earthing bonding. PV string negative conductors may be earthed or unearthed depending on system design and inverter type. Applicable standards (NEC 690, AS/NZS 5033) must be followed.
