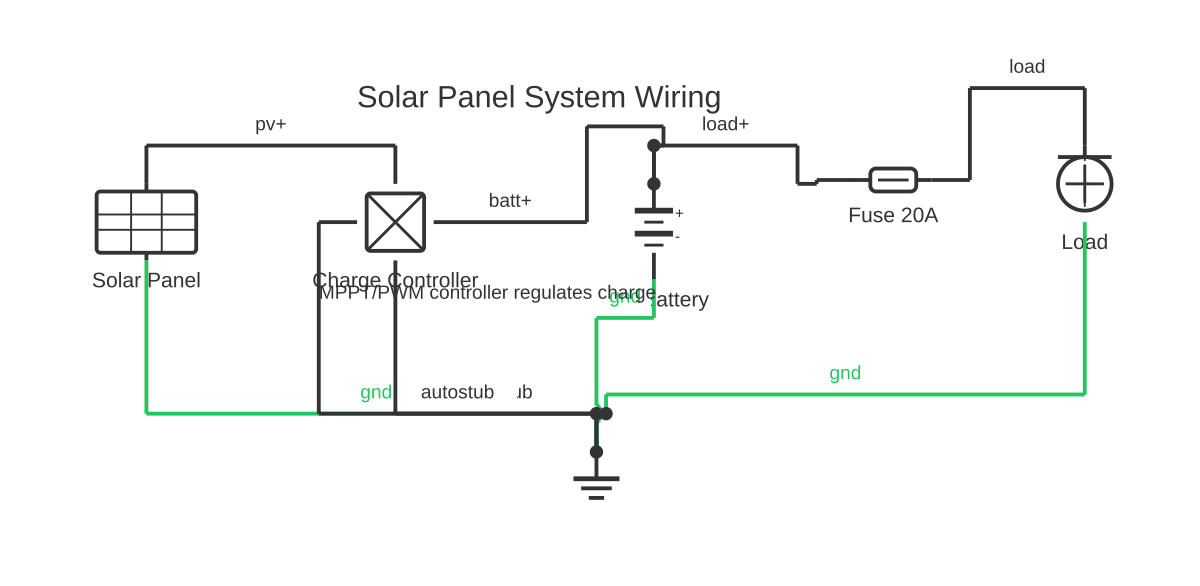

Solar Panel Circuit Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable solar panel circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

A solar panel circuit diagram shows how photovoltaic panels, charge controllers, batteries, and inverters connect to generate, store, and deliver solar electricity in off-grid or grid-tied systems.

A solar photovoltaic (PV) system converts sunlight into usable electricity through a chain of components, each with a specific function. The wiring between these components — and the electrical characteristics at each point in the chain — differ significantly between system types and must be designed correctly to ensure safety, efficiency, and regulatory compliance.

The solar panel (or array of panels) is the generation source. Each panel is a collection of silicon photovoltaic cells that produce direct current (DC) when illuminated. Individual panels are wired in series to increase voltage, in parallel to increase current capacity, or in series-parallel combinations to achieve the required array voltage and current for the charge controller or inverter input. In a typical 12 V battery system, two 12 V nominal panels are wired in series to produce 24 V for a 24 V system, or a single panel feeds a 12 V system.

In an off-grid (standalone) system, the array output connects to a solar charge controller, which regulates the charging of the battery bank. PWM (pulse-width modulation) charge controllers are simpler and less expensive but require the panel array voltage to be close to the battery voltage. MPPT (maximum power point tracking) charge controllers are more sophisticated and can accept a wider range of array voltages, extracting more energy from the panels especially in cool, partly cloudy conditions — the efficiency advantage of MPPT over PWM is typically 10–30% in real-world conditions. The battery bank stores energy for use when there is no sun. An inverter converts the battery's DC voltage to AC voltage for appliances.

In a grid-tied system, there is no battery. The panel array connects directly to a grid-tied inverter, which converts DC to AC at grid frequency and voltage, and synchronises with the grid. Grid-tied inverters must comply with strict anti-islanding requirements that shut them down if the grid fails, preventing backfeed to the grid during an outage.

All solar PV systems must comply with applicable electrical standards. Grid-tied systems require network approval from the utility company. Installation must be carried out by a licenced electrician; in many jurisdictions, grid-tied installations require a licenced solar installer with specific accreditation.

How to wire solar panel circuit diagram

Determine the system type and load requirements Decide whether the system is off-grid (with battery storage), grid-tied (no battery, feeds excess to grid), or hybrid (battery backup plus grid connection). Calculate the daily energy consumption in watt-hours (Wh) by listing all loads, their wattage, and hours of use per day. This determines battery capacity (for off-grid), panel array size, and inverter rating.
Size the solar panel array Divide the daily energy requirement (Wh) by the system efficiency factor (typically 0.75–0.85 to account for losses) and by the number of peak sun hours per day at your location to get the required array peak watt (Wp) rating. Select individual panels and determine the series and parallel configuration needed to meet the charge controller or inverter input voltage and current requirements. Verify the array open-circuit voltage (Voc) at the lowest expected temperature does not exceed the controller's maximum input rating.
Size the battery bank (off-grid systems) Determine the number of days of autonomy required (typically 1–3 days for most applications) and the maximum depth of discharge for the battery type (50% for lead-acid; 80–90% for LiFePO4). Divide the required Wh by the usable capacity percentage and by the battery nominal voltage to get the required amp-hour (Ah) capacity. Select a battery bank configuration (series for voltage, parallel for capacity) to achieve the target voltage and Ah.
Select and size the charge controller For an MPPT controller, the array's maximum power current (Imp) determines the required controller current rating. Divide the array's total watt-peak by the battery bank nominal voltage and multiply by 1.25 for a safety margin: this is the minimum controller current rating. Verify the controller's maximum input voltage exceeds the array's Voc at the minimum expected temperature. For a PWM controller, the array voltage must be close to the battery nominal voltage.
Run and size DC cables DC cable sizing in solar systems must account for voltage drop (which reduces system efficiency), maximum current, and short-circuit protection. For the array-to-controller run, the maximum current is the array's short-circuit current (Isc). Use a voltage drop calculator for the cable run length; restrict voltage drop to 1–3% for array cables and battery cables. Use DC-rated cable throughout the DC portion of the system — standard AC cable may not be rated for DC faults.
Install overcurrent protection and disconnects Install fuses or DC circuit breakers at every overcurrent protection point required by the applicable PV code: at the array output (per string if parallel strings are used), between the array and the charge controller, between the charge controller and the battery, and between the battery and the inverter. Provide a DC isolator at the array (for safe maintenance and emergency shutdown) and at the charge controller or inverter input.
Commission and test the system Before connecting the array, verify polarity of all connections — reversed polarity at the charge controller or inverter will damage or destroy the device. Connect the battery to the charge controller first (always before connecting the array), then connect the array. Verify the charge controller's display shows the correct array and battery voltage. For grid-tied systems, commissioning must be performed by an accredited installer and may require utility company inspection and grid connection approval.

Specifications

Standard test conditions (STC) irradiance	1000 W/m² at 25°C cell temperature — this is the condition at which panel power ratings are measured
Typical Voc temperature coefficient (crystalline silicon)	Approximately -0.3% to -0.5% per °C (Voc increases as temperature decreases)
Maximum DC system voltage (residential, most jurisdictions)	600 V DC (some jurisdictions permit 1000 V DC)
Recommended voltage drop limit (array cables)	1–3% maximum
Typical MPPT charge controller efficiency	93–99% depending on model and operating conditions
AC output frequency (grid-tied and off-grid inverters)	50 Hz (UK/AU/EU) or 60 Hz (North America)
AC output voltage (inverter)	230 V AC (UK/AU/EU) or 120 V / 240 V AC (North America)
Applicable standards	IEC 62548, IEC 60364-7-712, AS/NZS 5033, AS 4777, NEC Article 690

Safety warnings

Solar panel arrays produce DC voltage whenever exposed to light — they cannot be switched off by removing a fuse or opening a breaker at the array DC isolator alone; the panels continue to generate voltage at open-circuit (Voc). Always treat solar array DC wiring as live whenever panels are illuminated. Cover panels with opaque material before working on DC wiring in the array.
DC electrical faults are more hazardous to extinguish than AC faults because DC current does not cross zero — arcs at DC connections are self-sustaining and can cause fires. Use only DC-rated fuses, breakers, disconnects, and cables throughout the DC portion of the system. Never use AC-rated protective devices on DC solar circuits.
Grid-tied solar inverter installation requires utility company approval and grid connection documentation in most jurisdictions. Unauthorised grid connection is illegal, voids equipment warranties, creates a danger to utility workers, and may result in significant financial penalties. Engage an accredited solar installer for grid-tied system commissioning.
Lithium battery banks (LiFePO4 and other lithium chemistries) require a battery management system (BMS) to prevent overcharge, over-discharge, and thermal runaway. Never charge a lithium battery bank without a functioning BMS from a charger that has not been configured for the specific battery chemistry. Thermal runaway in a lithium battery is a fire emergency.
All solar PV installations must comply with applicable standards: IEC 62548 and IEC 60364-7-712 (international), AS/NZS 5033 and AS 4777 (Australia), NEC Article 690 (USA), BS EN 50618 / BSEN 62548 (UK). Installation must be carried out by a licenced electrician; grid-tied systems additionally require a licenced solar installer with Clean Energy Council (Australia) or equivalent accreditation.
