Solar System Wiring Diagram

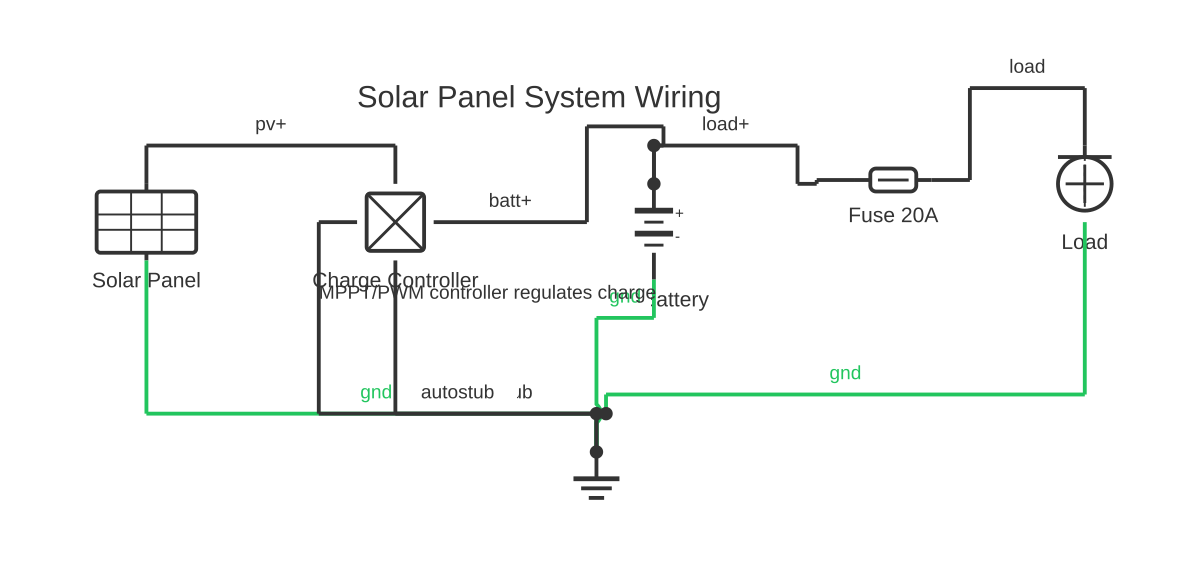

Solar System Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable solar system wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A solar system wiring diagram maps every electrical connection from photovoltaic panels through charge controllers, batteries, inverters, and loads — showing polarity, wire gauges, and protection devices in a single reference.

A solar photovoltaic (PV) wiring diagram is a schematic representation of the complete electrical pathway that converts sunlight into usable AC or DC power. Understanding this diagram is essential before purchasing components, commissioning an installer, or troubleshooting a fault.

At the highest level, a solar system consists of four interconnected subsystems:

1. PV Array — one or more series and parallel strings of solar panels generating DC voltage. Panels wired in series increase the string voltage (Voc adds); panels wired in parallel increase the current (Isc adds). A typical residential string operates between 150 V and 600 V DC.

2. Charge Controller or MPPT Inverter — the device that conditions raw panel output. A Maximum Power Point Tracking (MPPT) charge controller continuously adjusts its input impedance to harvest maximum available power regardless of battery state or temperature. A string inverter performs MPPT and converts DC directly to grid-frequency AC.

3. Battery Bank (off-grid and hybrid systems) — stores energy for use when panels are not producing. Batteries are wired in series to increase voltage (12 V, 24 V, 48 V banks are common) and in parallel to increase capacity (Ah). Cabling between battery cells must be symmetrical to equalise resistance and prevent imbalanced discharge.

4. Inverter/Charger and Load Centre — converts battery DC to household AC, manages grid interaction in hybrid systems, and distributes power to branch circuits through a sub-panel or main switchboard.

Protection devices are mandatory at every boundary: string fuse or circuit breaker at each PV string combiner, DC disconnect between array and inverter, battery fuse as close to the positive terminal as physically possible (within 150 mm per NEC 690), AC disconnect between inverter and load panel, and a surge protective device (SPD) on both DC and AC sides.

Wire sizing follows ampacity tables in the relevant code (NEC, BS 7671, AS/NZS 3000, IEC 60364) derated for conduit fill, ambient temperature, and continuous-load rules (125% for PV circuits under NEC 690.8). Use UV-resistant, dual-rated PV wire (USE-2 or PV Wire in North America; H1Z2Z2-K in Europe) for any outdoor or rooftop run.

How to wire solar system wiring diagram

Determine system voltage and capacity Choose your nominal battery bank voltage (12 V for very small systems, 24 V for mid-size, 48 V for most residential off-grid and hybrid systems). Calculate daily load in Wh, add autonomy days, and divide by depth-of-discharge to find required battery capacity. System voltage determines string configuration and cable sizing.
Design the PV array string configuration Check the MPPT input voltage window of your charge controller or inverter. Calculate minimum string Voc at maximum cold temperature (Voc × temperature correction factor) and maximum string Vmp at maximum hot temperature. Ensure the string operates within the MPPT window across the full temperature range. Record string Isc for fuse selection.
Size all cables for ampacity and voltage drop For each cable segment (panel-to-combiner, combiner-to-controller, controller-to-battery, inverter-to-load panel), calculate maximum current, derate for installation method and temperature, apply the 125% continuous-load factor for PV circuits, and select the next larger standard cable size. Limit voltage drop to 2% for each segment (3% total system maximum is a common design target).
Select and position all overcurrent protection devices Install a fuse or circuit breaker at each string output in the combiner box, rated at 156% of string Isc (NEC 690.9). Place a DC-rated circuit breaker between the combiner and the charge controller, and another between the battery bank and the inverter. Confirm all devices carry a DC voltage rating at or above system voltage — AC-rated breakers are not safe for DC applications.
Install surge protective devices on DC and AC sides Mount a DC SPD (Type 1 or Type 2 per IEC 61643) at the combiner box and at the inverter DC input. Install an AC Type 2 SPD at the inverter AC output or the main distribution board. SPDs protect against lightning-induced surges travelling down the array cables and from the grid.
Ground and bond the system Bond all metallic equipment enclosures (panel frames, racking, inverter chassis) to the equipment grounding conductor (EGC). For transformerless inverters follow the manufacturer's grounding instructions precisely, as many require the negative PV conductor to remain ungrounded. Connect the EGC to the main earth electrode system. Verify with an earth resistance test (target <1 Ω for lightning protection, <10 Ω for general safety).
Test before energising With the battery disconnect open and the AC disconnect open, use a multimeter to verify each string's open-circuit voltage and polarity before connecting to the combiner. Check insulation resistance between DC conductors and earth (minimum 1 MΩ per IEC 60364-6). Then energise the battery, confirm charge controller or inverter powers up cleanly, close the AC disconnect, and monitor system parameters — voltage, state of charge, and charge current — for the first full day.

Specifications

Typical residential off-grid system voltage	48 V DC nominal battery bank
PV string typical Voc range (MPPT inverter input)	150 V to 600 V DC depending on inverter model
Cable sizing continuous-load derate factor (NEC 690.8)	125% of calculated maximum current for all PV source circuits
Minimum insulation resistance (IEC 60364-6)	≥ 1 MΩ between all conductors and earth
Maximum recommended voltage drop per cable segment	2% (3% total from panels to load panel)
Battery fuse maximum distance from positive terminal (NEC 690)	Within 150 mm (approximately 6 inches)
Earthing electrode resistance target	< 10 Ω general safety; < 1 Ω for effective lightning protection
PV wire outdoor rating required	USE-2 or PV Wire (North America); H1Z2Z2-K (Europe); UV-resistant double-insulated

Safety warnings

Solar PV panels generate dangerous DC voltage whenever exposed to light — they cannot be switched off by disconnecting them from the circuit. Always cover panels with opaque sheeting before working on the array side of the system, and treat all PV conductors as live at all times.
DC arc faults are significantly more hazardous than equivalent AC faults because DC current does not pass through zero volts and will sustain an arc that can cause fire. Only use components (breakers, fuses, disconnects, connectors) rated for the system DC voltage. Never use AC-only rated devices in DC circuits.
High-capacity battery banks store enormous energy independently of the PV array. Before working on battery connections, confirm the battery main disconnect is open, wear insulated gloves, use insulated tools, and remove all conductive jewellery. A short circuit across a large battery bank can deliver tens of thousands of amps — enough to vaporise tools and cause severe burns.
All solar PV installations must comply with the applicable local electrical code (NEC Article 690 in the USA, BS 7671 with MCS guidance in the UK, AS/NZS 5033 and AS/NZS 4509 in Australia/New Zealand, or IEC 60364-7-712 elsewhere). In most jurisdictions, grid-connected systems must be designed, installed, inspected, and signed off by a licensed electrician or registered installer.
Lithium iron phosphate (LiFePO4) and other lithium battery chemistries require a Battery Management System (BMS) to prevent overcharge, over-discharge, and cell imbalance. Never connect lithium cells without a functioning BMS in circuit. Thermal runaway, though less likely with LiFePO4 than other lithium chemistries, remains a risk if cells are damaged, overcharged, or subjected to extreme temperatures.

Tools needed

Digital multimeter with DC voltage and current capability
Clamp meter (DC capable) for measuring string and battery currents
Insulation resistance tester (megohmmeter) — minimum 500 V DC test voltage
Crimping tool for MC4 PV connectors and cable lugs (use the correct die set for each connector type)
Cable stripper and wire cutter rated for the cable sizes in use
Torque screwdriver or wrench — terminal torque specifications are critical for reliable connections
Earth resistance tester for verifying earthing electrode resistance
Personal protective equipment: insulated gloves (Class 00 minimum for PV work), safety glasses, and arc-flash face shield for battery work

Common mistakes

Mixing panel models with different Isc values in the same parallel string — the string with higher Isc will be clamped by the lower-rated panels, wasting generation capacity and potentially causing reverse current issues.
Using non-UV-rated general-purpose cable for outdoor PV string wiring — standard PVC insulation degrades rapidly under UV exposure and can fail within a few years, creating a shock and fire hazard.
Installing an AC-rated circuit breaker in the DC side of the system — AC breakers are not rated to interrupt DC current at the same voltage and may fail to clear a fault, sustaining a dangerous arc.
Running positive and negative conductors of the same string in separate conduits — separating DC conductors creates a large inductive loop that increases susceptibility to lightning-induced surges and can increase electromagnetic interference.
Failing to account for temperature correction when calculating string voltage — PV Voc increases significantly at low temperatures. A string that is safely within the inverter's input window at 25°C can exceed the inverter's maximum input voltage on a cold clear winter morning, causing damage or shutdown.
Not labelling all DC conductors at both ends with polarity and string identification — in a multi-string system, unlabelled cables make fault-finding dangerous and time-consuming, and increase the risk of incorrect reconnection after maintenance.

Troubleshooting

Charge controller or inverter showing low or zero PV input voltage: Cause: Open circuit in string wiring, blown string fuse, failed MC4 connector, or panel shading/soiling Fix: With DC disconnect open, measure Voc at each string's combiner terminals using an insulated multimeter. Compare to the expected series string voltage at current temperature. A string reading zero has an open circuit — check each connector and fuse individually. A string reading lower than expected may have a shaded or failed panel — measure Voc across each panel in the string.
Battery not reaching full charge despite adequate sunlight: Cause: Undersized array for the load, charge controller MPPT set to wrong battery voltage or chemistry, battery nearing end of life, or high parasitic loads during the day Fix: Log daily generation (kWh) from the charge controller and compare it to the theoretical yield for the installed panel capacity and your location's peak sun hours. If generation is close to theoretical but battery does not reach float, the battery bank capacity may be undersized for the load, or individual cells may have degraded capacity. Check charge controller battery type and voltage settings match the actual battery.
Inverter trips or shuts down under load: Cause: Battery voltage sagging below the inverter's low-voltage cutoff threshold due to undersized battery bank, undersized cable between battery and inverter, or a failing battery cell Fix: Connect a DC clamp meter and multimeter to the battery simultaneously. Apply a known load and observe: if battery voltage drops sharply (more than 0.5 V per 100 Ah at moderate load), check the cable cross-section and terminal connections between battery and inverter first — a loose lug or undersized cable causes significant voltage drop under load. If cabling checks out, the battery bank may need capacity testing.
Ground fault indicator active on inverter or combiner: Cause: Moisture ingress into a junction box or MC4 connector, damaged cable insulation contacting metalwork, or a failed panel cell creating an insulation fault Fix: Open all disconnects and perform an insulation resistance test between each conductor and earth using a megohmmeter set to 500 V DC. A reading below 1 MΩ indicates a leakage path. Systematically disconnect string sections to isolate the fault location. Once isolated, inspect connectors and conduit entry points for moisture, and the panel surface for visible damage.
Significant difference in output between two parallel strings: Cause: Partial shading on one string, a failed bypass diode within a panel, a high-resistance MC4 connector, or a blown string fuse passing some current Fix: Measure each string's Isc individually at the combiner (short the string through a DC clamp meter). A string with significantly lower Isc than others has a problem. Check for physical shading first, then measure Voc across each panel in the lower-performing string — a panel with a failed bypass diode may show reduced Voc. Check all MC4 connectors by comparing resistance with an insulated contact thermometer during operation — a failing connector will be noticeably warmer.

Frequently asked questions

What is the difference between series and parallel wiring in a solar panel array?

Wiring panels in series adds their voltages together while keeping current the same as a single panel. Wiring them in parallel keeps voltage the same as one panel but adds their currents. Most MPPT charge controllers and string inverters accept higher-voltage series strings because higher voltage allows thinner, longer cable runs with lower resistive losses.

Where must the main DC fuse or circuit breaker be placed in a solar system?

Overcurrent protection must be installed as close as practicable to the positive battery terminal — within 150 mm (about 6 inches) is the NEC 690 guideline — to protect the entire length of cable between the battery and the charge controller or inverter. An unfused battery cable of any meaningful length is a serious fire risk.

What wire gauge should I use for my solar panels?

Wire size depends on the maximum short-circuit current (Isc) of the string, derated for conduit fill and ambient temperature, then multiplied by 1.25 for the continuous-duty solar load rule. As a starting point, 10 AWG (6 mm²) PV wire handles up to about 30 A in typical rooftop conditions. Always calculate for your specific array and verify against the local wiring code before installation.

Do I need a separate charge controller if my inverter has MPPT built in?

No. Modern hybrid and string inverters with integrated MPPT circuitry replace a standalone charge controller for the panels connected to them. However, if you have a second independent panel source or a wind turbine input, a separate controller may still be required for that additional input channel.

What is an AC disconnect in a solar system and is it required?

An AC disconnect (also called an AC isolation switch) is a manually operated switch that de-energises the inverter's AC output from the grid and load panel. It allows utility workers and emergency responders to safely isolate the solar system. It is mandatory under most codes including NEC 690.13, AS/NZS 5033, and IEC 62109, and must be lockable in the open position.
