Star-Delta Forward-Reverse Wiring Diagram

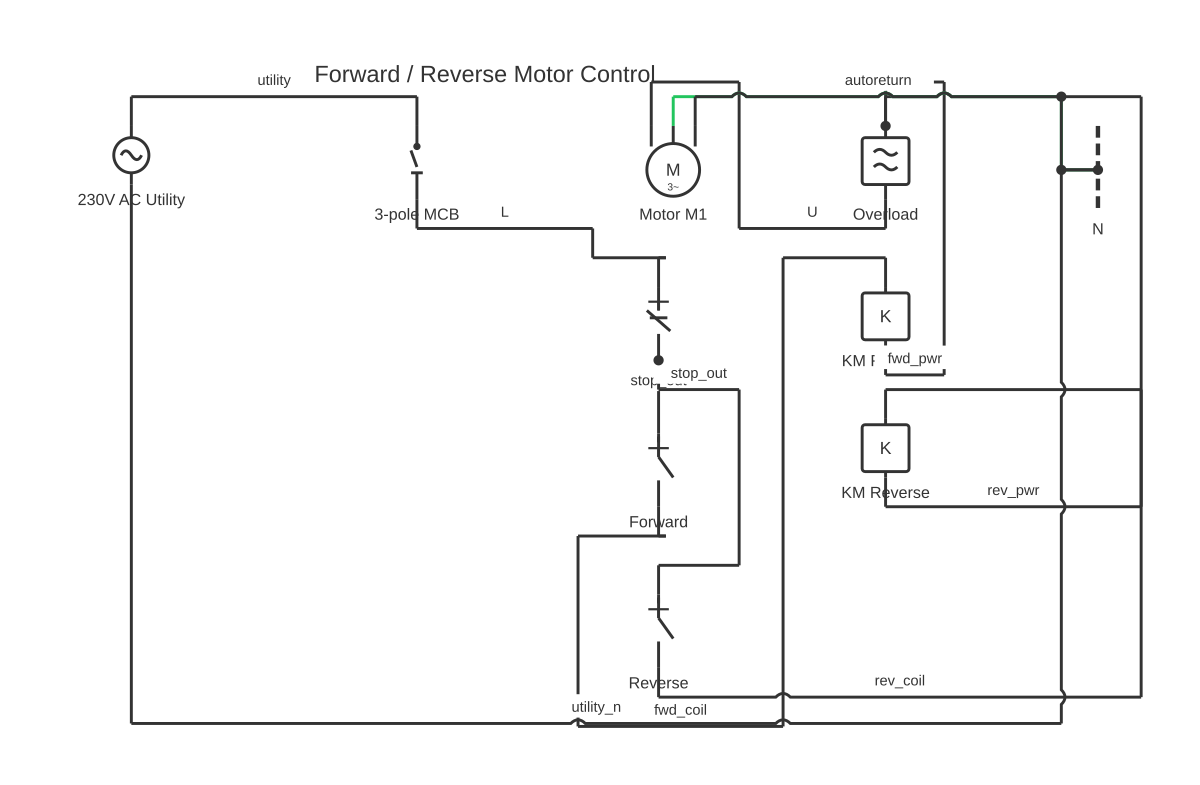

This is a free printable star delta forward reverse: download the diagram as SVG or open it and print to paper or PDF.
A star-delta forward-reverse circuit combines a star-delta soft-start with a reversing contactor arrangement, using mechanical and electrical interlocks to prevent catastrophic phase shorting and protect the motor across all operating modes.
A star-delta forward-reverse starter is one of the most demanding standard motor control circuits in industrial practice. It merges two distinct functions — reduced-voltage starting via star-delta transition and bidirectional running via forward/reverse contactor pairs — into a single control scheme with multiple layers of interlocking.
The power circuit requires a minimum of five contactors in most implementations:
- Forward Main Contactor (KM-F): connects the motor terminals U1/V1/W1 to phases L1/L2/L3 in the forward phase sequence. - Reverse Main Contactor (KM-R): connects motor terminals to the supply with two phases swapped (typically L1↔L3), reversing the rotating magnetic field and therefore the direction of rotation. KM-F and KM-R must be mechanically interlocked so that energising one physically prevents the other from closing. - Star Contactor (KM-Y): connects motor terminals U2/V2/W2 together through a star point, configuring the winding in wye during starting. This reduces the voltage across each winding to 58% of line voltage (1/√3), reducing starting current and torque to approximately one-third of direct-on-line values. - Delta Contactor (KM-Δ): connects motor terminals in a closed delta configuration for running. U2 to W1, V2 to U1, W2 to V1 is the standard delta connection. KM-Y and KM-Δ must be both mechanically and electrically interlocked to prevent simultaneous closure, which would create a dead short across two phases. - A timer relay (KT) controls the star-to-delta transition, typically set for 5–10 seconds for most standard induction motors, chosen to allow the motor to accelerate to approximately 70–80% of synchronous speed in star before the delta transition.
The control circuit uses electrical interlocking (normally-closed auxiliary contacts wired in series with each opposing contactor's coil circuit) in addition to mechanical interlocks. This redundancy is mandatory because a single mechanical interlock failure with high-voltage contactors can cause phase-to-phase faults.
Forward-reverse changeover must not occur while the motor is running in delta. A timer or speed monitoring relay that enforces a minimum stop time before direction reversal is required. Attempting to reverse a motor at full speed without this interlock produces extremely high currents and severe mechanical shock loads on the drive shaft and connected machinery.
How to wire star delta forward reverse
- Verify motor suitability and nameplate data Confirm the motor is a three-phase squirrel-cage induction motor with all six terminal leads brought out to the terminal box (U1, V1, W1, U2, V2, W2). Check that the motor nameplate delta voltage matches the supply voltage — a motor rated 400 V delta / 690 V star must be used on a 400 V supply for star-delta starting. Do not use star-delta starting on a motor with only three terminals or one already internally delta-connected.
- Size and select all five contactors and the overload relay The forward (KM-F) and reverse (KM-R) main contactors must be sized for the motor's full-load current (FLC) in delta. The star contactor (KM-Y) carries 58% of line current (1/√3 × FLC) and may be one size smaller. The delta contactor (KM-Δ) carries 58% of line current in normal operation. Select AC-3 utilisation category contactors for squirrel-cage motor loads. Install a thermal overload relay in the main supply line, set to the motor's FLC.
- Wire the power circuit Connect the three-phase supply (L1, L2, L3) through the main circuit breaker and overload relay to the forward contactor (KM-F) main poles. Wire the reverse contactor (KM-R) in parallel with KM-F main poles, with two phases (typically L1 and L3) transposed on the load side. Wire the common load side (motor terminals U1, V1, W1) to the delta contactor (KM-Δ) and from there to the star contactor (KM-Y) for the star point (U2, V2, W2). Follow the motor manufacturer's terminal diagram precisely for delta connections.
- Install mechanical interlocks between contactors Fit mechanical interlock accessories between: (a) KM-F and KM-R — prevents simultaneous closure of forward and reverse contactors. (b) KM-Y and KM-Δ — prevents simultaneous closure of star and delta contactors. Mechanical interlocks are physical bars or levers supplied by the contactor manufacturer for use between contactors of the same frame size. Do not substitute with only electrical interlocking.
- Wire the electrical interlocks in the control circuit In the control circuit at 24 V AC/DC (or 110 V AC, depending on system design): wire a normally-closed auxiliary contact of KM-R in series with the KM-F coil circuit; wire a normally-closed auxiliary contact of KM-F in series with the KM-R coil circuit. Wire a normally-closed auxiliary contact of KM-Δ in series with the KM-Y coil circuit; wire a normally-closed auxiliary contact of KM-Y in series with the KM-Δ coil circuit. These contacts ensure that energising one contactor coil immediately de-energises the other through the control circuit, in addition to the mechanical interlock.
- Wire the timer relay and star-delta transition logic Connect the timer relay (KT) coil in parallel with the KM-F (or KM-R for reverse start) coil, so the timer begins timing when the main contactor energises. Wire the normally-closed timed contact of KT in series with the KM-Y coil circuit — this opens when the timer expires, de-energising the star contactor. Wire the normally-open timed contact of KT (or an instantaneous contact of KM-Y through an intermediate relay) to energise KM-Δ after the star contactor has fully opened.
- Commission, test, and verify interlocks before full-load operation Before connecting the motor, apply control voltage only and manually actuate each pushbutton to verify: (a) forward and reverse contactors cannot close simultaneously, (b) star and delta contactors cannot close simultaneously, (c) the timer correctly sequences the star-to-delta transition, (d) the stop button de-energises all contactors. Then connect the motor unloaded and run a full start-stop cycle in both directions, measuring starting current with a clamp meter to confirm star and delta current levels are as expected.
Specifications
| Star mode voltage across each winding (line-to-line supply voltage V_L) | V_L / √3 = 57.7% of line voltage (e.g., 231 V on a 400 V supply) |
|---|---|
| Star mode starting current vs. DOL starting current | Approximately 1/3 of direct-on-line starting current |
| Star mode starting torque vs. DOL starting torque | Approximately 1/3 of direct-on-line starting torque |
| Typical star-to-delta transition timer setting | 5–10 seconds for most standard four-pole squirrel-cage induction motors |
| Transition pause (star open to delta close) | Minimum 50–100 ms to allow star contactor arc to extinguish fully |
| Contactor utilisation category for motor loads | AC-3 (squirrel-cage motors: making at locked-rotor current, breaking at full-load current) |
| Minimum motor terminal arrangement required | Six terminals accessible: U1, V1, W1 (supply end) and U2, V2, W2 (neutral end) |
| Applicable standards | IEC 60947-4-1 (motor starters), IEC 60364 (installation), NEC Article 430 (USA), BS 7671 (UK) |
Safety warnings
- Star-delta forward-reverse starters operate at mains voltage (typically 400 V three-phase in European systems, 480 V in North American industrial systems). All installation, commissioning, and maintenance work must be performed by a qualified electrician or instrumentation and control technician with the appropriate licence and competency for the jurisdiction. Isolation, verification-dead, and locking-off (lockout/tagout per IEC 60079-14 safe isolation procedure or equivalent) is mandatory before any work on the power circuit.
- Attempting to reverse the motor direction while the motor is still running at full delta speed without an adequate time delay causes a brief period where the motor and the reversing supply are out of phase by up to 180 degrees electrical. The resulting current surge can be several times the direct-on-line starting current and causes severe mechanical shock. Always ensure a timed stop delay is enforced in the control circuit before a direction reversal is permitted.
- The simultaneous closure of the star and delta contactors, or the simultaneous closure of the forward and reverse contactors, creates a phase-to-phase short circuit. Both mechanical AND electrical interlocks must be installed, tested, and verified to be functional before the power circuit is energised for the first time. Never rely on software or PLC logic alone as the sole interlock for high-voltage contactor circuits.
- Motor overload protection must be set correctly to the motor's nameplate full-load current. An overload relay set too high will fail to protect the motor during extended star mode if the load torque is too high, potentially causing winding overheating and insulation failure without tripping.
- All work on this type of control panel must comply with applicable electrical installation standards including IEC 60364, NEC Article 430 (motors), BS 7671, or the relevant national equivalent. Panel design must also comply with IEC 60947-4 (low-voltage switchgear and controlgear for motor starters).
Tools needed
- Insulated screwdrivers (flat and cross-head) for terminal connections
- Digital multimeter with AC voltage and continuity functions
- DC clamp meter capable of measuring three-phase AC motor starting current peaks
- Wire ferrule crimping tool and assorted ferrule sizes for control wiring terminations
- Cable strippers for 0.75 mm² to 4 mm² control cable
- DIN rail and panel layout tools for enclosure assembly
- Lockout/tagout (LOTO) padlock and hasp set for safe isolation
- Phase sequence indicator meter for verifying supply phase rotation
Common mistakes
- Wiring the delta contactor connections to the wrong motor terminals — the delta connection bridges U2 to W1, V2 to U1, and W2 to V1. Using any other combination creates a broken delta or a partial short circuit that burns the motor.
- Omitting the transition pause between opening the star contactor and closing the delta contactor — if the delta contactor closes before the star contactor arc has fully extinguished, the result is a phase-to-phase fault through the star contactor's still-conducting arc.
- Setting the overload relay based on the motor's star-mode current rather than its delta full-load current — the overload relay must be set to protect the motor in its running (delta) state, not its starting state.
- Using AC-1 rated contactors instead of AC-3 rated contactors — AC-1 contactors are rated for resistive loads and cannot interrupt the inductive current of a motor circuit reliably. AC-3 contactors are rated for making and breaking squirrel-cage motor currents.
- Relying on a PLC output as the sole interlock between forward and reverse contactors — software interlocks can fail, have scan-cycle delays, or behave unexpectedly on power-up. Hardware mechanical and electrical interlocks are mandatory and independent of any programmable control.
Troubleshooting
- Motor does not transition from star to delta — stays in star until overload trips
- Cause: Timer relay KT has not energised, is set to too long a period, or the timed contact has failed. Alternatively, the delta contactor coil circuit has an open — often a blown fuse in the control circuit or a failed NC auxiliary contact on the star contactor Fix: With the circuit de-energised and isolated, check continuity of the KT coil circuit and verify the timer contacts operate (on-delay normally-open contact must close after the set period). Check continuity of the delta contactor coil circuit including the NC auxiliary contact of KM-Y that is wired in series. Replace the timer or the relevant auxiliary contact block as required.
- Motor runs in one direction only — forward or reverse command has no effect
- Cause: The mechanical or electrical interlock for the inactive direction contactor is permanently preventing it from closing, or the pushbutton or coil circuit for that direction has an open circuit Fix: Verify the mechanical interlock mechanism between KM-F and KM-R is moving freely and not damaged. Check the NC auxiliary contact of the active direction contactor is opening and closing correctly — if it is welded closed, it permanently blocks the opposing coil. Confirm the inactive pushbutton's continuity with a multimeter in continuity mode.
- Overload relay trips during star mode before transition
- Cause: The load torque demand exceeds what the motor can develop in star at this supply voltage, causing the motor to stall. Alternatively, the overload relay is set to a current value lower than the motor's star-mode current draw Fix: Confirm the driven load can be started without torque applied (unloaded start) — if the motor accelerates freely unloaded, the load breakaway torque is too high for star-delta starting and a different starting method (soft-starter, VFD) is required. If the motor stalls even unloaded, check supply voltage — a low voltage condition significantly reduces available starting torque.
Frequently asked questions
Why must the star and delta contactors be both mechanically and electrically interlocked?
If both the star contactor and delta contactor close simultaneously, they create a direct phase-to-phase short circuit through the motor windings. The resulting fault current is catastrophic — it will destroy the contactors, damage the motor, and can cause a fire. Mechanical interlocks prevent simultaneous operation even if both coils are accidentally energised. Electrical interlocks (NC auxiliary contacts in series with the opposing coil) provide a second independent layer of protection.
How is motor direction reversed in a star-delta forward-reverse circuit?
Direction is reversed by swapping any two of the three supply phases at the motor terminals. The forward contactor connects L1-L2-L3 to motor terminals U1-V1-W1. The reverse contactor connects the supply with two phases transposed — for example L3-L2-L1 — creating the opposite phase rotation sequence, which reverses the rotating magnetic field inside the stator and reverses torque direction.
What is the correct sequence of contactor operation in a forward star-delta start?
The correct sequence is: (1) Close forward main contactor KM-F. (2) Simultaneously close star contactor KM-Y — motor starts in star. (3) Timer relay KT times out (typically 5–10 seconds). (4) Open star contactor KM-Y. (5) After a brief pause of 50–100 ms to allow star contactor to fully open. (6) Close delta contactor KM-Δ — motor runs in delta. Steps 4 and 6 must never overlap.
What happens if the star-to-delta transition is too fast or too slow?
If the transition is too fast (motor not yet near synchronous speed in star), the delta switch-in creates a current surge almost as large as direct-on-line starting, defeating the purpose of the starter. If the transition is too slow, the motor may have reached synchronous speed in star and will be running lightly loaded — the transition in this case is smooth but the extended low-torque period may have allowed the driven load to decelerate if the motor was not yet at full star torque for the load.
Is star-delta forward-reverse suitable for all motor loads?
No. Star-delta starting requires the load torque at start to be less than approximately one-third of the motor's direct-on-line starting torque, because starting torque is reduced by the same factor as starting current. High-breakaway-torque loads such as loaded conveyors, positive-displacement compressors, or heavily laden hoists may stall in star mode. These loads typically require an auto-transformer starter, soft-starter, or variable frequency drive instead.
