Supercharger Diagram

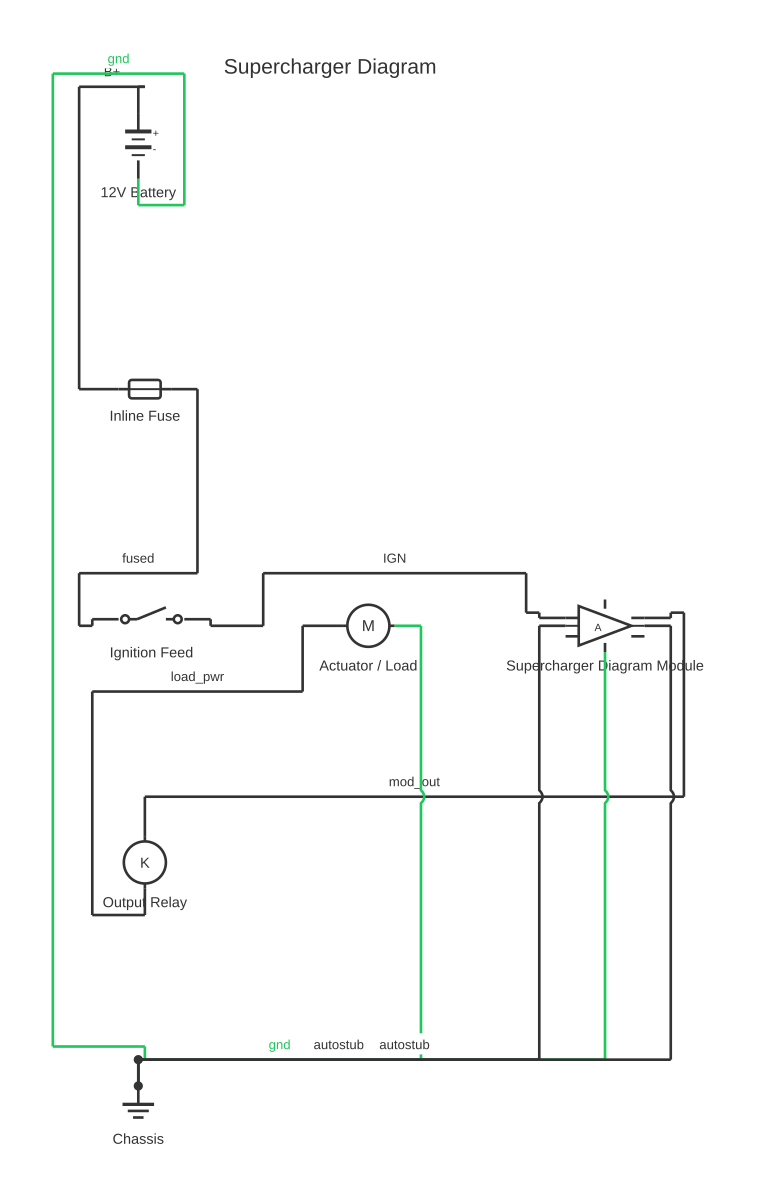

This is a free printable supercharger diagram: download the diagram as SVG or open it and print to paper or PDF.
A general reference diagram covering engine supercharger types, forced-induction airflow paths, bypass valve operation, and electromagnetic clutch or electronic control wiring concepts.
A supercharger is a mechanically driven air compressor that forces a greater mass of air into an engine's intake manifold than atmospheric pressure alone would deliver, enabling more fuel to be combusted per cycle and increasing engine power output.
Three principal supercharger types are used in automotive and industrial engine applications:
Roots-type superchargers use meshing lobed rotors to trap and displace air from the inlet port to the outlet port. They are positive-displacement devices — output volume is proportional to rotor speed, which is driven by a belt from the engine crankshaft. Roots-type blowers are often mounted directly atop the intake manifold.
Twin-screw (Lysholm) superchargers use helical meshing rotors that compress air internally as it travels along the screw profiles, achieving internal compression before delivery to the manifold. They are generally more efficient than Roots-type at higher pressure ratios.
Centrifugal superchargers use an impeller rotating at high speed (several times crankshaft speed via a step-up gearset) to accelerate air outward, then convert velocity to pressure in a diffuser volute. They are similar in operating principle to the compressor stage of a turbocharger.
Supercharger drive and electrical control elements relevant to a circuit diagram include:
Electromagnetic clutch: some supercharger installations (particularly aftermarket centrifugal and Roots types) incorporate an electromagnetic clutch on the drive pulley — similar in principle to an automotive air-conditioning compressor clutch. When the clutch coil is energised (typically by a relay controlled by the ECU or a dedicated controller), the drive pulley engages the rotor. This allows the supercharger to be disengaged at idle or low-load conditions to reduce parasitic drive losses. The clutch circuit is a 12 V DC coil controlled through a relay and fuse.
Bypass valve (recirculation valve): at low engine load, a bypass valve (controlled by intake manifold vacuum or a solenoid actuated by the ECU) opens to recirculate compressed air from the supercharger outlet back to its inlet, reducing pumping work and preventing manifold over-pressure during throttle-off conditions.
Intercooler (charge air cooler): compressed air leaving the supercharger is heated by compression. An intercooler (air-to-air or air-to-water heat exchanger) cools the charge air before it enters the engine, increasing air density and reducing the risk of detonation (knock).
How to wire supercharger diagram
- Understand the system layout before installation Study the complete supercharger kit diagram for the specific application: inlet air path (from filter through supercharger), charge air path (through intercooler if fitted), and the outlet into the intake manifold. Identify the bypass valve location, drive belt routing, and any electromagnetic clutch wiring points.
- Plan the electromagnetic clutch wiring circuit (if applicable) Identify the clutch coil's supply terminal and earth terminal on the supercharger body. Plan the relay circuit: fused 12 V supply from the battery or fuse box to the relay's common contact, relay NO output to the clutch coil positive terminal, clutch coil negative to chassis earth. The relay coil is controlled by the ECU or a dedicated supercharger controller output.
- Install fuse protection for the clutch circuit Install a fuse in the clutch coil supply circuit rated for the clutch coil's maximum current draw (typically 3–8 A — verify from the supercharger manufacturer's specification for the specific unit). Locate the fuse as close to the supply source as practicable.
- Route wiring clear of heat sources and moving parts Run all wiring away from exhaust manifolds, header pipes, rotating components, and sharp edges. Use automotive-grade heat-resistant wiring conduit near heat sources. Secure all wiring with appropriate clips and ties at intervals, preventing chafing and vibration damage.
- Verify bypass valve operation If the bypass valve is vacuum-operated, verify the vacuum hose connection is to the intake manifold port providing good vacuum signal. If solenoid-operated, verify the solenoid wiring connects to the ECU or controller output as specified. Test bypass valve operation at idle by applying manifold vacuum directly to the actuator diaphragm — the valve should open smoothly.
- Arrange ECU calibration before first start Do not start a supercharged engine with the original ECU calibration without verifying that the calibration is appropriate for forced induction. If a kit-supplied ECU calibration or piggyback module is provided, install and configure it per the manufacturer's instructions before attempting to start the engine.
- Initial start and baseline boost check Using a calibrated boost gauge or data-logging tool connected to the ECU, perform an initial check of manifold boost pressure at part load and full load. Compare to the kit specifications. Unusual knock, excessive heat, or abnormal boost levels require immediate diagnosis before further operation. Do not continue driving if any fault is detected.
Specifications
| Supercharger types | Roots (positive displacement, lobed rotors), Twin-screw/Lysholm (internal compression), Centrifugal (impeller with step-up gearset) |
|---|---|
| Drive method | Belt (serpentine or V-belt) from crankshaft; some applications use gear or chain drive |
| Electromagnetic clutch supply voltage | 12 V DC (standard automotive; 24 V for heavy vehicles) |
| Bypass valve actuation methods | Intake manifold vacuum (diaphragm) or ECU-controlled solenoid |
| Intercooler purpose | Reduces charge air temperature after compression to increase density and reduce knock risk |
| Clutch coil current (general guidance — verify from unit spec) | Typically 3–8 A; verify from the specific supercharger unit specification |
| Boost pressure range (general; application-specific) | Varies widely by design and engine application; a general-reference illustrative range is 0.3–1.4 bar gauge (4–20 psi) |
| Critical requirement | ECU recalibration mandatory for fuelling, ignition timing, and safety parameters on any supercharged installation |
Safety warnings
- Supercharger installation is a significant engine modification that affects fuel system demand, ignition timing, thermal loading, and structural loading of engine components. It must be performed by or in consultation with a qualified automotive engineer or engine builder. An incorrectly installed or tuned supercharger can cause catastrophic engine failure, fire, or loss of vehicle control.
- Engine forced induction increases intake manifold pressure. All hose clamps, couplings, and charge pipe connections must be rated for boost pressure and properly secured. A charge pipe blow-off under boost causes sudden loss of power and can create a projectile hazard in the engine bay.
- Vehicle modifications including supercharger installation may be subject to road traffic regulations, emission standards compliance (particularly OBD-II tamper laws in some jurisdictions), and may void the vehicle's manufacturer warranty. Verify legality in the jurisdiction before proceeding.
- The electromagnetic clutch wiring and relay must be correctly fused. An unfused clutch circuit that shorts can cause wiring fire in the engine bay. Always install the fuse as close to the supply source as practicable.
- This diagram is a general reference overview only. Actual supercharger installation requires the specific installation manual for the system being installed, compliance with the manufacturer's torque specifications, drive belt tension requirements, and ECU calibration guidance. Do not treat this reference as a complete installation guide for any specific product.
Tools needed
- Digital multimeter (coil resistance, voltage verification)
- Boost gauge or data-logging tool (manifold pressure monitoring)
- Socket set and torque wrench (pulley, bracket, and manifold fasteners)
- Belt tension gauge (drive belt tensioning)
- Automotive relay test tool or breakout harness (electrical fault diagnosis)
- Vacuum pump (bypass valve actuator testing)
Common mistakes
- Operating the engine with a factory ECU calibration not suited to forced induction: this risks lean air-fuel ratios and detonation that can destroy pistons within minutes of full-load operation.
- Undersizing the drive belt or running incorrect belt tension: a slipping or undersized belt causes the supercharger to not deliver rated boost and rapidly destroys the belt.
- Omitting charge pipe clamp security checks before first start: a loose coupling will blow off the moment boost builds, causing sudden power loss and possible injury from the pressurised coupling flying loose.
- Failing to inspect and verify oil supply to the supercharger (where lubricated internally): dry start or insufficient lubrication destroys supercharger bearings rapidly.
- Not accounting for elevated fuel system demand: forced induction requires more fuel per cycle at high load. Standard fuel injectors and fuel pump capacity may be inadequate and must be verified or upgraded.
Troubleshooting
- No boost pressure building in the intake manifold
- Cause: Drive belt not turning the supercharger (slipping, broken, or clutch not engaging), bypass valve stuck open, or charge pipe coupling blow-off Fix: Visually inspect belt condition and tension. If electromagnetic clutch is fitted, verify the clutch is engaging: check relay operation and 12 V at the clutch coil terminals during conditions when the ECU should command engagement. Inspect charge pipes and clamps for leaks. Test bypass valve actuator for correct closure at boost pressure.
- Electromagnetic clutch does not engage
- Cause: Blown fuse in clutch circuit, relay not energising, ECU not outputting control signal, or open-circuit clutch coil Fix: Check fuse condition. Test for 12 V at the relay coil terminals when the ECU should be commanding clutch engagement. Test relay by applying 12 V directly to the coil terminals and verifying contact closure. Test clutch coil resistance with a multimeter — an open circuit (infinite resistance) indicates a failed coil.
- Excessive heat from supercharger or charge pipes
- Cause: Insufficient intercooling, bypass valve not opening at low load (pumping against closed throttle), or supercharger running at an elevated drive ratio Fix: Verify bypass valve operation at light load. Inspect intercooler core for blockage or damage. Verify drive ratio (pulley sizes) matches installation specification. Persistent overheating requires consultation with the kit manufacturer or an engine builder.
Frequently asked questions
What is the fundamental difference between a supercharger and a turbocharger?
A supercharger is driven mechanically by the engine via a belt, gear, or chain — consuming a portion of the engine's output to drive the compressor. A turbocharger uses exhaust gas energy to drive a turbine that in turn drives the compressor, recovering energy that would otherwise be wasted. A supercharger provides immediate boost with no lag; a turbocharger does not impose direct mechanical parasitic loss but exhibits boost lag at low RPM.
What does a bypass valve do on a supercharger installation?
At low load or closed throttle, a positive-displacement supercharger can over-pressurise the manifold or cause the compressor to work against a near-closed throttle, wasting energy and potentially causing surge. A bypass valve (opened by manifold vacuum or a solenoid) recirculates air from the supercharger's high-pressure outlet back to its low-pressure inlet, allowing the supercharger to spin freely without building unwanted pressure.
How does an electromagnetic clutch on a supercharger work?
An electromagnetic clutch consists of a rotor (always spinning with the drive belt/pulley), an electromagnet, and a clutch plate connected to the compressor shaft. When the ECU or controller energises the electromagnet coil (12 V DC via relay), the magnetic field pulls the clutch plate onto the rotor face, engaging the compressor. De-energising the coil releases the plate and the compressor freewheels, eliminating parasitic loss.
Why is an intercooler important in a supercharged engine?
Compression heats air — the higher the boost pressure, the hotter the charge air. Hot air is less dense, reducing the mass of oxygen delivered per intake cycle, which partially offsets the benefit of forced induction. Hot charge air also increases the risk of pre-ignition (knock/detonation), which can destroy pistons and bearings. An intercooler cools the charge air, increasing air density and allowing safer, more effective use of boost pressure.
Can I install a supercharger without reprogramming the engine management system?
Generally, no — at least not safely or optimally. Forced induction changes the engine's fuelling requirements, ignition timing needs (boost pressure increases knock risk, requiring timing retard), and numerous other parameters. Without appropriate ECU recalibration, a supercharged engine may run dangerously lean, knock destructively, or operate outside safe operating limits. Any supercharger installation should be accompanied by professional ECU tuning for the specific vehicle.
