Tachometer Diagram: How to Wire an Analog or Digital Tachometer to an Engine
This is a free printable tachometer diagram: download the diagram as SVG or open it and print to paper or PDF.
A tachometer measures rotational speed in revolutions per minute (RPM) and is wired to an ignition pulse, hall-effect sensor, or magnetic pickup depending on the engine type and instrument design.
Tachometers are available in three broad categories — mechanical drive (cable-driven, now largely obsolete), inductive/ignition-pulse (most common in automotive and marine), and magnetic pickup or Hall-effect (used in industrial machinery and modern EFI vehicles). Each type uses a fundamentally different input signal.
Ignition-pulse tachometers are the most common in petrol (gasoline) automotive and marine applications. They connect to the negative (–) terminal of the ignition coil primary, which produces a series of voltage pulses — one pulse per cylinder firing event on a points/conventional ignition, or one pulse per engine cycle on some electronic ignitions. The tachometer's internal circuitry converts the pulse frequency to a proportional needle deflection or digital display. The number of cylinders must be set correctly (via an internal jumper or switch) so that the tachometer can calculate RPM accurately.
Hall-effect and magnetic pickup tachometers are used on diesel engines, industrial motors, and some CNC equipment where no ignition system is present. A ferrous gear tooth or trigger wheel passes a magnetic pickup or Hall sensor, generating a pulse each time a tooth passes the sensor face. The number of teeth per revolution is programmed into the tachometer or display unit.
Diesel engines without an ignition system can also use an alternator excitation signal or W-terminal signal (see the separate 3-wire alternator page) — the alternator's stator winding produces an AC frequency proportional to shaft speed, which is processed by a diesel tachometer designed for this input.

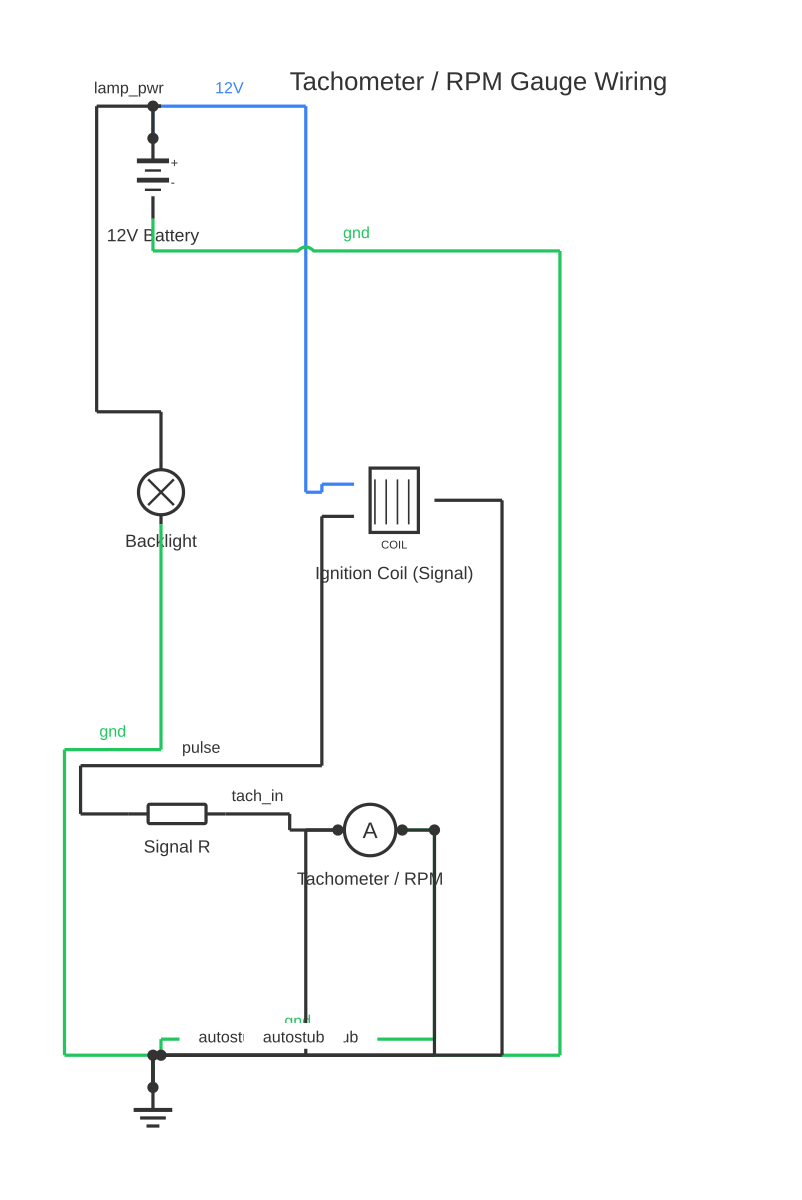

Typical wiring for an automotive ignition-pulse tachometer: positive supply (IGN-switched 12 V DC) to the tachometer +12 V terminal, ground to chassis, signal wire to the ignition coil negative (–) terminal. A 5 kΩ filter resistor in the signal line is sometimes recommended to suppress radio-frequency interference from electronic ignition systems.
All wiring must be fused at the supply and routed away from high-voltage ignition leads to prevent interference.
How to wire tachometer diagram
- Identify the tachometer type and input signal Determine whether you have an ignition-pulse tachometer, magnetic pickup type, Hall-effect type, or alternator-W-terminal type. Match the tachometer's input specification to the signal available from your engine. Using the wrong tachometer type on an incompatible signal source will result in no reading or incorrect readings.
- Disconnect the battery negative terminal Before making any wiring connections, disconnect the vehicle or equipment battery negative (–) terminal. This prevents short circuits during installation and protects the ignition system and tachometer electronics.
- Mount the tachometer and route wiring Mount the tachometer in the chosen location using the provided hardware. Route the wiring harness from the tachometer to the dashboard fuse block and to the ignition coil or sensor, keeping signal wires separated from high-voltage ignition cables and away from sharp edges. Use grommets where wires pass through metal panels.
- Connect the positive supply (ignition-switched 12 V) Connect the tachometer's +12 V supply wire to an ignition-switched fuse terminal (a circuit that is live only when the ignition key is on, and off when the engine is off). Use a suitable fuse (typically 1 A to 3 A) in the supply wire close to the fuse block. This prevents the tachometer from draining the battery when the vehicle is parked.
- Connect the ground wire Connect the tachometer ground wire to a clean chassis ground point — bare metal, free of paint and corrosion, with a short, direct path to the battery negative. A poor ground causes erratic readings. Use a star washer under the ring terminal to bite through any surface oxidation.
- Connect the signal wire For ignition-pulse type: connect the signal wire to the negative (–) terminal of the ignition coil primary. Insert a 5 kΩ resistor in series with the signal wire if using an electronic ignition system, to limit pulse amplitude. For magnetic pickup or Hall-effect types: connect the sensor signal wire to the tachometer signal input per the tachometer wiring diagram; connect the sensor supply and ground as specified. Route the signal wire away from high-voltage leads.
- Set the cylinder count and test Set the cylinder count selector (internal jumper, DIP switch, or calibration pot) to match your engine. Reconnect the battery, start the engine, and verify the tachometer reading against a known-good reference (e.g., a handheld optical or inductive tachometer). Adjust the calibration if the unit provides a pot. If readings are erratic, check signal wire routing and add filtering.
Specifications
| Supply voltage | 12 V DC (nominal), ignition-switched |
|---|---|
| Signal input (ignition-pulse type) | Negative terminal of ignition coil primary (points or electronic ignition) |
| Signal input (magnetic pickup type) | Inductive sensor output; refer to sensor datasheet for frequency range |
| Cylinder count calibration | Typically 2, 4, 6, or 8 cylinders (set by internal jumper or switch) |
| Typical RPM range | 0–6000 RPM (petrol/gasoline); 0–3500 RPM (diesel); 0–8000 RPM (performance) |
| Instrument power consumption | Less than 150 mA typical |
| Signal filter resistor | 5 kΩ in series (electronic ignition systems) |
| Signal filter capacitor | 0.047 µF from signal to chassis ground (optional noise suppression) |
Safety warnings
- Disconnect the battery negative terminal before making any wiring connections. Accidental short circuits in a vehicle electrical system can cause sparks, battery explosion, or fire. Automotive batteries can source thousands of amperes into a short circuit.
- Never connect the tachometer signal wire to the ignition coil's high-voltage secondary (the lead that connects to the distributor or directly to the spark plugs). The secondary voltage can exceed 30 000 V and will instantly destroy the tachometer and create a severe shock hazard.
- Fuse the supply wire at the source, as close as possible to the fuse block or battery. An un-fused wire running through the engine bay can cause fire if the insulation is chafed and the wire shorts to chassis.
- Route all wiring away from moving parts (belts, pulleys, fans) and heat sources (exhaust manifolds, turbocharger). Use cable clips and ties to secure wiring and prevent vibration-induced chafing.
- On diesel and industrial applications, ensure the magnetic pickup sensor is mounted at the correct air gap to the trigger wheel (refer to sensor datasheet). An incorrect air gap causes weak or no signal; contact between the sensor and rotating wheel will cause immediate mechanical damage.
Tools needed
- Digital multimeter
- Wire strippers and crimping tool
- Flathead and Pozidrive screwdrivers
- Drill and step drill bit (for dashboard mounting holes)
- Cable ties and mounting clips
- Heat-shrink tubing and heat gun
- Optical or inductive handheld tachometer (for calibration verification)
Common mistakes
- Setting the wrong cylinder count on the tachometer, causing readings that are a fixed multiple or fraction of the true RPM. Always verify the cylinder count setting matches your engine before use.
- Connecting the signal wire to the ignition coil positive (+) terminal instead of the negative (–) primary terminal, resulting in no tachometer signal.
- Routing the signal wire alongside high-voltage ignition leads, inducing interference that causes needle flutter or erratic readings. Signal and HT leads must be separated.
- Using an ignition-pulse tachometer on a diesel engine: diesel engines produce no ignition pulses. The tachometer will not function. Use a tachometer rated for magnetic pickup or alternator-W input.
- Poor chassis ground connection causing a floating ground reference, leading to noisy or offset readings. Always use a dedicated, clean chassis ground point with a short wire.
Troubleshooting
- Tachometer reads zero at all engine speeds
- Cause: No signal reaching tachometer: signal wire disconnected or connected to wrong terminal; instrument fuse blown; no power at instrument Fix: Check fuse and replace if blown. Verify 12 V at tachometer supply terminal with key on. Verify signal wire connects to coil negative (–) terminal. Measure pulse voltage at signal wire with multimeter in AC mode while engine runs — should show AC voltage.
- Tachometer reads exactly double or half the true RPM
- Cause: Cylinder count setting incorrect: set to 4 cylinders on an 8-cylinder engine (reads double), or set to 8 on a 4-cylinder (reads half) Fix: Locate the cylinder count jumper or DIP switch inside or on the rear of the tachometer. Change setting to match actual engine cylinder count. Verify against a known-good RPM source.
- Needle fluctuates or bounces at idle but stabilises at higher RPM
- Cause: High-frequency electrical noise from ignition system coupling into signal wire; poor signal quality at low pulse frequency Fix: Add a 5 kΩ series resistor in the signal wire and/or a 0.047 µF capacitor from signal to chassis ground at the tachometer end. Re-route signal wire away from HT leads.
- Tachometer works intermittently
- Cause: Loose connection at signal wire, supply, or ground; vibrating ring terminal on chassis ground point Fix: Inspect all connectors and terminal screws. Re-crimp or solder any suspect joints. Retighten chassis ground ring terminal. Apply dielectric grease to connectors in high-moisture environments.
- Tachometer pegs at full scale immediately on engine start
- Cause: Signal wire connected to a 12 V constant source instead of the ignition coil pulse signal; or tachometer configured for wrong pulse-per-revolution count (too few cylinders selected) Fix: Verify signal wire goes to ignition coil negative, not to battery or main relay. Check cylinder count setting. Measure voltage at signal wire with engine off — should read 0 V or a small negative-going pulse when cranking.
Frequently asked questions
Why does my tachometer read double or half the actual RPM?
This is almost always a cylinder count setting error. An ignition-pulse tachometer must be configured for the correct number of cylinders (or the number of sparks per revolution). Check the internal jumper or calibration switch and set it to match your engine. A 4-cylinder setting on an 8-cylinder engine will halve the displayed RPM.
Where do I connect the signal wire on an electronic ignition system?
Connect the signal wire to the negative (–) terminal of the ignition coil primary, the same terminal that the points or ignition control module switches to ground. Do not connect to the high-voltage secondary (plug lead side). Some aftermarket electronic ignition modules have a dedicated tachometer output terminal — use this if available.
Can I wire a tachometer to a diesel engine?
Yes, but not using an ignition coil signal because diesels have no ignition system. Use a tachometer designed for diesel input: either a magnetic pickup (inductive sensor near a gear wheel or flywheel ring gear), a Hall-effect sensor, or the alternator W-terminal AC frequency output. Check that the tachometer's input type matches your sensor.
What does the W-terminal on an alternator do for a tachometer?
The W-terminal (also called the phase or stator terminal) provides an AC signal whose frequency is proportional to alternator speed. Diesel tachometers designed for alternator input divide this frequency by the number of pole pairs and the pulley ratio to calculate engine RPM. The alternator must be the correct number of poles to match the tachometer's calibration.
Why does my tachometer needle fluctuate or bounce at idle?
Needle bounce at idle is typically caused by electrical noise, a weak or erratic ignition system pulse, or a poor connection. Check that the signal wire is not routed near high-voltage ignition leads. A 5 kΩ resistor in series with the signal wire, or a small capacitor (0.047 µF) from signal to ground, can filter ignition interference.
