Automotive 12V Wiring Diagrams: How to Read, Interpret, and Create Your Own

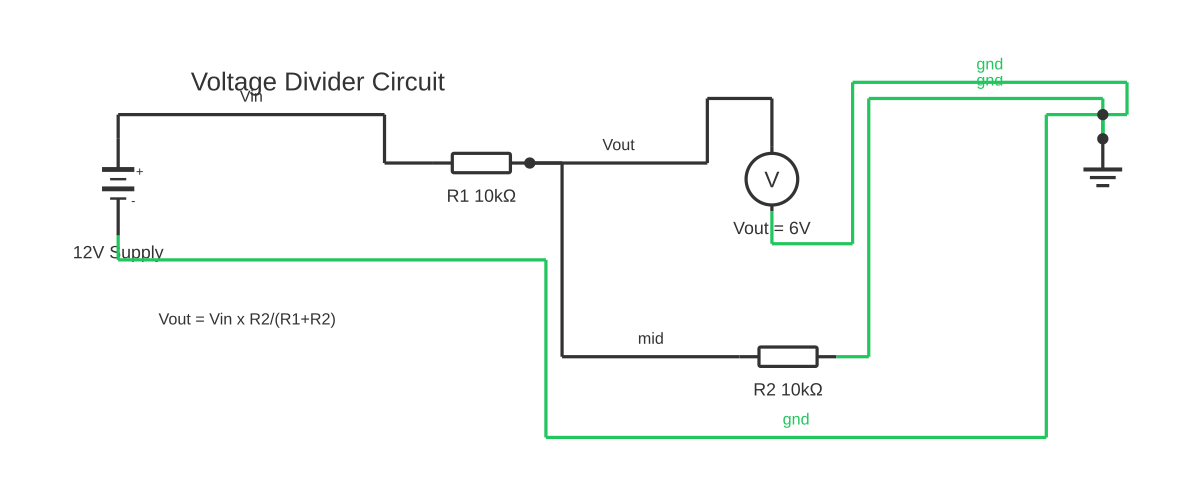

This is a free printable the12volt com wiring diagrams: download the diagram as SVG or open it and print to paper or PDF.
Automotive 12V wiring diagrams are schematic representations of a vehicle's electrical system, showing how power flows from the battery through fuses, switches, and loads. Understanding them correctly is essential before touching any wire in a vehicle.
A 12-volt automotive electrical system is a direct-current (DC) circuit that uses the vehicle chassis and body metalwork as the negative return conductor — this is called a negative-earth or negative-ground system and is the universal standard on virtually all modern road vehicles produced since the 1970s. The battery provides a nominal 12V DC; the alternator charges it to approximately 13.8–14.4V DC while the engine runs.
An automotive wiring diagram represents this system schematically. It is not a pictorial drawing of the actual wire routing — it is an abstract representation of electrical connectivity. Components are shown as standard symbols and interconnected by lines representing conductors. The positive supply is typically shown at the top of the diagram and the ground (chassis/earth) return at the bottom, with current flowing from top to bottom in a conventional reading direction.
Key elements found in any 12V automotive diagram include: - The battery, shown as alternating long and short parallel lines - Fuses and fusible links, shown as rectangles or stylised symbols with a current rating - Relays — an electromagnetic switch that allows a low-current switch to control a high-current load - Switches — shown as open or closed contact symbols; can be momentary or maintained - Connectors — multi-pin connectors shown as mating symbols with pin numbers - Load devices — motors, lamps, solenoids, ECUs, shown as their standard symbols - Ground points — shown as a downward-pointing triangle or a short horizontal line with descending lines below it
Wiring diagrams in automotive applications are typically organised by circuit or system — the lighting circuit, the engine management circuit, the audio system circuit — rather than drawn as one enormous single diagram. A vehicle wiring guide will include a legend or symbol key, a wire colour code table, and a connector pin-out section.
Wire colour codes vary by vehicle manufacturer and country of origin, but a common convention is: red or red/white for switched live feeds, black for chassis ground, and additional colours (yellow, blue, green, orange, purple) for circuit-specific conductors. Always refer to the vehicle-specific diagram rather than assuming colour codes across makes.
For aftermarket installations — audio amplifiers, auxiliary lighting, dash cameras, tracking devices — the diagram becomes a planning tool showing where to source the correct power and ground connections and what fuse rating protects the new circuit.
How to wire the12volt com wiring diagrams
- Identify the circuit you need to work on and obtain the relevant diagram section Automotive wiring guides are divided by system — lighting, engine management, audio, climate. Locate the section for your specific circuit. Note the diagram's ground reference convention and the battery connection point shown at the top of the page.
- Locate the power source and trace the fuse protecting the circuit Find the battery or fused distribution point on the diagram. Identify which fuse protects your target circuit. In the vehicle, verify the fuse is present and intact using a fuse tester or multimeter. A blown fuse often indicates a fault further down the circuit — do not simply replace without investigating.
- Trace the circuit from positive supply through each component to ground Follow the conductor line from the fuse through any switches, relays, and connector pins to the load device, and then from the load to its ground point. Note connector pin numbers at each junction — these are the test points for fault diagnosis.
- Identify all ground points for the circuit Ground connections are often shown with a letter-number designation (G101, G201) that corresponds to a physical location on the vehicle body. Loose or corroded ground points are among the most common causes of intermittent faults. Locate each ground point on the vehicle and inspect it physically.
- Before making any physical connection, disconnect the battery negative terminal Removing the battery negative (earth/ground) terminal prevents accidental short circuits while working. Wrap the terminal in a cloth or secure it away from the battery post. Be aware that disconnecting the battery may reset vehicle ECUs, radio codes, and power window positions.
- Install fusing as close to the power source as practical For any aftermarket circuit, the fuse or circuit breaker must be within 450 mm (18 in) of the power source connection point to protect the unsupported length of wire from a short-to-ground fault. Use the correct fuse type for the application: blade fuses for low-current circuits, MIDI or ANL fuses for high-current audio or auxiliary circuits.
- Test the circuit before closing panels and test again after reassembly Reconnect the battery negative terminal. Use a multimeter or test light to verify voltage at each stage of the circuit with the supply switched on. Verify the load operates correctly. Then repeat a quick check after closing trim panels to confirm no wires have been pinched during reassembly.
Specifications
| System voltage (nominal) | 12V DC nominal; 12.6V fully charged at rest; 13.8–14.4V with alternator charging |
|---|---|
| System ground convention | Negative earth (negative battery terminal bonded to chassis); universal on modern vehicles |
| Standard automotive fuse types | ATO/ATC (standard blade, 19 mm), ATM (mini blade, 11 mm), MAXI (32 mm), MIDI, ANL (for high-current circuits) |
| Relay standard footprint | ISO 280 (5-pin: 30, 85, 86, 87, 87a) for standard automotive relays |
| Typical wire gauges and current ratings | 0.5 mm² / 20 AWG: up to 8A; 1.5 mm² / 16 AWG: up to 15A; 2.5 mm² / 14 AWG: up to 20A; 4 mm² / 12 AWG: up to 30A; 6 mm² / 10 AWG: up to 40A |
| Fuse placement requirement | Within 450 mm (18 in) of power source connection per good practice; specific distances specified in IEC 60364 and vehicle OEM guidelines |
| Maximum permissible voltage drop in a circuit | 0.5V or less for sensitive electronics; up to 1.0V acceptable for lighting and motors in well-designed circuits |
Safety warnings
- Always disconnect the battery negative (ground/earth) terminal before working on any automotive electrical circuit. A 12V battery can deliver thousands of amperes into a short circuit — a metal tool bridging the battery positive to any grounded component will cause arcing, severe burns, and potential battery explosion.
- Install correctly rated fusing within 450 mm (18 in) of the battery or power distribution point for every circuit. Unfused wiring can sustain a continuous short-circuit current sufficient to start a vehicle fire. Never replace a fuse with a higher rating to cure a blown fuse — find and fix the fault.
- Automotive fuel systems and fuel vapours are highly flammable. When working near fuel tanks, fuel lines, or in enclosed spaces where fuel vapour may accumulate, do not create sparks by connecting or disconnecting live circuits. Work in well-ventilated areas.
- Fixed electrical modifications to road vehicles may be subject to national road vehicle standards and modification regulations. In some jurisdictions, electrical modifications affecting safety systems (airbags, ABS, lighting) require inspection and certification. Check applicable regulations before modifying these systems.
- Airbag (SRS) wiring is colour-coded yellow in most vehicles and must not be cut, spliced, or shorted. An inadvertent airbag deployment from mishandling SRS wiring causes life-threatening injury. Disable the SRS system per the vehicle manufacturer's procedure and wait the specified discharge time before working near SRS components.
Tools needed
- Digital multimeter with DC voltage, resistance, and continuity functions
- Non-contact voltage tester (for quick live/dead verification)
- Automotive circuit tester / test light (12V DC, not mains-rated)
- Ratchet crimping tool sized for the connector terminals being used
- Wire stripper calibrated for automotive wire gauges (0.5–6 mm²)
- Heat gun for heat-shrink tubing
- Fuse tester (blade fuse type)
- Permanent marker and label tape for identifying new circuits
Common mistakes
- Sourcing power from an existing circuit that is already loaded to near its fuse rating — adding load causes the fuse to blow or the wiring to overheat.
- Using a ground connection at a painted surface — paint is an insulator. The ring terminal must contact bare metal for a reliable ground, secured with a screw or bolt that cuts through any paint or coating.
- Assuming wire colour codes are universal across vehicle manufacturers — colour standards vary significantly and following the wrong colour code for a different vehicle will cause incorrect connections.
- Installing a fuse at the load end of a long wire run instead of at the power source — the unsupported length of wire between the battery and the fuse is unprotected and can arc and burn in a short-circuit event.
- Tapping audio or accessory power from the ignition fuse box without understanding what else shares that fuse — additional load can blow the original fuse and disable multiple unrelated systems.
- Not securing new wire runs with cable ties and conduit — unsecured wire will chafe against bodywork, panel edges, or moving parts and eventually short to ground.
Troubleshooting
- Fuse blows immediately when the circuit is switched on
- Cause: Dead short to ground on the load side of the fuse — insulation failure, a conductor touching the chassis, or a faulty component with an internal short Fix: Disconnect the load device from the circuit and replace the fuse. If the fuse holds with the load disconnected, the fault is within the device — test or replace it. If the fuse still blows with nothing connected, the short is in the wiring itself — use a multimeter to find the zero-resistance point between the conductor and chassis.
- Intermittent operation — circuit works sometimes but fails randomly
- Cause: Corroded or loose connector, high-resistance ground connection, or a relay with worn contacts Fix: Inspect all connectors in the circuit for corrosion (green or white residue on pins). Clean with electrical contact cleaner. Verify the ground point on the chassis is tight and the contact surface is clean bare metal. Swap the relay with a known-good unit of the same type.
- Component operates but only at reduced power or brightness
- Cause: High resistance in the circuit due to undersized wire, corroded connections, or too many joints in the wiring Fix: Measure voltage at the load device terminals with it operating — it should be within 0.5V of battery voltage (typically above 12.5V at rest or 13.5V with alternator charging). A lower reading indicates voltage drop across resistance in the circuit. Use the multimeter to measure across each connector and joint to locate the high-resistance point.
- Relay clicks but the load does not operate
- Cause: Relay contact (pins 30 and 87) are not supplying power to the load — the coil is operating but the contacts are worn, corroded, or the relay is wired incorrectly Fix: Verify voltage on pin 30 (the main feed into the relay contact). With the relay energised, verify voltage on pin 87 (the switched output). If voltage is on 30 but not on 87 when energised, the contacts are faulty — replace the relay.
Frequently asked questions
What is the difference between a wiring diagram, a schematic, and a wiring harness diagram?
A wiring diagram shows components and their electrical connections using standard symbols — it focuses on how circuits function. A harness diagram shows the physical layout of wires, connectors, and routing paths within the vehicle. A schematic is broadly synonymous with a wiring diagram but emphasises circuit function over physical location. For fault-finding, you typically need both.
Why does the vehicle use the chassis as the negative return conductor?
Using the steel body and chassis as a return conductor eliminates the need for a second copper wire running the full length of every circuit. This reduces weight and wiring cost significantly. Every component simply grounds to the nearest chassis point, and current returns through the metal structure to the battery negative terminal.
How do I find the correct fuse rating for a new 12V accessory I am adding?
Calculate or measure the maximum current draw of the accessory in amperes. The fuse should be rated at 125–150% of that maximum current, positioned as close to the power source (battery or fused distribution block) as possible. Never use a fuse larger than the wire's current-carrying capacity — the wire would burn before the fuse blows.
What does a relay do in an automotive circuit and when should I use one?
A relay uses a small control current (typically 0.2 A) to switch a larger load current (up to 30 A or more) through a separate high-current contact. Use a relay whenever the control switch (ignition switch, toggle, or switch output from an ECU) would otherwise carry the full load current — this protects the switch from overheating and extends its life significantly.
How do I read wire colour abbreviations in an automotive wiring diagram?
Most manufacturer diagrams use a two-letter abbreviation: the first letter is the base colour and the second is the stripe colour. For example, BK/WH means a black wire with a white stripe. Colour code legends vary by manufacturer — always consult the symbol key in the specific diagram. Never assume the same colour code applies across different vehicle makes or even model years.
