Thermostat wiring explained: Complete Wiring Reference

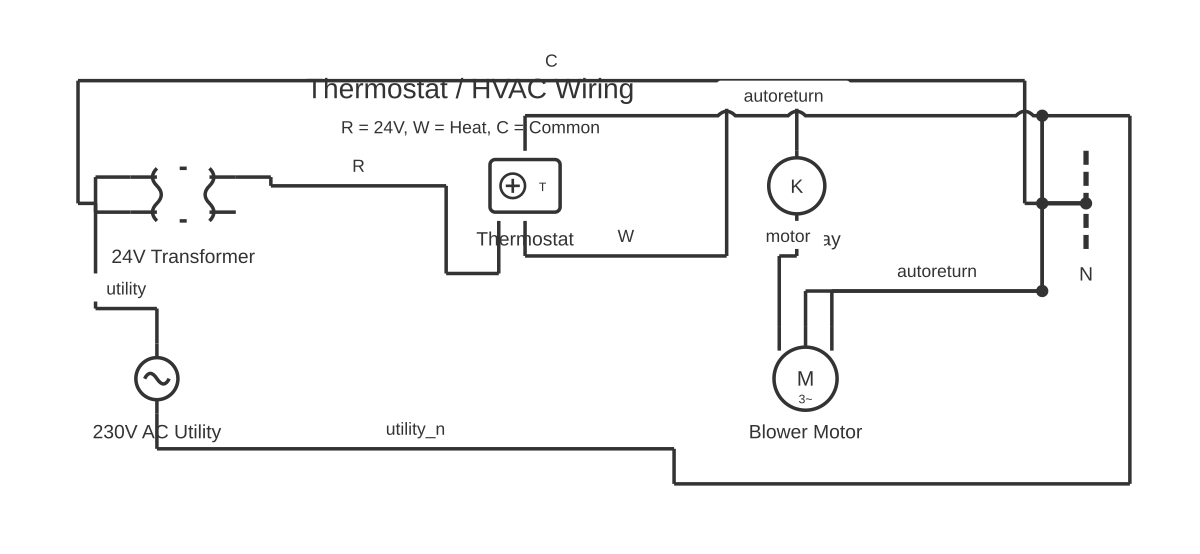

Thermostat wiring explained: Complete Wiring Reference — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable thermostat wiring explained: download the diagram as SVG or open it and print to paper or PDF.

Understanding thermostat wiring explained is essential for proper electrical system installation and operation. This guide provides detailed instructions for safe wiring.

The thermostat wiring explained system requires proper component selection, appropriate wire gauging, and correct connection methods. Installation follows standard electrical practices: de-energize before work, use appropriate protection devices, ensure reliable ground connections, and test all circuits before operation. Proper wire gauge selection prevents voltage drop and overheating. Protection devices must match wire ampacity, not load requirements. Grounding provides safe fault current paths. Common failures result from inadequate protection, poor connections, or undersized conductors. Professional installation includes measuring run distances, selecting color-coded wires, and verifying operation under full load. Component quality matters—cheap connectors cause intermittent failures. Regular maintenance and visual inspection confirm continued safe operation. Thermal management through proper ventilation prevents overheating and extends equipment lifespan.

Thermostat wiring becomes more involved when a heat pump is in the system because the conventional heating and cooling control signals are supplemented by additional wires for auxiliary/emergency heat, reversing valve direction, and sometimes a second-stage compressor. Most heat pump thermostats use the standard colour-coded terminals — R (power), C (common), Y (compressor), G (fan), O or B (reversing valve), W2 or Aux (auxiliary heat), E (emergency heat) — but the reversing valve convention differs by manufacturer: Carrier/Bryant/Rheem energise the O terminal for cooling, while Lennox/Trane/American Standard energise the B terminal for heating. Mapping out the wire colours from your existing air handler and outdoor unit before replacing a thermostat prevents miswiring. You can sketch and label your own heat pump thermostat wiring diagram free in the online editor.

How to wire thermostat wiring explained

Review the complete wiring diagram and gather all required components matching your application and local codes.
Prepare wiring: measure lengths, strip insulation carefully, and prepare terminal connections with appropriate crimpers.
Install components securely with proper orientation and adequate ventilation clearance.
Make connections following the diagram exactly, using color-coded wires and rated terminals.
Test and verify: confirm continuity, polarity, and voltage; operate under load and verify all functions work.

Frequently asked questions

What are the key safety rules for electrical installation?

Always de-energize circuits before working. Use lockout/tagout procedures. Wear insulated tools and PPE. Test for voltage presence before touching. Follow manufacturer specs and local codes. Never work alone on high-voltage systems.

How do I determine proper wire gauge?

Wire gauge depends on circuit current and run length. Higher current requires thicker wire. Use ampacity tables from NEC codes. For runs over 100 feet, increase gauge by one or two steps to compensate for voltage drop.

What fuse or breaker rating should I use?

Breaker rating must match the circuit wire gauge, never the load. Undersized breakers cause nuisance trips; oversized creates fire hazards. Always follow application manual specifications exactly.

Why is grounding so critical?

Grounding provides safe return paths for fault currents, allowing protection devices to detect shorts quickly. It prevents dangerous voltages on exposed metal and reduces electrical noise. Never compromise grounding.

What tools do I need?

Wire strippers, crimpers, multimeter, screwdrivers, insulated pliers, and torque wrenches for high-current connections. Always use quality, insulated tools for safety.

How is heat pump thermostat wiring different from conventional furnace thermostat wiring?

A conventional furnace thermostat uses R (power), C (common), W (heat), Y (cooling compressor), and G (fan) — five wires in typical installations. A heat pump thermostat adds an O or B terminal to control the reversing valve that switches the refrigerant circuit between heating and cooling mode. It also requires W2/Aux for the backup electric resistance heater and an E terminal for emergency heat if the compressor fails. Always verify whether your reversing valve is energised on O (cooling — Carrier, Rheem) or on B (heating — Lennox, Trane) before wiring to avoid the heat pump running in the wrong mode.
