Timer Switch Diagram

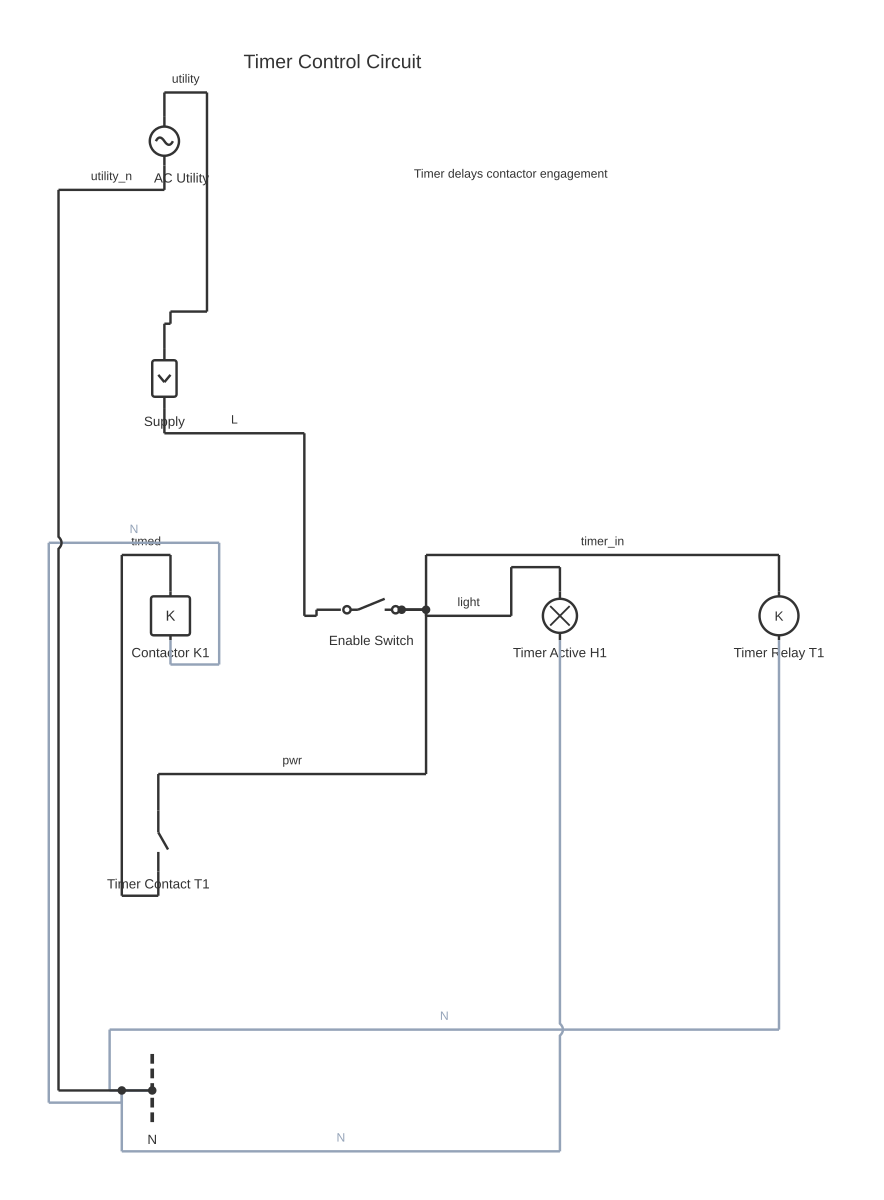

This is a free printable timer switch diagram: download the diagram as SVG or open it and print to paper or PDF.
A timer switch diagram shows how a mechanical or digital timer is wired to control a load circuit, including the line, switched-live, neutral, and earth connections for safe, time-based operation.
Timer switches interrupt or complete a load circuit at preset times. Understanding the internal architecture of a timer is essential for correct wiring: most timers contain a synchronous motor or electronic oscillator driving an internal cam or relay, and are available in two fundamental contact configurations — normally open (NO) and normally closed (NC) — which determine whether the load is energised or de-energised when the timer output is active.
Mechanical (analogue) dial timers use a 24-hour rotating disc with removable trippers that push a microswitch at the desired on and off times. They are robust, inexpensive, and operate without programming knowledge, but offer resolution typically no better than 15-minute intervals. The internal synchronous motor requires a continuous live supply regardless of load state.
Digital (electronic) timers use a microcontroller and relay, accept programming through push buttons or a touchscreen, and can manage multiple on/off events per day, seven-day schedules, and sometimes astronomical (sunrise/sunset) programmes. They draw a small standby current continuously.
Wiring a timer switch requires four connections for most single-phase installations: permanent Live (L) to the timer's supply terminal, Neutral (N) to the timer's neutral terminal, Switched Live (SL) from the timer's output contact to the load, and Earth (E) continuity through the enclosure. The load's neutral return connects directly to the neutral bar — it does not pass through the timer.
Astro or time-clock relays used in street lighting and building management systems may include additional terminals for auxiliary inputs or manual override switches. These allow permanent-on or permanent-off override without reprogramming the schedule.
Timers controlling inductive loads (motors, fluorescent ballasts, contactor coils) must be rated for inductive duty — look for an 'AC1' or 'AC3' contact rating on the timer datasheet. A resistive (tungsten) load rating does not apply to inductive circuits.
How to wire timer switch diagram
- Isolate and verify dead Switch off the circuit at the distribution board and apply lockout/tagout. Verify all conductors at the timer mounting point are de-energised with a non-contact voltage tester before opening any enclosure.
- Identify timer terminals Consult the timer's wiring diagram (printed on the unit or in the datasheet). Identify the supply Live terminal (often marked L or 1), supply Neutral terminal (N or 2), switched-output terminal (often marked 3, SL, or with a symbol for a switch), and earth terminal.
- Connect supply live Run the incoming live conductor (brown in EU/IEC, black in North American line-voltage wiring) to the timer's supply terminal. This connection provides continuous power to the timer's internal motor or electronics.
- Connect neutral Run the neutral conductor (blue in EU/IEC, white in North American) to the timer's neutral terminal. Run a second neutral link or separate neutral conductor directly to the load's neutral terminal — the neutral does not pass through the timer's switching contact.
- Connect switched live to load Run a conductor from the timer's output (switched live) terminal to the live terminal of the load (luminaire, socket, contactor coil). This conductor carries current only when the timer contact is closed.
- Connect earth continuity Bond the timer enclosure to the earth conductor. If the load is a Class I device (metallic enclosure), run a continuous earth conductor from the supply earth to the timer enclosure to the load enclosure.
- Set the schedule and test Set the current time and the desired on/off programme. Restore power and observe that the load switches on and off at the correct times. Use a clock or timer function on a multimeter to verify the contact switching occurs at the correct interval.
Specifications
| Typical supply voltage | 230 V AC / 120 V AC (single-phase, 50 or 60 Hz) |
|---|---|
| Timing resolution (mechanical) | 15 minutes minimum per tripper segment (typical) |
| Timing resolution (digital) | 1-minute intervals (typical for standard digital timers) |
| Contact duty rating (resistive loads) | AC1 — rated current at unity power factor |
| Contact duty rating (motor/inductive loads) | AC3 — rated for motor starting and running (lower than AC1 rating) |
| Battery backup duration (digital timers) | 8–100 hours depending on model (refer to datasheet) |
| Applicable standards | IEC 60669-1 (switch rating), NEC/NFPA 70, BS 7671, AS/NZS 3000 |
Safety warnings
- Always isolate the circuit at the distribution board and apply lockout/tagout before wiring or adjusting a timer switch. Verify all conductors are de-energised with a non-contact or contact voltage tester before commencing work.
- Do not exceed the timer's rated switching current. Connecting a load that draws more current than the timer's contact rating will cause contact welding or overheating and creates a fire risk.
- Timer switches are not safety devices and must not be used as the sole means of isolation. Install appropriate overcurrent and isolation devices (MCBs, isolators) in the circuit per the applicable electrical code.
- Timer switch installation must comply with NEC/NFPA 70, BS 7671, AS/NZS 3000, IEC 60364, or the relevant national standard. Consult a licensed electrician if in doubt.
- This wiring diagram is for illustrative and reference purposes only. Actual installation must account for the specific timer model's terminal layout and the load's requirements.
Tools needed
- Non-contact voltage tester or multimeter (CAT III rated)
- Insulated screwdrivers (flat and cross-head)
- Wire strippers
- Ferrule crimping tool (for stranded conductors in screw terminals)
- Cable ties and cable labels
- Lockout/tagout device
Common mistakes
- Running the neutral conductor through the timer's switching contact instead of directly to the load — this prevents the load from being fully isolated when the timer is off in some circuit configurations and violates wiring codes.
- Connecting an inductive load (motor, contactor) to a timer rated only for resistive loads, causing premature contact failure due to the higher breaking current of inductive circuits.
- Setting the timer to the wrong time zone or forgetting to advance the time after a power outage, causing the schedule to run at incorrect times.
- Installing a mechanical timer in a wet or dusty environment without an appropriate IP-rated enclosure, leading to moisture ingress and timer failure.
- Selecting a timer without battery backup for critical applications — without battery backup, any power interruption will reset a digital timer or cause a mechanical timer to lose synchronisation.
Troubleshooting
- Load does not switch on at the programmed time
- Cause: Timer clock is running at incorrect time, programme is set incorrectly, or the timer output contact has failed Fix: Verify and reset the clock time. Review the programme settings step by step. Use a multimeter in continuity or voltage mode to check whether the output terminal goes live when the timer should be active. Replace the timer if the contact fails to close.
- Timer does not advance (mechanical type) or loses time
- Cause: Permanent live supply to the timer motor is interrupted, or the timer motor has failed Fix: Check that the supply live terminal of the timer has continuous voltage (not switched by another device upstream). Measure the supply voltage at the timer terminal. If voltage is present but the disc does not advance, the internal synchronous motor has failed and the timer unit must be replaced.
- Load remains on even after the scheduled off time
- Cause: Timer output contact has welded closed due to overcurrent or inductive load switching beyond the contact rating Fix: Isolate the circuit immediately. Do not attempt to pull the contact apart. Replace the timer. Verify the load current is within the timer's AC3 contact rating. If the load is large or inductive, install an intermediate contactor rated for the duty and use the timer to switch the contactor coil only.
Frequently asked questions
What is the difference between a normally open and normally closed timer contact?
A normally open (NO) contact is open (load off) when the timer is inactive and closes (load on) when the timer activates. A normally closed (NC) contact is closed (load on) at rest and opens (load off) when the timer activates. Most standard timer applications use NO contacts to switch loads on at a set time.
Does the neutral wire pass through the timer switch?
No. In a standard single-phase wiring arrangement, only the Live conductor passes through the timer's switching contact. The Neutral conductor runs directly from the supply to the load without interruption. This is consistent with ring-main and radial circuit wiring practice.
Why does a mechanical timer need a continuous live supply?
Mechanical timers contain a small synchronous motor that drives the timing disc. This motor must be powered continuously to keep the timer running and to maintain correct time. If the live supply to the timer motor is interrupted, the timer stops advancing and loses time.
Can a timer switch control a motor directly?
Only if the motor's full-load current does not exceed the timer's rated switching current at the appropriate duty (AC3 for motor loads). For motors above a few hundred watts, a timer is typically used to switch a contactor or motor starter coil, not the motor supply directly.
What happens to the timer programme during a power outage?
Mechanical timers lose time during power outages and must be manually reset to the correct time when power is restored. Most digital timers include a battery backup for the clock circuit, preserving the programme and clock time through outages lasting several hours.
