Transducer Diagram: How Transducers Convert Physical Signals to Electrical Output

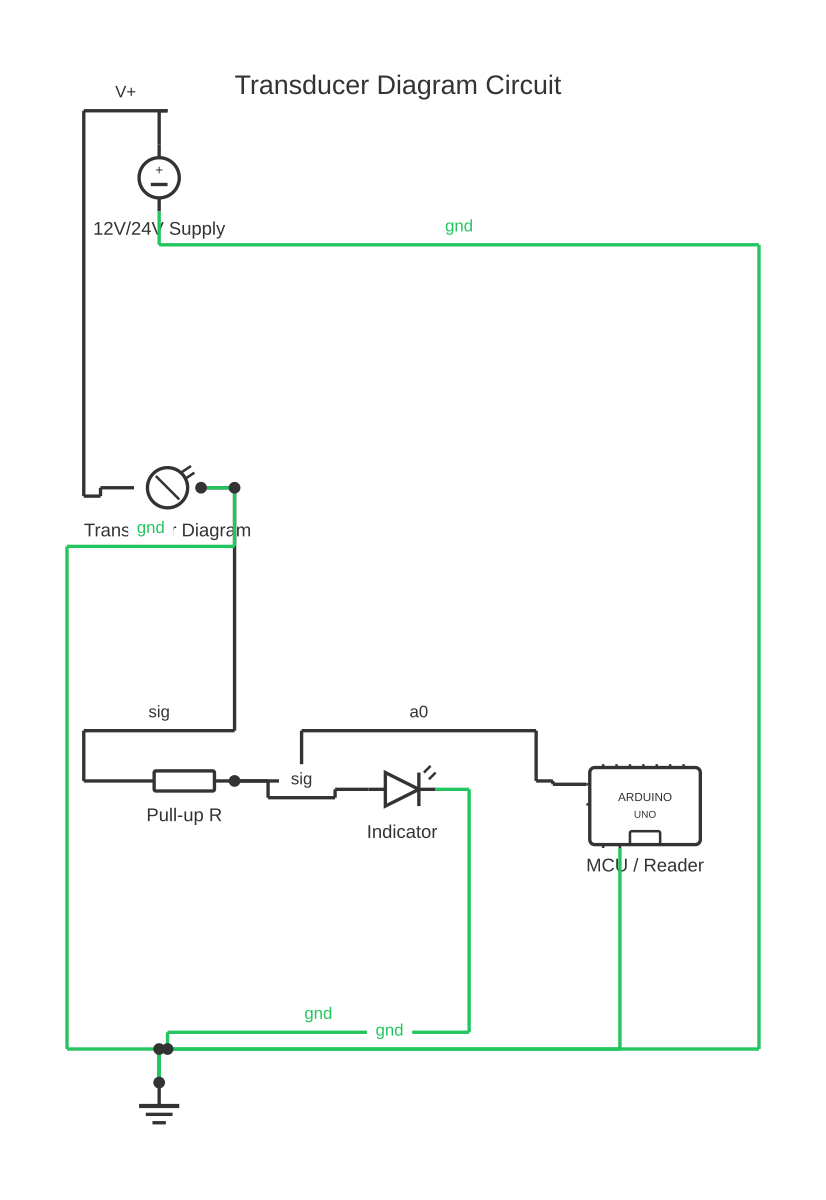

This is a free printable transducer diagram: download the diagram as SVG or open it and print to paper or PDF.
A transducer diagram shows how a sensing element converts a physical quantity — pressure, temperature, flow, or displacement — into an electrical signal suitable for measurement or control circuits.
A transducer is a device that converts one form of energy into another. In electrical engineering and instrumentation, the term almost always refers to a sensor or actuator that converts a physical variable (the measurand) into a proportional electrical output — voltage, current, resistance, or frequency — that a control system, PLC, or data-acquisition device can read.
Transducers divide into two broad classes. Passive transducers require external excitation to produce an output; examples include resistive strain gauges (Wheatstone bridge), thermistors (temperature-dependent resistance), and LVDTs (linear variable differential transformers) driven by an AC carrier signal. Active transducers generate their own EMF from the physical phenomenon: thermocouples exploit the Seebeck effect, piezoelectric accelerometers generate charge when stressed, and photovoltaic cells produce current from light.
The wiring diagram for a transducer typically shows four elements: the excitation supply (AC or DC, often regulated), the sensing element itself, a signal-conditioning stage (amplifier, bridge completion, filter), and the output connection to the receiving instrument. Two-wire transmitters — extremely common in industrial 4–20 mA loops — carry both the supply current and the signal on the same pair; the 4 mA floor represents zero-span, and 20 mA represents full-span, making wire-break detection straightforward. Three-wire and four-wire configurations separate excitation from signal return to eliminate lead-resistance errors.
Common application areas include pressure measurement in hydraulic and pneumatic systems, thermocouple and RTD temperature loops in HVAC and process plant, ultrasonic flow measurement in water treatment, and load cells in weighing systems. Signal conditioning — amplification, linearisation, cold-junction compensation for thermocouples, and analogue-to-digital conversion — is almost always part of the complete circuit diagram.
How to wire transducer diagram
- Identify the measurand and required output type Determine what physical quantity is being measured (pressure, temperature, displacement, flow) and what output format the receiving instrument accepts — 4–20 mA, 0–10 V, RTD, thermocouple millivolt, or digital (RS-485, HART).
- Select the transducer and note its wiring configuration Check the manufacturer's data sheet for the number of wires (2-wire, 3-wire, or 4-wire), excitation voltage or current requirements, output range, and any polarity markings. Note the connector or terminal designation.
- Choose appropriate cable Use shielded twisted-pair for millivolt or low-current analogue signals. Use twisted-pair with overall screen for 4–20 mA loops in electrically noisy environments. Match cable temperature rating to the installation environment.
- Connect the excitation supply For two-wire transmitters, connect the positive supply rail through the transmitter to the return rail, with the loop resistor at the receiving end. For separate-excitation types, connect the excitation terminals first, ensuring polarity is correct before applying power.
- Connect signal outputs to the receiving instrument Wire the signal terminals to the analogue input on the PLC, datalogger, or display module. Observe polarity for DC signals. For differential inputs, connect both positive and negative signal conductors; do not tie the negative signal terminal to chassis unless the data sheet specifies.
- Ground the cable screen correctly Connect the cable screen at one end only — usually at the instrument panel or control cabinet. Grounding at both ends creates a ground loop that can introduce 50/60 Hz interference into the signal.
- Verify the output with a calibrated reference Apply a known physical stimulus (calibrated pressure source, ice-point reference, dead weight) and confirm the output matches the expected value. Record the zero and span readings as an installation baseline.
Specifications
| Standard current loop range | 4–20 mA (NAMUR NE 43 defines fault range: <3.6 mA or >21 mA) |
|---|---|
| Standard voltage output range | 0–5 V, 0–10 V, or 1–5 V (device-specific) |
| Typical loop supply voltage (2-wire 4–20 mA) | 12–36 V DC (24 V DC nominal) |
| Standard loop resistor (4–20 mA to voltage) | 250 Ω (gives 1–5 V for 4–20 mA input) |
| Thermocouple type K output at 0 °C / 100 °C | 0 mV / 4.096 mV (IEC 60584) |
| RTD Pt100 resistance at 0 °C / 100 °C | 100.00 Ω / 138.51 Ω (IEC 60751, Class B) |
Safety warnings
- Fixed electrical installation work must be carried out by a licensed electrician and must comply with applicable codes: NEC/NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000 (Australia/NZ), IEC 60364, or your local equivalent. These diagrams are illustrative and reference-only.
- Always isolate and verify dead before working on any wiring. Use a calibrated voltage tester on all conductors — do not rely solely on switching off at the source.
- High-pressure process connections are a hazard independent of electrical risk. Isolate, depressurise, and purge the process line before removing or installing a pressure transducer.
- Transducers in hazardous-area (Ex) classifications must be certified for the specific zone and gas group. Do not substitute a non-Ex device in an intrinsically safe or explosion-proof loop.
- Ensure the excitation voltage does not exceed the transducer's maximum input rating. Over-voltage can destroy the sensing element or — in piezoelectric devices — cause unexpected mechanical actuation.
Tools needed
- Calibrated digital multimeter (voltage, current, and resistance ranges)
- Insulation resistance tester (megohmmeter) for cable integrity checks
- Precision loop calibrator or signal generator
- Screwdrivers and terminal-block insertion tools appropriate to the terminal type
- Cable stripper and crimp tool for ferrules
- Calibrated pressure source or reference standard for functional testing
Common mistakes
- Grounding the cable screen at both ends, creating a ground loop that couples 50/60 Hz noise into the signal — ground at one end only.
- Reversing polarity on a 4–20 mA two-wire transmitter, which prevents the device from powering up or causes incorrect readings.
- Using the wrong loop-resistor value, resulting in a signal outside the analogue input card's accepted voltage range.
- Mixing thermocouple extension cable grades or alloys, introducing a spurious junction that corrupts the temperature reading.
- Failing to allow for cable-voltage drop on long 4–20 mA loops, causing the transmitter supply to fall below its minimum operating voltage.
- Ignoring the warm-up time specified in the transducer data sheet, taking a zero reading before the element has stabilised.
Troubleshooting
- Output reads full-scale (20 mA / 10 V) regardless of process condition
- Cause: Open circuit in the loop or signal wire — transmitter driving maximum current in fault mode Fix: Check for broken conductor, loose terminal, or blown fuse in the loop. Measure loop continuity with a multimeter.
- Output reads zero or 4 mA regardless of process condition
- Cause: Short circuit across the transmitter terminals, reversed polarity, or supply voltage too low to power the device Fix: Check supply voltage at the transmitter terminals (must meet minimum, typically 12–18 V at the device). Verify polarity. Remove any parallel connections on the signal wires.
- Noisy or erratic signal that correlates with other electrical equipment switching
- Cause: Electromagnetic interference coupled into unshielded or incorrectly grounded signal cables Fix: Replace with shielded cable, ground the screen at the instrument panel end only. Consider fitting an RC filter at the analogue input. Re-route cable away from power conductors.
- Signal output is repeatable but offset from the expected calibration curve
- Cause: Zero drift due to ambient temperature change, or the transmitter zero and span were never field-calibrated Fix: Apply a known reference condition (zero pressure, ice-point temperature) and trim the zero adjustment. Repeat at full-scale. Log and date the calibration record.
Frequently asked questions
What is the difference between a sensor and a transducer?
All sensors are transducers, but not all transducers are sensors. A sensor detects and converts a physical quantity for measurement. A transducer converts energy in either direction — input to output or output to input — so a loudspeaker converting electrical energy to acoustic energy is a transducer but not a sensor.
What does a 4–20 mA transducer wiring diagram look like?
A 4–20 mA loop diagram shows a regulated 24 V DC supply, the two-wire transmitter in series with a loop resistor (typically 250 Ω at the receiver). Current flows in a single loop; the transmitter modulates current between 4 mA (zero) and 20 mA (full scale), giving 1–5 V across the resistor for the analogue input card.
Why do some transducers need shielded cable?
Low-level analogue signals — millivolt thermocouple outputs, for example — are vulnerable to electromagnetic interference from nearby power conductors or variable-frequency drives. A shielded cable with the screen grounded at one end (typically the instrument panel end) provides a Faraday cage that diverts induced noise currents away from the signal conductors.
What is an LVDT and when is it used?
A linear variable differential transformer (LVDT) is a passive transducer that measures linear displacement. An AC excitation coil drives two secondary coils; the differential output voltage is proportional to core position. LVDTs are used in aerospace actuators, machine tool feedback, and geotechnical settlement monitoring where long service life and freedom from contact wear matter.
Can a transducer be used as an actuator?
Yes. Piezoelectric devices, for instance, work in both directions: compress the crystal and it generates voltage (sensing); apply voltage and it deforms mechanically (actuation). Similarly, a solenoid converts electrical energy to linear mechanical motion, making it an electromechanical transducer acting as an actuator.
