Tube Light Circuit Diagram: Fluorescent Ballast and LED Tube Wiring Explained

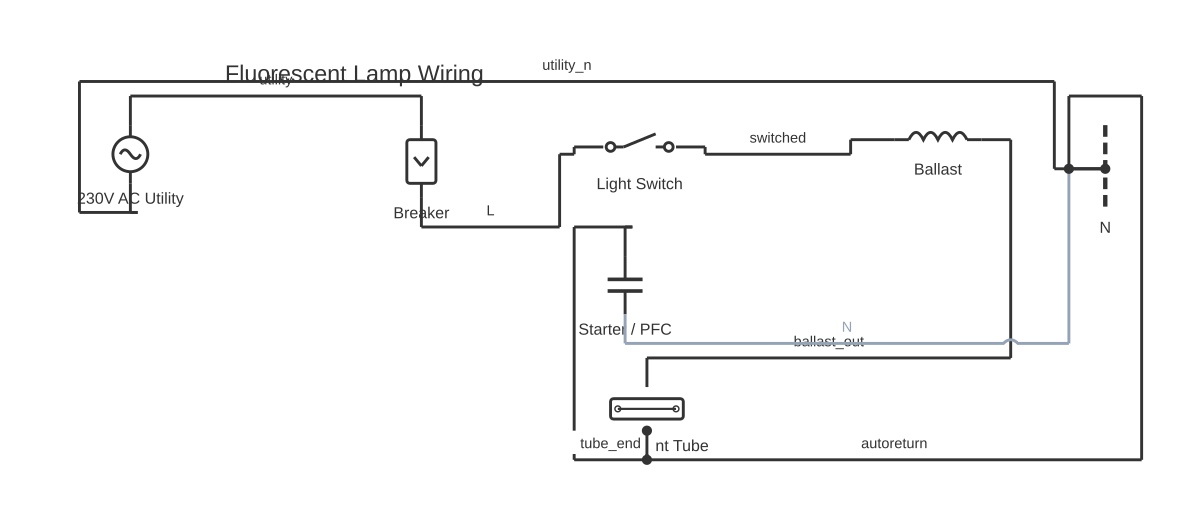

This is a free printable tube light circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A tube light circuit diagram shows how the starter, ballast (choke), and fluorescent tube connect in series to the mains supply, or how an LED tube replaces them with direct wiring.
The tube light (fluorescent tube or FL tube) circuit has been a standard lighting solution in commercial, industrial, and domestic applications for decades. Understanding the circuit is essential for maintenance, troubleshooting, and the increasingly common task of retrofitting with LED replacement tubes.
A conventional fluorescent tube circuit consists of three main components in addition to the tube itself:
1. The ballast (choke): An electromagnetic inductive choke connected in series with the tube. The ballast limits the current flowing through the tube (which, once struck, has a negative resistance characteristic and would otherwise draw increasing current to destruction). Electromagnetic ballasts also create the starting voltage surge required to ionise the gas in the tube.
2. The starter: A small gas-filled switch in a cylindrical cap that fits into a starter holder in the fitting. The starter contains a bimetallic strip that initially allows current to flow, heating the tube's cathode filaments. When the bimetallic strip cools and opens, the sudden interruption of current through the ballast produces a high-voltage inductive kick that strikes the arc in the tube. The starter is the most commonly failed component in older fluorescent fittings.
3. The tube: A sealed glass tube containing a low-pressure mercury vapour and an inert gas (typically argon). Electric discharge through the mercury vapour emits ultraviolet radiation, which excites a phosphor coating on the inner tube surface to produce visible light.
The circuit connection: One mains live conductor passes through the ballast choke, then to one end cap (one pin of the tube). The neutral connects to the other end cap. The starter connects across one end cap (in parallel with one filament). When the bimetallic switch in the starter opens after pre-heating the cathodes, the inductive voltage spike from the choke starts the arc.
LED tube retrofits: Type A LED tubes are designed as direct drop-in replacements, working with the existing ballast. Type B LED tubes bypass the ballast entirely and connect directly to mains voltage. Type C LED tubes require the existing ballast to be replaced with a compatible LED driver. The correct retrofit type depends on the fitting and the LED tube being installed — always follow the LED tube manufacturer's wiring instructions.
How to wire tube light circuit diagram
- Isolate the circuit at the circuit breaker before opening the fitting Switch off the circuit breaker supplying the fluorescent fitting. Verify with a non-contact voltage tester at the supply terminals inside the fitting body before touching any conductors. Fluorescent fittings in commercial premises may be on circuits shared with many other fittings — confirm the correct breaker is off.
- Open the fitting and identify the existing circuit type Remove the diffuser and tube. Identify whether the fitting contains a magnetic (electromagnetic) ballast or an electronic ballast. Magnetic ballasts are heavier, run warm, and operate at supply frequency (50 or 60 Hz, producing visible 100/120 Hz flicker on older tubes). Electronic ballasts are lighter and operate at high frequency (>20 kHz). The circuit wiring differs between the two types.
- For starter replacement (magnetic ballast): remove and replace the starter The starter clips into a holder mounted on the fitting body near one end of the tube. Rotate it a quarter turn to release it. Verify the replacement starter matches the tube wattage rating. Insert the new starter and rotate to lock. Do not touch the tube's end pins — residual charge may be present even with power off.
- For Type B LED tube retrofit: remove the starter and bypass the ballast With the circuit isolated, remove the starter and fit a dummy starter or tape over the starter socket terminals to prevent contact. Rewire the fitting so that the mains live and neutral connect directly to the two end caps of the tube holder, bypassing the ballast entirely. Refer to the specific LED tube wiring diagram supplied with the product. Clearly label the fitting as rewired for LED direct-wire tubes to prevent subsequent installation of a fluorescent tube.
- Install the replacement tube Insert the tube pins into the end cap holders at both ends. For T8 tubes, align the pins and push in, then rotate a quarter turn to lock. For T5 tubes, the pins insert axially without rotation. Ensure both ends are fully seated — a tube that is not fully inserted at one end will not start.
- Restore power and verify operation Restore the circuit breaker. For a fluorescent tube with a new starter, the tube should start within 1–3 seconds. For an LED tube, it should illuminate immediately. Verify that the light output is even along the full length of the tube with no dark sections at the ends.
Specifications
| Supply voltage | 230 V AC / 50 Hz (Europe, UK, Australia); 120 V AC / 60 Hz (North America) |
|---|---|
| Common tube types and diameters | T5 (16 mm diameter), T8 (26 mm diameter), T12 (38 mm diameter) |
| Common tube lengths and wattages (T8) | 600 mm / 18 W; 1200 mm / 36 W; 1500 mm / 58 W |
| Electronic ballast operating frequency | Greater than 20 kHz (typically 25–50 kHz); eliminates visible 100/120 Hz flicker |
| Power factor (corrected, with PFC capacitor) | Greater than 0.85 (commercial grade); greater than 0.9 preferred |
| Glow starter types | S2 (4–22 W tubes), S10 (4–65 W tubes) — refer to fitting specification |
| Applicable standards | IEC 60081 (fluorescent lamps), IEC 60923 (ballasts), IEC 62776 (LED tube retrofit safety), EN 62776 (EU) |
Safety warnings
- Always isolate the fluorescent fitting at the circuit breaker and verify it is dead with a non-contact voltage tester before opening the fitting body, touching the ballast, or handling conductors. Fluorescent fittings contain mains voltage at the ballast primary and at the end cap terminals.
- When retrofitting Type B LED tubes (direct-wire, ballast bypass), the tube's end cap pins connect directly to mains voltage inside the fitting. Always label the fitting clearly after rewiring to prevent a fluorescent tube from being installed in a fitting wired for direct-wire LED — inserting a fluorescent tube into a direct-wire fitting will present mains voltage at the tube's external pins and creates an immediate electric shock hazard.
- Fluorescent tubes contain mercury vapour. Handle with care to avoid breakage. If a tube breaks, evacuate the room briefly, ventilate, and clean up fragments without using a vacuum cleaner (which disperses mercury). Dispose of broken fluorescent tubes as hazardous waste per local regulations — not in general waste.
- Electronic ballasts store charge in capacitors that may remain energised briefly after isolation. Wait at least 10 seconds after switching off power before probing electronic ballast terminals.
- Electrical work on fixed mains wiring — including replacing ballasts or rewiring fittings — must comply with NEC / NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000 (Australia and New Zealand), or the applicable IEC 60364 standard. In many jurisdictions, commercial installations require a licensed electrician.
Tools needed
- Non-contact voltage tester
- Digital multimeter (AC voltage and resistance functions)
- Insulated screwdrivers (flathead and cross-point)
- Needle-nose pliers (for tightening wire connections in confined fitting bodies)
- Circuit breaker lock-out / tag-out device
- Lamp and ballast tester (optional, for fault diagnosis without restoring power to the fitting)
- Torque screwdriver (for commercial installations requiring specified terminal torques)
Common mistakes
- Replacing only the tube when the starter is the failed component. The starter is cheap and should always be replaced alongside a new tube in a magnetic ballast fitting — many new tube failures in the field are actually starter failures damaging the new tube's cathodes during repeated failed starting attempts.
- Installing a Type B direct-wire LED tube without removing or disabling the starter. The starter will attempt to initiate, which in a direct-wire LED circuit will cause the LED tube to flash or not start correctly.
- Fitting a Type A LED tube (ballast-compatible) into a fitting with an incompatible electronic ballast. Not all electronic ballasts are compatible with all Type A LED tubes. Check the LED tube manufacturer's ballast compatibility list before specifying a Type A tube.
- Inserting a fluorescent tube with the pins misaligned in the end cap holder. T8 tubes require alignment of the pins with the slot then a quarter-turn to lock. A tube inserted without the final locking rotation will not make electrical contact and may fall out.
- Not labelling a fitting after rewiring for LED direct-wire operation. A future installer replacing the tube with a fluorescent tube will be exposed to mains voltage at the tube's external pin connectors, creating an immediate safety hazard.
- Using a power factor correction capacitor with an insufficient voltage rating. The AC voltage across the capacitor in a series-capacitor connection can be higher than the mains supply voltage. Always use a capacitor rated to at least 1.5 times the RMS supply voltage, and prefer 250 V AC or 400 V AC rated types for 230 V mains installations.
Troubleshooting
- Tube flickers continuously but eventually starts (or never starts)
- Cause: Failing glow starter (most common), weak tube cathodes, or low supply voltage Fix: Replace the glow starter — this is the most common and lowest-cost repair. Confirm the replacement starter matches the tube wattage. If the problem persists with a new starter, measure mains voltage (should be within 10% of nominal). If voltage is correct, the tube's cathode filaments may be damaged — check with a tube tester or install a new tube.
- Tube ends glow orange but the tube does not strike an arc
- Cause: One or both cathode filaments are still intact and heating, but the gas pressure in the tube is too high (tube at end of life) or the ballast cannot produce sufficient strike voltage Fix: Replace the tube. This symptom — glowing ends with no arc — indicates the tube has reached end of life. Check the ballast output voltage with the tube removed if a new tube also fails to start, as a failing ballast may not produce adequate starting voltage.
- LED tube illuminates only partially along its length
- Cause: One end of the tube is not making proper electrical contact with the end cap holder, or a LED driver fault inside the tube Fix: Isolate power and re-seat the tube. For Type B direct-wire LED tubes, both pins at each end must make contact with the live or neutral terminal respectively (or as specified in the manufacturer's wiring diagram). If the tube still shows partial illumination after re-seating, the tube's internal LED driver has a fault — replace the tube.
- Fitting hums loudly during operation
- Cause: Magnetic ballast vibrating at supply frequency (50 or 60 Hz); loose mounting screws on the ballast, or ballast near end of life Fix: First tighten the ballast mounting screws. If humming persists, the ballast laminations are vibrating and the ballast is near or at end of life — replace the magnetic ballast or upgrade the fitting to electronic control gear. Humming is intrinsic to electromagnetic ballasts to some degree; significant hum indicates mechanical loosening or magnetic core deterioration.
Frequently asked questions
Why does a fluorescent tube flicker or take a long time to start?
The most common cause is a failing starter, which is the least expensive component to replace first. A flickering tube that eventually starts suggests the starter bimetallic strip is marginal. A tube that stays off despite multiple attempts may have failed cathode filaments (ends glow orange but no arc) or a dead starter. Replacing the starter first is always the correct diagnostic step.
Can I replace a fluorescent tube directly with an LED tube without changing any wiring?
It depends on the LED tube type. Type A LED tubes work with the existing magnetic or electronic ballast as a direct replacement. Type B LED tubes require removal of the starter and rewiring to bypass the ballast — mains voltage connects directly to the tube's pins. Type C requires replacing the ballast with an LED driver. Follow the specific LED tube manufacturer's wiring instructions — incorrect installation creates a shock and fire hazard.
What is the purpose of the ballast in a fluorescent tube circuit?
The ballast (choke) serves two functions: it provides the high-voltage inductive spike needed to start the arc inside the tube, and it limits the current flowing through the operating tube. Once a fluorescent arc is established, the tube exhibits negative resistance — it draws more current as current increases. Without the ballast to limit current, the tube would immediately destroy itself.
What is the power factor of a fluorescent tube with a magnetic ballast?
A magnetic ballast fluorescent tube typically has a lagging power factor of approximately 0.5 (uncorrected) due to the inductive nature of the ballast. Most commercial fittings include a power factor correction (PFC) capacitor to raise the power factor to approximately 0.9 or above, which reduces reactive current demand on the supply system.
How do I safely dispose of old fluorescent tubes?
Fluorescent tubes contain small quantities of mercury vapour, which makes them hazardous waste in most jurisdictions. Do not dispose of them in general household waste or break them in enclosed spaces. In the European Union, fluorescent lamps are WEEE (Waste Electrical and Electronic Equipment) items that must be taken to a designated collection point. Regulations vary by country — check with your local authority for the correct disposal route.
