two way lighting circuit

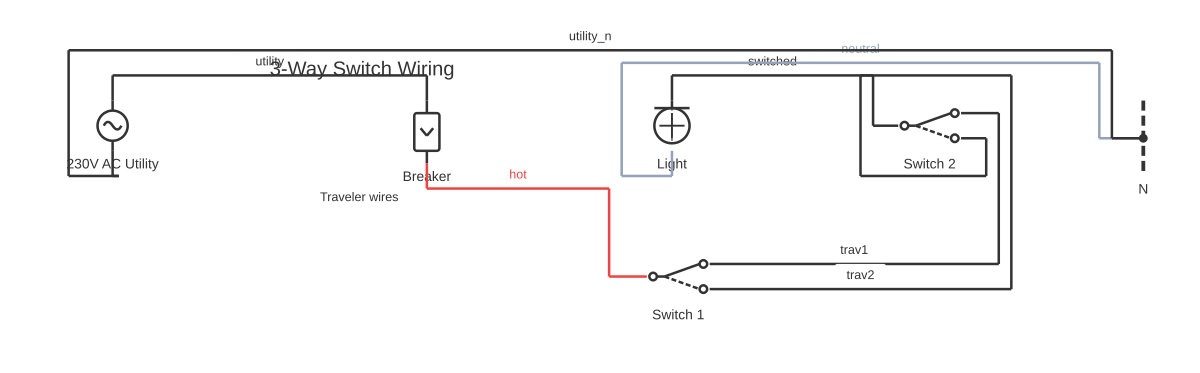

This is a free printable two way lighting circuit: download the diagram as SVG or open it and print to paper or PDF.
A two-way lighting circuit diagram demonstrates how two switches at different locations control a single light fixture, eliminating the need to walk back to turn off lights when entering from opposite ends of hallways or large rooms. The diagram shows a special three-way switch configuration where travelers (intermediate wires) carry the circuit path through both switches, with the circuit completing only when switches are in matching positions. Two-way circuits use two three-way switches, each with three terminals: one common and two travelers, plus one additional intermediate wire compared to single-switch circuits. The diagram illustrates how reversing either switch toggles light state regardless of the other switch's position, providing complete flexibility in lighting control. Understanding two-way circuits is essential for designing convenient lighting in residential homes, commercial buildings, and corridors. Troubleshooting two-way circuits requires careful attention to traveler wire connections, as reversed or crossed travelers prevent proper operation despite correct switch orientation.
How to wire two way lighting circuit
- Plan the cable routes Identify both switch positions and the light fitting location. You need: supply cable to switch 1, three-core cable from switch 1 to switch 2, and a cable from either switch position to the light. Plan routes before chasing walls.
- Run supply cable to switch 1 Run 1.5mm² twin and earth from the distribution board or junction point to the first switch position. The permanent live terminates here.
- Run three-core cable between switches Run 1.5mm² three-core and earth between both switch positions. This carries the common input and the two strapper wires. Label both ends with the switch positions — three-core cable is less common and unlabelled runs cause confusion.
- Wire switch 1 Connect permanent live to the common terminal (C). Connect the two strapper conductors to L1 and L2. The switched live output travels via the strappers to switch 2.
- Wire switch 2 Connect the two strapper wires to L1 and L2 — matching terminals to switch 1. The common terminal of switch 2 carries the switched live output to the light fitting.
- Run cable from switch 2 common to light Run 1.5mm² twin and earth from switch 2 common terminal up to the ceiling rose or light fitting. This conductor carries switched live. Connect at the fitting along with the permanent neutral.
- Test both switch positions Restore supply. Operate each switch in turn and verify the light changes state. Test all four combinations: both up, both down, switch 1 up/2 down, switch 1 down/2 up. Any combination that does not work correctly indicates a wiring error at the strapper terminals.
Frequently asked questions
How does a two-way switching circuit work?
Two-way switching uses two single-pole double-throw (SPDT) switches connected by two 'strappers' (traveller wires) between them. Each switch can route current through either strapper, so toggling either switch changes the circuit state — turning the light on or off from either location.
What cable do I need for a two-way switch installation?
A two-way installation requires a 3-core and earth cable between the two switch positions, in addition to standard 2-core supply cable. The three-core carries live, plus the two strapper conductors between the switches.
Can I add a third switch position to a two-way circuit?
Yes, using an intermediate (two-way and off) switch between the two end SPDT switches. The intermediate switch reverses the strappers and allows control from a third location. Every additional mid-point uses another intermediate switch inserted in the strapper loop.
Why does one of my two-way switches no longer work after a repair?
The strappers have been connected to the wrong terminals. The two traveller wires must connect to matching terminals on both switches (L1 to L1, L2 to L2). If they cross over at one switch, one switch position will work and the other will not.
Is two-way switching more expensive to wire than a single switch?
Yes, because it requires an additional three-core cable run between switch positions, plus two SPDT switches instead of one. For staircase landings and long passages, the convenience justifies the cost — operating any light in a passage from one end only is impractical.
