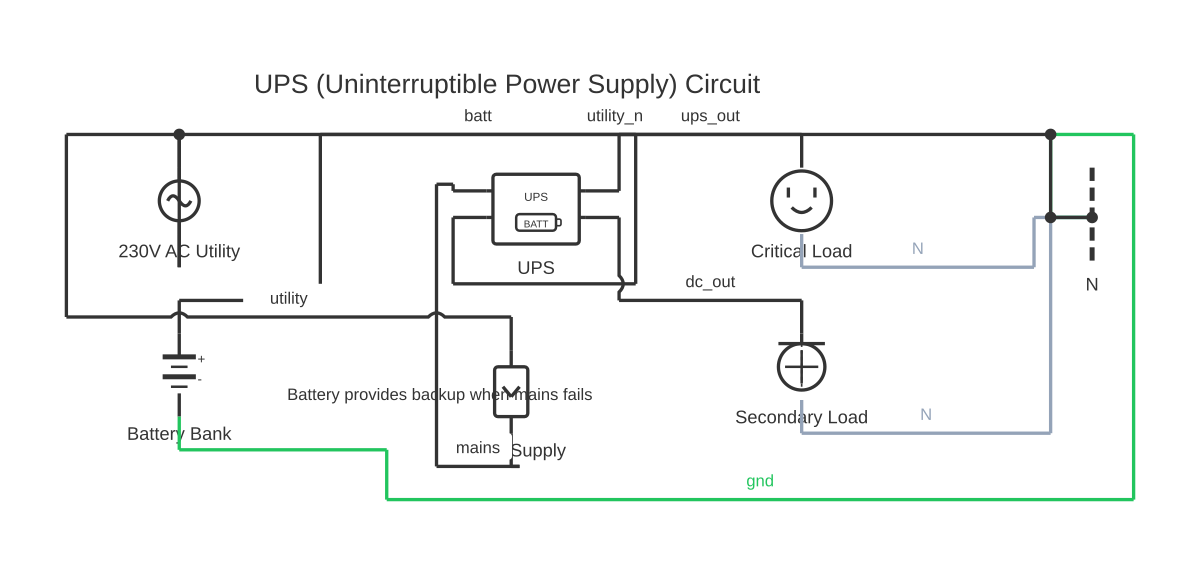

UPS Circuit Diagram
This is a free printable ups circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A UPS (uninterruptible power supply) circuit diagram shows how the rectifier, battery, inverter, and bypass switch work together to maintain continuous power through mains interruptions or disturbances.
An uninterruptible power supply (UPS) maintains power to connected loads during mains supply disturbances — including outages, voltage sags, surges, and frequency deviations. Three principal circuit topologies are used, each with different diagram architectures and performance characteristics.
An offline (standby) UPS passes mains power directly to the load through a static switch in normal operation. It monitors supply quality, and when the mains falls outside acceptable voltage or frequency limits, it transfers to battery-backed inverter operation. The transfer takes a finite time — typically 5 ms to 20 ms — which is acceptable for most IT equipment with internal power supplies that can ride through brief interruptions. The circuit diagram shows a simple parallel path: mains direct path with a static transfer switch, and an inverter-and-battery path that activates on transfer.
A line-interactive UPS adds an autotransformer or buck-boost regulator between the mains input and the load, allowing it to correct voltage variations (buck: reduce high voltage; boost: raise low voltage) without transferring to battery. The circuit diagram shows the autotransformer tapped at multiple points, with the inverter connected in series on the AC line rather than in a parallel bypass path. This topology handles brownouts and overvoltages efficiently, extending battery life by reducing battery calls for voltage correction events alone.
An online double-conversion UPS continuously converts AC to DC and back to AC for all load power at all times. The mains powers a rectifier that charges the battery and simultaneously supplies a DC bus. An inverter draws from this DC bus and produces a synthesised, regulated AC output. The battery is always in the power path — on mains failure, the DC bus voltage is maintained seamlessly from the battery, with zero transfer time. The circuit diagram shows rectifier, DC bus capacitor bank, battery (via charge/discharge management), inverter, and output transformer (in transformer-based designs), with a static bypass connecting the mains directly to the load for maintenance or inverter fault conditions.
A double-conversion UPS always carries power conversion losses — typically 93 % to 96 % efficiency at full load, dropping significantly at partial loads — and generates heat proportional to these losses. An eco-mode or energy saver mode switches to a line-interactive behaviour at mains voltages within tolerance, passing mains directly and using the inverter only as needed, improving efficiency to 99 % at the cost of a brief transfer time.
How to wire ups circuit diagram
- Identify the UPS topology from the circuit diagram Look for the power path structure: offline has a direct mains path with a parallel inverter/battery. Line-interactive has an autotransformer or AVR stage in the mains path. Online double-conversion has a rectifier–DC bus–inverter chain with no direct mains-to-load path (except the static bypass).
- Trace the rectifier section In line-interactive and online units, identify the rectifier (diode bridge or PFC-corrected active rectifier). Confirm the DC bus voltage level — typically 380 V DC to 400 V DC for a 230 V AC single-phase system, or higher for three-phase. Identify the DC bus capacitor bank which smooths the rectified voltage.
- Locate the battery connection and BMS Identify the battery bank connection to the DC bus, the charge circuit, and the battery management system (BMS) or charge controller. Note the disconnect relay or contactor in series with the battery — this protects against battery deep discharge and provides isolation for maintenance.
- Trace the inverter and output filter From the DC bus, identify the inverter bridge (IGBT or MOSFET H-bridge), the PWM control circuit, and the output LC filter that converts the switched waveform into a sinusoidal output. In transformer-based designs, the low-voltage DC bus is inverted at a lower voltage and stepped up by the output transformer.
- Identify the static transfer switch (STS) Locate the static bypass path: a thyristor pair or IGBT switch that can conduct mains directly to the output. Confirm the control logic monitors inverter output and mains synchronisation so that the bypass operates in phase with the inverter output, preventing voltage transients when switching.
- Check the control and monitoring circuit Identify the microcontroller or DSP-based control board, input/output voltage and current sensing circuits, battery voltage and temperature sensors, communication ports (USB, RS-232, dry contacts, SNMP), and alarm circuits. These provide the data displayed on the UPS panel and sent to network management systems.
Specifications
| Topology types | Offline (standby), Line-interactive, Online double-conversion (IEC 62040-3 classifications: VFD, VI, VFI) |
|---|---|
| Offline/line-interactive transfer time | 5 ms to 20 ms (offline); 2 ms to 4 ms (line-interactive) |
| Online double-conversion transfer time | 0 ms (zero transfer; battery is always in circuit) |
| Typical double-conversion efficiency (full load) | 93 % to 96 % |
| Eco-mode efficiency | Up to 99 % at rated input voltage |
| VRLA battery design life at 25 °C | 3 to 5 years (standby float service) |
| Battery life halving temperature rise | Approximately every 10 °C above 25 °C (Arrhenius relationship) |
| Standard output frequency | 50 Hz ± 0.1 Hz (online) or 50/60 Hz ± 3 Hz (line-interactive, mains-tracked) |
Safety warnings
- UPS systems store significant energy in both the battery bank and DC bus capacitors. The DC bus in a double-conversion unit may hold up to 400 V DC or more and remains energised for minutes after mains disconnection. Always allow full capacitor discharge time and verify dead with a calibrated voltage tester before internal access.
- Battery banks in VRLA (sealed lead-acid) UPS systems can deliver enormous short-circuit currents (thousands of amperes) with no interruption until internal destruction. Never short battery terminals or work near battery connections with metallic jewellery, tools without insulated handles, or uninsulated test probes.
- UPS servicing should only be carried out by qualified electrical personnel. Even with mains disconnected, the battery maintains voltage on all internal power circuits. Use the manual maintenance bypass before any internal work on the inverter or rectifier.
- VRLA batteries produce hydrogen gas during overcharge. Ensure UPS battery rooms or cabinets are adequately ventilated, and do not operate batteries near open flames or sources of ignition. Battery overcharge from a faulty charger is the most common cause of battery swelling and thermal runaway.
- All UPS installations must comply with applicable electrical codes including IEC 62040 for UPS performance, IEC 60364 for installation, and the local wiring regulations. UPS systems above a defined capacity rating may require licensed electrical sign-off in many jurisdictions.
Tools needed
- Calibrated true-RMS multimeter (AC voltage, DC voltage, frequency)
- Clamp meter (AC and DC current)
- Battery analyser (impedance and capacity test)
- Oscilloscope (for inverter output waveform quality assessment)
- Insulated screwdrivers and spanners
- Personal protective equipment: insulated gloves rated for DC voltage present
- Laptop with UPS management software or RS-232/USB cable
Common mistakes
- Connecting a UPS load beyond its rated VA or watt capacity, causing the inverter to operate in overload and either shut down or clip the output waveform — checking both VA and watt (power factor) ratings is essential.
- Assuming the UPS output is safe to touch during battery operation — the inverter output carries full mains voltage AC and is equally hazardous as a mains supply.
- Running sealed VRLA batteries in high ambient temperatures (above 25 °C) without derating the expected service life — battery life halves approximately for every 10 °C rise above 25 °C, per Arrhenius relationship.
- Failing to periodically test the battery by performing a controlled discharge — a battery that reads correct float voltage on a multimeter may have insufficient capacity due to sulphation and will fail prematurely under actual load.
- Connecting a laser printer to a UPS not rated for its peak surge current — laser printers draw very high current during the fusing element warm-up cycle, which can trigger UPS overload protection even if the steady-state wattage is within rating.
Troubleshooting
- UPS transfers to battery frequently even when mains is present
- Cause: Input voltage or frequency is outside the UPS acceptance window, or the input sensing circuit is misaligned; alternatively, the rectifier has a fault Fix: Measure actual mains voltage and frequency with a calibrated meter. Check the UPS input voltage acceptance range in the settings (some units allow this to be widened). If mains is within range but the UPS still transfers, the rectifier or input filter is likely faulty.
- UPS battery runtime is significantly shorter than specified
- Cause: Battery age and sulphation (VRLA batteries typically last 3–5 years), high ambient temperature ageing, or actual load is higher than expected Fix: Perform a battery impedance or capacity test. Measure actual connected load in watts, not just VA. If batteries are beyond their design life or show high internal impedance, replacement is required.
- Output voltage is present but contains high harmonic distortion
- Cause: Output LC filter component failure, IGBT partial failure, or overloaded UPS forcing output waveform clipping Fix: Measure output THD (total harmonic distortion) with a power analyser or oscilloscope. Reduce load to below 80 % rated capacity and re-measure. If distortion persists, the inverter or output filter requires inspection by a qualified service technician.
Frequently asked questions
What is the difference between an offline and an online UPS?
An offline UPS passes mains power directly to the load and switches to battery-backed inverter only on mains failure, with a transfer time of 5–20 ms. An online double-conversion UPS runs all load power through its rectifier and inverter continuously, providing zero transfer time and complete isolation of the load from mains disturbances, at the cost of higher power conversion losses.
What is the static bypass in a UPS circuit?
A static bypass is a solid-state (thyristor or IGBT) switch that connects the mains input directly to the UPS output in parallel with the inverter. It activates automatically in milliseconds if the inverter overloads or fails, maintaining load power from mains. A manual maintenance bypass is a separate switch allowing the UPS to be fully isolated for servicing while the load continues to receive mains power.
What does 'double-conversion' mean in a UPS?
Double-conversion refers to two power conversion stages: first, AC mains is rectified to DC (first conversion); second, the DC bus powers an inverter to synthesise clean AC for the load (second conversion). Because all power flows through both conversions at all times, the output is completely decoupled from mains disturbances, and battery transfer time is effectively zero.
Why does a UPS battery discharge even when the mains is present?
In a correctly functioning double-conversion UPS, the battery should only discharge on mains failure or significant rectifier input voltage drop. If the battery discharges on mains present, possible causes include a failing rectifier, a battery not fully charged (recent or frequent discharges), or a miscalibrated battery management system. Verify rectifier DC bus voltage is within specification.
What is the significance of UPS runtime and how is it calculated?
Runtime is the duration the UPS can power its connected load from battery alone. It depends on battery amp-hour capacity, battery condition, and load power in watts. A rough estimate: Runtime (hours) = (Battery Ah × Battery Voltage × Efficiency) / Load Watts. For example, a 12 V / 7 Ah battery supplying 100 W at 80 % inverter efficiency gives approximately (7 × 12 × 0.80) / 100 = 0.67 hours, or about 40 minutes.
