wall socket wiring diagram

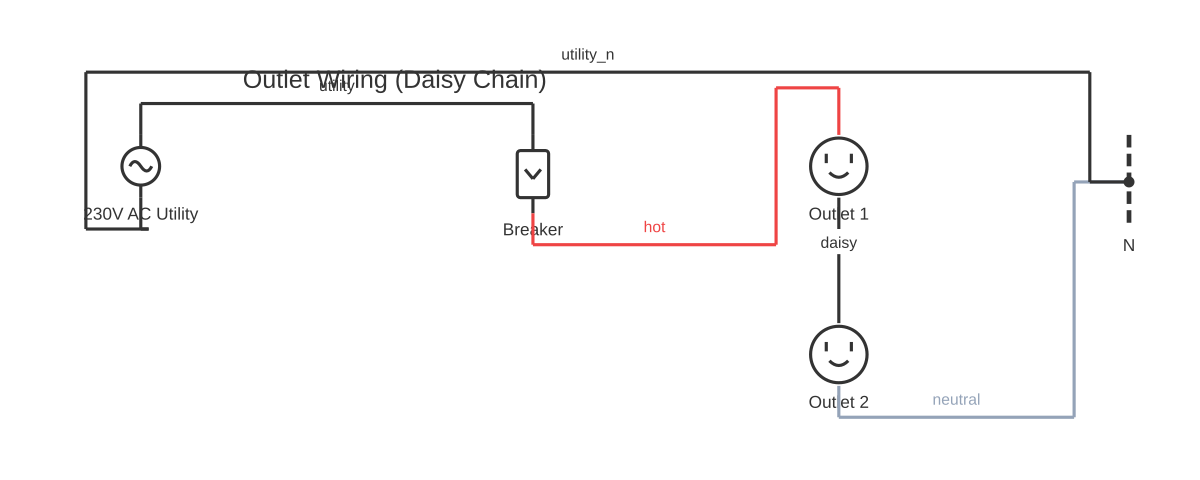

This is a free printable wall socket wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A wall socket (outlet) wiring diagram shows the proper terminal connections and wire routing for installing electrical receptacles in residential and commercial applications. The diagram identifies: hot conductor (black or red) connecting to brass terminal, neutral conductor (white) connecting to silver terminal, and ground conductor (green or bare copper) connecting to green terminal. Standard outlets rate 15A at 125V for household circuits, though 20A outlets are common for kitchen and bath circuits. The diagram demonstrates: proper wire termination (stripped insulation, hooked around terminal screw clockwise, tightened firmly), single or double-gang mounting (one or two outlets in a single electrical box), and backstab versus screw terminal connectivity (screw connections are more reliable for permanent installation). Modern wiring diagrams show: GFCI outlets required in wet locations (bathrooms, kitchens, garages) providing ground-fault protection, tamper-resistant outlets for safety in areas where children access outlets, and smart outlets with USB charging and remote control capability. Understanding wall socket wiring enables safe outlet installation, troubleshooting of dead outlets, and proper grounding verification for electrical safety.
How to wire wall socket wiring diagram
- Isolate the circuit and test Switch off the circuit breaker feeding the circuit. Test at the socket location with a multimeter to confirm all three conductors (L, N, E) read zero volts before proceeding.
- Prepare the cable entry Feed the twin and earth cable into the back box through the knockout. Leave 150mm of cable protruding for comfortable working. Secure the cable with a gland or clip at the box entry.
- Strip and prepare conductors Strip outer sheath 100mm. Strip individual conductor insulation 8–10mm. Sleeve the bare earth conductor in green/yellow PVC sleeving before connection.
- Connect L, N, and E terminals Connect brown (or red) live conductor to the L terminal, blue (or black) neutral to N, and sleeved earth to the E terminal. Tighten to manufacturer's specified torque.
- Fold cable into back box and fix socket Fold excess cable neatly into the back box without sharp bends. Offer the socket faceplate to the box and secure with fixing screws until flush with the wall surface.
- Restore power and test with a socket tester Switch the breaker back on. Insert a plug-in socket tester to verify correct polarity, earth presence, and no reversed connections. A 3-light socket tester costs under R150 and is non-negotiable.
Frequently asked questions
What is the correct wire colour for South African socket wiring?
Live (phase) is red or brown, neutral is black or blue, earth is green/yellow striped or bare copper. Post-2009 installations follow IEC colours (brown live, blue neutral, green/yellow earth). Older installations use red/black. Never assume — always test with a meter before touching.
Do I need an RCCB for every socket circuit?
Under SANS 10142-1, all socket outlets in wet areas (bathrooms, kitchens, garages, outdoors) require 30mA RCD protection. Best practice is to protect all socket circuits regardless of location. The cost of an RCCB is minimal compared to the liability of an electrocution incident.
Can I add a socket by extending from an existing socket outlet?
Yes, by spur from an existing socket, provided the existing circuit breaker can handle the additional load and the cable size remains adequate. You cannot spur from a socket that is already a spur — only from a ring main socket. Confirm the circuit type before extending.
Why does my new socket have no earth and the tester shows an error?
The earth conductor is either not connected at the consumer unit earth bar, broken in the cable run, or the back box earth terminal was missed. Earth continuity is a safety critical fault — do not use the socket until it is rectified and tested.
What torque should I use on socket terminal screws?
Follow the socket manufacturer's specification, typically 0.5–0.8 Nm for standard socket terminals. Under-tightened connections arc and overheat; over-tightened connections crack conductors. Use an insulated torque screwdriver on final connections.
