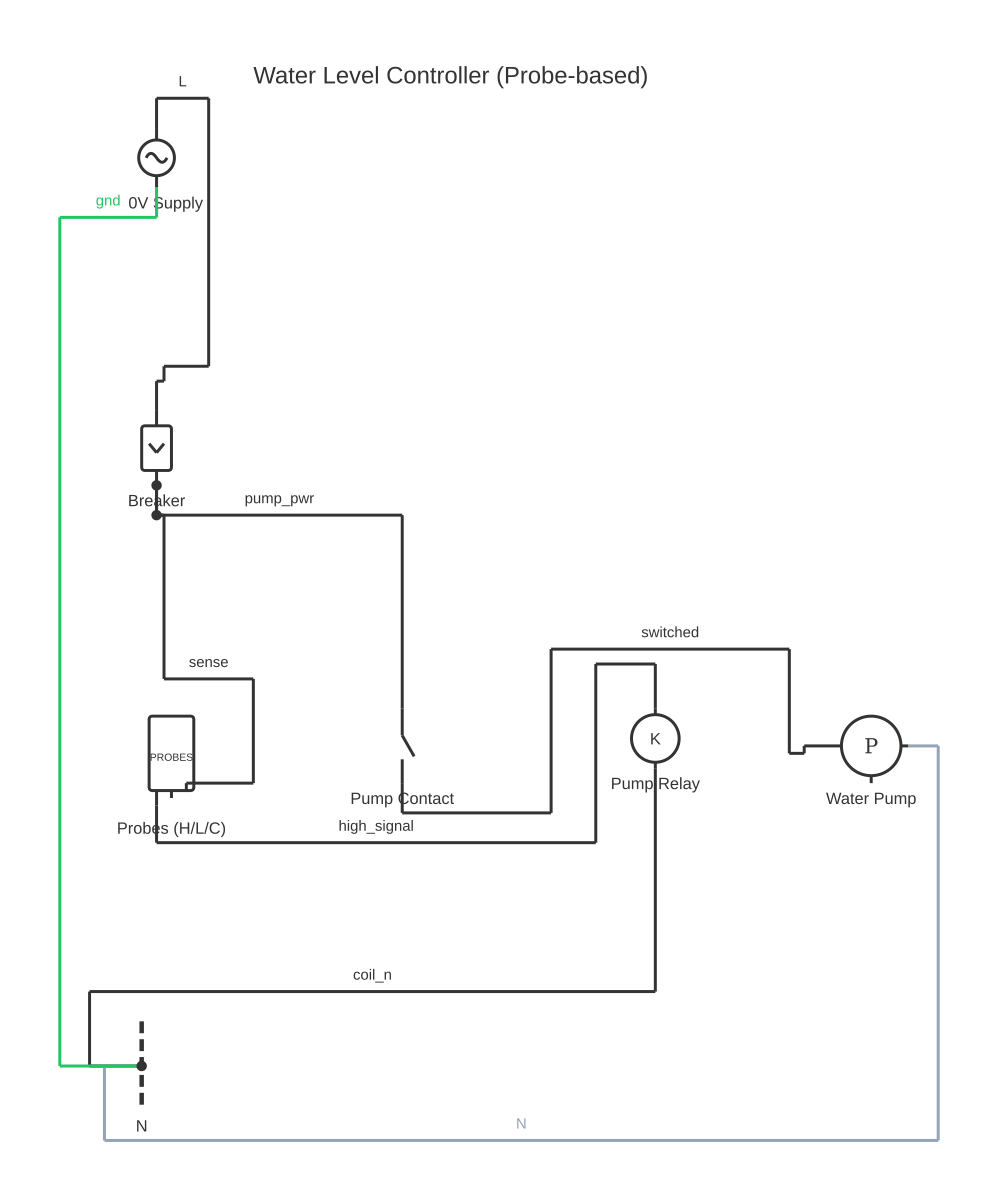

water level controller circuit diagram
This is a free printable water level controller circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A water level controller circuit diagram demonstrates the automatic regulation of water levels in tanks, reservoirs, and sump systems using float switches or capacitive sensors that trigger pump operation. The diagram shows: a float switch positioned at maximum water level (upper threshold), another at minimum water level (lower threshold), pump motor connected through a contactor or relay, and control logic determining pump operation based on water level. When water level drops below the lower float, the switch contact closes, energizing the pump motor through a contactor. As water level rises, the upper float switch opens, de-energizing the pump to prevent overfilling. The diagram may include: anti-short-cycle timer preventing rapid pump on/off cycling, high-water alarm triggering if upper float fails (preventing overflow), and automatic shutoff if lower float sensor fails (preventing dry-run damage). Modern water level controllers use capacitive sensors or ultrasonic level measurement, eliminating mechanical float issues and providing continuous level readout to building management systems. Understanding water level control circuits enables proper installation in wells, cisterns, and industrial sumps, and troubleshooting of level sensor failures.
How to wire water level controller circuit diagram
- Mount the controller module in a weatherproof enclosure Install the WLC module in an IP54 or better enclosure near the pump. Keep control wiring away from pump power wiring to prevent interference causing false triggering.
- Install float switches at correct tank levels Mount the lower float switch at the minimum acceptable water level and the upper float switch at the maximum. Ensure floats can swing freely without fouling tank walls or inlet pipes.
- Wire float switch cables to controller inputs Run submersible cable from each float switch back to the controller. Connect upper float to the HIGH input and lower float to the LOW input per the controller wiring diagram.
- Wire the controller relay output to the contactor coil Connect the controller relay output NO contact in series with the pump contactor coil circuit. Include the overload relay NC contact in the same series circuit for motor protection.
- Wire the pump power circuit through the contactor Run the pump supply through the contactor main contacts, then through the thermal overload relay, then to the pump motor terminals. Size cable to pump motor rating.
- Set the time delays if available Many controllers have an anti-short-cycle delay (typically 3–5 minutes). Enable this to prevent the pump restarting immediately after a stop — it protects the motor from thermal stress.
- Test the full cycle manually With the tank at mid-level, simulate low level by lifting the lower float — pump should start. Simulate high level by lifting the upper float — pump should stop. Confirm indicator lamps respond correctly.
Frequently asked questions
What is the difference between float switch control and electrode probe control?
Float switches use a mechanical ball that rises with water level, physically switching contacts — simple and reliable for most tanks. Electrode probes detect conductivity between stainless steel rods at set heights — no moving parts, but fouling from hard water deposits can cause false readings over time.
Why does my pump keep cycling on and off rapidly?
Rapid cycling means the upper and lower float switches are mounted too close together, so the pump fills the gap in seconds. Space the floats at least 200–300mm apart vertically to give a meaningful hysteresis band that prevents short cycling and motor wear.
Can I use the water level controller to fill from a JoJo tank into a header tank?
Yes — this is one of the most common local applications. Wire the lower float switch in the header tank as the pump start signal. Wire the upper float switch in the header tank as the pump stop signal. The pump draws from the JoJo and fills the header automatically.
How do I protect the pump from running dry?
Install a low-level float switch in the supply tank (JoJo or borehole sump) wired as a normally-closed contact in series with the pump contactor coil circuit. When the supply tank empties, the float drops, opens the NC contact, and the pump stops before it runs dry.
What cable should I use for submerged float switches?
Use submersible-grade flexible cable rated for continuous water immersion — typically 0.75mm² or 1mm² twin-core with a polyurethane outer jacket. Standard PVC cable deteriorates rapidly when submerged and will develop earth faults within one rainy season.
