Wiring 3-Phase

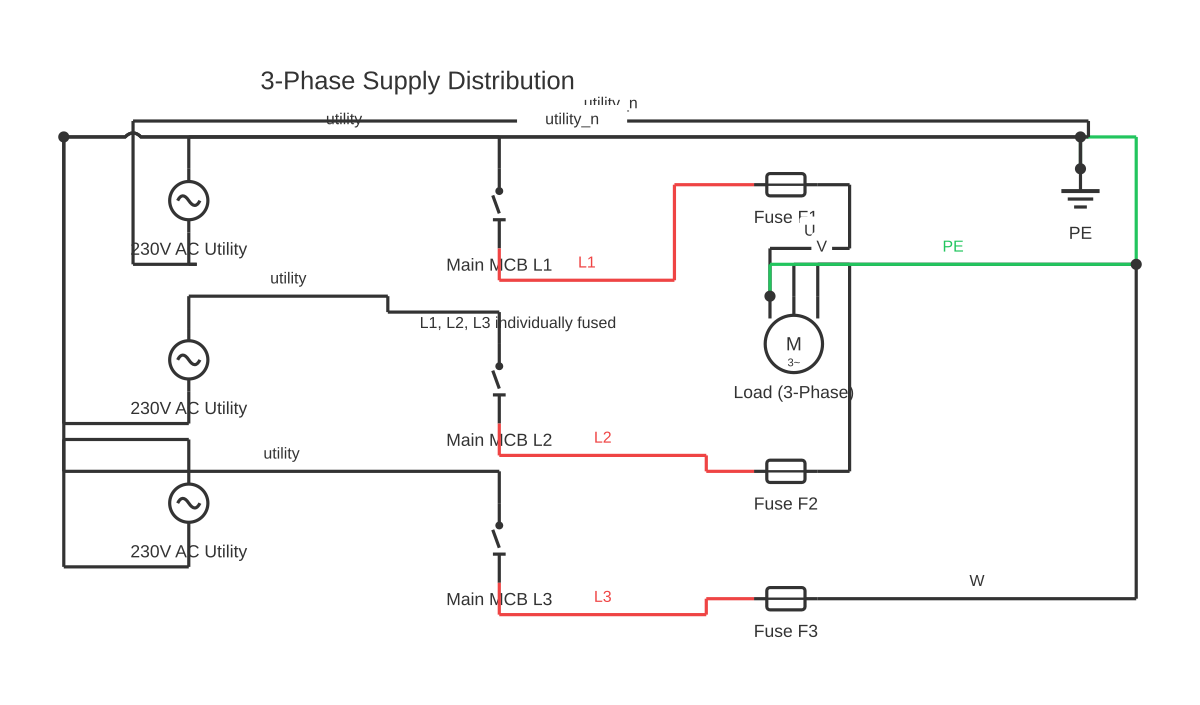

This is a free printable wiring 3 phase: download the diagram as SVG or open it and print to paper or PDF.
Wiring 3-phase electrical systems involves connecting three live conductors — each 120 degrees out of phase with the others — to loads configured in either star (Y) or delta (Δ) arrangement, with the supply distributed from a three-phase transformer or generator via a switchboard.
Three-phase wiring is the backbone of industrial and commercial electrical distribution. Where single-phase wiring provides one alternating voltage wave between a live and neutral conductor, three-phase wiring provides three voltage waves, each offset by 120 degrees in time. The result is a power delivery system that is significantly more efficient than single-phase for large loads, because the power flow is nearly constant rather than pulsing at twice the supply frequency.
The standard three-phase supply designates the three live conductors as L1, L2, and L3 (or R, S, T in some conventions, or A, B, C in others). A neutral conductor (N) is present in most distribution systems, providing a reference point and enabling single-phase loads to be connected between any live conductor and neutral. A protective earth (PE) conductor is also run throughout.
The two fundamental load connection methods are:
Star (Y) connection: One end of each load is connected to a common point called the neutral or star point. The other end connects to one of the three live conductors. In a balanced star load, line voltage (between any two live conductors) is √3 times the phase voltage (between live and neutral). In a 400 V system (line-to-line), the phase voltage is 230 V — which is why single-phase appliances in Europe can be connected between any live conductor and the neutral of a 400 V three-phase system.
Delta (Δ) connection: Each load is connected directly between two live conductors, with no neutral connection. Line voltage equals phase voltage in delta. Delta connections are common for motor windings and transformer primaries but require that the load be balanced — there is no neutral to handle imbalance current.
When wiring a three-phase panel or distribution board, live conductors are connected through circuit breakers to the load circuits. Each three-phase load takes all three lives. Single-phase loads are distributed as evenly as possible across the three phases to minimise neutral current and maintain system balance. Colour coding varies by standard: the IEC harmonised code uses brown, black, and grey for L1, L2, L3; older UK used red, yellow, blue; North America uses black, red, blue (high-voltage) or black, red, blue (low-voltage 208 V systems).
How to wire wiring 3 phase
- Determine the supply configuration at the incoming point Establish whether the incoming supply is 3-wire delta (no neutral) or 4-wire star (L1, L2, L3, N). This determines what types of loads can be connected. A 4-wire star supply supports both three-phase loads and single-phase 230 V loads. A 3-wire delta supports only three-phase loads or single-phase loads at line voltage.
- Size the main incoming cable and switchgear Calculate the total connected load in kVA or kW. Determine the full-load current using I = P / (√3 × V × PF), where V is line voltage and PF is the power factor. Select cable cross-section, main isolator, and main circuit breaker based on this current and the applicable wiring code (IEC 60364, BS 7671, NEC, etc.).
- Select and label circuit breakers in the distribution board Three-phase loads use 3-pole MCBs or MPCBs. Single-phase loads use 1-pole or 2-pole MCBs. Assign circuits to phases methodically to balance loading. Label each breaker with the load it supplies, the phase(s), and the cable reference. Document in the panel schedule.
- Route and install the distribution cables Run cables from the distribution board to each load. For three-phase loads, run all three phases together in the same conduit or trunking — never separate them, as magnetic flux cancellation reduces electromagnetic interference and heating in steel conduit. Include the earth (PE) conductor in every cable run.
- Connect three-phase loads in the correct configuration For star-connected loads (e.g., motors with Y configuration), link one end of each winding at the star point and connect the other end to L1, V1, W1 terminals. For delta loads, connect each winding between two phase terminals in the triangle arrangement. Verify configuration against the equipment nameplate before energising.
- Connect the earth (PE) conductor Every load's metal enclosure, motor frame, and equipment casing must connect to the earth (PE) bus bar in the distribution board. Earth conductors must be sized per the applicable code based on the supply conductor cross-section. Use green/yellow conductors exclusively for earth — never use green/yellow for any other purpose.
- Test before energising Carry out an insulation resistance test on all cables (minimum 1 MΩ at 500 V test voltage between each conductor and earth). Verify phase rotation with a phase sequence meter at the load's incoming terminals — this is critical for motors. Check that all connections are tight and that no copper is exposed outside terminals.
Specifications
| Standard line voltage (IEC / Europe) | 400 V line-to-line (L-L); 230 V line-to-neutral (L-N) |
|---|---|
| Standard line voltage (North America) | 208 V L-L (low voltage, 4-wire Y) or 480 V L-L (industrial) |
| Phase voltage formula | V_phase = V_line / √3 (for star-connected systems) |
| Power formula (3-phase balanced load) | P = √3 × V_line × I_line × power factor (PF) |
| IEC conductor colour code (L1, L2, L3) | Brown, Black, Grey (post-2004 IEC harmonisation) |
| Neutral conductor colour | Blue |
| Earth conductor colour | Green and yellow stripes |
| Supply frequency | 50 Hz (Europe, Asia, Africa, Australasia); 60 Hz (North America, parts of Latin America) |
Safety warnings
- Three-phase systems operate at line voltages of 380–480 V (and higher for medium- and high-voltage systems). Contact with any live conductor is immediately life-threatening. All work on three-phase systems must be carried out by a licensed or registered electrician and must comply with applicable codes: BS 7671 (UK), NEC/NFPA 70 (USA), AS/NZS 3000 (Australia/NZ), or IEC 60364.
- Always isolate using a lockable main isolator, apply lockout-tagout (LOTO), and verify that all three phases and the neutral are dead with a calibrated CAT IV rated voltage tester before working on any conductors or bus bars. Three-phase distribution boards may have multiple incoming supplies — verify all sources are isolated.
- Phase rotation errors on motor-driven equipment can cause driven machinery to operate in reverse. Pumps running backward can cavitate and be damaged; compressors can be damaged; safety systems may not operate as designed. Always verify phase sequence before connecting motor loads.
- Never route three-phase conductors in separate metal conduits — eddy currents induced in steel conduit carrying unbalanced single-phase currents can cause excessive heating and energy loss. Group all conductors of the same circuit in one conduit.
- Three-phase systems in industrial environments must be protected against phase failure (single phasing), phase imbalance, and earth faults. Install phase monitoring relays in critical applications such as motor starters to prevent single-phasing damage.
Tools needed
- CAT IV rated digital multimeter
- Phase rotation meter (phase sequence tester)
- Insulation resistance tester (Megger) — 500 V or 1 000 V
- Clamp meter (AC, true RMS)
- Torque screwdriver and torque wrench (for busbar and terminal connections)
- Lockout-tagout (LOTO) kit
- Cable lugs and hydraulic crimping tool (for larger cable cross-sections)
- Cable drum jacks and fish tapes for cable installation
Common mistakes
- Using wrong colour codes — mixing IEC harmonised (brown/black/grey) with old UK (red/yellow/blue) or North American conventions in the same installation, creating a maintenance hazard for future workers.
- Connecting a delta-rated motor to a star supply at the wrong voltage — for example, connecting a 400 V delta motor to a 400 V star supply, which applies 230 V to each winding instead of 400 V, giving approximately 50% of rated torque.
- Omitting the neutral in a 4-wire system or failing to bond the star point of a transformer secondary to earth, leaving the system floating and exposing it to dangerous voltage shifts under unbalanced load.
- Not verifying phase rotation before commissioning a motor — on initial energisation, the motor will either run the correct direction or the exact opposite. Without a phase rotation meter, this is a coin-flip risk.
- Underestimating total harmonic distortion (THD) from variable speed drives and other non-linear loads, which can cause neutral conductor overheating — the neutral may carry more current than any individual phase in heavily distorted systems.
Troubleshooting
- Three-phase motor runs slowly and draws excessive current
- Cause: Single phasing — one of the three supply phases has failed (blown fuse, loose terminal, open-circuit conductor) Fix: Measure voltage between each pair of phases at the motor terminals. A missing phase shows as zero or much-reduced voltage on the two readings involving that phase. Isolate and lock out, trace the open circuit back to the source, and repair.
- Neutral conductor overheats
- Cause: Severely unbalanced single-phase loading, or high harmonic current from switched-mode power supplies and variable speed drives (third harmonics add in the neutral) Fix: Re-balance single-phase loads across the three phases. If loads are harmonic-producing (VFDs, UPS, computers), install a harmonic filter or oversized neutral conductor. Measure neutral current with a true-RMS clamp meter to quantify the problem.
- Voltage between one phase and neutral is significantly different from the other two phases
- Cause: Unbalanced loading causing voltage drop on the heavily loaded phase; or a high-resistance connection on one phase Fix: Measure current on each phase to identify the overloaded phase and re-balance loads. Check all connections on the affected phase for loose terminals or corrosion. Measure contact resistance at all busbars, MCB connections, and cable terminations on the affected phase.
Frequently asked questions
What is the difference between line voltage and phase voltage in a three-phase system?
Phase voltage is the voltage between one live conductor and the neutral point. Line voltage is the voltage between any two live conductors. In a star-connected system, line voltage is √3 (approximately 1.732) times the phase voltage. In a 400 V line-to-line system, phase voltage is approximately 230 V.
Why are loads distributed across phases in a three-phase panel?
Unbalanced loading causes current to flow in the neutral conductor and creates unequal voltages across the three phases. Distributing loads evenly minimises neutral current, reduces transformer heating, and ensures each phase delivers its rated capacity. In severely unbalanced systems, voltage on the heavily loaded phase drops and on the lightly loaded phase rises.
What does 'phase rotation' mean and why does it matter?
Phase rotation (or phase sequence) refers to the order in which the three phases reach their peak voltages: L1 first, then L2, then L3 (or vice versa). Phase rotation determines the direction of rotation of three-phase motors. Reversing the connection of any two phases reverses the motor direction. Phase rotation testers confirm the correct sequence before commissioning equipment.
Can single-phase loads be connected to a three-phase supply?
Yes. In a star (Y) distribution system with a neutral, single-phase loads connect between any one live conductor and neutral, drawing the phase voltage (230 V in a 400 V system). The three phases should have approximately equal total single-phase load connected to maintain balance. Single-phase loads cannot be connected to a delta distribution without additional transformation.
What is a star-delta starter and why is it used?
A star-delta starter reduces the starting current of large induction motors by initially connecting the stator windings in star, which applies only 1/√3 of the line voltage across each winding. This reduces starting current to approximately one-third of the direct-on-line (DOL) value. Once the motor approaches full speed, the circuit switches the windings to delta for normal full-voltage operation.
