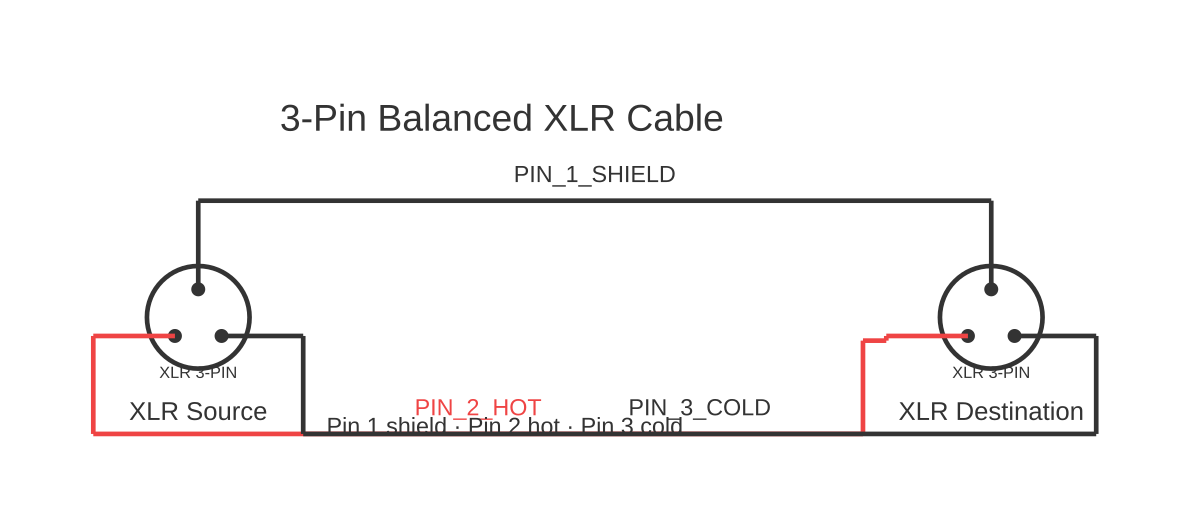

An XLR cable diagram shows how pins 1, 2, and 3 connect inside a balanced audio cable — pin 1 to shield/ground, pin 2 to the positive (hot) conductor, and pin 3 to the negative (cold) conductor — the standard that every audio professional depends on.

An XLR cable is a 3-pin balanced audio interconnect used in professional audio, broadcast, and live sound applications. The 3-pin XLR connector was standardised by the Audio Engineering Society and is defined by IEC 61076-2-103. The pin assignment is: Pin 1 = Ground (shield/screen), Pin 2 = Positive / Hot / Non-inverting signal conductor, Pin 3 = Negative / Cold / Inverting signal conductor.

This pin assignment is near-universal but was not always consistent: older European equipment — particularly some vintage British gear — used Pin 3 as hot and Pin 2 as cold (sometimes called 'European pinout' or 'pin 3 hot'). When connecting modern and vintage equipment from different eras, a phase reversal may occur. A 6 dB loss in level when summing to mono is a characteristic symptom — this indicates the two signals are partially out of phase.

The fundamental purpose of the 3-conductor balanced arrangement is common-mode noise rejection. Both the hot and cold conductors carry the same audio signal, but the cold conductor carries it at inverted polarity. Any interference signal — from mains hum, radio frequency interference, or fluorescent lamp noise — induced into the cable affects both conductors equally (common-mode). At the receiving differential amplifier input, the hot signal is preserved and the cold signal is re-inverted and added. The equal-and-opposite interference signals cancel, yielding the clean audio signal without the interference. This is called common-mode rejection ratio (CMRR) and is measured in dB — professional balanced inputs typically achieve 60–80 dB CMRR.

XLR connectors are used for microphone cables (mic-level signals, typically −60 to −40 dBu), line-level interconnects (typically +4 dBu professional standard), and speaker drive cables between power amplifiers and passive speaker systems in installed and live sound (though standard XLR speaker cables carry amplified power, not line-level signals — these should be clearly labelled to prevent accidental connection to mic inputs).

XLR cables use a locking mechanism (a spring-loaded latch) that prevents accidental disconnection during live performances. The female connector (XLR-F) has the locking socket and is fitted to microphone capsules and equipment outputs. The male connector (XLR-M) plugs into the female and is fitted to equipment inputs and cable send ends.

How to wire xlr cable diagram

Gather tools and materials Assemble a soldering iron (25–40 W, fine tip), rosin-core solder, wire strippers, heat-shrink tubing, a multimeter, and the XLR connectors. Use quality cable with 2 inner conductors plus braided or spiral shield — typically 24 AWG or 22 AWG for mic cables, 20 AWG for longer line-level runs.
Prepare the cable end Slide the XLR back-shell (barrel) and any boot or strain relief over the cable before soldering. Strip the outer jacket 30–35 mm. Separate and unwind the shield braid or fold it back. Strip each inner conductor 5 mm. Twist and pre-tin each conductor and the shield drain wire.
Identify the connector pin positions On the solder-cup side of an XLR male or female connector, pin numbers are typically stamped or moulded into the body near each cup. With the locking tab (female) or the key slot (male) at the top: Pin 1 is usually at the bottom centre (or explicitly marked), Pin 2 is to the left (or top-left), Pin 3 is to the right (or top-right). Confirm with your connector's datasheet — orientation varies by manufacturer.
Solder Pin 1 (ground/shield) Twist the shield braid into a conductor and solder it to the Pin 1 cup. On some connectors Pin 1 also connects to the shell via an internal bridge — verify this on your connector. The shield must not touch Pins 2 or 3. Keep the solder joint small and smooth.
Solder Pin 2 (hot/positive) and Pin 3 (cold/negative) Solder the red (or white) conductor to Pin 2 and the black (or blue) conductor to Pin 3. Keep all conductors short and well separated to prevent shorts. Ensure no solder bridges between pins. Allow joints to cool before moving the cable.
Assemble the connector body and strain relief Slide the backshell over the solder cups and tighten according to the connector design. Clamp the cable strain relief firmly — the clamp must grip the cable jacket, not the inner conductors. The cable jacket should not pull or rotate when tugged firmly.
Test with a multimeter and cable tester Use a multimeter to verify: Pin 1 to Pin 1 continuity end-to-end (shield), Pin 2 to Pin 2 (hot), Pin 3 to Pin 3 (cold). Then verify no continuity between Pin 1 and Pin 2, Pin 1 and Pin 3, or Pin 2 and Pin 3. A cable tester (audio cable test box) simplifies this and shows pin wiring at a glance.

Specifications

Pin 1	Ground / Shield / Screen (chassis ground at connector shell)
Pin 2	Hot / Positive / Non-inverting signal conductor
Pin 3	Cold / Negative / Inverting signal conductor
Phantom power voltage (Pin 2 and 3 to Pin 1)	+48 VDC (standard), +12 VDC or +24 VDC (some older equipment)
Professional line level	+4 dBu (1.228 V RMS)
Microphone output level (typical)	−60 dBu to −40 dBu
Typical CMRR of balanced input	60 dB – 80 dB

Safety warnings

XLR cables carry low-level audio signals at safe voltages during normal use. However, when used as speaker cables between power amplifiers and passive speakers, the conductors carry high-energy amplified power. Never connect a speaker-output XLR cable to a balanced line or microphone input — even a brief connection can destroy the input electronics of the receiving equipment.
Phantom power (48 VDC) is applied by mixing consoles and preamps to condenser microphones through XLR Pin 2 and Pin 3 relative to Pin 1. Do not connect an unbalanced (TS or RCA) device to an XLR input with phantom power active unless the device is rated for it — phantom power can damage unbalanced equipment connected via XLR adapters.
Soldering produces fumes that are harmful to the respiratory system. Work in a well-ventilated area or use a fume extractor when building or reterminating XLR cables.

Tools needed

Soldering iron (25–40 W, temperature-controlled preferred)
Rosin-core solder
Wire strippers (set for 22–24 AWG conductors)
Side cutters/flush cutters
Multimeter (continuity function)
XLR cable tester (audio cable test box)
Heat gun (for heat-shrink)
Helping hands or PCB vice to hold connector during soldering

Common mistakes

Connecting the shield/screen to Pin 2 or Pin 3 instead of Pin 1 — the shield must go to ground (Pin 1) to provide electromagnetic shielding; connecting it to a signal pin causes noise injection into the audio signal.
Cold solder joints — insufficient heat causes a grainy, dull joint that has high resistance and fails intermittently with cable movement. Heat the cup, not just the solder; the solder should flow into the joint.
Forgetting to slide the backshell over the cable before soldering — requires complete desoldering to correct. Always thread all cable-entry parts onto the cable first.
Leaving the shield unconnected at one end (intentionally) in an attempt to prevent ground loops — this eliminates the cable's shielding effectiveness. Shield ground loops are better addressed by lifting Pin 1 inside equipment using a ground-lift switch, not by disconnecting the shield at the cable.
Mixing pin 2-hot and pin 3-hot equipment in the same system without using a phase-reversal adapter — produces polarity inversions that are difficult to diagnose.

Troubleshooting

Persistent hum or 50/60 Hz buzz on a long XLR run: Cause: Ground loop between equipment: the shield carries a circulating current induced by different ground potentials at each end Fix: Check that all equipment shares the same AC mains earth. Use a DI box with a ground-lift switch to break the loop at one end. Verify the shield is connected at both ends (good shielding) but that ground loop current is broken through equipment isolation, not by lifting the shield.
Cable works on short runs but picks up noise or loses level on long runs: Cause: High cable capacitance loading the source output, or a broken inner conductor that passes signal at zero movement but fails under flexing Fix: Flex the cable along its length while monitoring the signal on a meter or by ear. A broken conductor will cause intermittent dropout. Re-terminate or replace the cable. For long runs, use low-capacitance cable (< 100 pF/m) and ensure the source output impedance is low (below 200 Ω).
One channel has inverted polarity relative to the other: Cause: Pin 2 and Pin 3 swapped at one end of a cable, or the cable was terminated to a piece of equipment that uses pin 3-hot convention Fix: Test with a cable tester. Verify that Pin 2 at one end connects to Pin 2 at the other. If equipment uses pin 3-hot convention, use a polarity-reversing adapter or re-terminate the cable. Confirm by summing both channels to mono — correct polarity produces no level loss.

Frequently asked questions

What are the pin assignments for a standard XLR audio cable?

Pin 1 = Ground (the cable shield/screen, connected to the connector shell). Pin 2 = Hot/positive — the non-inverting signal conductor, typically the red inner wire. Pin 3 = Cold/negative — the inverting signal conductor, typically the black or blue inner wire. This is the AES/EBU and IEC 61076-2-103 standard used on virtually all modern professional audio equipment.

What happens if XLR pin 2 and pin 3 are swapped?

Swapping pins 2 and 3 reverses the polarity of the signal. On a single cable feeding a single speaker, the effect is inaudible. However, when this cable feeds one channel of a stereo system, the left and right speakers are out of phase with each other — the result is reduced bass, poor stereo imaging, and a diffuse sound stage. When summed to mono, level drops by up to 6 dB.

What is the difference between balanced and unbalanced audio wiring?

Unbalanced audio uses two conductors: signal and ground. The signal conductor is directly exposed to interference induced along the cable run. Balanced audio uses three conductors — hot, cold, and ground — and a differential amplifier at the receiving end that cancels common-mode interference. Balanced cables can run tens of metres with negligible noise pickup; unbalanced cables in noisy environments begin to pick up hum beyond 3–5 metres.

Can I use an XLR cable for speaker output from a power amplifier?

Some power amplifiers use XLR connectors on their speaker outputs — this is a deliberate design choice for locking and robustness. However, a speaker-output XLR carries amplified power (potentially hundreds of watts) and must never be connected to a balanced line input. Always label speaker XLR cables clearly. The cable itself is an ordinary XLR cable; the danger is incorrect connection, not the cable.

What is pin 1 problem in audio equipment?

Pin 1 problem is a grounding fault in audio equipment where the XLR pin 1 ground connection is made to the circuit board signal ground rather than directly to the equipment chassis. This allows RF interference and external ground noise to inject into the signal path. Equipment with correct pin 1 grounding connects pin 1 directly and exclusively to the chassis/enclosure at the point of entry.
