Xnx Xnx Transmitter Wiring Diagram — Editable Wiring Diagram
This is a free printable xnx xnx transmitter wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
This editable xnx xnx transmitter wiring diagram reference is generated from the displayed electrical graph, not from a generic article outline. The current drawing contains 6 components and 7 routed connections, including 1 × 24V DC PSU (DC voltage source), 1 × XNX Gas Transmitter (Xnx Transmitter), 1 × 250Ω Loop R (Resistor), 1 × PLC AI (Plc Input) and 1 × Alarm A Lamp (Pilot Light). Use it to inspect the shown topology, then confirm ratings and terminal assignments against the equipment documentation for your installation.
Diagram checks and scope
- Components
- 6
- Wired connections
- 7
- Automated check
- Automated pin, route, source, and topology checks passed; this is not a safety certification.
What this Xnx Xnx Transmitter Wiring Diagram drawing contains. The rendered example uses 1 × 24V DC PSU (DC voltage source), 1 × XNX Gas Transmitter (Xnx Transmitter), 1 × 250Ω Loop R (Resistor), 1 × PLC AI (Plc Input), 1 × Alarm A Lamp (Pilot Light) and 1 × circuit reference. Control circuits must keep command logic, coil supply, auxiliary contacts and load switching roles distinct. The component names in the list below come from the editable canvas, while the wire summary comes from the saved start and end terminals. This makes the written explanation auditable against the image instead of presenting an unrelated stock circuit.

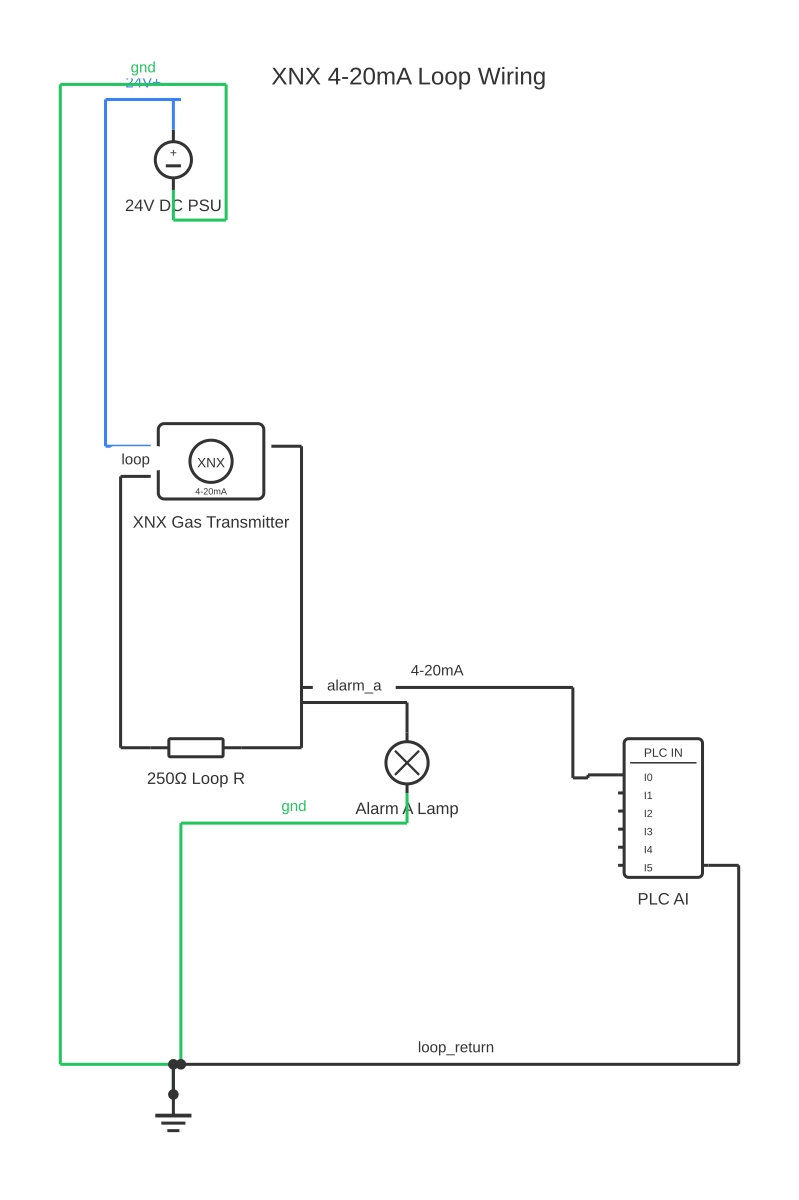

Reading the stored graph from terminal to terminal gives this sequence: 1. 24V DC PSU pos terminal connects to XNX Gas Transmitter pos terminal on the 24V+ net. 2. XNX Gas Transmitter neg terminal connects to 250Ω Loop R a terminal on the loop net. 3. 250Ω Loop R b terminal connects to PLC AI i0 terminal on the 4-20mA net. 4. XNX Gas Transmitter a terminal connects to Alarm A Lamp pos terminal on the alarm_a net. 5. Alarm A Lamp neg terminal connects to circuit reference gnd terminal on the gnd net. 6. 24V DC PSU neg terminal connects to circuit reference gnd terminal on the gnd net. 7. PLC AI com terminal connects to circuit reference gnd terminal on the loop_return net. Its named nets are “24V+”, “loop”, “4-20mA”, “alarm_a”, “gnd” and “loop_return”. A line joining two terminals records electrical continuity in this reference; visual proximity alone does not create a connection. Junctions, bridges and terminal labels therefore matter when the drawing is edited or exported.
Read the control path from its supply and protective device through each permissive or command contact to the coil, then trace linked power contacts separately. A normally-open or normally-closed state describes the de-energized device unless the drawing explicitly says otherwise. In this particular graph, the first visible path is 24V DC PSU pos terminal connects to XNX Gas Transmitter pos terminal on the 24V+ net., XNX Gas Transmitter neg terminal connects to 250Ω Loop R a terminal on the loop net., 250Ω Loop R b terminal connects to PLC AI i0 terminal on the 4-20mA net. and XNX Gas Transmitter a terminal connects to Alarm A Lamp pos terminal on the alarm_a net.. Follow the remaining rows in the connection table before changing a symbol or moving a conductor, because a neat layout is not evidence that a terminal function is correct.
Confirm coil voltage, contact utilization category, overload contact state, interlocks and stop-chain behavior. Matching a coil tag to every linked contact is essential before the sequence can be simulated or released. Automated validation checks that component IDs and terminal IDs exist, routes terminate on pins, the graph has a recognized source, and the saved topology has no blocking structural fault. It does not determine conductor size, protective-device rating, fault current, insulation class, environmental suitability or compliance with local rules. Those decisions require project values and the current primary documentation.
How to wire xnx xnx transmitter wiring diagram
- Read the Xnx Xnx Transmitter Wiring Diagram source path For this xnx xnx transmitter wiring diagram, begin at 24V DC PSU (DC voltage source) and trace every stored terminal pair toward the load or output; do not infer continuity from lines that merely cross.
- Match every terminal name Compare the Xnx Xnx Transmitter Wiring Diagram terminal labels shown in the connection table with the current device or standard documentation before assigning real conductors.
- Set project-specific ratings Replace placeholder values in the xnx xnx transmitter wiring diagram with verified voltage, current, protection, conductor and environmental data for the actual installation.
- Run the electrical checks again After editing XNX Gas Transmitter (Xnx Transmitter) or any route, validate the graph and inspect every reported open terminal, source fault, collision and disconnected island.
- Release a controlled copy Export the revised Xnx Xnx Transmitter Wiring Diagram drawing only after a competent reviewer has compared it with the bill of materials, manufacturer documents and applicable rules.
Specifications
| Topic | Xnx Xnx Transmitter Wiring Diagram |
|---|---|
| Components shown | 6 |
| Routed connections | 7 |
| Named nets | 24V+, loop, 4-20mA, alarm_a, gnd, loop_return |
| Verification scope | Stored pins, routes, source path and graph topology |
Safety warnings
- Isolate every supply feeding the control and power sections; a stopped coil does not prove the load side is dead.
- Verify protective devices, interlocks and stop functions independently before energizing a contactor or motor circuit.
Tools needed
- The current manufacturer datasheet, connector schedule or applicable standard for every real device
- A suitable meter and proving method for the voltage class being worked on
- The editor validation report and a controlled terminal or wire schedule
Common mistakes
- Treating the xnx xnx transmitter wiring diagram illustration as proof of a manufacturer pinout or conductor rating when those values are not encoded in the graph.
- Connecting by component position or wire colour instead of checking the named terminals in the Xnx Xnx Transmitter Wiring Diagram connection path.
- Using a power-contact terminal as a coil or auxiliary terminal, or omitting the de-energized contact state from the control review.
Troubleshooting
- The Xnx Xnx Transmitter Wiring Diagram path appears open
- Cause: A route ends on the wrong pin, a terminal was renamed, or a required return path is absent. Fix: Trace the connection rows in order, restore the documented terminal mapping, and run validation again.
- The edited drawing passes visually but validation fails
- Cause: A conductor may stop off-pin, cross a component body, create a source short or leave a disconnected island. Fix: Open each blocking finding, correct the referenced component or route, then re-run the topology check before export.
- The real equipment behaves differently
- Cause: The stored reference does not match the exact model, revision, supply or contact state. Fix: De-energize safely, return to the current primary documentation, and revise the symbol terminals and values before further testing.
Frequently asked questions
What exactly is verified on this xnx xnx transmitter wiring diagram?
The saved Xnx Xnx Transmitter Wiring Diagram graph is checked for known components and terminals, pin-snapped routes, a recognizable source path and blocking topology defects. Exact equipment ratings and manufacturer assignments are outside that automated scope.
Which components are actually shown in this Xnx Xnx Transmitter Wiring Diagram diagram?
The current editable graph contains 1 × 24V DC PSU (DC voltage source), 1 × XNX Gas Transmitter (Xnx Transmitter), 1 × 250Ω Loop R (Resistor), 1 × PLC AI (Plc Input), 1 × Alarm A Lamp (Pilot Light) and 1 × circuit reference. The bill of materials on this page is derived from those saved symbols rather than a generic shopping list.
How are the xnx xnx transmitter wiring diagram connections documented?
The graph contains 7 terminal-to-terminal links. The first path shown is 24V DC PSU pos terminal connects to XNX Gas Transmitter pos terminal on the 24V+ net.
Can I use the drawing as an installation instruction?
Use it as an editable reference and review aid. Verify the exact equipment documentation, ratings, protection, conductor selection and local requirements before construction or release.
