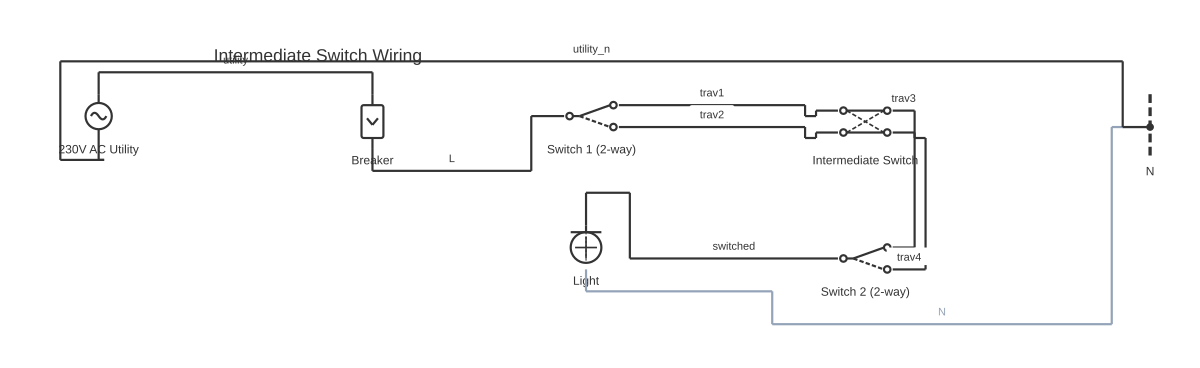

A 2-way and intermediate switch wiring diagram shows how two 2-way switches and one or more intermediate (cross) switches connect to control a single light from three or more positions.

Controlling a light fitting from three or more locations requires a circuit that combines 2-way switches (called 3-way switches in North America) at each end of the switching run, with one or more intermediate switches (called 4-way switches in North America) inserted between them. This is the standard approach for long corridors, staircases with multiple landings, large open-plan rooms, and hotel or commercial spaces where multiple entry points each need independent control.

The 2-way switches at each end of the circuit work identically to a standard two-location circuit: each has one common terminal and two strappers (traveller terminals). Power enters the common of one end switch, and the switched output to the lamp leaves from the common of the other end switch.

The intermediate (cross) switch is a four-terminal device that can be wired in two internal configurations: straight-through (passing each strapper directly across) or crossed (swapping the two travellers). Toggling the intermediate switch changes between these two states — effectively crossing or uncrossing the traveller wires — which changes the light state without directly breaking or making the supply. Each additional location in the circuit requires one additional intermediate switch.

In UK and Commonwealth wiring (BS 7671 and AS/NZS 3000), the intermediate switch is a distinct device with four terminals, typically in a 6-terminal body (with the pairs marked 1-2 on each side). In North American wiring (NEC), the equivalent 4-way switch has the same function but is described using different manufacturer terminology.

Cable requirements: Between the two end 2-way switches, and between each intermediate switch, 3-conductor plus earth cable is required to carry both traveller wires. The addition of intermediate switches does not change the cable type, only the number of switch boxes in the run.

This arrangement is scalable: four locations require two intermediates, five locations require three intermediates, and so on. Smart switch systems may replace the physical intermediate arrangement with wireless communication between end switches.

How to wire 2 way intermediate switch wiring diagram

Isolate the circuit and verify it is dead at all switch locations Switch off the relevant circuit breaker. Use a non-contact voltage tester followed by a multimeter to confirm all conductors are de-energised at every switch box in the circuit before touching any wiring. Do not assume all switch boxes are on the same circuit — verify each.
Plan the cable route and switch positions Determine the physical location of each switch box and the routing of cable between them. Each section of the run between switch boxes requires a 3-conductor plus earth cable. Sketch the layout: End switch 1 → [3-core cable] → Intermediate switch → [3-core cable] → End switch 2 → [2-core cable] → Light fixture. For multiple intermediate switches, extend the intermediate section.
Connect end switch 1 (first 2-way switch) Connect the incoming live (line) conductor to the common terminal of switch 1. Connect the two traveller conductors from the cable running to the first intermediate switch to the two traveller (L1 and L2) terminals of switch 1. Connect the earth conductor to the earth terminal in the box.
Connect the intermediate switch The intermediate switch has four terminals arranged as two pairs. Connect traveller conductor A from the incoming cable (from end switch 1) to terminal 1 on one side, and traveller conductor B to terminal 2 on the same side. Connect traveller conductor A from the outgoing cable (to end switch 2 or the next intermediate) to terminal 1 on the other side, and traveller conductor B to terminal 2 on the other side. This straight-through connection is correct for the intermediate switch. Connect earth. For additional intermediate switches in the run, repeat this connection for each.
Connect end switch 2 (second 2-way switch) Connect the two traveller conductors from the cable running from the last intermediate switch to the two traveller (L1 and L2) terminals of switch 2. Connect the switched live conductor going to the light fixture to the common terminal of switch 2. Connect earth.
Connect the light fixture and restore power At the light fitting, connect the switched live (from end switch 2 common) to the line terminal of the fixture, the neutral to the neutral terminal, and the earth to the earth terminal and metal parts. Restore the circuit breaker. Test the light from every switch position, verifying that toggling any single switch always changes the light state.

Specifications

2-way switch terminal count	3 (1 common, 2 travellers)
Intermediate switch terminal count	4 (2 pairs, enabling straight-through and crossed connection paths)
Cable type (inter-switch sections)	3-conductor plus earth; 1.5 mm² (UK/AU) or 14/3 AWG (North America)
Number of intermediate switches for N locations	N minus 2 intermediate switches (e.g. 3 locations = 1 intermediate; 5 locations = 3 intermediates)
Switch current rating (typical UK residential lighting)	10 A or 16 A, 250 V AC
Switch current rating (typical North American residential lighting)	15 A, 120/277 V AC
Applicable wiring standards	BS 7671 (UK), AS/NZS 3000 (AU/NZ), NEC / NFPA 70 (North America), IEC 60364 (international)
Equivalent North American terminology	2-way switch (UK) = 3-way switch (USA); Intermediate switch (UK) = 4-way switch (USA)

Safety warnings

This wiring configuration involves fixed mains electrical installation. In most jurisdictions, including the UK (BS 7671 / Part P), Australia (AS/NZS 3000), and the USA (NEC / NFPA 70), the installation, alteration, and testing of fixed mains wiring must be performed by a licensed or registered electrician. The completed installation must be tested and inspected in accordance with the applicable standard before being energised.
Isolate the circuit at the distribution board before opening any switch box. Use a non-contact voltage tester to verify that all conductors in all switch boxes in the run are de-energised before touching wiring — traveller cables and supply conductors may be at mains potential.
Earth continuity is mandatory at every switch box, light fitting, and metal enclosure in the circuit. Omitting or incorrectly connecting the earth conductor creates an electrocution risk if a live conductor contacts a metal enclosure or luminaire body.
In UK wiring (BS 7671), any conductor used as a switched live must be sleeved with brown (or red in older installations) identification sleeving at both ends wherever it enters a switch box or enclosure. Conductors used in any colour other than their standard function must be re-identified. Do not assume colour alone indicates function in an existing installation.
When testing the completed circuit, use a proper installation test sequence: insulation resistance test (to verify no faults between conductors and earth), continuity test (to verify earth conductor continuity), and polarity test — before energising the circuit. Skipping these tests risks energising a circuit with a wiring fault.

Tools needed

Non-contact voltage tester
Digital multimeter
Insulation resistance tester (megohmmeter, 500 V DC — for pre-energisation testing)
Insulated screwdrivers (flathead, sized for switch terminals)
Wire strippers rated for 1.5 mm² / 14 AWG conductors
Needle-nose pliers
Cable fishing tools (fish tape, cable rod, flexible drill bits for concealed runs)
Circuit breaker lock-out / tag-out device
Conductor identification sleeving and applicator

Common mistakes

Connecting the intermediate switch incorrectly — the most common error is connecting both conductors of one pair to one terminal block rather than crossing the incoming and outgoing cables across the two-side layout. Verify the connection against the wiring diagram: each traveller pair must connect across the switch so that toggling changes which traveller routes to which terminal.
Using a 2-way switch in place of the intermediate switch. A 2-way switch has only three terminals and cannot perform the four-way crossover function. The light will appear to work correctly in some switch-state combinations but not others.
Running only 2-conductor cable between switch boxes in an intermediate switching run. Three conductors plus earth are required between every switch in the run, as two traveller conductors must be carried between each pair of switches.
Leaving the intermediate switch box earth terminals disconnected. Even if the switch plate is non-metallic, the steel back box must be earthed.
Connecting both traveller conductors at the intermediate switch to the same side of the switch, creating a short circuit between the two travellers when the switch is in one position and an open circuit in the other — resulting in the light being permanently on in one switch combination.
Not testing the circuit from all switch positions after installation. A circuit with an incorrectly wired intermediate switch may appear to work correctly from two positions but fail to change state from the third. Always test every switch position.

Troubleshooting

Light operates correctly from two locations but not from the third: Cause: Intermediate switch wiring fault: incorrect terminal connections, failed internal switch contact, or a disconnected conductor at the intermediate switch box Fix: Isolate the circuit. Open the intermediate switch box and verify all four terminal connections are secure. Confirm that traveller conductors A and B from the incoming cable connect to the correct two terminals on one side, and conductors A and B from the outgoing cable connect to the matching terminals on the other side. Test the switch mechanism with a multimeter on continuity — toggling should alternate between straight-through and crossed connection paths.
Light is permanently on regardless of any switch position: Cause: Two traveller conductors shorted together, or a traveller conductor inadvertently connected to neutral, creating a permanent circuit path Fix: Isolate and trace each conductor. With all switches in their boxes, measure resistance between the two traveller conductors — if it reads near zero the travellers are shorted. Inspect each switch box for stray wire strands bridging terminals. Verify that no neutral conductor is bonded to a traveller wire.
Light is permanently off regardless of any switch position: Cause: Open circuit in one of the traveller conductors, or the incoming live is not connected to the common terminal of end switch 1 Fix: Isolate the circuit. Verify continuity of each traveller conductor end-to-end with a multimeter. Confirm that the incoming live is connected to the common terminal of end switch 1 (not to a traveller terminal) and that the switched output from end switch 2 common connects to the light fixture.

Frequently asked questions

What is the difference between an intermediate switch and a 2-way switch?

A 2-way switch (UK term; 3-way in North America) has three terminals: one common and two travellers. It is used at each end of a multi-location switching run. An intermediate switch (UK term; 4-way in North America) has four terminals arranged as two pairs. It sits between the two 2-way switches and crosses or uncrosses the two traveller wires when toggled, changing the circuit state without breaking the supply.

How many intermediate switches can I add to a circuit?

There is no practical limit from an electrical standpoint. Each additional controlled location requires one additional intermediate switch inserted into the traveller cable run between the two 2-way end switches. Four, five, six, or more locations are all achievable with the same basic circuit topology, one intermediate switch per additional location beyond two.

Can I identify an intermediate switch by looking at it?

Intermediate switches have four terminals — typically two on each side of the switch body — compared to a 2-way switch which has three terminals. Most intermediate switches are labelled with '1' and '2' or 'L1' and 'L2' on each side, or have a distinctive four-terminal layout clearly marked on the back of the switch. They may also be marked 'INTERMEDIATE' on the packaging.

If I add a smart switch to a multi-location circuit, do I need to change all the switches?

This depends on the smart switch system. Some systems require all switches in the run to be smart devices with wireless communication. Others use a master smart switch at one location and dummy (remote) switches at other locations connected by the existing traveller wiring. Verify the specific smart switch manufacturer's wiring requirements before purchasing — not all smart switches support intermediate configurations.

The light operates correctly from two of the three positions but not the third — what is wrong?

If two positions work correctly, the end 2-way switches and the traveller wiring are likely intact. The fault is most probably in the intermediate switch — a disconnected wire, a switch with a faulty internal contact, or a switch wired incorrectly. Isolate the circuit, open the intermediate switch box, and verify all four terminal connections are secure and in the correct positions as per the wiring diagram.
