How to Install and Wire 2 way dimmer switch wiring diagram

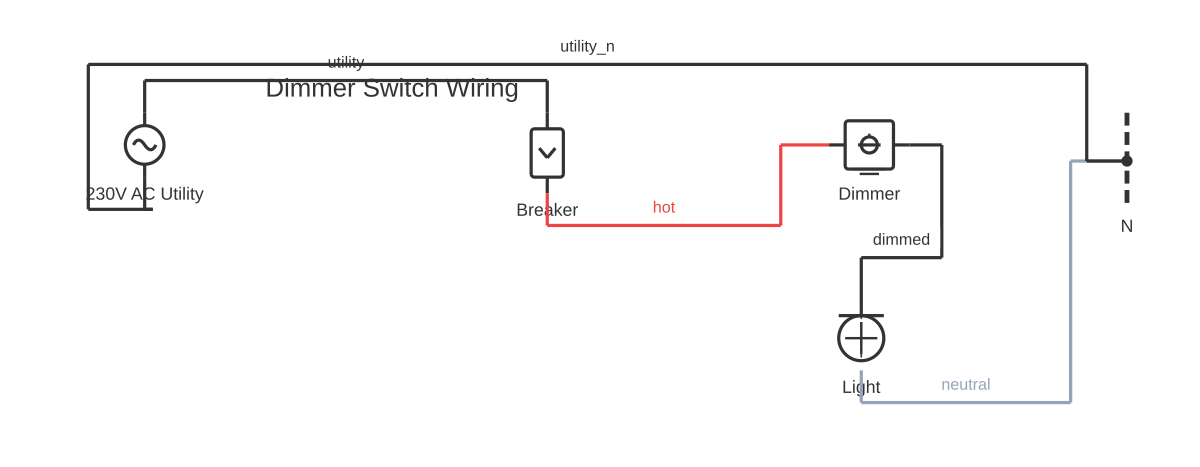

This is a free printable 2 way dimmer switch wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Comprehensive guide to installing, wiring, and maintaining 2 way dimmer switch wiring diagram in electrical and control systems. Learn proper installation procedures, safety considerations, and troubleshooting techniques for reliable operation.
The 2 way dimmer switch wiring diagram manages lighting intensity and energy consumption through electronic control circuits operating at high frequencies. Dimming characteristics including brightness resolution and minimum light level affect user satisfaction and energy savings. Phase-cut dimming circuits synchronize with AC line voltage to control average power delivered to lighting loads. Trailing-edge dimmers reduce interference with electronic ballasts through soft switching techniques. Load compatibility verification ensures proper operation with various lamp types including incandescent, LED, and fluorescent. Thermal management in dimmer switches prevents excessive heat generation during sustained operation at high loads. Radio frequency interference suppression prevents audio and wireless system disruption. Dimmer feedback circuits respond to user input through potentiometers or digital interfaces. Compatibility with smart home systems enables remote control and scheduling capabilities. Safety interlocks prevent simultaneous operation of conflicting lighting circuits in multi-way switch configurations.
Three-way dimmer switch wiring is a common upgrade project, but it requires at least one dimmer-rated switch in the circuit — the other location uses a compatible 3-way companion (non-dimming) switch unless both dimmers support multi-location dimming. Eaton, Z-Wave smart dimmer brands, and others all publish specific wiring diagrams because the traveller wire arrangement can differ from brand to brand. Always check the dimmer's maximum wattage rating and whether it supports LED loads before installation.
How to wire 2 way dimmer switch wiring diagram
- Verify load type compatibility with dimmer control circuit for proper operation
- Connect dimmer control following wiring diagram with neutral and load conductors properly identified
- Configure minimum brightness setting to prevent flickering or incomplete dimming range
- Test dimming operation across full range ensuring smooth transitions without audible noise
- Verify no interference with nearby audio equipment or wireless systems during operation
Frequently asked questions
What safety precautions must I take before installing this component?
Always disconnect power at the main panel before beginning work. Use a voltage tester to confirm de-energization. Wear safety glasses and appropriate personal protective equipment. Follow all local electrical codes and manufacturer instructions before proceeding with installation.
How do I identify the correct components for my specific application?
Check electrical panel labels and existing equipment documentation. Verify voltage and current ratings match your system requirements. Examine existing similar components for size and type reference. Consult manufacturer specification sheets when uncertain about compatibility.
What tools do I need for basic installation?
Screwdrivers for terminal connections, wire stripper for conductor preparation, voltage tester for safety verification, and a multimeter for troubleshooting. Quality tools prevent damage to components and reduce installation errors.
How do I verify correct installation before applying power?
Inspect all connections for tightness and proper contact. Use a multimeter to verify continuity of circuits. Check ground connections are secure and complete. Test with power off before applying full system voltage.
When should I call a professional electrician?
Complex installations requiring code compliance expertise warrant professional consultation. Large capacity systems or three-phase power installations require licensed professionals. When uncertain about any aspect, consult a qualified electrician before proceeding.
How do I wire an Eaton 3-way dimmer switch?
An Eaton 3-way dimmer is wired with the black (common) wire connecting to the black screw terminal, and the two traveller wires connecting to the brass traveller terminals — the same terminal colours used on a standard 3-way switch. The companion switch at the other location is an Eaton 3-way accessory (non-dimming) switch, not a second dimmer. Line and neutral enter at the dimmer location; the neutral wire is required by most Eaton digital dimmers for the internal electronics. Consult the specific Eaton model instruction sheet as the exact terminal layout varies between the Accessory switch and the main dimmer.
How do you wire a 3-way switch with a dimmer?
In a 3-way dimmer circuit, the dimmer replaces one of the standard 3-way switches. The common terminal of the dimmer connects to either the incoming hot (line) or the wire going to the light fixture (load), depending on the dimmer's location. The two traveller wires run between the dimmer and the standard 3-way (or companion) switch at the other box. Only one location should have the dimmer; the other should use the manufacturer-specified companion switch to avoid buzzing, flickering, or damage to the dimmer's control circuitry.
How do I wire a Z-Wave 3-way dimmer switch?
A Z-Wave 3-way dimmer requires a neutral wire at the main dimmer location and typically uses an Aux (accessory) switch — not a standard 3-way switch — at the remote location. The Aux switch communicates via the traveller wire to signal the Z-Wave dimmer to change state, rather than switching the load directly. Wiring involves Line, Neutral, Load, Ground, and a single traveller wire at the main switch, and Aux-hot, Neutral, Traveller, and Ground at the remote box. Always follow the brand-specific diagram (e.g., GE/Jasco, Leviton, Lutron) as pin and traveller wire functions are not universally interchangeable.
