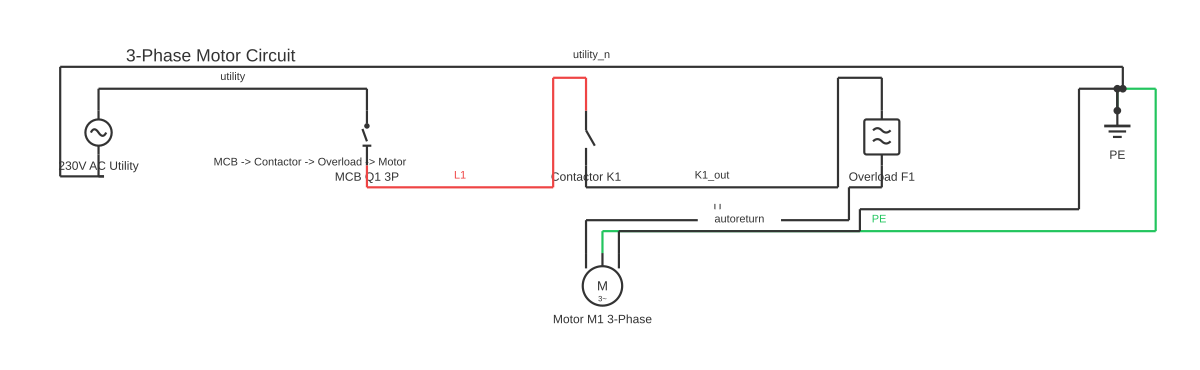

3-Phase Motor Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 phase motor wiring: download the diagram as SVG or open it and print to paper or PDF.

A 3-phase motor wiring diagram shows how to connect the six stator winding terminals in either star (Y) or delta (Δ) configuration to match the supply voltage, control starting current, and achieve the rated torque and speed.

Three-phase induction motors are the workhorse of industrial and commercial installations. Unlike single-phase motors, they produce a rotating magnetic field directly from the three live conductors (L1, L2, L3), eliminating the need for start capacitors.

Terminal markings: Modern motors follow IEC 60034-8, labelling the six winding ends U1, V1, W1 (start of each winding) and U2, V2, W2 (end of each winding). Older motors and some North American machines may use T1–T6 or T1–T9 for 9-lead dual-voltage designs.

Star (Y) connection: U2, V2, and W2 are joined together at a neutral point (the star point). L1, L2, L3 connect to U1, V1, W1. Each winding sees phase voltage (typically 230 V on a 400/230 V system), making this the correct configuration for a motor rated 230 V delta / 400 V star on a 400 V supply.

Delta (Δ) connection: Windings are connected end-to-end in a loop — U1 to W2, V1 to U2, W1 to V2 — and the three supply conductors connect at the junctions. Each winding sees full line voltage (400 V). Use delta when the motor is rated for line voltage, such as a 400 V delta motor on a 400 V supply.

Star-delta starting: Large motors are commonly started in star to limit inrush current to one-third of the delta value, then switched to delta for running. The starter contactor set (main, star, and delta contactors) manages this transition automatically.

Variable frequency drives (VFDs): Increasingly, VFDs replace traditional star-delta starters. They ramp voltage and frequency from zero, eliminating inrush current entirely and providing speed control. Connection is typically delta at the motor terminals with the VFD handling all voltage control.

Protection: Every 3-phase motor circuit requires a motor protection circuit breaker or overload relay to guard against phase failure, overload, and locked-rotor conditions.

Three-phase motor wiring diagrams vary primarily by the number of leads brought out to the terminal box — 3, 6, 9, or 12 — and the required supply voltage, which determines whether the windings connect in star (Y) or delta (Δ). A 9-lead motor is the most flexible dual-voltage design widely used in North America, while 6-lead motors are common for star-delta starting. Accurate diagrams for all lead configurations can be built and exported free at circuitdiagrammaker.com.

How to wire 3 phase motor wiring

Read the motor nameplate Note the rated voltage, connection (Δ or Y), full-load current, power factor, speed, and enclosure class. Confirm the nameplate voltage matches your supply before proceeding.
Isolate and lock out the supply Open and lock the isolator or circuit breaker. Attach a lockout tag and verify the supply terminals are dead with a calibrated voltage tester before touching any conductors.
Open the terminal box and identify the terminals Locate the six terminals (U1, V1, W1, U2, V2, W2) and the PE terminal. Remove any existing links. Refer to the wiring diagram printed inside the terminal box cover.
Install the winding links for star or delta For star: fit a link bar joining U2, V2, and W2 together. For delta: fit three link bars connecting U1-W2, V1-U2, and W1-V2. Use the correct link bars or copper bars rated for motor current.
Connect the three supply conductors Terminate L1 to U1, L2 to V1, and L3 to W1. Use cable lugs or ring terminals appropriate for the conductor cross-section and terminal type. Torque to the manufacturer's specification.
Connect the protective earth conductor Terminate the PE conductor to the dedicated earth terminal on the motor frame. The PE conductor cross-section must comply with local wiring regulations (typically matching or half the live conductor cross-section depending on code).
Check rotation direction before coupling the load Run the motor uncoupled briefly and verify rotation matches the driven equipment's required direction. To reverse rotation, swap any two of the three supply conductors (L1, L2, L3) at the motor terminal or at the starter.

Specifications

Standard supply voltage (IEC)	400 V (line-to-line), 50 Hz
Standard supply voltage (North America)	480 V (line-to-line), 60 Hz
Star connection winding voltage	Phase voltage (400 V / √3 ≈ 230 V on a 400 V system)
Delta connection winding voltage	Full line voltage (e.g. 400 V)
Star-delta starting current reduction	33% of direct-on-line delta current
Star-delta starting torque reduction	33% of direct-on-line delta torque
Terminal marking standard	IEC 60034-8: U1/V1/W1 (start), U2/V2/W2 (end)
Protective earth requirement	Mandatory per IEC 60364 / BS 7671 / NEC 430

Safety warnings

Fixed electrical installation work on three-phase systems must be carried out by a licensed or competent electrician and must comply with local wiring regulations (IEC 60364, BS 7671, NEC/NFPA 70, AS/NZS 3000, or equivalent). Always verify with your local authority.
Always isolate, lock out, and verify dead (test with a calibrated voltage tester) before opening any motor terminal box or starter enclosure. Three-phase voltages (380–415 V and above) are lethal.
Never apply full line voltage to a motor wired in star when it is rated for delta at that voltage — winding current will be three times normal and the motor will be destroyed rapidly.
Ensure the motor frame is permanently bonded to the protective earth system; an unearthed motor frame is an electrocution hazard in the event of an insulation fault.
Confirm correct rotation direction before coupling the motor to pumps, compressors, or gearboxes — reversed rotation can cause equipment damage or dangerous pressure build-up.

Tools needed

Calibrated voltage tester (CAT III or CAT IV rated)
Lockout/tagout kit
Insulated screwdrivers and nut drivers
Crimping tool and appropriate cable lugs
Torque screwdriver or wrench
Clamp meter (for measuring running current)
Megohmmeter (insulation resistance tester) for winding checks

Common mistakes

Wiring the motor in delta when it should be in star for the available supply voltage, causing immediate winding burnout.
Forgetting to connect or inadequately sizing the protective earth conductor.
Setting the overload relay above the motor's full-load amperage, removing protection against overload and locked-rotor conditions.
Swapping phase connections without verifying rotation direction, causing the driven equipment to run backwards.
Using undersized cable for the run length and load current, leading to excessive voltage drop and motor overheating.
Omitting mechanical interlock between star and delta contactors, risking both contactors closing simultaneously and causing a phase-to-phase short circuit.

Troubleshooting

Motor hums but does not start: Cause: One phase is missing (open fuse, loose terminal, or open contactor pole), or the star point link is missing. Fix: Measure all three line voltages at the motor terminals with the motor connected. Identify the missing phase and trace back to the supply — check fuses, contactor poles, and terminal torque.
Motor trips the overload relay immediately on start: Cause: Overload set too low, motor wired in wrong configuration (e.g. delta instead of star on high voltage), or mechanical load is jammed. Fix: Verify the overload setting matches the motor's nameplate full-load current. Confirm winding link configuration. Uncouple the load and try starting unloaded to distinguish electrical from mechanical faults.
Motor runs but overheats: Cause: Single-phasing during running (one phase drops out after start), overloaded mechanically, or inadequate ventilation. Fix: Clamp-meter all three phases during running — currents should be balanced within a few percent. Check that cooling fan and vents are unobstructed. Verify mechanical load is within the motor's rated power.
Motor runs in wrong direction: Cause: Phase sequence connected incorrectly to U1/V1/W1. Fix: Isolate, lock out, and swap any two of the three supply conductors at the motor terminal box or starter. Re-test rotation direction before coupling the load.

Frequently asked questions

How do I know whether to wire a motor in star or delta?

Check the motor nameplate. It will show two voltages separated by a slash (e.g. 230/400 V) and the connection symbol (Δ/Y). If your supply voltage matches the higher value, wire in star (Y). If it matches the lower value, wire in delta (Δ). Never connect in the wrong configuration — you risk burning the windings.

What is the difference in starting current between star and delta?

Starting in star reduces line current to one-third of the direct-on-line delta starting current. Starting torque is also reduced to one-third. This is acceptable for low-inertia loads (pumps, fans) but may be insufficient for loaded conveyors or compressors that need high break-away torque.

What do the terminal markings U1, V1, W1, U2, V2, W2 mean?

Each letter designates one winding phase: U, V, and W correspond to the three phases. The numeral 1 denotes the start of the winding and 2 denotes the end. In star connection, all '2' terminals are linked together. In delta, each '2' terminal connects to the '1' terminal of the next phase.

Can a 3-phase motor run on single-phase supply?

Not directly. A three-phase motor will not self-start on single-phase, and attempting to run it this way causes excessive current, overheating, and winding damage. A VFD that accepts single-phase input and outputs three-phase can be used as a workaround, subject to the drive's de-rating requirements.

Is an earth (ground) connection required on a 3-phase motor?

Yes, always. The motor frame must be bonded to the protective earth (PE) conductor via the dedicated earth terminal (usually marked with the earth symbol or the letters PE or E). This is a mandatory safety requirement under IEC 60364, BS 7671, NEC Article 430, and equivalent codes globally.

What are the wiring diagrams for a 3 phase motor?

Three-phase motor wiring diagrams fall into several configurations depending on lead count: a 3-lead motor has a fixed connection and simply connects T1/T2/T3 to L1/L2/L3; a 6-lead motor supports star-delta starting or dual-voltage; a 9-lead motor supports dual-voltage (star or delta) operation with low-voltage parallel and high-voltage series connections; and a 12-lead motor supports both star and delta at both voltages. The specific lead connections for each configuration are printed on the motor nameplate and terminal-cover diagram and should always be verified there.
