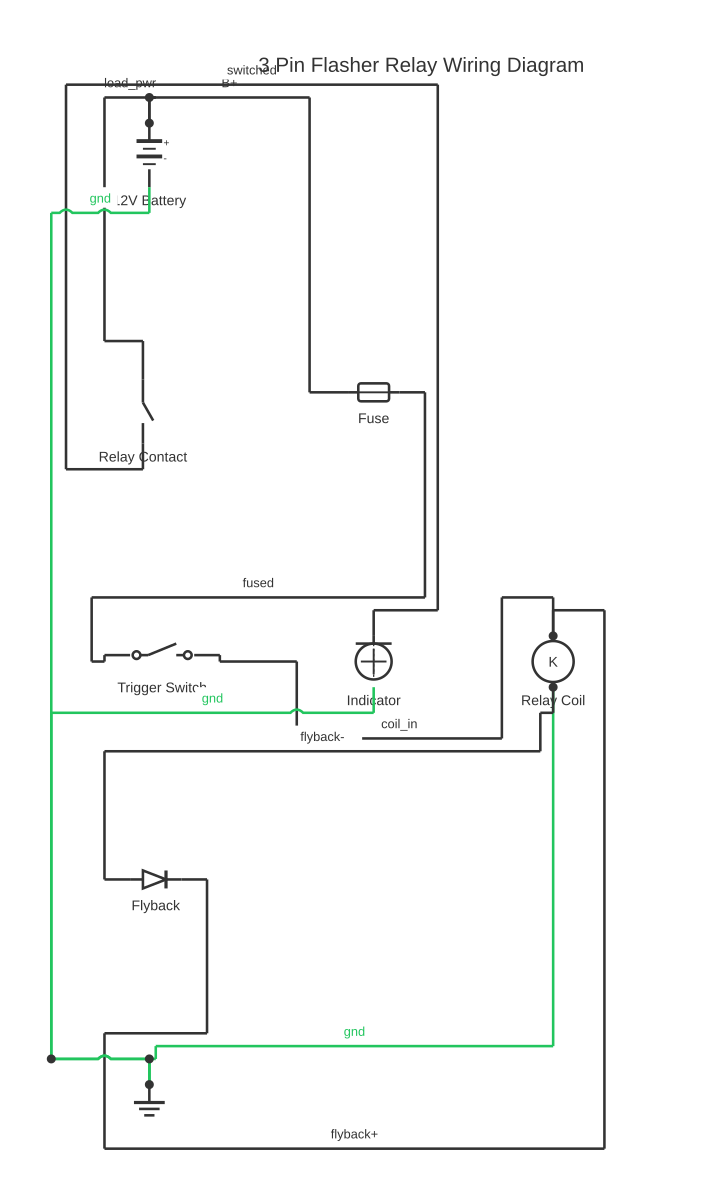

3-Pin Flasher Relay Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 pin flasher relay wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Step-by-step wiring reference for 3-pin automotive flasher relays covering pin functions, load requirements, and common indicator circuit connections for turn signals and hazards.

A 3-pin flasher relay (also called a turn signal flasher or indicator flasher unit) is the component in a vehicle's electrical system that produces the rhythmic on-off switching of the indicator (turn signal) lamps. The three pins are universally designated: pin B (Battery) — constant 12 V supply; pin L (Load) — switched output to the indicator bulbs; and pin X or P (Pilot/Input) — the connection to the turn signal switch, and in some designs also the dash indicator lamp feed.

The core operating principle of a thermal flasher relies on a bimetallic strip that heats under current flow, bends to break the circuit, cools to re-make it — and the cycle repeats, producing a flash rate typically between 60 and 120 flashes per minute (FPM) as specified by UN/ECE Regulation 6 and SAE J590. Electronic solid-state flashers use an internal timer IC or oscillator instead, but maintain the same three-pin interface for backwards compatibility.

The flash rate of a thermal flasher is load-dependent. The bimetallic strip only heats at the correct rate if the correct number and wattage of bulbs are connected. This is why fitting a single LED indicator bulb (which draws 1–3 W versus the 21 W of an incandescent) causes hyper-flashing — the strip never gets hot enough to trip at the correct rate. The fix is either fitting an LED-compatible electronic flasher or adding load resistors in parallel to simulate the incandescent draw.

For hazard light operation on many vehicles, a dedicated four-pin flasher or a combined flasher/relay unit is used — but a stand-alone 3-pin flasher serves individual turn circuits on older and simpler vehicles and aftermarket applications. Understanding the pin function is the starting point for diagnosing indicator faults, retrofitting LED lamps, and installing trailer wiring.

How to wire 3 pin flasher relay wiring diagram

Disconnect the vehicle battery Disconnect the negative (earth) terminal of the vehicle battery before beginning any wiring work. This prevents accidental short circuits that could damage the vehicle's electrical system or cause a fire. Wait at least 30 seconds after disconnection before working near airbag components.
Locate and identify the existing flasher relay socket Consult the vehicle wiring diagram or workshop manual to locate the flasher relay. Common locations are: behind the hazard switch, under the dashboard, in the fusebox, or behind the steering column shroud. The socket will have three spade terminals or a push-fit connector.
Identify the pin functions at the socket Using a multimeter, reconnect the battery and measure which socket terminal shows battery voltage (12 V) with ignition on — this is pin B. The terminal that shows voltage only when the turn switch is operated is pin X/P. The remaining terminal is pin L (load output). Mark each terminal before disconnecting.
Connect the replacement or new flasher relay Insert the new flasher relay with pin B to the battery supply terminal, pin L to the indicator bulb feed terminal, and pin X/P to the turn switch signal terminal. For push-fit connectors, align the key and press until the clip locks. For spade terminals, push fully home — a loose spade is a common source of flasher faults.
Verify the indicator load Confirm that the correct number and wattage of bulbs are fitted for the flasher type. A thermal flasher requires the designed bulb load (typically 21 W per lamp). An LED-compatible electronic flasher will work correctly with lower-draw LED bulbs. Check the flasher's rated load range before fitting non-standard lamps.
Reconnect the battery and test operation Reconnect the negative battery terminal. Operate the left and right turn signals individually. Verify a steady flash rate of approximately 60–120 FPM with corresponding dash indicator lamp operation. Operate the hazard switch if the same flasher serves hazard duty and confirm all four indicators flash simultaneously.

Specifications

Operating voltage	12 V DC nominal (typical automotive system voltage 10.5–14.4 V)
Flash rate (road-legal)	60 to 120 flashes per minute (UN/ECE Regulation 6; SAE J590)
Duty cycle	30 % to 70 % on-time per flash cycle (UN/ECE Regulation 6)
Typical incandescent bulb load per circuit	21 W front + 21 W rear = 42 W per side (4-lamp vehicle)
Maximum continuous current (thermal flasher)	Typically 10 A (verify against specific unit datasheet)
Pin designation standard	B = Battery supply, L = Load output, X or P = Pilot/turn switch input

Safety warnings

Always disconnect the vehicle battery negative terminal before working on indicator wiring. Even low-voltage 12 V automotive circuits can cause burns, sparks, and fuse damage if accidentally short-circuited.
Do not operate load resistors (used for LED conversion) in locations where they contact trim, carpet, or fuel/brake lines. Load resistors dissipate significant heat and must be mounted on a metal surface with adequate airflow.
Indicators are a legal safety requirement. After any wiring work, verify correct operation of all four indicators and the hazard function before driving the vehicle on a public road. Confirm flash rate is within legal limits.
Automotive wiring must be protected by correctly rated fusing at the supply. Never bypass or uprate fuses — a fuse that blows repeatedly indicates a circuit fault that must be diagnosed and rectified.
This diagram is a generic educational reference. Always consult the vehicle manufacturer's official workshop manual and wiring diagram for the specific make and model before carrying out any electrical work.

Tools needed

Digital multimeter with DC voltage, continuity, and current functions
Automotive trim removal tools (plastic pry tools to avoid damage)
Insulated flat-blade screwdriver (3 mm) for spade terminal connections
Wire strippers suitable for 0.5–2.5 mm² automotive cable
Automotive-grade crimp tool and insulated crimp terminals
Electrical contact cleaner spray
Torque wrench or ratchet driver for battery terminal bolts

Common mistakes

Fitting an LED-type electronic flasher with a high incandescent bulb load — most LED flashers have a maximum rated load; connecting too many high-wattage incandescent bulbs can exceed this and damage the unit.
Inserting the flasher relay with pins incorrectly aligned — spade terminal flashers can sometimes be physically inserted in the wrong orientation; always verify pin B aligns with the constant 12 V supply terminal.
Leaving load resistors touching plastic interior trim — resistors become very hot during operation; contact with trim or carpet causes melting, potential fire, and toxic fume release.
Forgetting to check the earth return — many indicator faults are caused not by the flasher relay but by poor earth connections at the indicator lamp holders; always verify lamp earth before condemning the flasher.
Not verifying the replacement flasher's current rating — thermal flashers are rated for a specific bulb wattage range; fitting a flasher rated for a single 21 W bulb in a circuit with four 21 W bulbs will cause overload and premature failure.

Troubleshooting

Indicators do not flash — lamps stay on continuously: Cause: Flasher relay has failed in the closed (on) position, or the load wiring has bypassed the flasher Fix: Replace the flasher relay. With the old unit removed, verify that lamp circuits only receive power through the flasher relay output (pin L) and not from a parallel direct supply.
Indicators do not illuminate at all: Cause: Blown indicator circuit fuse, failed flasher relay, broken connection at pin B or pin L, or poor earth at lamp Fix: Check the indicator fuse first. Then verify 12 V at pin B with ignition/turn switch on. If B is live but L shows no output, replace the flasher. If L shows output but lamps do not illuminate, check lamp earths and bulb condition.
Flash rate is too fast (hyper-flash): Cause: LED bulbs fitted with a thermal flasher (insufficient current draw), or one or more bulbs blown creating a reduced total load Fix: Replace the thermal flasher with an LED-compatible electronic flasher, or fit correctly rated load resistors in parallel with each LED bulb. If hyper-flashing occurred suddenly, check all four indicator bulbs for failures.

Frequently asked questions

What are the three pins on a flasher relay?

The three pins are: B (Battery) — constant 12 V positive supply; L (Load) — switched output that feeds current to the indicator bulbs; and X or P (Pilot/Input) — receives the signal from the turn switch and may also supply the dash warning lamp. Always verify pinout against the vehicle wiring diagram.

Why do my indicators flash too fast after fitting LED bulbs?

A thermal flasher relies on heat generated by bulb current to operate its bimetallic strip at the correct rate. LED bulbs draw far less current than incandescent bulbs, so the strip heats more slowly — causing hyper-flashing. Replace the thermal unit with an LED-compatible electronic flasher, or fit load resistors in parallel with each LED bulb.

Can a 3-pin flasher relay be used for hazard lights?

A standard 3-pin turn-signal flasher only controls one side at a time (left or right). Hazard lights require all four indicators to flash simultaneously. Many vehicles use a dedicated 4-pin or combined flasher for this, or route both sides through the hazard switch to a separate flasher unit.

How do I test a 3-pin flasher relay?

With the flasher in circuit, connect battery positive to pin B. Briefly bridge pin B to pin L — if the bulbs illuminate steadily, the wiring and bulbs are good, and the flasher itself is suspect. Use a multimeter to confirm 12 V at pin B. A faulty flasher will not produce the switching output at pin L.

What flash rate is required for road-legal indicators?

UN/ECE Regulation 6 specifies a flash rate of 60 to 120 flashes per minute (1 to 2 Hz) for road vehicles. SAE J590 specifies a similar range. Both standards also require the flash on-period to be between 30 % and 70 % of the total cycle period.
