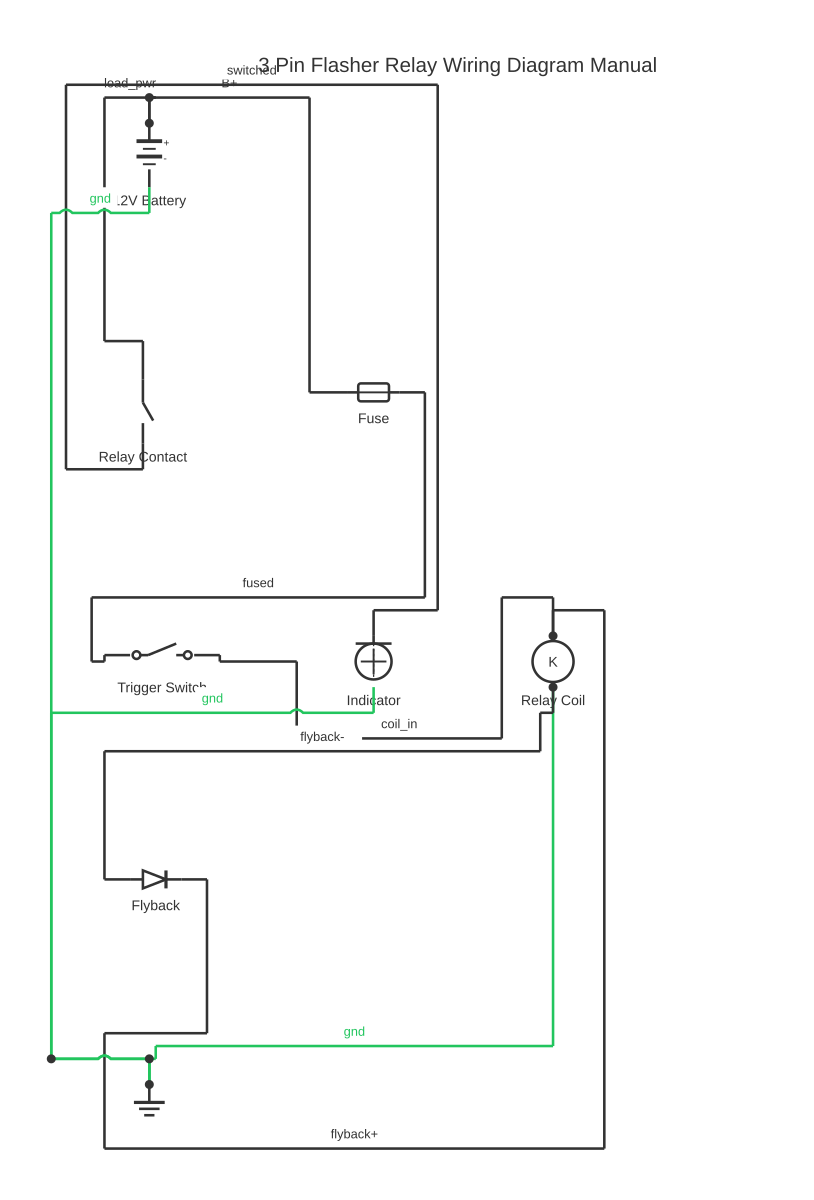

A 3-pin flasher relay wiring diagram shows how the battery feed, indicator switch signal, and lamp output pins connect to power the turn signal flasher unit that controls the flash rate of vehicle indicator lamps.

A 3-pin flasher relay (also called a turn signal flasher unit) is an electromechanical or electronic device that interrupts the indicator circuit at a defined rate — typically 60–120 flashes per minute — to produce the characteristic flashing of turn signal and hazard lights on a vehicle.

The three pins serve distinct functions. Pin 1 (commonly labelled B or +12V or X) connects to the battery positive supply — either directly fused from the battery or through the ignition-switched live rail, depending on whether it controls only indicators (ignition-switched) or also hazard lights (direct battery). Pin 2 (commonly labelled L or LOAD or FL) is the output that supplies the indicator switch and from there to the lamp bulbs. Pin 3 (commonly labelled P or PILOT or IND) drives the indicator tell-tale (pilot) lamp on the instrument panel in some relay designs; in other designs, two of the three pins are the supply and switched output, with no separate pilot output.

The internal operating principle of the traditional electromechanical flasher relies on thermal expansion. A current-carrying bimetal strip heats up under the lamp load, bends, and breaks its own circuit. The strip then cools rapidly, straightens, and re-makes the circuit — repeating the cycle. This design is inherently load-dependent: the flash rate and duty cycle depend on the current drawn by the indicator lamps. If a bulb fails (reducing the load), the flash rate changes dramatically — either flashing very fast or not at all. This is the basis of the 'hyper-flash' symptom familiar to anyone who has fitted LED indicator bulbs without a load resistor or an LED-compatible electronic flasher.

Electronic (solid-state) 3-pin flashers use a 555 timer IC or dedicated flasher IC in an astable multivibrator configuration to generate the flash oscillation, independent of lamp load. These produce a stable flash rate regardless of the number of bulbs connected and are required when replacing incandescent indicators with LEDs.

Pin identification is critical before connection. Incorrectly connecting the load output to the battery supply pin will not damage the relay (both carry 12 V) but the pilot circuit and load switching will be incorrect. Connecting battery supply to the pilot pin on some designs will create a direct short through the internal circuit. Always identify pins from the relay's moulded markings or datasheet before connecting.

How to wire 3 pin flasher relay wiring diagram manual

Locate the existing flasher relay socket in the vehicle In most vehicles, the flasher relay is mounted on a dedicated bracket, plug socket, or the fuse/relay panel. Consult the vehicle wiring diagram or service manual for the exact location — common locations include the kick panel near the driver's left knee, the steering column bracket, the instrument panel, or the main fuse box. On older vehicles, the relay may clip into a bracket near the steering column.
Disconnect the battery negative terminal before working on the relay circuit Disconnecting the battery negative prevents short-circuit faults during wiring work. Wait at least 30 seconds after disconnection before handling connectors if the vehicle has airbag systems, to allow capacitors in the airbag control module to discharge. Note that disconnecting the battery may reset the radio code, clock, and some vehicle system adaptations — have radio codes available before disconnecting if required.
Identify the three pins on the replacement relay Read the markings moulded or printed on the relay body. Identify B (or X or +12V — battery supply), L (or FL or LOAD — lamp output), and P (or IND or PILOT — pilot lamp, if present). Cross-reference with the relay datasheet. Record the pin positions relative to the connector key (the raised tab that aligns the connector) before insertion.
Connect the relay to the socket Align the relay key with the socket guide and insert firmly until the retention clip clicks. If the relay is a universal type without a keyed connector, use the pin identification to match each terminal: B to the fused ignition live wire (verify with a multimeter — 12 V present with ignition on, 0 V with ignition off), L to the wire supplying the indicator switch input, and P (if used) to the instrument panel pilot lamp wire.
Reconnect the battery and test all indicator functions Reconnect the battery negative. With the ignition on, activate the left indicator switch — confirm all left indicator lamps flash at the correct rate and the instrument panel tell-tale illuminates. Repeat for right indicator and hazard flasher. Count the flash rate: it should be between 60 and 120 flashes per minute. Time 10 flashes and divide 600 by the number of seconds — the result is flashes per minute.

Specifications

Supply voltage	12 V DC (nominal automotive electrical system)
Flash rate (regulatory requirement)	60–120 flashes per minute
Typical contact load rating (electromechanical)	10–21 A maximum (check specific relay)
Typical lamp load (4 × 21 W incandescent)	7 A total at 12 V
Operating temperature range	-40 °C to +85 °C (typical automotive relay)
Pin designations (common)	B or X (battery supply), L or FL (lamp load output), P or IND (pilot)

Safety warnings

Always disconnect the vehicle battery negative terminal before replacing or rewiring a flasher relay. Indicator circuits are live with the ignition on; working on live circuits risks short circuits, blown fuses, and burns from sparks on fused wiring.
Do not substitute load resistors for LED indicator lamps that share a circuit with other safety systems without verifying the total circuit current load does not exceed the flasher relay or fuse rating. Load resistors generate significant heat — mount them away from wiring, trim panels, and flammable materials.
If the vehicle is equipped with airbag systems (SRS), be aware that some airbag circuit connectors use yellow or orange wiring in the same area as indicator wiring. Never probe, cut, or connect to yellow/orange SRS wiring — this can trigger airbag deployment, causing serious injury.
Ensure all connectors are fully seated and the relay body cannot contact bare metal chassis surfaces that would create a short circuit. Use appropriate insulation tape or heat-shrink on any exposed splices in the indicator circuit.

Tools needed

Digital multimeter (voltage, continuity)
Trim removal tools (plastic pry tools to access relay without damaging trim)
Wire crimping tool and insulated connector set
Heat-shrink tubing and heat gun
Non-contact voltage tester
Stopwatch (for verifying flash rate)

Common mistakes

Installing an LED-compatible electronic flasher but leaving the P (pilot) pin disconnected when the instrument cluster requires a pilot signal on that pin — the tell-tale does not illuminate despite the indicators working correctly.
Fitting a thermal (load-sensitive) flasher relay with LED indicator bulbs without adding load resistors or switching to an electronic flasher — results in hyper-flash or no flash at all.
Connecting the B and L pins in reverse — the relay may appear to function initially (as 12 V is present on both in the closed state) but the internal switching logic is inverted, preventing correct operation.
Using a relay rated for a lower current than the total indicator lamp load — all four indicator lamps plus the pilot lamp must be within the relay contact current rating to prevent contact overheating and premature failure.
Failing to verify flash rate after installation — a relay functioning but outside the 60–120 FPM specification can be a roadworthiness (MOT or equivalent) failure in many jurisdictions.

Troubleshooting

Indicators do not flash at all — lamps stay permanently on when switch is activated: Cause: Flasher relay not switching (relay failure, or thermal type not receiving enough current to heat bimetal strip — LED bulbs too low a load) Fix: Measure 12 V at the B pin with ignition on. Activate the indicator switch and measure the L pin — if it shows steady 12 V rather than interrupted voltage, the relay is not oscillating. Substitute a known-good relay. If using LED bulbs, ensure the flasher relay is LED-compatible or add parallel load resistors.
Flash rate is too fast (hyper-flash): Cause: One or more indicator bulbs have failed (low load causes thermal flasher to cycle too rapidly), or LED bulbs are fitted with an incompatible thermal flasher relay Fix: Check all four indicator lamps — a failed bulb reduces load and speeds the flash rate. Replace failed bulbs with the correct type. If using LED indicators, replace the thermal flasher with an LED-compatible (load-independent) electronic flasher relay.
One side flashes, other side does not: Cause: Failed bulb on the non-flashing side, or a wiring fault (open circuit) between the indicator switch and the lamps on that side Fix: Inspect all bulbs on the non-flashing side — replace any failed lamps. If bulbs are intact, trace the wiring from the L pin through the indicator switch to each lamp on that side, checking for an open circuit with a multimeter in continuity mode.

Frequently asked questions

Why do indicators flash fast after fitting LED bulbs?

A thermal (electromechanical) flasher relay is load-sensitive — it relies on a minimum current to heat the bimetal strip to the deflection temperature. LED bulbs draw approximately 80–90% less current than incandescent bulbs. The reduced current heats the bimetal strip too slowly or not at all, causing hyper-flash (rapid flashing) or no flashing at all. The fix is either an LED-compatible electronic flasher relay or a load resistor wired in parallel with each LED indicator lamp.

How do I identify the B, L, and P pins on an unmarked flasher relay?

Use a multimeter in continuity mode with the relay disconnected. The B (battery) and L (load) pins will show no continuity between them (they are normally open — the relay opens and closes this path during flashing). The P (pilot) pin, where present, connects internally to the L pin or through a resistor. Most relays have the pin designation moulded into the plastic housing base or printed on the body — inspect carefully with a torch before connecting.

Can a 3-pin flasher relay replace a 2-pin flasher relay?

In many applications, yes — the B and L pins of a 3-pin relay wire identically to the two pins of a 2-pin relay, and the P pin is simply left unconnected if there is no instrument panel pilot lamp circuit to connect it to. However, verify the connector physical format and that the relay footprint fits the vehicle socket — some 3-pin and 2-pin flashers use the same physical socket but different pin arrangements.

What flash rate is specified for road vehicle indicators?

Most road traffic regulations specify a flash frequency of 60–120 flashes per minute for turn signal indicators. This corresponds to an on/off cycle of 0.5–1 second per complete flash cycle. The duty cycle (ratio of on-time to total cycle) is typically approximately 50% but varies by standard. IEC 60809 and ECE Regulation 6 govern indicator lamp performance in many countries.

What causes an indicator to stay on continuously instead of flashing?

A continuously illuminated (non-flashing) indicator typically means the flasher relay is not switching. Common causes: failed flasher relay, a short circuit in the lamp wiring that prevents the bimetal strip from cooling (electromechanical type), incorrect relay polarity at installation, or a failed electronic flasher IC. Verify 12 V is present at the B pin with the ignition on, and check for a switched output at the L pin when the indicator switch is activated.
