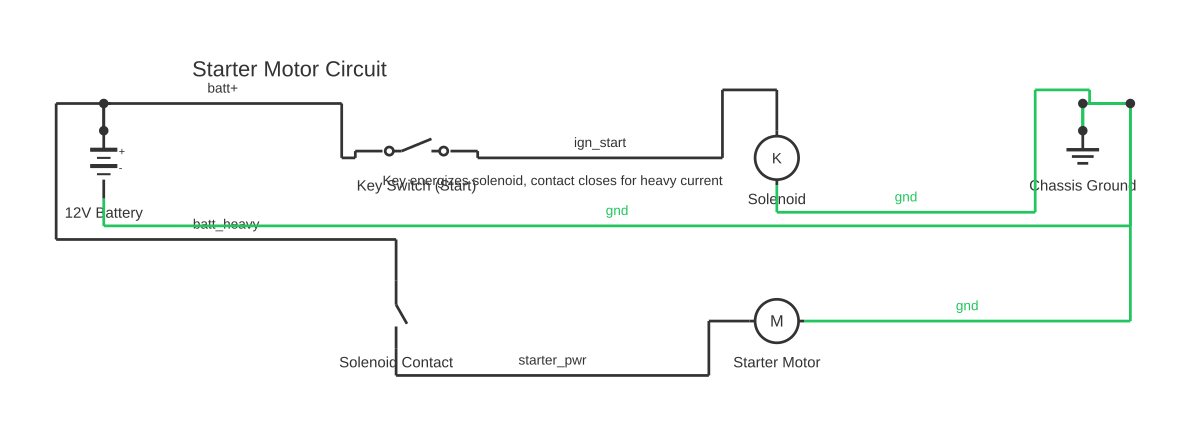

3-Pole Starter Solenoid Wiring Diagram: Terminal Identification, Circuit Operation, and Testing

3-Pole Starter Solenoid Wiring Diagram: Terminal Identification, Circuit Operation, and Testing — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 pole starter solenoid wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Learn how a 3-terminal starter solenoid is wired, what each terminal does, how the circuit operates during cranking, and how to test a faulty solenoid accurately.

A starter solenoid on an automotive or marine engine serves two distinct functions simultaneously: it is an electromagnetic switch that connects the battery directly to the starter motor windings, and it is a linear actuator that physically engages the starter's pinion gear with the flywheel ring gear. Understanding both functions is essential for diagnosing starting faults correctly.

The three terminals on a typical starter solenoid are:

The battery terminal (BAT or B+): a large-diameter threaded stud that connects directly to the battery's positive terminal via a heavy gauge cable. This carries the full cranking current — often 100 A to 300 A or more — and must be connected with a tight, corrosion-free connection. The cable from the battery positive terminal to this stud is the main starter cable.

The motor terminal (M or MOT): a second large-diameter stud that connects to the starter motor's main current input terminal. When the solenoid closes internally, it bridges the BAT terminal and the M terminal, supplying the full battery voltage directly to the starter motor. The cable between the M terminal and the starter motor input is typically short (the solenoid is bolted directly to the starter motor body on most modern starters).

The control terminal (S, STA, or 50): a smaller-diameter terminal, often a blade, spade, or threaded post, that receives the ignition switch's start signal. When the ignition key is turned to 'Start', a low-current signal (typically less than 5 A) flows from the ignition switch through the start relay (if fitted) to the S terminal. This energises the solenoid coil, which closes the main contacts and extends the plunger to engage the pinion.

Some solenoids have a fourth terminal (often labelled R or I) that provides a voltage output to the ignition coil or instrument cluster during cranking — this is an additional contact, not a standard feature of all 3-pole units.

The main contact inside the solenoid is subject to arcing and erosion during each start event. Over time, the contact disc and the copper contact posts wear down, producing a progressively higher contact resistance that results in slower cranking and, eventually, no-start.

How to wire 3 pole starter solenoid wiring diagram

Disconnect the battery negative terminal before working on starter wiring The BAT terminal on the starter solenoid connects directly to the battery positive with no fuse protection — it is live at all times when the battery is connected. A dropped spanner or inadvertent contact between this terminal and the vehicle body will cause a severe short circuit capable of welding the tool in place and starting a fire. Always disconnect the battery negative terminal and verify it is isolated before working on starter circuit wiring.
Identify the three terminals and their functions Locate the BAT stud (large, connected to the heavy battery positive cable), the M stud (large, connected to the starter motor main terminal — on most modern starters this stud is on the solenoid body directly above or adjacent to the starter motor), and the S terminal (small, receives the ignition start signal wire). Confirm identification against the workshop manual for the specific application — terminal labelling varies between manufacturers.
Check the main cable connections Inspect the heavy cable connections at the BAT stud and the M stud (or starter motor input) for corrosion, damage, or looseness. The cable ring terminal must seat fully on the stud with the nut tightened to the manufacturer's specified torque. Loose or corroded large-cable connections are responsible for a significant proportion of starter circuit faults. Clean corroded studs and terminals with a terminal cleaning brush before reconnecting.
Check the solenoid control (S) terminal wiring Inspect the S terminal wire for corrosion at the terminal end and for chafing or damage along its route. Disconnect the S terminal wire. Reconnect the battery. With the ignition in the start position (or with a fused jumper applied from the battery positive to the S terminal for testing purposes), measure the voltage at the S terminal end of the wire. It should be close to battery voltage. No voltage at the S terminal during a start attempt indicates a fault in the ignition switch, start relay, neutral safety switch, or clutch switch upstream of the solenoid.
Perform a voltage drop test on the positive side of the starter circuit With the battery connected and a helper cranking the engine (or the ignition key held in start), measure the voltage drop across the solenoid main contacts by placing the multimeter positive probe on the BAT stud and the negative probe on the M stud. A voltage drop exceeding 0.2–0.3 V across the solenoid contacts indicates worn or corroded main contact disc and posts. If the total starter circuit voltage drop test (from battery positive to starter motor input) also shows high readings at other points, trace each connection individually.
Perform a ground side voltage drop test The starter motor's ground path runs from the starter motor body through the engine block to the battery negative terminal (or to the chassis if the chassis is the ground return). Measure voltage from the starter motor body to the battery negative terminal during cranking. A reading above 0.2 V indicates a poor ground connection — inspect the engine block-to-chassis ground strap and the battery negative cable connection.
Remove and bench-test or replace the solenoid if contacts are worn If voltage drop testing confirms the solenoid main contacts are the fault, the solenoid assembly can be disassembled on some starter types to access and replace the contact disc and post kit (a low-cost consumable available for many common starters). On other starters, the solenoid and starter motor are sold as an assembly. Confirm parts availability before proceeding with disassembly.

Specifications

Typical starter circuit voltage	12 V DC (standard automotive and light commercial); 24 V DC (heavy trucks, buses, and some marine engines)
Typical starter motor cranking current	100 A to 400 A depending on engine displacement and compression ratio
Maximum allowable voltage drop across solenoid main contacts	0.2–0.3 V under cranking load (consult vehicle specification)
Maximum allowable total positive circuit voltage drop (battery to starter input)	Typically 0.5 V maximum under cranking current (consult vehicle specification)
Maximum allowable ground circuit voltage drop (starter body to battery negative)	Typically 0.2 V maximum under cranking current
S terminal control signal voltage	Close to battery voltage (9 V minimum for reliable pull-in on most solenoids); low-current circuit, typically 1–5 A
Applicable standard (automotive)	SAE J537 (storage batteries) for battery CCA rating; vehicle manufacturer's workshop manual for starter circuit specifications

Safety warnings

The BAT terminal of a starter solenoid is permanently connected to the battery positive terminal at full battery voltage with no fuse protection. Always disconnect the vehicle's battery negative terminal before working on any starter circuit component or cable. A dropped tool that contacts both the BAT stud and any grounded metal component will cause a violent short circuit capable of igniting fuel or causing severe burns.
Never attempt to jump-start or test a starter by applying battery voltage directly to the M terminal (starter motor input) while the starter motor is on the engine and the transmission is in gear. Doing so will crank the engine immediately and without warning, which is a risk of injury to anyone near moving engine components.
On marine vessels, starter circuits are in close proximity to fuel systems. Ensure the engine compartment is ventilated for at least four minutes after any fuel handling before energising the starter circuit. A spark from a starter short circuit in the presence of fuel vapour is a fire and explosion hazard.
The engine-to-chassis ground strap carries the full starter cranking current return. A broken or corroded ground strap causes the return current to find alternative paths through engine coolant hoses, throttle cables, or other metal connections, which overheats them and can cause electrolytic corrosion to metal components in the ground return path.
When testing a starter solenoid by applying battery voltage directly to the S terminal with a jumper wire, ensure the vehicle is in Park or Neutral (automatic) or with the clutch depressed (manual), and that no one is near the engine's moving components. The engine will crank immediately when the S terminal is energised.

Tools needed

Digital multimeter (DC voltage and millivolt range for voltage drop testing)
Digital multimeter with DC clamp function or DC clamp meter (for measuring cranking current without breaking the circuit)
Spanner or socket set for solenoid and cable stud nuts
Terminal cleaning brush (for cleaning corroded stud and ring terminal surfaces)
Hydraulic or mechanical lug crimper (for replacing main cable lugs)
Heat gun and heat-shrink tubing (for insulating new cable terminal connections)
Torque wrench (for tightening main cable stud nuts to specification)

Common mistakes

Reversing the BAT and M stud connections when reinstalling the starter cable — this passes battery voltage directly to the starter motor without going through the solenoid contacts, which causes the starter to run continuously, grinding the pinion into the flywheel ring gear and potentially destroying both.
Replacing the starter without also replacing the main starter cable and checking the battery negative cable — old, high-resistance cables will cause a new starter to perform no better than the failed original.
Attempting to diagnose a slow-cranking fault by measuring battery voltage without cranking — the battery voltage must be measured under load (during cranking) to reveal a weak battery or high-resistance connection. An open-circuit voltage measurement tells you nothing about battery condition under cranking current.
Failing to check the engine-to-chassis ground strap when diagnosing poor cranking — the negative return path is half of the circuit, and a corroded or missing ground strap causes the same symptoms as a fault on the positive side.
Tightening the main cable stud nuts by feel without a torque wrench — under-torqued connections overheat under cranking current; over-torqued connections strip the thread on the solenoid stud, which is an expensive failure.

Troubleshooting

No click and no cranking when ignition is turned to Start: Cause: No control signal reaching the S terminal (faulty ignition switch, start relay, neutral safety switch, or clutch interlock), no battery voltage, or faulty solenoid coil Fix: Measure battery voltage at the battery terminals. If good, measure voltage at the S terminal during a start attempt. No voltage at S means the fault is upstream (ignition switch, relay, neutral switch). If voltage is present at S but no click, the solenoid coil is open-circuit — replace the solenoid or starter assembly.
Solenoid clicks repeatedly (rapid clicking) but does not crank: Cause: Battery voltage drops below the solenoid pull-in voltage as soon as the contacts close and cranking current is demanded — battery is discharged, has high internal resistance, or connections have excessive voltage drop Fix: Measure battery open-circuit voltage and then voltage under load. A significant collapse of voltage when cranking begins confirms a weak battery or a high-resistance connection in the main cable. Test and load-test the battery; inspect and clean all large cable connections at the battery terminals, the BAT stud, the M stud, and the chassis/engine block ground points.
Starter cranks slowly even with a good battery and clean connections: Cause: Worn starter motor brushes or commutator, high resistance in solenoid main contacts, or insufficient battery cold-cranking amps (CCA) for the engine and ambient temperature Fix: Perform a full voltage drop test on both positive and negative sides of the starter circuit under cranking. If drop values are within specification on both sides, the fault is internal to the starter motor — worn brushes or commutator. Remove and bench-test the starter, or replace. If voltage drops are high at specific points, correct the connection at that point.
Starter engages but engine does not turn (grinding or no rotation): Cause: Failed starter motor (open winding, seized bearings), ring gear damage on the flywheel, or the solenoid plunger not extending to fully engage the pinion Fix: If a grinding sound is heard at the ring gear but the engine does not turn, inspect the flywheel ring gear for missing or damaged teeth. If the starter motor shaft turns but the engine does not, there may be a severely damaged ring gear or a failed one-way clutch in the starter's drive assembly. If no rotation at all, the starter motor has an internal failure — replace.

Frequently asked questions

What is the difference between the S terminal and the M terminal on a starter solenoid?

The S terminal (sometimes labelled STA, 50, or SW) is the control input — it receives the low-current start signal from the ignition switch or start relay, which energises the solenoid coil to close the main contacts. The M terminal is the high-current output — it connects to the starter motor's main terminal and carries the full cranking current after the solenoid main contacts close.

Can I test a starter solenoid without removing it from the vehicle?

Yes. First confirm battery voltage at the BAT terminal with the battery connected. Then apply battery voltage directly to the S terminal (using a fused jumper from the battery positive) while monitoring the M terminal with a multimeter. The M terminal should immediately show battery voltage when the S terminal is energised. A click with no voltage at M indicates worn or oxidised main contacts.

Why does the engine crank slowly or not at all even with a fully charged battery?

Slow or no cranking with a confirmed-good battery typically points to high resistance in the starter circuit — a corroded or loose connection at the battery terminals, the BAT stud, the M stud, the starter motor terminal, or the negative battery-to-chassis ground. Measure voltage drop across each connection under cranking load. A drop exceeding 0.2 V at any single connection indicates a fault at that point.

What causes a starter solenoid to click once but not crank the engine?

A single click (the solenoid pull-in coil energising) with no cranking indicates the solenoid main contacts have closed but the starter motor is not receiving sufficient current — either the main contacts are worn and have high resistance, the battery is too weak to sustain cranking current after pulling in, or the starter motor itself is faulty. Test battery voltage under load (across the battery terminals during cranking) — a significant voltage drop confirms a weak battery.

Does the starter solenoid need to be grounded separately?

The solenoid coil completes its ground through the starter motor body, which is bolted to the engine block. The engine block connects to the battery negative terminal via a ground strap or ground cable. This ground path carries only the solenoid coil current (a few amps) — the much heavier starter motor cranking current returns via the same path through the starter body and engine block. A poor engine-to-chassis or engine-to-battery negative ground will prevent the solenoid from pulling in at all.
