4-Pole Starter Solenoid Wiring Diagram: Terminal Identification and Circuit
This is a free printable 4 pole starter solenoid wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A reference wiring diagram for 4-pole starter solenoids covering terminal functions, ignition switch connection, battery cable, and motor output wiring.

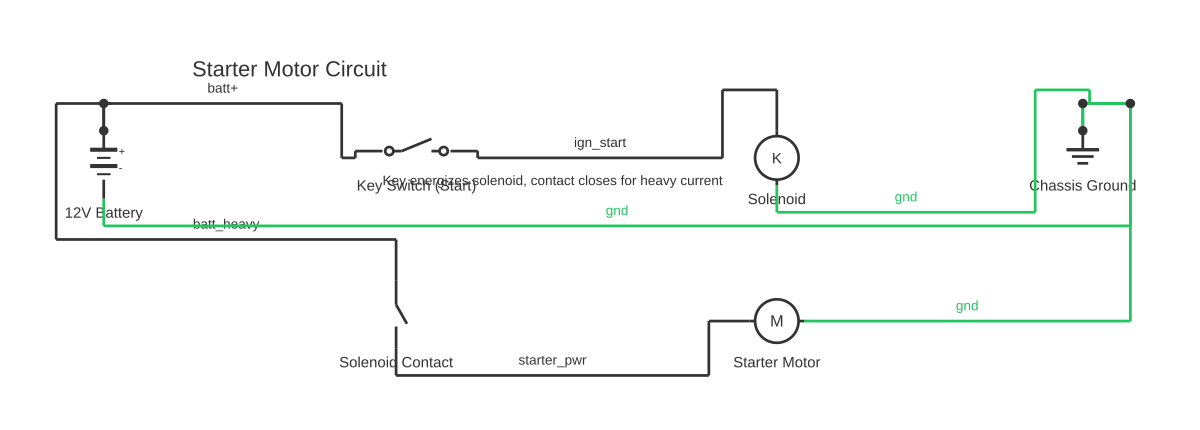

A 4-pole starter solenoid (also called a starter relay or pre-engaged solenoid) is an electromechanical switch that performs two simultaneous functions when energised: it mechanically engages the starter motor pinion with the ring gear (in pre-engaged starters), and it closes heavy-duty contacts to pass battery cranking current through the motor.
**Terminal identification:** The four terminals on a typical external solenoid or internal PMGR (Permanent Magnet Gear Reduction) solenoid are: - **Battery terminal (B+ or BAT):** The large stud connecting the battery positive cable directly. This carries full cranking current — typically 150–300 A on petrol engines, higher on diesel. - **Motor terminal (M or STA):** The large stud connecting to the starter motor main terminal. Current flows from the battery terminal through the solenoid contacts to here when the solenoid is closed. - **Start terminal (S or IGN):** The small terminal receiving the ignition switch start signal (typically 12 V from the ignition switch in the START position, via the neutral safety switch or clutch switch). - **Ignition bypass terminal (R or I):** The fourth terminal, found on many Ford and older GM designs, provides a resistor bypass during cranking. It delivers battery voltage directly to the coil side of the ignition system, bypassing any ballast resistor that would otherwise reduce ignition voltage during cranking. This ensures full ignition voltage when the starter motor is dropping battery voltage.
**Current path:** When the S terminal receives 12 V from the ignition switch, the solenoid coil energises. This draws the plunger in, engaging the pinion and closing the high-current contacts between the B+ and M terminals. The full battery voltage (typically 9.5–11 V during cranking due to voltage drop under load) is now applied to the starter motor.
**External versus internal solenoids:** Many modern starters have the solenoid mounted directly on the motor body. External solenoids (common on older vehicles, some trucks, and industrial machinery) mount separately, usually on the firewall or inner guard.
How to wire 4 pole starter solenoid wiring diagram
- Disconnect the battery before any work Remove the battery negative terminal first, then the positive. Starter solenoid terminals carry direct battery voltage at all times — working with the battery connected creates serious risk of short circuit and fire. Wait 60 seconds before working near any airbag wiring.
- Identify the four solenoid terminals Locate and label the two large studs (B+ battery side and M motor side) and the two small spade or screw terminals (S for start signal and R for resistor bypass if present). Use the vehicle workshop manual to confirm terminal designations — markings vary by manufacturer and are sometimes worn.
- Connect the battery cable to the B+ terminal Route the main battery positive cable from the battery positive terminal to the solenoid B+ stud. Use the correct cable cross-section for the cranking current — typically 25–50 mm² (3–1/0 AWG) depending on engine size. Secure with the factory-specified torque on the stud nut.
- Connect the motor cable to the M terminal Route a cable of the same cross-section from the solenoid M stud to the starter motor main terminal. Keep this cable well clear of exhaust manifolds. Use a heat-rated sleeve if routing near heat sources.
- Wire the S terminal to the ignition switch start circuit Connect the small S terminal to the ignition switch start output, via the neutral safety switch (automatic transmission) or clutch switch (manual transmission). Use 14–16 AWG wire with an inline fuse of 15–20 A for circuit protection.
- Connect the R terminal if applicable On vehicles with a ballast resistor ignition system, connect the R terminal to the coil positive terminal (or the supply side of the ballast resistor). On modern EFI vehicles, leave the R terminal unconnected. Confirm from the vehicle wiring diagram before making this connection.
- Reconnect battery and test operation Reconnect battery positive, then negative. Attempt to start the vehicle. A correctly wired solenoid will click firmly once and the starter motor should crank immediately. If the solenoid chatters or clicks repeatedly without cranking, measure battery voltage under load and inspect all high-current connections.
Specifications
| Solenoid coil voltage | 12 V DC nominal |
|---|---|
| Main contact current rating | 200–400 A (intermittent cranking duty) |
| Typical cranking current (petrol) | 150–300 A at 9–11 V (under load) |
| Typical cranking current (diesel) | 300–600 A at 9–11 V (under load) |
| Main cable cross-section | 25–50 mm² (1–3/0 AWG) per cranking current |
| Control circuit fuse (S terminal) | 15–20 A |
| Maximum cranking duration | 30 seconds continuous; allow 2 minutes cooling between attempts |
Safety warnings
- Disconnect the battery negative terminal before working on starter solenoid wiring. The B+ terminal carries unrestricted battery positive voltage at all times — accidental contact with a tool creates a severe short-circuit and fire hazard.
- Battery cables for starter circuits carry extremely high current (150–400 A during cranking). Ensure all connections are tight and corrosion-free. Loose connections arc and overheat under cranking current.
- If the starter solenoid energises unexpectedly with the engine running, the pinion engaging the spinning ring gear can cause serious mechanical damage. Never allow the start signal wire to short to positive with the engine running.
- This wiring diagram is for reference and educational purposes. Always consult the vehicle's factory workshop manual and comply with all applicable standards and regulations before modifying or replacing starter circuit wiring.
Tools needed
- Multimeter (voltage, resistance, continuity)
- Clamp-type ammeter (to measure cranking current)
- Cable crimping tool rated for heavy-gauge lugs
- Torque wrench (for terminal stud nuts)
- Wire brush and terminal cleaning tool
- Insulation resistance tester (for cable insulation check)
Common mistakes
- Reversing the B+ and M terminals. Both are the same stud size on many solenoids and the labels may be faint. Reversing them will attempt to power the battery from the starter motor output — check markings carefully.
- Under-torquing the large stud terminals. Battery cable ring terminals must be firmly clamped to achieve low contact resistance. Under-torqued connections heat and oxidise rapidly under cranking current.
- Connecting the R terminal on modern EFI vehicles. This can apply full battery voltage to a control module input during cranking and cause damage.
- Routing control wire (S terminal) in the same bundle as the high-current cables without adequate separation, causing induced noise or chafing damage.
- Using non-rated cable for the main battery circuit. Cable must be rated for the vehicle's maximum cranking current — using undersized cable causes voltage drop and potential fire hazard.
Troubleshooting
- Starter motor does not turn; no click from solenoid
- Cause: No voltage at S terminal — open circuit in ignition switch, blown fuse, or open neutral safety switch Fix: Measure voltage at the S terminal with the ignition key in START. Should read battery voltage. If not, trace back through ignition switch and neutral safety switch. Check for blown fuse in the start circuit.
- Solenoid clicks but starter does not turn
- Cause: Solenoid contacts corroded or burned out, or very low battery voltage under load Fix: Measure voltage at the M terminal during the cranking attempt. If voltage is less than 9 V, check the battery and B+ cable. If battery voltage appears at M but starter does not turn, the starter motor or solenoid contacts are at fault.
- Starter continues to run after key released
- Cause: Solenoid contacts welded, or start wire shorted to permanent 12 V supply Fix: Immediately disconnect the battery. If the solenoid contacts are welded the solenoid must be replaced. Inspect the S terminal wire for any contact with a permanent 12 V supply source.
Frequently asked questions
What is the R or I terminal on a 4-pole starter solenoid for?
The R (or I) terminal provides a resistor bypass. During cranking, many older ignition systems include a ballast resistor in the coil primary circuit to extend point life. The R terminal delivers full battery voltage directly to the coil positive terminal during cranking, bypassing that resistor to ensure reliable ignition while the starter motor is drawing down battery voltage.
My starter clicks once but does not crank. What does this indicate?
A single click with no cranking typically indicates the solenoid is energising (plunger pulling in) but the main contacts are not passing current, or the battery voltage is collapsing under load. Test battery under load, check the battery and motor terminal connections for corrosion, and measure voltage at the M terminal during the cranking attempt.
Can I use a 4-pole solenoid as a remote battery isolator?
Yes, many 4-pole solenoids are used as remotely-operated battery isolators or split-charge relays in vehicle builds. Connect the high-current circuit across the B+ and M terminals, and control it via the S terminal with a low-current switch. Ensure the solenoid is rated for continuous duty if used as an isolator, as most starter solenoids are intermittent-duty rated.
What causes a starter solenoid to chatter or make a rapid clicking sound?
Rapid clicking (chattering) indicates the solenoid coil is energising, pulling the plunger in, and then dropping out because battery voltage is collapsing under the starter load. Causes include a discharged or failing battery, corroded battery terminal connections, or a faulty earth strap. Test battery charge and measure voltage drop across all connections under load.
Do I need to use the R terminal if my vehicle has electronic ignition?
Modern electronic ignition systems and EFI do not use a ballast resistor and do not require the R terminal to be connected. The R terminal can be left open on these applications. Connecting an incorrect load to the R terminal during cranking could damage the ignition control module or ECU.
