3 prong dryer cord diagram

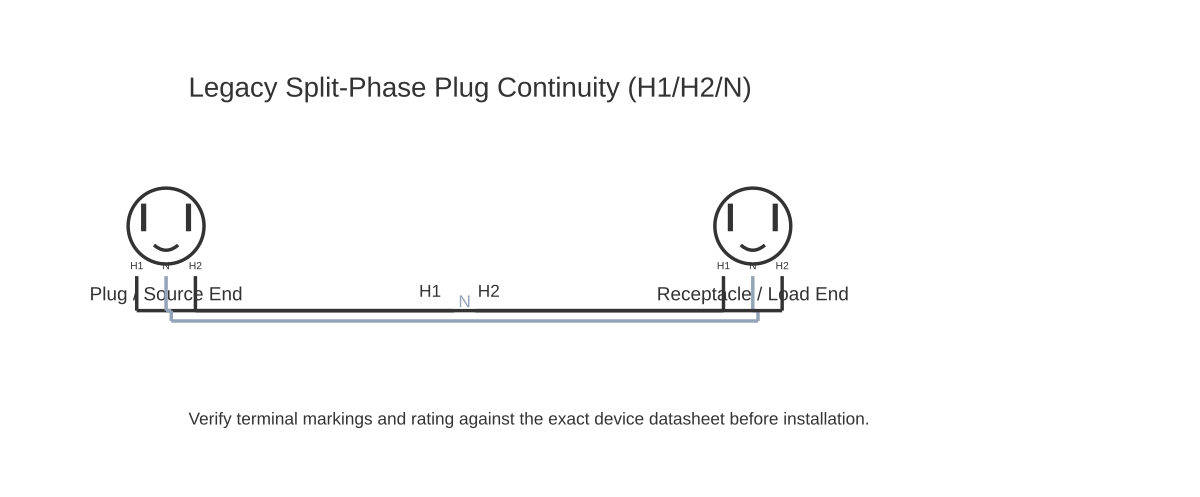

3 prong dryer cord diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 prong dryer cord diagram: download the diagram as SVG or open it and print to paper or PDF.

A 3-prong dryer cord wiring diagram illustrates proper conductor termination for older NEMA 10-30R dryer cords using three conductors (two hot legs and neutral-ground combined). This diagram is important for understanding legacy dryer installations and the evolution toward modern four-prong cords. The three terminals on the male plug are: top terminal connects to neutral-ground (shared function in older code), left terminal connects to 120V hot (L1), and right terminal connects to 120V hot (L2), combining to deliver 240V line-to-line for dryer heating elements and motor. The diagram shows: proper wire insulation stripping length (6 inches of jacket removed), correct terminal lug attachment (crimped securely or soldered), and stress-relief assembly protecting the cord from mechanical damage. The 3-prong design presents safety risk: if the neutral connection loosens, the neutral-ground wire may not adequately protect the appliance frame, creating shock hazard. Modern electrical codes (since 1996) require four-prong cords with separate ground conductors, but many existing homes still utilize 3-prong dryer circuits. Understanding 3-prong cord wiring enables safe maintenance of existing dryers and awareness of safety implications when upgrading to modern four-prong systems.

How to wire 3 prong dryer cord diagram

Identify outlet type and purchase matching cord Determine whether your wall outlet is 3-prong (NEMA 10-30) or 4-prong (NEMA 14-30). Purchase the exact matching cord — fitting the wrong cord type is dangerous and will not mate correctly with the outlet.
Access the dryer terminal compartment Unplug the old cord. Remove the rear access panel (usually two screws) to expose the terminal block and the chassis earth screw with the neutral bonding strap.
Loosen terminal screws and remove old cord Loosen all three terminal block screws and the chassis earth screw if a 4-wire cord was previously fitted. Release the strain relief clamp and pull the old cord clear.
Install or verify neutral bonding strap position For 3-wire cord installation: confirm bonding strap connects neutral terminal to chassis. For 4-wire installation: remove and store the bonding strap — it must not be in place when a 4-wire cord is used.
Feed new cord through strain relief and terminal compartment Thread the new cord through the strain relief clamp fitting from outside. Pull 150mm of cord into the compartment. Do not tighten the strain relief yet.
Connect wires to terminal block Connect white neutral to centre terminal. Connect the two hot conductors to left and right outer terminals. For 4-wire cord, connect green/bare earth to chassis earth screw. Tighten all terminals firmly.
Secure strain relief and test Tighten the strain relief clamp until the cord cannot be pulled through. Replace the access panel. Plug in, run a short cycle, and confirm the appliance operates correctly with no heat at the plug or cord.

Frequently asked questions

Why do modern dryers use 4-wire cords but older homes still have 3-prong outlets?

Post-1996 US NEC code required separate neutral and earth conductors for safety — hence 4-wire. Older installations use 3-wire where the neutral and earth are combined. Both are legal in existing installations, but when replacing a cord always match the outlet type fitted in the wall.

What is the neutral bonding strap and do I need it?

The neutral bonding strap inside the dryer connects the neutral wire to the appliance chassis. On 3-wire installations this is required for safety — without it, the chassis has no earth reference. On 4-wire installations the strap must be removed because the chassis is earthed via the dedicated green earth wire.

Can I connect a 3-prong dryer cord to a 4-prong outlet with an adapter?

Adapters exist but they are not recommended for permanent installations. The 3-wire system lacks an isolated chassis earth, which is a shock risk if the neutral conductor breaks. The correct solution is to replace the 3-prong cord with a 4-prong cord and remove the neutral bonding strap.

Which wire connects to which terminal on the dryer terminal block?

Centre terminal: white neutral wire. Left and right outer terminals: black and red (or black and black) hot conductors for 240V. Earth/green wire connects to the chassis earth screw, not to the terminal block. For 3-wire, the bonding strap must be in place and neutral goes to centre terminal and chassis.

What should I do if the dryer cord gets hot at the plug?

A hot plug indicates a loose or corroded connection at the wall outlet, undersized cord, or a failing outlet socket. Tighten the outlet contacts or replace the outlet. Do not operate the dryer with a hot plug — loose connections at 240V and 30A arc and cause fires.
