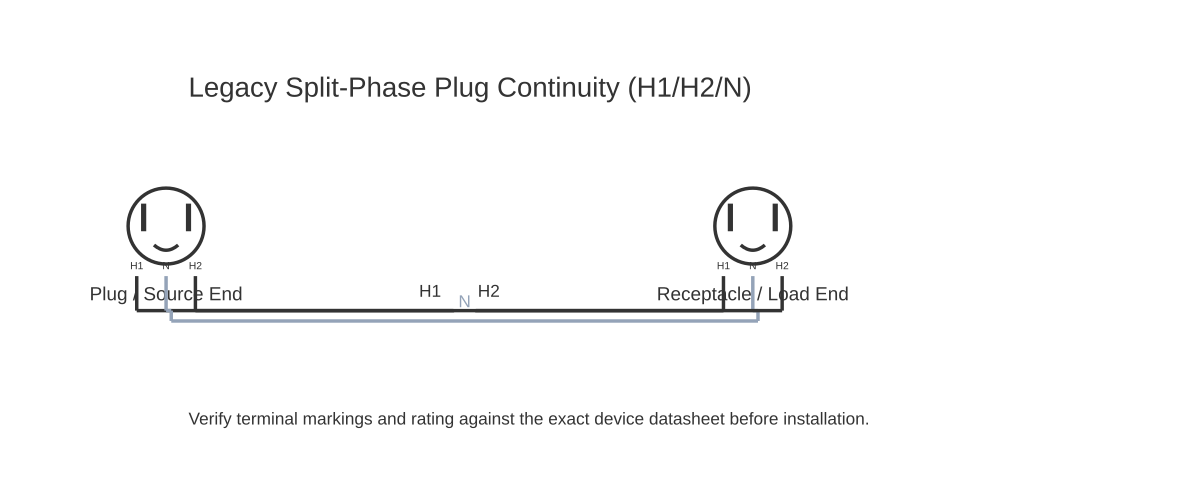

3 prong dryer plug wiring diagram

3 prong dryer plug wiring diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 3 prong dryer plug wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A three-prong dryer plug wiring diagram details connections for standard North American 240-volt clothes dryer circuits, using a NEMA 10-30R plug format with three conductor terminals: two hot legs (each carrying 120V relative to neutral/ground) and a neutral-ground combined terminal. The diagram shows that the two hot conductors deliver 240V line-to-line, while the combined neutral-ground terminal provides both circuit return and equipment grounding. Three-prong plugs became industry standard after the 1996 National Electrical Code introduced separate ground terminals, but older installations used three-prong connectors. Dryer circuits typically require 30-amp rated conductors for safe power delivery to heating elements and motor loads. The wiring diagram prevents dangerous mistakes such as reversed polarity, missing ground connections, or undersized conductors that create fire hazards. Modern diagrams specify conductor gauge (10 AWG minimum for 30A circuits), insulation type, and proper terminal crimping or soldering techniques. Understanding three-prong dryer connections enables safe appliance installation, cord replacement, and problem diagnosis without requiring a licensed electrician for routine maintenance tasks.

How to wire 3 prong dryer plug wiring diagram

Check the outlet type Before purchasing a dryer cord, identify whether your wall outlet is a three-prong or four-prong type. A three-prong dryer outlet has a large L-shaped slot, a slot at an angle, and a round slot. A four-prong outlet adds a second straight slot. Buying the wrong cord means another trip to the store.
Purchase a rated three-prong dryer cord Buy a dryer cord rated for the dryer's full-load current — typically 30 A for most residential dryers. The cord must carry a UL or equivalent safety listing. Unbranded cords from discount stores often fail current rating tests and should be avoided for a permanently connected appliance.
Disconnect power at the breaker Switch off the dedicated dryer circuit breaker at the distribution panel and test the outlet with a multimeter to confirm it is dead before touching any terminals. A dryer outlet carries lethal voltage — 240 V between the two hot legs.
Access the dryer terminal block Remove the rear access panel on the dryer with a screwdriver. The terminal block is inside and the existing cord (if any) connects here. The wiring diagram is usually printed on the inner panel or on a label near the terminal block. Read it before disconnecting anything.
Connect the three-prong cord On a three-prong terminal block, the centre terminal is neutral/earth and the outer two terminals are the hot legs. Connect the white cord wire to the centre terminal. Connect the two hot wires (red and black) to the outer terminals. Ensure the bonding strap connects the centre terminal to the chassis earth lug.
Secure the cord strain relief Fit the cord through the strain relief fitting at the dryer cable entry and tighten the clamp so the cord cannot be pulled through. Proper strain relief prevents terminal damage when the dryer is moved. A loose cord that can pull is a safety hazard and a nuisance tripping cause.
Test the installation Refit the access panel, plug in the cord, and restore the circuit breaker. Run the dryer through a short cycle and confirm both heating and drum motor function. Measure current with a clamp meter if you have one — full-load current on each hot leg should be within 10% of the nameplate rating.

Frequently asked questions

What are the three wires in a 3-prong dryer plug?

In a North American three-prong dryer circuit, the three conductors are two hot legs and one combined neutral/earth conductor. The two hot legs each carry 120 V relative to neutral, giving 240 V across them for the heating element. The combined neutral/earth is a legacy arrangement no longer permitted in new installations.

Is a 3-prong dryer plug still allowed?

In the USA, three-prong dryer outlets are only permitted in existing installations where a four-wire outlet was not previously installed. New construction and new circuit installations must use a four-prong outlet that separates neutral and earth. In South Africa, different plug and socket standards apply and you should consult SANS 10142-1 for local requirements.

How do I convert a dryer from 4-prong to 3-prong for an older outlet?

Replace the four-wire cord with a three-wire cord rated for the dryer current. On the dryer terminal block, move the earth wire from the earth terminal to the neutral terminal and fit a bonding strap between the neutral terminal and the dryer chassis. This restores the legacy bonding arrangement but is only for use with existing three-wire outlets.

What gauge wire does a 3-prong dryer cord use?

A 240 V dryer in North America typically draws up to 30 A, requiring a 10 AWG (equivalent to approximately 6 mm²) three-core cord rated at 30 A. The cord must be rated for the dryer's full-load current as stated on the nameplate. Never use a cord with a lower current rating than the dryer requires.

Can I use a regular extension cord with a dryer?

No. Standard extension cords are not rated for the sustained high current a dryer draws. Using an undersized extension cord on a dryer causes the cord to overheat, melt insulation, and potentially cause a fire inside the cord itself. Dryers must be hardwired or connected via a purpose-rated dryer cord and outlet.
