3-Wire Stove Plug Wiring Diagram

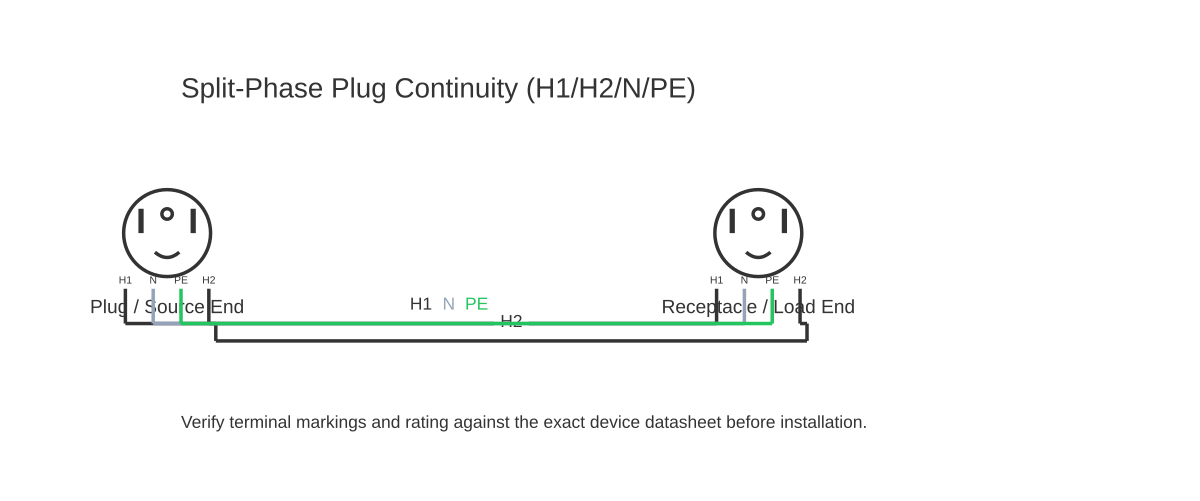

This is a free printable 3 wire stove plug wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A 3-wire stove plug diagram covers the legacy NEMA 10-30 and NEMA 10-50 receptacle configurations using two ungrounded hots and a combined neutral-ground conductor — an arrangement prohibited for new installations in the USA under NEC 250.140.
From the mid-twentieth century through 1996, electric ranges and dryers in the United States were routinely wired using 3-wire circuits: two hot conductors (L1 and L2) carrying 120/240 V split-phase power, and a single neutral conductor that also served as the equipment grounding path. This configuration used NEMA 10-30 (30-ampere, 240 V) for dryers and NEMA 10-50 (50-ampere, 240 V) for ranges and cooktops. The socket had three slots — two angled hots and one straight or L-shaped neutral/ground — and the appliance's neutral and chassis ground were bonded together inside the terminal block, relying on the neutral wire to carry any fault current back to the panel.
The inherent danger of this arrangement is that the neutral conductor carries both the 120 V return current for the appliance's clock, lights, and controls, and the fault-return path. A break in the neutral wire — from a loose terminal, corrosion, or mechanical damage — leaves the appliance chassis at a potentially lethal voltage while the circuit appears to function normally (the 240 V elements still work). This fault condition cannot be detected by the appliance or by standard overcurrent protection.
The National Electrical Code (NEC) addressed this in the 1996 edition by adding section 250.140, which prohibited grounding of appliance frames through the neutral conductor for new branch-circuit installations. All new electric range and dryer circuits installed from 1996 onward require a 4-wire NEMA 14-30 or NEMA 14-50 circuit: two hots, a separate neutral (white), and a separate ground (green or bare). The appliance terminal block must be reconfigured (a removable bonding strap is replaced by a separate ground wire) when converting from 3-wire to 4-wire.
Existing 3-wire installations are grandfathered and may remain in service, but any new circuit installation, panel replacement, or service upgrade that includes the range or dryer circuit must be upgraded to 4-wire. This page is a reference for understanding and working safely with existing legacy installations only.
How to wire 3 wire stove plug wiring diagram
- Isolate the circuit at the panel Switch off the double-pole breaker feeding the range circuit. Verify zero volts at the outlet terminals using a CAT III voltage tester. Confirm the breaker is the correct one — test with the tester before touching terminals. Apply lockout-tagout.
- Identify the conductors and receptacle type For NEMA 10-50: the receptacle has three openings — two angled slots for L1 and L2, and one T-shaped or straight vertical slot for the neutral/ground. Identify the cable: a 3-wire range circuit is typically 6 AWG or 8 AWG (depending on ampacity) with two insulated hots and one insulated neutral, no bare ground.
- Connect the receptacle terminals The two angled (hot) terminals receive L1 (black) and L2 (red). The straight or T-slot terminal receives the neutral (white). Tighten terminal screws to the torque specification on the receptacle — loose connections cause arcing and overheating. A NEMA 10-50 receptacle is rated 50 A; a NEMA 10-30 is rated 30 A.
- Verify the appliance terminal block configuration Open the appliance terminal block cover (bottom rear of range). Confirm the bonding strap connects the neutral (centre) terminal to the chassis frame. For a 3-wire connection: connect black to one outer terminal, red to the other outer terminal, and white to the centre neutral terminal. Leave the bonding strap in place.
- Re-assemble and restore power Replace all covers. Remove lockout-tagout. Restore the breaker. Test the range — both 240 V elements and 120 V functions (clock, lights) must operate. Use a GFCI outlet tester with a neutral-ground voltage test function to confirm no unexpected voltage between chassis and ground.
Specifications
| NEMA receptacle type (range, 50 A) | NEMA 10-50R (3-wire, 2-pole, 50 A, 250 V) |
|---|---|
| NEMA receptacle type (dryer, 30 A) | NEMA 10-30R (3-wire, 2-pole, 30 A, 250 V) |
| Conductor count | 3: L1 (hot), L2 (hot), neutral (combined neutral/ground) |
| Cable size for 50 A range | 6 AWG copper minimum (NEC Table 310.15) |
| Cable size for 30 A dryer | 10 AWG copper minimum |
| Supply voltage | 120/240 V AC, single-phase, 60 Hz |
| NEC status | Prohibited for new installations since 1996 (NEC 250.140); grandfathered existing installations permitted |
| Appliance bonding strap | Must remain installed for 3-wire connection; must be removed and replaced by separate ground wire for 4-wire conversion |
Safety warnings
- This wiring configuration is prohibited for new installations in the USA under NEC 250.140 (post-1996). This content is a reference for understanding and maintaining existing grandfathered 3-wire circuits only. Always install new circuits with a 4-wire NEMA 14-50 or 14-30 configuration.
- A broken or loose neutral conductor in a 3-wire circuit can place dangerous voltage on the appliance chassis with no obvious indication. Inspect the neutral connection at both the receptacle and the appliance terminal block periodically, particularly in older homes.
- Always verify zero volts at the circuit terminals before starting work. A 240 V double-pole circuit can deliver lethal current. Use a CAT III rated voltage tester and observe lockout-tagout procedures.
- In jurisdictions that have adopted the 2002 or later NEC, a GFCI breaker may be required even for existing 3-wire circuits when the circuit is modified or the panel is replaced — consult a licensed electrician and your local authority having jurisdiction (AHJ).
- All electrical work must be performed by or under the direct supervision of a licensed electrician and must comply with the applicable edition of the NEC (NFPA 70) or local wiring standard adopted by the jurisdiction.
Tools needed
- CAT III voltage tester
- Insulated screwdrivers
- Torque screwdriver or torque wrench (receptacle and terminal torque specs)
- Wire stripper for 6 AWG cable
- Lockout-tagout equipment
- Multimeter
Common mistakes
- Removing the bonding strap from the appliance terminal block while keeping the 3-wire connection — this leaves the chassis ungrounded and is dangerous.
- Connecting the neutral wire to one of the hot terminals and a hot wire to the neutral terminal — the 120 V circuitry in the appliance will be damaged or the appliance will not operate correctly.
- Installing a new 3-wire circuit (running new cable without a ground) rather than a 4-wire circuit, violating NEC 250.140 for post-1996 installations.
- Using undersized cable — a 50 A range circuit requires 6 AWG copper minimum (NEC 310.15). Using 10 AWG for a 50 A circuit is a code violation and a fire hazard.
- Confusing NEMA 10-50 (3-wire, no ground, 50 A) with NEMA 14-50 (4-wire, with separate ground, 50 A) — they look similar to a non-professional but are not interchangeable.
Troubleshooting
- 240 V burners work but clock, lights, and controls are dead
- Cause: Neutral conductor is open (broken, loose terminal, or corroded); 120 V circuits require neutral; 240 V elements do not Fix: Isolate circuit. Inspect neutral terminal at receptacle and appliance terminal block. Measure continuity from panel neutral bar to appliance neutral terminal. Repair or replace open neutral connection.
- Appliance chassis gives a mild shock
- Cause: Neutral conductor is partially open or there is a high-resistance neutral connection, placing voltage on the chassis via the bonding strap Fix: Immediately isolate the circuit. Do not use the appliance. Have a licensed electrician inspect the full circuit. The neutral must be repaired and verified. Consider upgrading to a 4-wire circuit.
- Breaker trips when range is turned on
- Cause: Overloaded circuit (multiple elements at full power may approach 50 A), short circuit in the appliance or wiring, or undersized breaker Fix: Check appliance for internal fault first (isolate and test elements with an ohmmeter for shorts to chassis). Verify breaker rating matches circuit cable ampacity. If the breaker trips on overload rather than immediately, check that only the range is on this circuit.
Frequently asked questions
Is a 3-wire stove plug still legal in the United States?
Existing 3-wire NEMA 10-30 or 10-50 installations are grandfathered under NEC 250.140 and may remain in service. However, new branch-circuit installations for electric ranges and dryers have been prohibited from using 3-wire configurations since the 1996 NEC. All new work must use a 4-wire circuit with a separate grounding conductor.
What are the three conductors in a NEMA 10-50 circuit?
L1 (ungrounded hot, typically black), L2 (ungrounded hot, typically red), and a combined neutral/ground conductor (white or grey). There is no separate equipment grounding conductor. The appliance chassis is bonded to neutral inside the terminal block via a bonding strap.
Can I replace a 3-wire NEMA 10-50 outlet with a 4-wire NEMA 14-50?
Only if a separate equipment grounding conductor is available in the existing cable or conduit, or if a new 4-wire cable can be run. If only 3-wire cable is in the wall, you cannot simply swap the receptacle — you must either run new 4-wire cable or, in some jurisdictions, install a GFCI breaker per NEC 250.140 exception.
What is the risk of a neutral wire break in a 3-wire appliance circuit?
A broken neutral in a 3-wire circuit leaves the appliance chassis floating at an elevated voltage (potentially half the supply voltage or more). Because the chassis and neutral are bonded, a person touching the chassis while contacting ground could receive a shock. The 240 V heating elements may still operate, giving no obvious indication of the fault.
Which wire connects to which terminal on the appliance in a 3-wire installation?
L1 (black) and L2 (red) connect to the two outer hot terminals. The neutral wire (white) connects to the centre neutral terminal. The bonding strap between the neutral terminal and the appliance chassis frame must remain in place in a 3-wire installation — it must be removed when switching to 4-wire.
