4-Wire Stove Plug Wiring Diagram: NEMA 14-50 Step-by-Step Guide

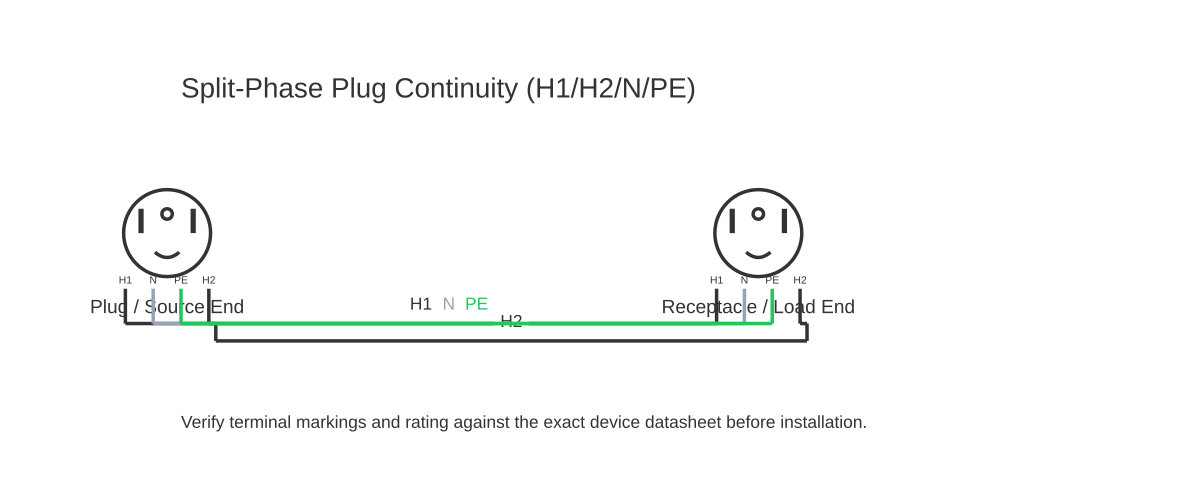

This is a free printable 4 wire stove plug wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand the 4-wire stove plug wiring standard — NEMA 14-50 — including the two hot legs, neutral, and ground required for modern 240V split-phase appliances.
A 4-wire stove plug uses a NEMA 14-50 configuration: two ungrounded conductors (hot legs, L1 and L2), one grounded conductor (neutral), and one grounding conductor (ground). This arrangement is the current standard in North American residential wiring and is required by the National Electrical Code (NEC) for new installations. Each hot leg delivers 120 V relative to neutral, and 240 V across both legs — providing the dual-voltage capability that electric ranges and cooktops need to run 240 V heating elements and 120 V controls or clocks from the same circuit.
The older 3-wire NEMA 10-50 standard combined the neutral and ground functions into a single conductor, a practice prohibited for new installations by the NEC since 1996. The 4-wire system separates these functions: the neutral carries the return current for 120 V loads, while the ground is an equipment safety conductor that normally carries no current and connects the appliance chassis to earth. Keeping these functions separate reduces the risk of the appliance chassis becoming energised if the neutral opens.
For a typical electric range, the circuit is dedicated, meaning no other outlets or fixtures share the branch circuit. The NEC specifies a minimum 50 A circuit for ranges — using a 50 A two-pole breaker, 6 AWG copper conductors (or 4 AWG aluminium), and a NEMA 14-50R receptacle. The appliance connects via a NEMA 14-50P plug on a pigtail cord.
At the plug, the two hot conductors (commonly red and black) connect to the two brass-coloured angled blades. The white or grey neutral conductor connects to the straight centre neutral blade. The bare copper or green insulated ground conductor connects to the U-shaped ground blade at the bottom of the plug.
All 240 V circuit work must comply with the NEC (NFPA 70), and in most jurisdictions requires a permit and inspection. A licensed electrician should perform or supervise this work.
How to wire 4 wire stove plug wiring diagram
- Verify the circuit and isolate power Confirm the existing or planned circuit is a dedicated 240 V, 50 A, two-pole branch circuit. Switch off the corresponding double-pole breaker at the main panel, then verify the circuit is dead using a non-contact voltage tester or a multimeter set to AC volts. Lock out the breaker if possible.
- Identify the four conductors In a 4-wire cable (typically 6/3 with ground), identify: black (L1 hot), red (L2 hot), white or grey (neutral), bare copper or green (ground). If the cable only has three insulated conductors plus a bare, confirm colouring matches your jurisdiction's wiring conventions and the panel labelling.
- Connect the conductors to the NEMA 14-50R receptacle At the receptacle, L1 (black) connects to the X terminal, L2 (red) to the Y terminal, neutral (white) to the W terminal, and ground (bare or green) to the green screw. Tighten all screw terminals to the torque specified on the receptacle label — typically 35–45 in-lb for copper conductors.
- Prepare the appliance cord at the NEMA 14-50P plug end Open the range's terminal block cover at the rear. Connect the two hot conductors to the outer two terminals (L1 and L2), the neutral to the centre terminal, and the ground to the chassis ground lug or green screw. Ensure the strain relief secures the cord jacket, not the individual conductors.
- Confirm neutral-to-ground separation in the appliance On a 4-wire installation, remove any bonding strap or link between the neutral terminal and the chassis ground in the range's junction box. This strap is present for 3-wire compatibility and must be removed when a separate ground is available. Refer to the appliance installation manual for its location.
- Restore power and test Switch the double-pole breaker back on. Use a multimeter to verify: 120 V between L1 and neutral, 120 V between L2 and neutral, and 240 V between L1 and L2. Confirm 0 V between neutral and ground. Test appliance operation on all elements.
Specifications
| Plug and receptacle standard | NEMA 14-50P / 14-50R |
|---|---|
| Voltage | 240 V AC, 120/240 V split-phase |
| Breaker rating (NEC minimum) | 50 A, two-pole |
| Conductor size (copper, NEC) | 6 AWG for all four conductors |
| Conductor size (aluminium, NEC) | 4 AWG for all four conductors |
| Configuration | 2 hots (L1, L2) + 1 neutral (W) + 1 ground (G) |
| Applicable standard | NEC / NFPA 70 (current edition) |
| Previous standard (prohibited for new work) | NEMA 10-50: 3-wire, combined neutral/ground |
Safety warnings
- All 240 V circuit work must comply with the National Electrical Code (NFPA 70) and applicable state or local amendments. Most jurisdictions require a permit and inspection for new or modified range circuits. Engage a licensed electrician to perform or supervise this work.
- Always verify the circuit is de-energised with a calibrated non-contact voltage tester or multimeter before touching any conductors. Switching off the breaker is not sufficient verification — confirm dead before proceeding.
- Never combine the neutral and ground conductors in a 4-wire installation. A bonded neutral-ground in the appliance junction box when a separate ground is available creates a shock hazard if the neutral conductor opens upstream.
- Use only conductors and devices rated for the full circuit ampacity. Undersized wiring on a 240 V, 50 A circuit is a serious fire risk that may not be protected by the breaker until a sustained overload causes insulation damage.
- Observe all torque specifications on receptacle and breaker terminals. Under-torqued connections cause resistance heating, arc faults, and potential fires. Use a calibrated torque screwdriver.
Tools needed
- Non-contact voltage tester
- Digital multimeter (AC voltage function)
- Torque screwdriver (0–100 in-lb range)
- Wire strippers for 6 AWG conductors
- Needle-nose pliers and combination pliers
- Flathead and Phillips screwdrivers
- Cable staples or conduit as required by installation type
- Breaker lockout device
Common mistakes
- Leaving the neutral-to-chassis bonding strap in place inside the range when wiring a 4-wire cord — this creates a parallel neutral-ground path and defeats the safety purpose of the separate ground conductor.
- Under-torquing the breaker or receptacle terminals, leading to high-resistance connections that heat up and can eventually cause an arc fault or fire.
- Using a 3-wire cord on a 4-wire outlet by grounding the chassis via the neutral conductor — this is a code violation for new installations and a shock hazard if the neutral opens.
- Routing all four conductors but failing to use the correct colour coding, making future service work dangerous if someone assumes standard conventions.
- Installing the receptacle without a dedicated circuit — sharing a 50 A range circuit with other loads can cause nuisance tripping and is not permitted by the NEC for ranges.
Troubleshooting
- One heating element group works but the other does not
- Cause: One hot leg (L1 or L2) has no voltage — possible open breaker pole, loose breaker connection, or open conductor in the cable Fix: Measure AC voltage at the receptacle: L1-to-neutral, L2-to-neutral, and L1-to-L2. A zero reading on one leg points to an upstream fault. Switch off the breaker and check for loose terminal connections in the panel and at the receptacle.
- Appliance controls and clock do not work, but elements work
- Cause: Open neutral conductor — the 120 V control circuit has no return path Fix: Measure neutral-to-ground voltage at the receptacle with the appliance connected. Should read 0 V. A reading greater than 1–2 V indicates neutral resistance or an open neutral. Trace the neutral back to the panel and inspect all connections.
- Breaker trips immediately when range is turned on
- Cause: Ground fault, short circuit in the appliance or cord, or a breaker rated below the required ampacity Fix: Unplug the range and reset the breaker. If the breaker holds, the fault is in the range or cord. With the range unplugged, measure insulation resistance between each hot terminal and ground at the receptacle to rule out wiring faults. Call a licensed electrician if the fault is in the panel-side wiring.
Frequently asked questions
What is the difference between a 3-wire and 4-wire stove plug?
A 3-wire NEMA 10-50 plug has two hot conductors and a combined neutral/ground. A 4-wire NEMA 14-50 plug separates the neutral and ground into distinct conductors. The 4-wire system is safer because it prevents the appliance chassis from carrying neutral return current. New installations must use the 4-wire standard under the NEC.
Can I use a 3-wire cord on a new 4-wire outlet?
No. You cannot safely use a 3-wire appliance cord on a 4-wire outlet without an adapter that re-bonds neutral and ground inside the appliance junction box — a practice the NEC permits only as a specific exception for existing appliances moved to new outlets, not for new installations. The safest approach is to replace the appliance cord with a 4-wire cord.
What wire gauge is required for a 50 A stove circuit?
The NEC requires 6 AWG copper or 4 AWG aluminium for a 50 A, 240 V branch circuit. This applies to all four conductors: L1, L2, neutral, and ground. Do not reduce the gauge of the neutral or ground conductors relative to the hot conductors.
Which terminals on the NEMA 14-50 plug connect to which conductors?
The two angled brass-coloured blades connect to the hot conductors (L1 red and L2 black, or per your appliance cord colours). The straight centre blade connects to the white or grey neutral. The U-shaped bottom blade connects to the bare copper or green ground conductor.
What breaker size is required for an electric range?
The NEC specifies a two-pole (double) circuit breaker rated at 50 A for a standard electric range circuit using a NEMA 14-50 outlet. Some smaller countertop induction units may specify a lower amperage — always check the appliance nameplate and comply with the manufacturer's installation instructions.
