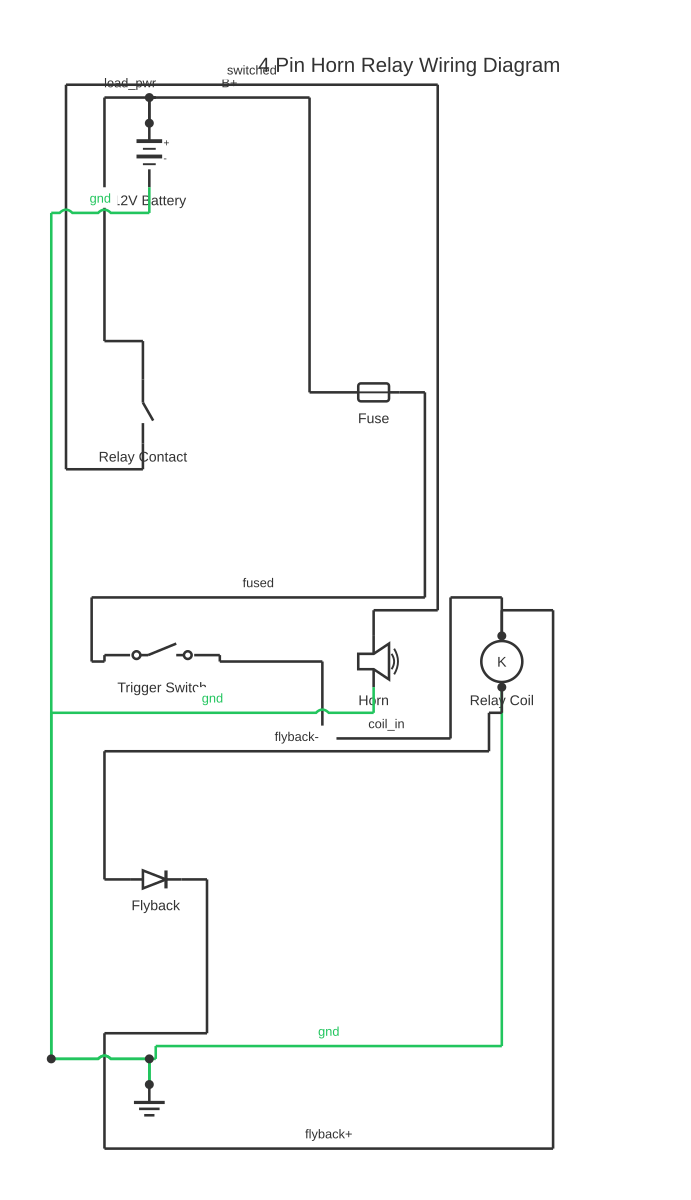

4-Pin Horn Relay Wiring Diagram
This is a free printable 4 pin horn relay wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A 4-pin horn relay wiring diagram shows how to use pins 30, 85, 86, and 87 to power an upgraded horn directly from the battery — protecting the steering column switch from high current and eliminating the weak honk caused by thin original wiring.
Most factory horn installations route the full horn current through the steering column switch, which is typically rated for only a few amps and is connected via thin wiring hidden in the steering column and clock spring. When aftermarket horns draw significantly more current than the factory unit, this causes several problems: voltage drop across the thin wiring reduces horn volume, the steering column switch can overheat and fail, and the horn may sound weak or intermittent.
The solution is a 4-pin relay, wired so that the steering column switch only passes the small relay coil current (~150–200 mA), while the horn draws its full current directly from the battery via a dedicated fused wire.
4-pin relay connections for horn upgrade: - Pin 30 (Common): connects to battery positive via an inline fuse (typically 20–30 A for loud aftermarket horns). This is the high-current power source. - Pin 85 (Coil –): connects to chassis ground (negative bus or battery negative). - Pin 86 (Coil +): connects to the horn wire from the steering column (the wire that was previously the positive supply to the original horn). When the horn button is pressed, this wire goes to 12 V, energising the coil. - Pin 87 (Normally Open output): connects to the positive terminal of the horn(s). When the relay fires, 12 V from pin 30 passes to pin 87 and activates the horn.
The original horn ground wire continues to ground the horn. The relay coil current flows through the steering column switch, but the horn operating current flows through the relay contacts and the new fused wire, completely bypassing the thin factory wiring.
Dual horn installations: If fitting two horns (commonly a high-tone and low-tone pair), wire both horn positives together at pin 87. Both horns share the single relay contact, so the relay must be rated for the combined current of both horns. Alternatively, use one relay per horn.
Mounting: Mount the relay in the engine bay, away from heat and moisture. Use a relay socket or solder connections with heat-shrink tubing for a reliable, weather-resistant installation.
The 4-pin horn relay is the standard method for wiring aftermarket horns and air horns on motorcycles and cars: it uses a low-current trigger from the horn button to switch high current directly from the battery to the horn, protecting the original horn switch wiring. Three-pin horn relays are a more compact variant common on motorcycles in South and Southeast Asia. The same wiring logic applies regardless of language or region, and you can diagram either variant free at circuitdiagrammaker.com.
How to wire 4 pin horn relay wiring diagram
- Disconnect the battery negative terminal Remove the negative terminal from the battery before touching any horn or relay wiring to prevent short circuits and accidental horn activation.
- Locate the existing horn and its wiring Trace the original horn wire from the horn to the steering column. In most vehicles, the horn has two wires: a positive signal wire from the steering column and a ground wire to the chassis. Identify and label both.
- Disconnect the original horn signal wire from the horn Unplug or cut the positive wire that runs from the steering column to the horn. This wire will connect to relay pin 86. If cutting, leave enough length on both sides for connector terminals.
- Run a new power feed from the battery to pin 30 with an inline fuse Run a new wire (minimum 1.5 mm², ideally 2.5 mm²) from the battery positive terminal through an inline fuse holder (20–30 A fuse) to relay pin 30. Place the fuse within 30 cm of the battery positive terminal.
- Connect relay pins 85 and 86 Connect relay pin 85 to a solid chassis ground. Connect relay pin 86 to the original horn signal wire from the steering column — this is the wire that activates when the horn button is pressed.
- Connect the horn(s) to relay pin 87 Run a wire from relay pin 87 to the positive terminal of your horn (or the positive terminals of both horns if fitting a pair). The horn(s) ground wire connects to a clean chassis ground point.
- Reconnect the battery and test Reconnect the battery negative terminal, press the horn button, and verify the relay clicks and the horn sounds at full volume. Check that the relay and all connections remain cool after a few seconds of horn use.
Specifications
| Relay type | 4-pin SPST-NO (Single Pole Single Throw, Normally Open) |
|---|---|
| Coil voltage | 12 V DC |
| Contact rating | 30 A (ISO mini relay) |
| Pin 30 | Battery positive input (via fused cable) |
| Pin 85 | Coil negative (chassis ground) |
| Pin 86 | Coil positive (signal from horn button via steering column) |
| Pin 87 | Normally Open output (to horn positive terminal) |
| Typical fuse rating | 20–30 A (sized to cable and horn current) |
Safety warnings
- Always disconnect the battery negative terminal before modifying horn wiring. The horn circuit can be live through the clock spring even with the ignition off on some vehicles.
- Place the inline fuse on the pin 30 power feed as close to the battery positive terminal as possible — an unprotected power cable in an engine bay is a fire hazard.
- On vehicles with airbag systems integrated into the steering wheel, do not attempt to access, disconnect, or modify the clock spring or steering column wiring without following the manufacturer's airbag disarming procedure. Accidental airbag deployment can cause serious injury.
- Ensure all connections are waterproofed or moisture-protected in the engine bay — corroded connections in the horn circuit cause intermittent failure and high-resistance heating.
- This diagram is illustrative and reference-only. Always consult the vehicle's workshop manual before modifying any electrical system.
Tools needed
- Digital multimeter
- Wire strippers and crimping tool
- Inline fuse holder and fuses
- Heat-shrink tubing and heat gun
- Screwdrivers (flathead and Phillips)
- Zip ties (for securing wiring in the engine bay)
Common mistakes
- Connecting the original horn signal wire to pin 87 (the output) instead of pin 86 (the coil input) — the relay will never activate.
- Forgetting to provide a clean chassis ground for the horn itself — the relay correctly powers the horn positive, but without a good ground the horn will be silent or very faint.
- Omitting the inline fuse on the pin 30 power cable, leaving the main battery feed to the relay unprotected.
- Using undersized wire (such as the original thin horn wire) for the new power feed, causing voltage drop that reduces horn volume.
- Failing to secure the relay and wiring away from hot or moving engine components, causing insulation damage and intermittent faults.
Troubleshooting
- Horn does not activate after relay installation
- Cause: Pin 86 not receiving 12 V when horn is pressed, pin 85 not grounded, or relay is faulty. Fix: Press the horn button and measure voltage at relay pin 86 — should read 12 V. Check continuity from pin 85 to chassis ground. If both are correct and the relay does not click, the relay itself is faulty. Substitute a known-good relay to confirm.
- Horn sounds continuously without pressing the button
- Cause: Pin 86 is shorted to battery positive (12 V on the coil input at all times), or the horn button is stuck closed. Fix: Measure voltage at pin 86 with the horn button released — should be 0 V or floating. If 12 V is present at all times, the horn button switch is stuck or its wire has been shorted to a permanent live feed.
- Horn is quieter than expected despite relay installation
- Cause: Poor chassis ground on the horn, voltage drop in the pin 30 power feed due to undersized wire, or the fuse has partially blown increasing resistance. Fix: Measure voltage directly at the horn terminals while it is sounding — should be above 12 V. Low voltage indicates resistance in the supply or ground path. Check the ground connection, inline fuse, and all crimp connections with a voltage drop test.
Frequently asked questions
Why use a relay for a horn instead of wiring the horn directly from the battery?
A relay protects the steering column switch and clock spring from carrying high current. Aftermarket horns can draw 5–15 A each. Routing that through the original thin steering column wire causes voltage drop (weak sound), connector overheating, and eventual switch failure. The relay lets the switch carry only coil current (~200 mA) while the horn gets full battery current.
Which pin on the 4-pin relay connects to the steering column horn wire?
The existing horn signal wire from the steering column (which previously powered the original horn positive terminal) connects to pin 86 of the relay. This is the coil positive terminal. When the horn button is pressed and this wire goes to 12 V, it energises the relay coil and the relay closes, passing current to the horn through pin 87.
What size fuse should I use on the relay power feed (pin 30)?
Size the fuse to protect the wire, not just the horn. A 20 A fuse on 1.5 mm² wire protects the cable. Calculate the maximum current draw of your horn(s) — dual aftermarket horns can draw 10–14 A together — and select a fuse that protects the wire while allowing full horn current. A 20–30 A fuse on 2.5 mm² wire is typical for dual-horn installations.
My horn sounds weak even after fitting a relay. What is wrong?
Check the ground connections on both the relay (pin 85) and the horn itself. A poor ground is the most common reason for weak horn output after a relay install. Also verify the wire from pin 30 to the relay is adequately sized, the inline fuse has not partially blown, and the pin 87 to horn connection is secure.
Can I use the same relay for two horns?
Yes, if the relay's contact rating covers the combined current of both horns. A standard ISO mini relay rated 30 A can handle two horns drawing up to 14–15 A total with margin to spare. Wire both horn positive terminals together and connect the combined feed to pin 87. Ensure both horns share a common chassis ground.
What is the 3-pin horn relay wiring diagram for a bike (Hindi/Tamil context)?
A 3-pin horn relay has three terminals: battery positive (usually the centre pin), horn output, and coil trigger. Battery positive connects to the relay's power-in pin via a fuse, the trigger pin connects to the existing horn button wire (which supplies or grounds the coil depending on design), and the output pin feeds the new horn. The original vehicle horn wire provides the trigger signal; the relay's internal coil completes its circuit to ground through the relay body or a dedicated ground pin in some designs.
What is the 4-pin horn relay wiring diagram explained in Malayalam?
The 4-pin horn relay is a standard automotive SPST relay: pin 30 connects to battery positive through a fuse, pin 87 feeds the horn, pin 85 connects to chassis ground, and pin 86 connects to the horn button's output wire (which goes positive when the button is pressed). When the driver presses the horn button, current flows through the coil (pins 85–86), closing the switch between pins 30 and 87, and the horn sounds. The principle is the same whether described in Malayalam, English, or any other language.
What is the 3-pin horn relay wiring diagram for a bike in Tamil?
A 3-pin relay used for horn wiring on Indian motorcycles typically combines the ground and trigger into a shared arrangement: one pin is battery positive (fused), one pin is the horn output, and one pin is the trigger from the horn switch. The relay coil is internally grounded through the relay casing to the mounting bracket, which must be bolted to a clean chassis ground point. Always verify the relay's datasheet for your specific part, as pin assignments can vary between manufacturers.
