4 Pin Relay Wiring — Editable Wiring Diagram

This editable 4 pin relay wiring reference is generated from the displayed electrical graph, not from a generic article outline. The current drawing contains 7 components and 10 routed connections, including 1 × 12 V Battery (Battery), 1 × Load Fuse (Ind Fuse), 1 × Coil Switch (SPST switch), 1 × 5-Pin Automotive Relay (five-pin automotive relay) and 1 × NO Load (light fixture). Use it to inspect the shown topology, then confirm ratings and terminal assignments against the equipment documentation for your installation.

Diagram checks and scope

Components: 7
Wired connections: 10
Automated check: Automated pin, route, source, and topology checks passed; this is not a safety certification.

What this 4 Pin Relay Wiring drawing contains. The rendered example uses 1 × 12 V Battery (Battery), 1 × Load Fuse (Ind Fuse), 1 × Coil Switch (SPST switch), 1 × 5-Pin Automotive Relay (five-pin automotive relay), 1 × NO Load (light fixture), 1 × NC Indicator (Pilot Light) and 1 × Chassis Return (chassis ground). Control circuits must keep command logic, coil supply, auxiliary contacts and load switching roles distinct. The component names in the list below come from the editable canvas, while the wire summary comes from the saved start and end terminals. This makes the written explanation auditable against the image instead of presenting an unrelated stock circuit.

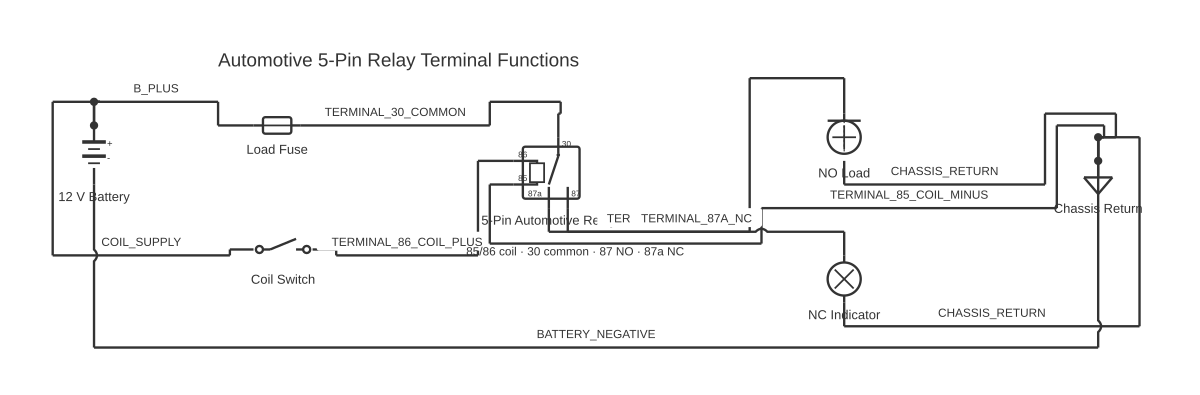

Reading the stored graph from terminal to terminal gives this sequence: 1. 12 V Battery pos terminal connects to Load Fuse in terminal on the B_PLUS net. 2. Load Fuse out terminal connects to 5-Pin Automotive Relay 30 terminal on the TERMINAL_30_COMMON net. 3. 12 V Battery pos terminal connects to Coil Switch in terminal on the COIL_SUPPLY net. 4. Coil Switch out terminal connects to 5-Pin Automotive Relay 86 terminal on the TERMINAL_86_COIL_PLUS net. 5. 5-Pin Automotive Relay 85 terminal connects to Chassis Return gnd terminal on the TERMINAL_85_COIL_MINUS net. 6. 5-Pin Automotive Relay 87 terminal connects to NO Load hot terminal on the TERMINAL_87_NO net. 7. NO Load neutral terminal connects to Chassis Return gnd terminal on the CHASSIS_RETURN net. 8. 5-Pin Automotive Relay 87a terminal connects to NC Indicator pos terminal on the TERMINAL_87A_NC net. 9. NC Indicator neg terminal connects to Chassis Return gnd terminal on the CHASSIS_RETURN net. 10. 12 V Battery neg terminal connects to Chassis Return gnd terminal on the BATTERY_NEGATIVE net. Its named nets are “B_PLUS”, “TERMINAL_30_COMMON”, “COIL_SUPPLY”, “TERMINAL_86_COIL_PLUS”, “TERMINAL_85_COIL_MINUS”, “TERMINAL_87_NO”, “CHASSIS_RETURN” and “TERMINAL_87A_NC”. A line joining two terminals records electrical continuity in this reference; visual proximity alone does not create a connection. Junctions, bridges and terminal labels therefore matter when the drawing is edited or exported.

Read the control path from its supply and protective device through each permissive or command contact to the coil, then trace linked power contacts separately. A normally-open or normally-closed state describes the de-energized device unless the drawing explicitly says otherwise. In this particular graph, the first visible path is 12 V Battery pos terminal connects to Load Fuse in terminal on the B_PLUS net., Load Fuse out terminal connects to 5-Pin Automotive Relay 30 terminal on the TERMINAL_30_COMMON net., 12 V Battery pos terminal connects to Coil Switch in terminal on the COIL_SUPPLY net. and Coil Switch out terminal connects to 5-Pin Automotive Relay 86 terminal on the TERMINAL_86_COIL_PLUS net.. Follow the remaining rows in the connection table before changing a symbol or moving a conductor, because a neat layout is not evidence that a terminal function is correct.

Confirm coil voltage, contact utilization category, overload contact state, interlocks and stop-chain behavior. Matching a coil tag to every linked contact is essential before the sequence can be simulated or released. Automated validation checks that component IDs and terminal IDs exist, routes terminate on pins, the graph has a recognized source, and the saved topology has no blocking structural fault. It does not determine conductor size, protective-device rating, fault current, insulation class, environmental suitability or compliance with local rules. Those decisions require project values and the current primary documentation.

How to wire 4 pin relay wiring

Read the 4 Pin Relay Wiring source path For this 4 pin relay wiring, begin at 12 V Battery (Battery) and trace every stored terminal pair toward the load or output; do not infer continuity from lines that merely cross.
Match every terminal name Compare the 4 Pin Relay Wiring terminal labels shown in the connection table with the current device or standard documentation before assigning real conductors.
Set project-specific ratings Replace placeholder values in the 4 pin relay wiring with verified voltage, current, protection, conductor and environmental data for the actual installation.
Run the electrical checks again After editing Load Fuse (Ind Fuse) or any route, validate the graph and inspect every reported open terminal, source fault, collision and disconnected island.
Release a controlled copy Export the revised 4 Pin Relay Wiring drawing only after a competent reviewer has compared it with the bill of materials, manufacturer documents and applicable rules.

Specifications

Topic	4 Pin Relay Wiring
Components shown	7
Routed connections	10
Named nets	B_PLUS, TERMINAL_30_COMMON, COIL_SUPPLY, TERMINAL_86_COIL_PLUS, TERMINAL_85_COIL_MINUS, TERMINAL_87_NO, CHASSIS_RETURN, TERMINAL_87A_NC, BATTERY_NEGATIVE
Verification scope	Stored pins, routes, source path and graph topology

Safety warnings

Isolate every supply feeding the control and power sections; a stopped coil does not prove the load side is dead.
Verify protective devices, interlocks and stop functions independently before energizing a contactor or motor circuit.

Tools needed

The current manufacturer datasheet, connector schedule or applicable standard for every real device
A suitable meter and proving method for the voltage class being worked on
The editor validation report and a controlled terminal or wire schedule

Common mistakes

Treating the 4 pin relay wiring illustration as proof of a manufacturer pinout or conductor rating when those values are not encoded in the graph.
Connecting by component position or wire colour instead of checking the named terminals in the 4 Pin Relay Wiring connection path.
Using a power-contact terminal as a coil or auxiliary terminal, or omitting the de-energized contact state from the control review.

Troubleshooting

The 4 Pin Relay Wiring path appears open: Cause: A route ends on the wrong pin, a terminal was renamed, or a required return path is absent. Fix: Trace the connection rows in order, restore the documented terminal mapping, and run validation again.
The edited drawing passes visually but validation fails: Cause: A conductor may stop off-pin, cross a component body, create a source short or leave a disconnected island. Fix: Open each blocking finding, correct the referenced component or route, then re-run the topology check before export.
The real equipment behaves differently: Cause: The stored reference does not match the exact model, revision, supply or contact state. Fix: De-energize safely, return to the current primary documentation, and revise the symbol terminals and values before further testing.

Frequently asked questions

What exactly is verified on this 4 pin relay wiring?

The saved 4 Pin Relay Wiring graph is checked for known components and terminals, pin-snapped routes, a recognizable source path and blocking topology defects. Exact equipment ratings and manufacturer assignments are outside that automated scope.

Which components are actually shown in this 4 Pin Relay Wiring diagram?

The current editable graph contains 1 × 12 V Battery (Battery), 1 × Load Fuse (Ind Fuse), 1 × Coil Switch (SPST switch), 1 × 5-Pin Automotive Relay (five-pin automotive relay), 1 × NO Load (light fixture), 1 × NC Indicator (Pilot Light) and 1 × Chassis Return (chassis ground). The bill of materials on this page is derived from those saved symbols rather than a generic shopping list.

How are the 4 pin relay wiring connections documented?

The graph contains 10 terminal-to-terminal links. The first path shown is 12 V Battery pos terminal connects to Load Fuse in terminal on the B_PLUS net.

Can I use the drawing as an installation instruction?

Use it as an editable reference and review aid. Verify the exact equipment documentation, ratings, protection, conductor selection and local requirements before construction or release.

Sources and verification

Review status: Not independently reviewed. Automated topology checks confirm stored terminals and routes, not the correctness of manufacturer pin assignments, ratings, regional codes, or installation decisions. Verify those claims against the current primary documentation before use.

IEC 61082-1:2014 — Rules for electrotechnical documents — International Electrotechnical Commission. Supports: General diagram, drawing, table, and reference-designation presentation conventions. Checked 2026-07-15.
ISO 7588-1:1998 — Road-vehicle relays and flashers — International Organization for Standardization. Supports: Dimensional characteristics and functional terminal allocation for road-vehicle relays and flashers. Checked 2026-07-15.
