4-Prong Trailer Wiring Diagram
This is a free printable 4 prong trailer wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A 4-prong trailer wiring diagram shows the four-flat connector used on light trailers, mapping each prong to its function: white for ground, brown for running lights, yellow for left brake and turn, and green for right brake and turn.
The 4-prong trailer connector — also called the 4-flat or A-frame flat connector — is the most widely used trailer plug for light-duty trailers throughout North America. It covers the four minimum electrical functions needed for legal road use: a common ground return path, tail and running lights, left turn signal combined with left brake light, and right turn signal combined with right brake light.
The connector is physically a flat, four-blade male plug on the trailer side and a four-socket female receptacle on the vehicle (tow vehicle) side. Each blade is a different colour-coded wire following the SAE J1239 convention:
- White (Ground): The common negative return for all trailer circuits. This wire must make a low-resistance connection back to the tow vehicle chassis. A poor or corroded ground causes the single most common fault pattern in trailer lighting — everything dim, or left and right circuits interfering with each other. - Brown (Running / Tail lights): Carries the always-on signal when the tow vehicle's parking lights or headlights are switched on. Powers the trailer's tail lights, side marker lights, and clearance lights. - Yellow (Left brake and turn): Carries the combined brake light and turn signal for the trailer's left side. In most North American vehicles, left turn and left brake share a single bulb circuit on the trailer. - Green (Right brake and turn): As above, but for the right side.
Note that in tow vehicles with separate brake and turn signal circuits (common in European-origin vehicles and many modern trucks), an aftermarket converter module is required to combine the two signals into the SAE-standard combined brake/turn output before the 4-flat connector.

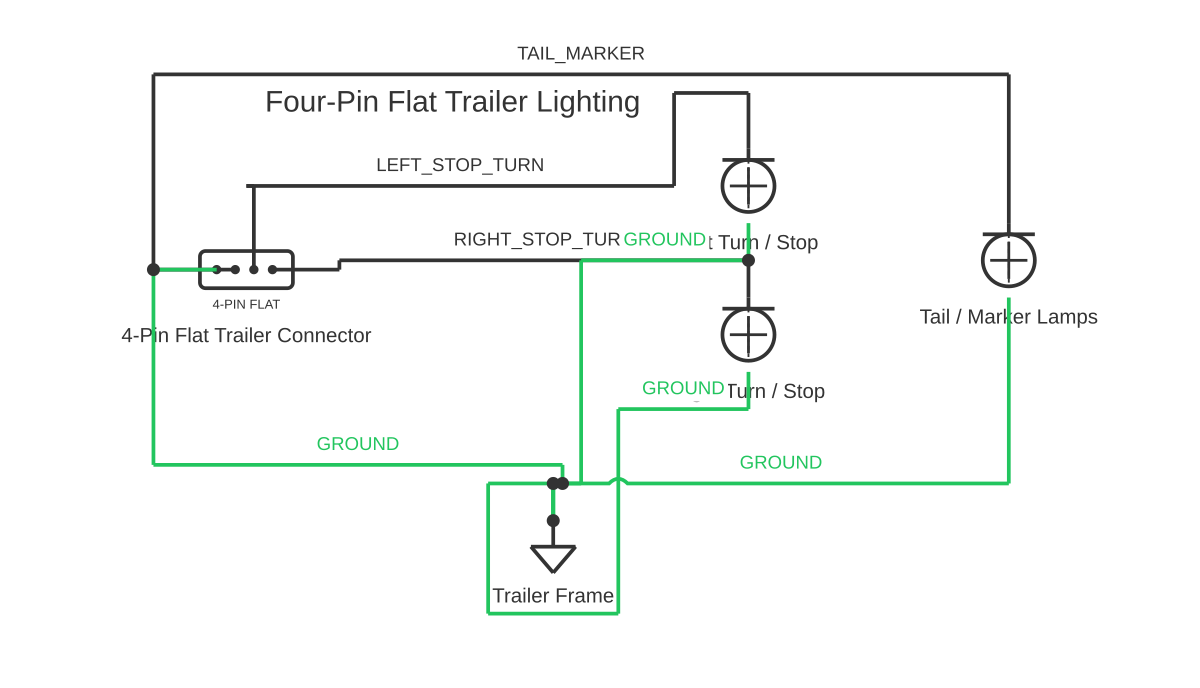

When drawing a wiring diagram, show the 4-flat connector in the centre with two branches: the vehicle harness running left (to the trailer socket wired into the tow vehicle's harness) and the trailer harness running right (to each light cluster). Label each wire's function and colour at both ends. Always show the white ground wire bonded to the trailer frame at a clean metal-to-metal point, not to a painted surface.
How to wire 4 prong trailer wiring diagram
- Identify and test the tow vehicle's trailer socket wires With the vehicle ignition and lights in various states (parking lights on, brake applied, left signal, right signal), use a multimeter or test light to identify which wire on the vehicle's connector carries each function. Document your findings before cutting or connecting anything.
- Route the trailer wiring harness Run the harness from the trailer's connector socket along the trailer frame towards the rear. Keep the harness away from sharp edges, hot surfaces, and moving parts. Use cable ties and rubber grommets where the wire passes through metal. Leave a service loop at the coupler end to allow for articulation.
- Connect the ground wire (white) to the trailer frame Find a clean, unpainted metal point on the trailer frame — drill a hole if needed. Use a ring terminal crimped onto the white wire, bolt it securely, and apply dielectric grease to prevent corrosion. This step is the most important for reliable operation.
- Connect the running light wire (brown) to tail lights Run the brown wire to the tail light assemblies. If the trailer has multiple light clusters (tail, marker, clearance), connect them in parallel from the brown wire. Use waterproof connectors or heat-shrink solder sleeves at each junction.
- Connect yellow (left) and green (right) to respective stop/turn lamps Route the yellow wire to the left-rear light cluster and the green wire to the right-rear light cluster. Each wire feeds the combined brake/turn bulb (typically a dual-filament bulb or LED equivalent). Ensure polarities are correct.
- Test all functions before the trailer leaves the yard With a helper watching the trailer lights, test each function: parking lights on (tail lights illuminate), left turn (left light flashes), right turn (right light flashes), brake pedal pressed (both rear lights illuminate). Check for any cross-illumination or dim lights, which indicate a ground fault.
Specifications
| Connector type | 4-flat (4-way flat), SAE J1239 |
|---|---|
| Wire colour: Ground | White — common negative return to chassis |
| Wire colour: Running / tail lights | Brown — energised with vehicle parking/headlights |
| Wire colour: Left brake and turn | Yellow — combined left stop and left turn signal |
| Wire colour: Right brake and turn | Green — combined right stop and right turn signal |
| Operating voltage | 12 V DC nominal (9–16 V range) |
| Typical circuit current (running lights circuit) | Up to 7 A; use 14 AWG minimum |
| Ground resistance (frame to vehicle chassis) | Less than 1 ohm for reliable operation |
Safety warnings
- Always disconnect the trailer plug from the tow vehicle before performing any wiring work on the trailer. The tow vehicle's trailer socket is live whenever the ignition is on (and on some vehicles, even with the ignition off on the tail-light circuit).
- Trailer wiring is governed by road traffic regulations. In the USA, refer to SAE J1239 and Federal Motor Vehicle Safety Standards (FMVSS). Ensure all lighting is DOT-compliant before towing on public roads. Failure to provide functional brake lights and turn signals is illegal and dangerous.
- Never substitute aluminium wire for copper in trailer harnesses. Aluminium is prone to oxide formation and loosening at terminals in vibration-prone environments, leading to high-resistance connections and fire risk.
- Poor grounds are the primary cause of trailer wiring fires. Inspect the white ground wire connection at the trailer frame annually, especially after exposure to moisture, road salt, or mud. Resistance from the trailer frame to the tow vehicle chassis should measure below 1 ohm.
Tools needed
- Multimeter or 12 V test light
- Wire stripper suitable for 14–18 AWG
- Crimping tool for insulated terminals
- Drill with metal bits (for ground terminal if needed)
- Cable ties and cable tie gun
- Heat gun (for heat-shrink connectors)
- Dielectric grease
Common mistakes
- Connecting the white ground wire to a painted or rusted surface rather than bare metal, resulting in high ground resistance and erratic light behaviour.
- Confusing yellow and green — wiring left brake/turn to the right light cluster and vice versa, causing the wrong side to illuminate when signalling.
- Using undersized wire (e.g. 22 AWG bell wire) which overheats and fails, especially when multiple lights are wired in parallel on the brown running light circuit.
- Failing to protect wire runs from chafing on sharp metal frame edges, causing intermittent shorts that are very difficult to trace.
- Not leaving a service loop at the hitch end, causing the harness to pull tight and snap connector pins when the trailer articulates on corners.
- Assuming the tow vehicle socket is wired correctly without testing — some factory sockets have left/right transposed or share a combined brake/turn that needs a converter.
Troubleshooting
- Trailer tail lights do not illuminate when vehicle running lights are on
- Cause: Open circuit on the brown wire, corroded connector at the plug, or blown fuse on the vehicle's trailer socket circuit Fix: Check voltage at the vehicle socket's brown pin with parking lights on. If voltage is present there but not at the trailer connector pin, clean or replace the connector. If absent, trace back to the vehicle's trailer fuse.
- Both turn signals flash on the trailer when only one is activated on the vehicle
- Cause: High-resistance or open ground connection — the signal backfeeds through the ground path via the opposite light circuit Fix: Inspect the white ground wire connection on the trailer frame. Clean to bare metal, re-crimp the ring terminal, and re-test. Measure resistance from trailer frame to tow vehicle chassis — should be less than 1 ohm.
- Trailer lights are very dim
- Cause: Ground resistance too high, connector corrosion causing voltage drop, or the trailer has more lights than the circuit can support without voltage loss Fix: Measure voltage at the trailer connector while lights are on. Compare to vehicle battery voltage. A drop of more than 0.5 V indicates excessive resistance — inspect all connections and consider upgrading to a heavier ground wire.
Frequently asked questions
What are the four wire colours on a standard 4-flat trailer connector?
White is ground (common negative return), brown is running/tail lights, yellow is left turn signal combined with left brake light, and green is right turn signal combined with right brake light. These follow the SAE J1239 colour convention used across North America.
Why do both turn signals flash when I connect a 4-flat trailer?
This almost always indicates a bad ground connection. When the white ground wire has high resistance or no connection, the turn signal current backfeeds through the opposite light circuit. Clean the ground connection on the trailer frame to bare metal and confirm continuity back to the tow vehicle chassis.
Can I use a 4-flat connector for a trailer with electric brakes?
No. Electric trailer brakes require a dedicated brake controller output wire, which is not present in a 4-flat connector. You need at minimum a 5-way flat (which adds a blue brake output wire) or a 7-way RV connector for brake controller, battery charge, and auxiliary circuits.
What does the brown wire on a 4-flat trailer connector do?
The brown wire carries the running light signal — it is energised whenever the tow vehicle's parking lights or headlights are on. It powers the trailer's tail lights, marker lights, and licence plate light, but not the brake or turn signals.
Is the 4-flat connector the same worldwide?
No. The 4-flat is predominantly a North American standard (SAE J1239). European trailers typically use a 7-pin round connector (ISO 11446 or ISO 1724) with different pin assignments. Always verify the connector type and wiring standard for the market or vehicle you are working with.
