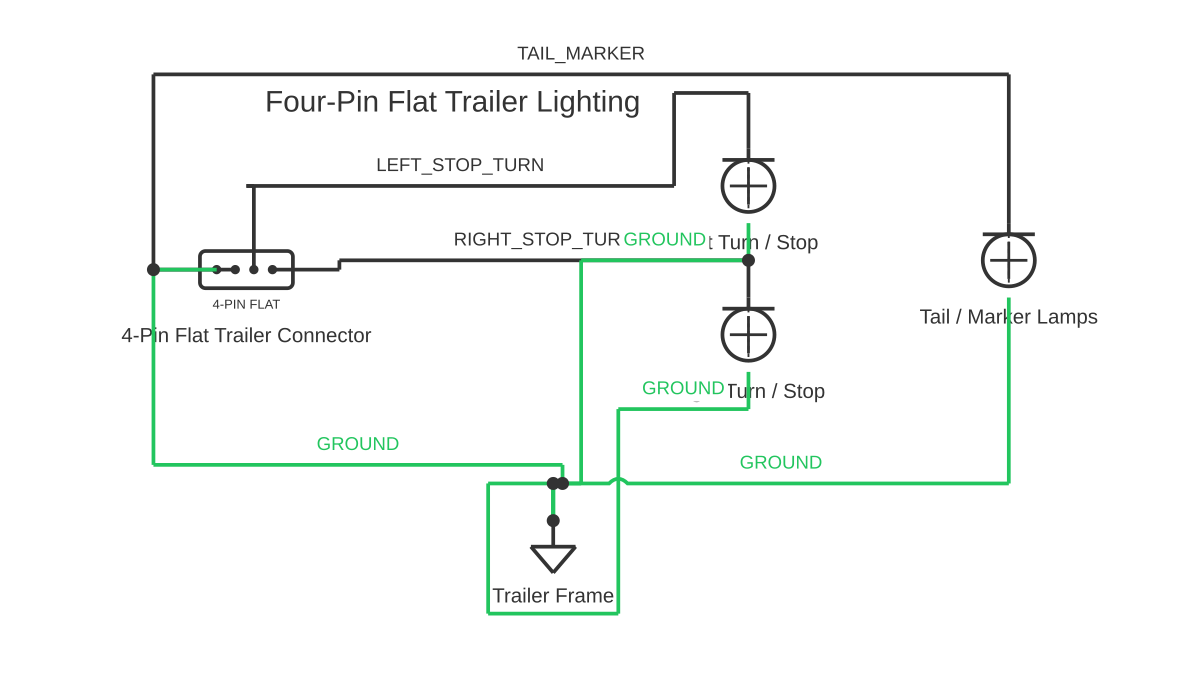

4-Pin 5-Wire Trailer Wiring Diagram

4-Pin 5-Wire Trailer Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 4 pin 5 wire trailer wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A 4-pin 5-wire trailer connector provides left turn/brake, right turn/brake, tail/running lights, and a dedicated ground wire, covering the basic functions for a single-axle trailer without electric brakes.

The 4-pin flat connector — standardised in North America as the SAE J560 4-way flat and in some other markets in similar configurations — is the most common wiring interface between a tow vehicle and a light trailer. Despite being called '4-pin', many assemblies carry five wires because the ground wire is often separate from the shell housing and has its own pin, making it a '4-pin 5-wire' arrangement in full wiring harness count.

The four functions carried are: 1. Left turn and brake (combined, as is standard in North American systems) 2. Right turn and brake (combined) 3. Tail/running lights (activated with the vehicle's park/position lights) 4. Ground (chassis return for all trailer circuits)

North American brake/turn lamp circuits combine brake and turn signal on the same circuit — one amber or red lamp performs both functions, with the flasher providing the turn signal and full-on brightness for brake. This differs from European wiring practice where brake and turn signals are on entirely separate circuits, often using a 7-pin or 13-pin connector.

The standard wire colours in North American 4-pin trailer wiring are: White (ground), Yellow (left turn/brake), Green (right turn/brake), and Brown (tail/running lights). The SAE standard assigns these colours consistently, though aftermarket harnesses and adapters occasionally deviate — always verify with the connector pinout, not colour assumption alone.

The ground wire (white) is the most critical and most commonly neglected connection. A poor trailer ground causes every imaginable electrical symptom: dim lights, lights that affect other lights, turn signals that illuminate both sides, and brake lights that remain on. The trailer frame ground should be connected both through the white wire in the harness connector and through a direct metal-to-metal connection at the ball coupler or a separate bonding wire, as the coupler-to-ball connection alone is unreliable.

For trailers with electric brakes, a 5-pin or 7-pin connector is required to add the brake controller output wire. The basic 4-pin connector does not support electric brakes.

How to wire 4 pin 5 wire trailer wiring diagram

Identify the 4-pin flat connector pinout On the female socket (trailer side), with the locking tabs facing up, the pins from left to right are typically: Ground (white), Left turn/brake (yellow), Tail (brown), Right turn/brake (green). On the male plug (vehicle side), the pin positions mirror the female. Always confirm against the vehicle's trailer wiring diagram, as some manufacturers vary the layout.
Test vehicle socket output before wiring the trailer Use a test lamp or multimeter to verify each pin of the vehicle socket before connecting a trailer. With ignition on and park lights active, verify Brown pin shows 12 V. With brake pedal depressed, verify Yellow and Green show 12 V simultaneously. With left signal, Yellow flashes; with right signal, Green flashes.
Prepare trailer wiring harness Route the trailer harness from the coupler end to each lamp cluster. Use the standard colours (White, Yellow, Green, Brown) for all new wiring. Secure the harness to the trailer frame with cable clips at regular intervals — loose wiring will chafe against the frame and fail prematurely. Allow a service loop at the coupler end for articulation.
Connect trailer tail/running lights to the Brown wire Run the Brown wire from the connector to each tail lamp on both sides. In a two-lamp trailer, the Brown wire usually loops from one lamp to the other in series or connects to a junction near the centre. The lamp ground returns on the White wire.
Connect left turn/brake to Yellow, right to Green Run the Yellow wire to the left rear lamp's turn/brake input terminal. Run the Green wire to the right rear lamp's turn/brake terminal. In North American practice, the same lamp element serves both brake and turn functions — one wire to the lamp's dual filament or LED input is all that is needed per side.
Connect and verify the ground wire Connect the White wire from the connector to a clean, unpainted metal point on the trailer frame. Additionally, verify a direct metal-to-metal path from the trailer frame to the ball coupler exists, or add a dedicated ground strap from the coupler to the frame. Test ground continuity from the connector white pin to the lamp cluster chassis mounting point with a multimeter — should read near zero ohms.
Perform full functional test Connect the trailer to the vehicle. With an assistant observing from the rear: activate park lights (tail lamps should illuminate), depress brake pedal (both sides illuminate), activate left signal (left lamp flashes at correct rate), activate right signal (right lamp flashes at correct rate). Verify no cross-illumination (e.g. one signal side triggering the other side's lamp).

Specifications

Connector type	4-way flat (SAE J560 compatible in North America); equivalent in other markets
Wire colour standard (North America)	White: ground; Yellow: left turn/brake; Green: right turn/brake; Brown: tail/running lights
Contact current rating	7 A to 10 A per contact (connector dependent — verify for specific connector)
System voltage	12 V DC (passenger vehicle); 24 V DC for some heavy commercial trailers (requires different connector)
Recommended minimum wire gauge	1.0 mm² (16 AWG) for trailers up to 6 m; 1.5 mm² (14 AWG) for longer trailers
Maximum acceptable ground resistance	< 0.5 Ω from White connector pin to lamp cluster chassis
Functions supported by 4-pin flat	Tail/running lights, left brake/turn, right brake/turn, chassis ground — no electric brakes or 12 V auxiliary
Additional pins required for electric brakes	5-pin flat (adds brake output) or 7-pin round (adds brake + 12 V auxiliary)

Safety warnings

Always disconnect the trailer from the tow vehicle before performing any wiring work on the trailer harness. The trailer socket on the tow vehicle is energised whenever the vehicle ignition is in the appropriate position — working on live wiring can cause sparks, blown fuses, or damage to the vehicle's BCM.
Ensure the trailer ground is a solid, direct connection to clean unpainted metal on the trailer frame — not to a painted surface, rust, or a bolt shared with other components. A poor trailer ground is the single most common cause of trailer lighting faults and can cause trailer wiring to overheat.
All trailer lighting must comply with road traffic regulations in the relevant jurisdiction: tail lights, brake lights, and turn signals are legally required. The size, colour, height, and visibility angle of trailer lamps are specified in regulations including FMVSS 108 (USA), ECE R3 and R7 (international), and Australian Design Rules.
For trailers used for commercial purposes or carrying loads over the weight threshold specified in local regulations, trailer wiring must meet specific standards. Consult the applicable transport authority requirements before operating a commercial trailer on public roads.
LED lamp replacements on a trailer may cause hyper-flash on the turn signal circuit if the tow vehicle uses a load-sensing thermal flasher relay. Fit a load resistor or replace the vehicle's flasher with an electronic LED-compatible unit as appropriate.

Tools needed

Multimeter (DC voltage and continuity/resistance)
Test lamp (12 V, with alligator clip lead)
Wire strippers
Heat-shrink solder connectors and heat gun
Cable cutters
Cable clips and small screwdriver
Drill and drill bits (for lamp bracket mounting)

Common mistakes

Relying on the coupler ball-to-socket contact as the ground path — the ball hitch connection is not designed as a current-carrying ground and has variable resistance depending on grease, rust, and contact pressure. A dedicated White wire ground is mandatory.
Connecting both rear lamps to the same (single) wire per function rather than running individual feeds, which means a broken wire to one lamp simultaneously kills the other side's circuit.
Using the incorrect wire gauge for the length of the trailer — for a long trailer (over 6 metres), voltage drop in 1.0 mm² wire at full incandescent lamp load can cause noticeably dim tail lights. Upsize to 1.5 mm² or 2.5 mm² for longer trailers.
Routing the wiring harness without protecting it from abrasion at frame crossmembers and sharp edges — the harness must pass through grommets or protective conduit at every point where it passes through or near metal.
Testing the trailer lights only in the driveway and not checking for vibration-induced faults during the first loaded trip — loose connections often make initial contact but fail under road vibration.

Troubleshooting

All trailer lights function on the passenger side but not the driver's side: Cause: Broken or disconnected Yellow wire (left turn/brake), or open circuit in the Brown wire to the left lamp's tail function Fix: Measure voltage at the Yellow pin of the trailer socket with left signal activated — voltage present at socket, absent at lamp connector indicates a break in the Yellow wire to the left lamp. Use a multimeter in continuity mode to trace the break point along the harness.
Trailer turn signals illuminate but do not flash; other vehicle signals work correctly: Cause: Trailer ground fault causing high ground impedance, resulting in insufficient current differential for the flasher relay to operate; or a failed trailer indicator lamp Fix: Measure continuity from the White pin at the trailer connector to the chassis of each rear lamp. Resistance above 0.5 Ω indicates a poor ground. Clean and re-terminate the ground connection at the trailer frame. Also check that all indicator lamps are functioning — a failed lamp reduces load and may affect flash rate.
Brake application activates both sides' indicators simultaneously: Cause: Ground fault on the trailer causing brake circuit current to return via the indicator wiring instead of the ground wire Fix: This is the definitive symptom of a trailer ground fault. Disconnect the White (ground) wire at the connector and measure resistance from the disconnected White wire to trailer chassis — should be near 0 Ω. Also measure from each lamp's ground stud to the trailer frame. Identify and repair all high-resistance ground connections.

Frequently asked questions

What are the four functions on a 4-pin trailer connector?

The four standard functions are: (1) left turn and brake signal, (2) right turn and brake signal, (3) tail/running lights (park lights), and (4) ground return. In North American wiring practice, turn and brake functions are combined on one wire per side. Reverse lights, electric brakes, and 12 V auxiliary power require a 5-pin or 7-pin connector.

What are the standard wire colours for a 4-pin trailer harness?

The SAE standard North American colours are: White (ground), Yellow (left turn/brake), Green (right turn/brake), Brown (tail/running lights). These are the most common, but verify with the specific harness or connector documentation — some aftermarket assemblies use different colour schemes, particularly for non-North American markets.

Why do my trailer lights work when the signal is applied but also illuminate when brake lights are on?

This is typically a trailer ground fault causing cross-feedback between circuits. A high-resistance or broken white ground wire means return current from the brake circuit back-feeds through the turn signal or tail lamp circuit instead of through the proper ground path. Clean and repair the ground connection at both the connector and the trailer frame.

Can I use a 4-pin connector for a trailer with electric brakes?

No. A standard 4-pin flat connector does not include a wire for the electric brake controller output. You must upgrade to a 5-pin flat connector (which adds an electric brake wire) or, more commonly, a 7-pin round connector, which also adds 12 V auxiliary power for charging a trailer battery.

What is the maximum current capacity of a 4-pin flat trailer connector?

A standard 4-pin flat (SAE J560 compatible) is typically rated for 7 A to 10 A per contact. The total current through the connector depends on the number of trailer lights. For a small single-axle trailer with LED lights, total current may be less than 3 A. For a large trailer with multiple incandescent lamps, verify total current against the connector and wire rating.
