Understand how to wire a 4-way (US) or intermediate (UK/IEC) switch between two 3-way (US) or 2-way (UK) switches to control one light from three or more locations.

Controlling a light from more than two locations is one of the most commonly misunderstood wiring topics in domestic electrical work. The confusion partly stems from the fact that the USA/Canada and the UK/IEC world use different names for the same switches:

— In the USA and Canada, the standard two-location control switch is called a 3-way switch. The switch added between two 3-way switches to create a three-location control (or further switches added to create 4, 5, or more locations) is called a 4-way switch.

— In the UK, Australia, and IEC-standard countries, the standard two-location control switch is called a 2-way switch. The switch inserted between two 2-way switches to add an additional control point is called an intermediate switch.

Despite the terminology difference, the electrical function is identical: the intermediate / 4-way switch is a double-pole double-throw (DPDT) switch with a cross-over internal connection. It has four terminals and can be thought of as a pair of 2-way switch contacts linked together and operated by a single actuator.

In the normal (un-actuated) position, the intermediate switch passes the strapper wires straight through: input terminal 1 connects to output terminal 1; input terminal 2 connects to output terminal 2. In the operated (actuated) position, the switch crosses the connections: input terminal 1 connects to output terminal 2; input terminal 2 connects to output terminal 1. This crossing and uncrossing of the connections — combined with the commutating action of the 2-way/3-way end switches — allows any switch in the chain to switch the light on or off regardless of the position of the other switches.

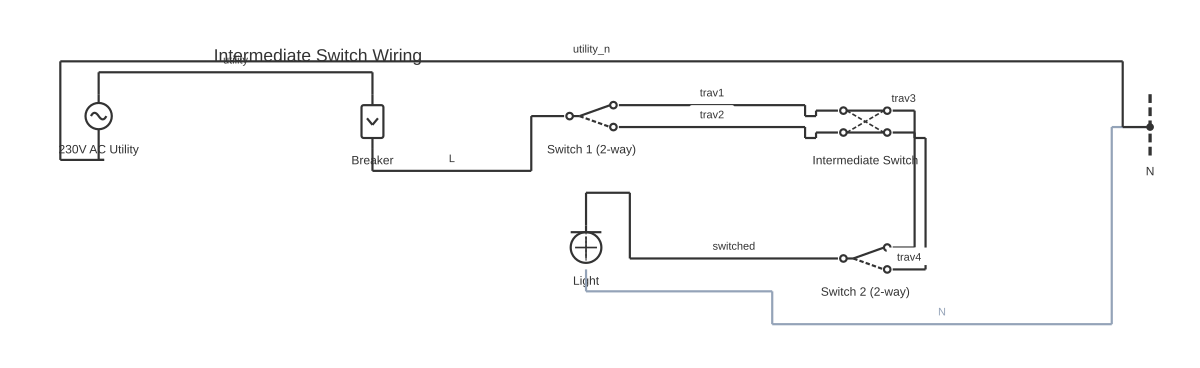

The wiring topology is always: [Supply live] → [2-way/3-way switch at one end] → [two strapper wires] → [intermediate/4-way switch] → [two strapper wires] → [optional additional intermediate/4-way switches, each connected by two strapper wires] → [2-way/3-way switch at the other end] → [switched live to lamp] [Neutral from supply direct to lamp]

The two conductors connecting the switches in the middle of the chain are called strappers (UK) or traveller wires (US). They carry only the switched live potential — never neutral. Three-core cable (plus earth) is typically used between switches to provide two traveller conductors in a single cable.

For installations with more than one intermediate switch, add each switch in series in the middle of the chain between the two end switches — additional intermediate switches each require a two-strapper cable at their input and a two-strapper cable at their output.

All wiring must be performed by a qualified electrician and must comply with IEC 60364, BS 7671 (UK), NEC Article 404 (USA), AS/NZS 3000, or the applicable national wiring standard.

How to wire 4 way intermediate switch wiring diagram

Plan the switch locations and cable routes before starting any work Identify the two end switch locations (these will be 2-way/3-way switches) and the intermediate switch locations between them. Determine whether existing cable runs can be reused or whether new 3-core cable must be installed. Each switch-to-switch run requires 3-core cable (plus earth) to accommodate the two strappers and a permanent live feed or switched live, depending on the wiring method used.
Isolate the lighting circuit at the consumer unit and verify dead Switch off the lighting circuit breaker. Lock it out. Test with a non-contact voltage tester at all switch locations and the ceiling rose before touching any wiring. Confirm dead.
Wire the first end switch (2-way or 3-way) At the first end switch, identify the common terminal — usually marked 'COM' or a different colour (black terminal in US 3-way switches; terminal marked C or COM in UK 2-way switches). The permanent live (the live coming from the supply, not via another switch) connects to the common terminal. The two strapper wires connect to the L1 and L2 (or L1/L2 alternative) terminals. These strapper wires run in 3-core cable to the next switch.
Wire the intermediate (4-way) switch The intermediate switch has four terminals, typically arranged as two pairs. One pair is the INPUT (connected to the strappers from the first end switch) and the other pair is the OUTPUT (connected to the strappers going to the next switch — either another intermediate switch or the second end switch). Connect strapper 1 from the incoming cable to one input terminal and strapper 2 to the other input terminal. Connect the outgoing strappers to the output pair. The switch's cross-over mechanism handles the L1/L1 and L1/L2 commutation internally.
Wire any additional intermediate switches in the same manner Each additional intermediate switch receives two strappers from the previous switch and passes two strappers to the next switch. The 3-core cable between each pair of switches provides the two strapper conductors plus a third conductor — which in a strict strapper-only arrangement may not be needed here (it is sometimes used for a permanent live in more complex multi-light configurations). All intermediate switches between the two end switches are wired identically.
Wire the second end switch (2-way or 3-way) At the second end switch, the two incoming strappers connect to the L1 and L2 alternative terminals. The common terminal connects to the switched live going to the lamp. Neutral connects directly from the supply to the lamp without passing through any switch.
Restore power and test all switch positions Restore the circuit breaker. Test every switch in all combinations of positions — the light should switch on or off regardless of which switch is operated. If any switch position fails to change the light state, the most likely cause is a wiring error at that switch's strapper connections — commonly, two strapper conductors transposed at one switch.

Specifications

US 4-way switch internal mechanism	Double-pole double-throw (DPDT) with cross-connect — 4 terminals (two traveller-in, two traveller-out)
UK intermediate switch internal mechanism	Identical: DPDT with cross-connect — 4 terminals (typically two L1 input, two L1 output or similar labelling)
US 3-way end switch terminal count	3 terminals: 1 common + 2 traveller/alternates
UK 2-way end switch terminal count	3 terminals: 1 common (C) + 2 alternates (L1, L2)
Cable required between each switch pair	3-core plus earth (3-wire + ground) — provides two traveller/strapper conductors plus one additional conductor
Switch current rating — UK/IEC residential	6 A or 10 A at 230 V AC — confirm fitting rating
Switch current rating — US residential	15 A at 120/277 V AC — confirm fitting rating
Number of control locations = number of end switches + number of intermediate switches	2 end switches + 0 intermediate = 2 locations; 2 end switches + 1 intermediate = 3 locations; 2 + n intermediate = (2 + n) locations

Safety warnings

ISOLATE THE CIRCUIT before working on any multi-way switching installation. Switch off the lighting circuit breaker and verify dead at all switch locations and the ceiling rose with a non-contact voltage tester. Multi-way circuits have strapper conductors that are live even when the light is off — verifying dead at each switch location separately is essential.
In UK and IEC wiring, the third conductor in a 3-core cable used as a strapper may be a colour that normally indicates neutral (e.g. black or blue). These conductors MUST be sleeved or taped at both ends with the colour indicating their actual function (typically brown or another colour to indicate they are live conductors), with appropriate labels. Failure to identify strapper conductors correctly creates a shock hazard for future maintenance.
Intermediate / 4-way switch installations must be wired with the switch in the live path only. Neutral must not pass through any switch. An incorrectly wired intermediate switch with neutral in the switched path leaves live potential at the lampholder contacts when the light appears off.
All multi-way switch wiring must be performed by a qualified electrician and must comply with IEC 60364, BS 7671, NEC Article 404, AS/NZS 3000, or the applicable national wiring standard. In many jurisdictions, domestic wiring work requires notification, inspection, and certification.
Do not attempt to retrofit smart switches into a multi-way circuit without verifying neutral wire availability. Many smart switches require a neutral conductor at each switch location. Standard 2-way/3-way strapper wiring does not include neutral at intermediate switch locations — additional cable runs may be required.

Tools needed

Non-contact voltage tester
Digital multimeter (continuity, resistance, AC voltage)
Insulated screwdrivers (flat and Phillips)
Wire stripper
Electrician's pliers
Cable fish rod or draw tape (for pulling cable through wall cavities)
Lockout/tagout for circuit breaker
Coloured sleeving or tape (for correctly marking re-purposed conductor cores at both ends)

Common mistakes

Transposing the two strapper conductors at one switch: This is the most common fault in intermediate switch wiring. If strapper 1 and strapper 2 are swapped at any one switch, the circuit will work in some switch combinations but fail in others — specifically, the switch where the transposition occurred will either always turn the light on or always turn it off, regardless of what the other switches do. Systematically trace each strapper conductor from switch to switch, labelling as you go.
Connecting the neutral to the common terminal of a 2-way end switch instead of the live: The common terminal must be the live conductor. If neutral is on the common and live goes through to the strapper, operating the switch leaves the lamp energised from the neutral side via the strapper, with no interruption of the live path — a shock hazard at the lamp and a circuit that does not actually switch off.
Using 2-core cable between switches and trying to manage with only one strapper conductor: One strapper wire between switches creates a circuit that only works when all switches are in one specific combination of positions. The intermediate switch requires two strapper conductors at both its input and output — 3-core cable is mandatory between each pair of switches.
Installing an intermediate switch in a 2-way (single-location) circuit thinking it will allow dimming: The intermediate switch has no dimming capability. It is purely a mechanical DPDT switch. Adding a dimmer to a multi-way circuit requires a specific multi-way dimmer designed for this purpose — standard intermediate switches and standard dimmers are not compatible.
Not sleeving re-purposed neutral-coloured conductors in UK wiring: In a 3-core cable, the third core is sometimes black (old harmonisation) or blue (post-harmonisation). When used as a strapper (live conductor), these cores must be sleeved with brown tape at every accessible termination to prevent a future electrician treating them as neutral — a potentially fatal misidentification.

Troubleshooting

Light works from some switch positions but not all: Cause: Strapper conductors transposed (swapped) at one switch, causing incorrect commutation; or a loose connection on one strapper at one terminal Fix: Identify which switch is the faulty one by operating each switch individually and noting which one fails to change the light state. Isolate and open that switch. Check that each strapper conductor goes to the correct terminal by tracing from the adjacent switch with a continuity tester. Re-seat and tighten all connections. If wired correctly and connections are secure, the switch itself may be faulty — replace it.
Light is permanently on regardless of all switch positions: Cause: A permanent live has been connected to the switched-live output of an end switch (bypassing all switching), or a strapper conductor has been shorted to the live feed wire somewhere in the installation Fix: Isolate the circuit. With the circuit isolated and switch terminals accessible, use a continuity tester to verify there is no direct path from the supply live terminal to the lamp (other than through the switch contacts). Trace each cable run for incorrect junction connections.
Circuit breaker trips when lighting circuit is switched on: Cause: A strapper conductor has been connected to neutral somewhere, creating a live-to-neutral short circuit that trips the breaker; or a damaged cable with insulation breakdown between strapper conductors Fix: Isolate the circuit. Disconnect all switch terminals. Measure resistance between each conductor in the strapper cables with a megohmmeter — insulation resistance should be greater than 1 MΩ at 250 V DC test voltage. Low insulation resistance between any two conductors indicates damaged cable that must be replaced. If insulation is good, the fault is in the switch terminal connections — a strapper connected to neutral at one switch.

Frequently asked questions

What is the difference between a 3-way switch (US) and a 2-way switch (UK)?

They are the same device with different national names. Both are single-pole double-throw (SPDT) switches with three terminals: one common and two alternatives. In the USA, 'three terminals' → '3-way.' In the UK, the switch is designed for use in a two-location control circuit → '2-way.' The wiring behaviour and internal mechanism are identical.

What is the difference between a 4-way switch (US) and an intermediate switch (UK)?

Again, the same device with different names. Both are double-pole double-throw (DPDT) switches with four terminals and a cross-over internal connection. The US calls it '4-way' because it has four terminals. The UK calls it 'intermediate' because it is installed in the middle (intermediate position) of the switch chain between two 2-way end switches.

Can I replace a standard 2-way switch with an intermediate switch if I want to add a new control point?

No. An intermediate switch requires two strapper wires at its input and two at its output — four connections. A standard 2-way switch at the end of a chain has one common and two strappers — three connections. Replacing an end switch with an intermediate switch creates an incomplete circuit. You must keep both 2-way end switches and add the intermediate switch between them, which also requires running a new 3-core cable.

Why are two strapper (traveller) wires needed between switches?

The 2-way end switch has a common terminal and two alternate terminals. When you operate the switch, it moves the common connection from one alternative to the other. The intermediate switch must be able to intercept both alternatives and either pass them straight through or cross them. This requires two conductors — one for each alternative connection — between every pair of switches in the chain.

How many intermediate (4-way) switches can I add to one circuit?

There is no practical limit to the number of intermediate switches that can be added between the two end switches. Each additional intermediate switch adds one more control location. Each additional switch requires one 3-core cable run to the next switch in the chain. In practice, the number of switches is limited by the cable voltage drop and the physical practicality of running multiple cable runs — but electrically, ten or more intermediate switches can be added if required.
