Aftermarket Radio Wiring Diagram

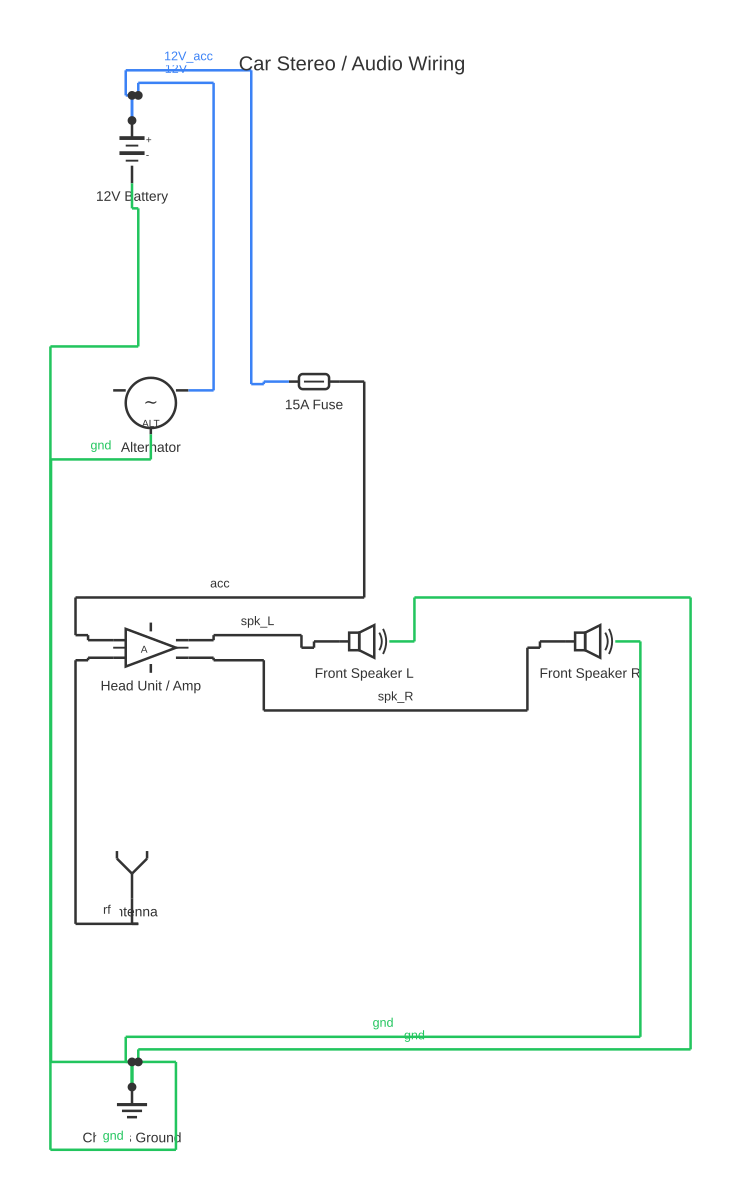

This is a free printable aftermarket radio wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
An aftermarket radio wiring diagram maps the standard connector pin functions of a car stereo unit to the corresponding wires in the vehicle harness, enabling a correct and reversible installation.
When fitting an aftermarket (non-original equipment) car stereo head unit, the installer connects two distinct wiring systems: the head unit's own connector harness and the vehicle's factory wiring harness. Most aftermarket head units use one or two standard multi-pin connectors based on the ISO 10487 standard, which defines a pair of 8-pin connectors (ISO-A and ISO-B blocks) covering power, speakers, and accessory signals.
The ISO-A connector handles power and ignition. The key wires are: permanent battery positive (typically yellow, 12 V constant), switched accessory positive (typically red, 12 V with ignition), and chassis earth/ground (typically black). A memory wire (yellow) keeps the head unit's clock, presets, and memory alive when the ignition is off. An illumination wire (typically orange or orange/white) dims the display when the vehicle lights are on.
The ISO-B connector carries the four speaker pairs. Standard colour coding assigns specific colours to each channel: front left, front right, rear left, and rear right — each with a positive and a negative wire. The speaker negative wires are NOT chassis ground. Most aftermarket head units use floating amplifier outputs; grounding a speaker negative wire to chassis can damage the amplifier output stage.
Vehicle manufacturers do not universally follow ISO colour coding. An aftermarket vehicle-specific wiring harness adapter matches the factory plug to the ISO standard, preserving the factory connector and making the installation reversible without cutting original wiring.
Additional functions present on many head units include: remote antenna control wire (blue or blue/white) that switches the power antenna or antenna amplifier; remote amplifier turn-on wire (also blue on some units); and steering wheel control interface inputs. Some vehicles require a CAN-bus interface module to integrate factory steering wheel controls and retain vehicle-specific functions.
How to wire aftermarket radio wiring diagram
- Identify the vehicle harness connector and obtain the correct adapter Determine the vehicle's make, model, and year. Source a vehicle-specific ISO wiring harness adapter that plugs directly into the factory connector. Confirm the adapter maps all required functions (power, speakers, antenna, illumination). Using an adapter eliminates the need to cut factory wiring.
- Disconnect the vehicle battery negative terminal Before removing the factory head unit or connecting any new wiring, disconnect the negative (earth) terminal of the vehicle battery. This prevents accidental short circuits that can blow vehicle fuses, damage the new head unit, or trigger airbag systems in some vehicles. Note that disconnecting the battery may reset some vehicle settings.
- Remove the factory head unit Use the appropriate radio removal keys (DIN removal tools or trim removal tools depending on vehicle type) to release and pull the factory unit. Disconnect the factory harness plugs and antenna. Retain the factory unit and all hardware.
- Connect the adapter harness to the head unit harness Join the aftermarket head unit's wire harness to the vehicle-specific adapter harness by matching wire functions: permanent 12 V (yellow) to yellow, switched ACC (red) to red, ground (black) to black, and each speaker pair (front left +/-, front right +/-, rear left +/-, rear right +/-). Use appropriate automotive crimp connectors, twist-and-tape, or solder-and-heatshrink for each join. Do not use standard electrical tape alone.
- Connect the antenna and optional function wires Plug the vehicle antenna lead into the head unit antenna socket, using an ISO antenna adapter if the connector type differs. Connect the blue remote wire to the vehicle's power antenna wire or to an external amplifier's remote input. If steering wheel controls are required, connect the steering wheel control interface module per its instructions.
- Reconnect the battery and test before final assembly Reconnect the battery negative terminal. Power on the head unit and test all functions: FM and AM reception, all speaker channels, Bluetooth, display dimming with vehicle lights on, and steering wheel controls if applicable. Confirm the unit powers off with the ignition. Identify and correct any issues before fitting the unit into the dash.
- Fit the head unit and dress the wiring Feed excess wiring behind the dash, ensuring no wires are pinched by the head unit chassis or trapped in the dash assembly. Fit any DIN cage or fascia adapter required. Slide the head unit into position and confirm it is secure. Refit all trim panels removed during installation.
Specifications
| ISO-A connector (power) pin count | 8 pins |
|---|---|
| ISO-B connector (speakers) pin count | 8 pins (4 channels × positive + negative) |
| Permanent supply voltage (yellow wire) | 12 V DC constant (vehicle battery) |
| Switched supply voltage (red wire) | 12 V DC (ignition ACC position) |
| Typical head unit maximum power output | 4 × 50 W peak (4 × 20 W RMS, typical for built-in amplifier) |
| Speaker impedance (standard) | 4 Ω nominal |
| Antenna connector (ISO standard) | ISO 10487 / DIN 41585 (Motorola / ISO aerial plug) |
| Head unit chassis form factor | Single DIN (180 × 50 mm) or Double DIN (180 × 100 mm) |
Safety warnings
- Always disconnect the vehicle battery negative terminal before removing the factory head unit or making any wiring connections. Failure to do so risks short-circuiting the vehicle's electrical system, blowing fuses, or triggering airbag deployment in some vehicles.
- Never connect speaker negative wires to chassis earth. Aftermarket head units use bridged amplifier outputs; shorting either speaker terminal to ground will damage or destroy the amplifier output stage.
- Ensure the constant 12 V (yellow/memory) wire is fused appropriately — a short in unfused constant-power wiring can discharge the battery or cause a fire. Most head unit harnesses include an inline fuse on this wire; verify it is present and of the correct rating.
- Do not work inside the dash near the steering column without disabling the airbag system where applicable. Refer to the vehicle's service manual for airbag safe-handling procedures. Accidental airbag deployment is a serious injury risk.
- Route all wiring clear of moving parts (pedal mechanisms, seat runners, steering shaft) and away from sharp metal edges. Use grommets where wiring passes through metal panels.
Tools needed
- DIN radio removal keys or trim removal pry tools
- Digital multimeter (verifying wire functions)
- Ratchet crimp tool and automotive crimp connectors
- Wire strippers
- Soldering iron and heatshrink (for soldered connections)
- Trim removal tool set (plastic pry tools)
Common mistakes
- Connecting the constant 12 V wire (yellow) to the switched ACC wire and vice versa — the head unit will lose its memory and clock settings every time the ignition is turned off, and the radio will stay on with the ignition off.
- Grounding a speaker negative wire to chassis, immediately damaging the head unit's amplifier output stage.
- Cutting the factory vehicle harness instead of using a plug-in adapter, permanently reducing the vehicle's resale value and making any future restoration unnecessarily difficult.
- Forgetting to fit or verify the inline fuse on the constant 12 V (yellow) wire — this wire is live at all times and unprotected wiring is a fire risk.
- Not testing all speaker channels before final dash assembly — discovering a crossed or missing connection after the trim is refitted requires disassembling everything again.
- Failing to route the antenna lead or head unit wiring clear of the back of the head unit chassis, which can cause an intermittent connection or rattling noise.
Troubleshooting
- Head unit does not power on
- Cause: Blown fuse, incorrect wire connections, or no switched ACC power Fix: Check the vehicle fuse for the accessory circuit. Verify the red (ACC) wire has 12 V when ignition is in ACC or ON. Check the yellow (memory) wire has constant 12 V. Verify the black (earth) wire has a good chassis earth. Check the inline fuse on the head unit harness.
- One or more speakers produce no sound or distorted sound
- Cause: Open connection, crossed polarity, or speaker wire grounded to chassis Fix: Identify the silent speaker channel. Disconnect the head unit and measure resistance between the speaker positive and negative wires at the connector — should be speaker impedance (typically 4 Ω). If near-zero, a speaker wire is shorted to chassis — trace and correct. Verify connections for the affected channel at all crimp or solder joints.
- Head unit powers off with ignition but loses all presets and clock
- Cause: Constant 12 V (yellow/memory) wire not connected or connected to a switched source Fix: Verify constant 12 V is present on the yellow wire with ignition off. If not, the wire is either disconnected or incorrectly connected to a switched source. Reconnect to a true constant 12 V source (battery positive via fuse or a constant-power terminal in the vehicle).
- No FM reception or weak signal
- Cause: Antenna not connected, antenna adapter missing, or power antenna not switching on Fix: Confirm the antenna lead is fully seated. If the vehicle uses a powered antenna or antenna amplifier, verify the blue remote wire is connected and supplying 12 V when the head unit is on. An antenna adapter may be required to match connector types.
Frequently asked questions
What is the difference between the yellow and red wires on an aftermarket head unit?
The yellow wire (ISO-A pin 7, often labelled B+ or Memory) connects to permanent 12 V battery power and is live at all times — it maintains the unit's memory, clock, and presets. The red wire (ISO-A pin 5, often labelled ACC or Ignition) connects to a switched 12 V supply that is only live when the ignition is in the ACC or ON position. This wire turns the head unit on and off with the ignition.
Why should I use a vehicle-specific wiring harness adapter?
A plug-in harness adapter connects the aftermarket head unit's ISO harness to the factory vehicle connector without cutting any original wiring. This preserves the vehicle's wiring integrity, makes the installation fully reversible (important for resale or warranty), and saves time compared to identifying and splicing each wire individually. Cutting factory wiring permanently reduces vehicle value.
What does the blue remote turn-on wire do?
The blue wire (sometimes labelled ANT or REM) sends a switched 12 V signal when the head unit is powered on. It has two common uses: switching a power antenna to raise when the radio is active, and triggering the turn-on input of an external amplifier so the amplifier powers up when the head unit is switched on. Some head units have separate wires for each function.
Can I connect the speaker negative wire to the car chassis earth?
No. Aftermarket head units use a bridged or BTL output amplifier stage where both the positive and negative speaker terminals carry signal. Grounding either speaker wire to chassis shorts the amplifier output, distorts audio, and will likely damage or destroy the amplifier output stage. The speaker negative wires must connect only to the vehicle's corresponding speaker negative wires — not to any chassis earth point.
What is a CAN-bus interface and when do I need one?
Modern vehicles communicate vehicle data and controls — including steering wheel audio buttons, vehicle speed, and reverse signal — over a CAN-bus network rather than simple switched wires. A CAN-bus interface module decodes these signals and converts them to the analogue or digital inputs an aftermarket head unit understands. Without it, steering wheel controls and some other vehicle functions will not work with the new unit.
