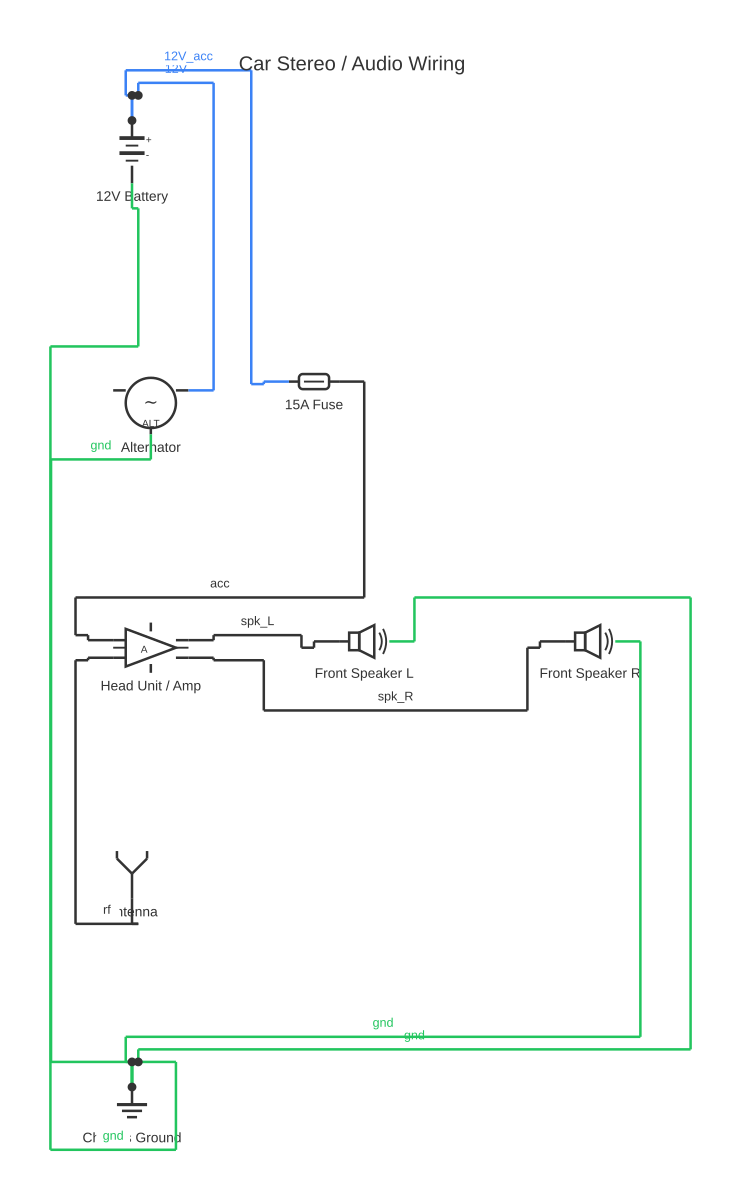

Aftermarket Radio Wiring Harness Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable aftermarket radio wiring harness diagram: download the diagram as SVG or open it and print to paper or PDF.

An aftermarket radio wiring harness diagram details the pin-out, colour coding, and function of every wire in the ISO 10487 connector system that joins a replacement head unit to the vehicle's factory wiring.

The wiring harness is the physical bridge between the aftermarket head unit and the vehicle's electrical system. It consists of two distinct parts: the head unit's own pigtail harness (supplied with the radio) and the vehicle-specific adapter harness (purchased separately) that plugs into the factory connector without cutting any original wiring.

The ISO 10487 standard defines two 8-pin connector blocks. The ISO-A block (connector A) handles the power and accessory functions. Pin A1 is the rear right speaker positive; however, in the power connector context, the standard assigns the eight pins as follows: A1: speed signal input (optional), A2: audio mute input (optional), A3: illumination (orange — dims display with vehicle lights on), A4: battery (constant 12 V, yellow), A5: accessory (switched 12 V, red), A6: earth/ground (black), A7: memory (second constant 12 V in some implementations, also yellow), A8: telephone mute (optional). Note: manufacturers vary slightly in their implementation of the optional pins.

The ISO-B block handles the four speaker pairs. Standard wire colours as used by most aftermarket head unit manufacturers: front left positive (white), front left negative (white/black), front right positive (grey), front right negative (grey/black), rear left positive (green), rear left negative (green/black), rear right positive (purple/violet), rear right negative (purple/black). These colours apply to the head unit harness; the vehicle adapter wiring uses different colours matched to each specific vehicle.

Additional wires extending from the head unit harness (beyond the ISO blocks) include: the blue remote antenna/amplifier turn-on wire; the orange/white illumination wire (alternative pin assignment on some units); and sometimes a brown chassis earth for the head unit case.

When the vehicle adapter is unavailable, an installer must identify each factory wire by function using the vehicle wiring diagram and a multimeter, then match it to the appropriate head unit harness wire. This approach requires care but is sometimes the only option for older or unusual vehicles.

How to wire aftermarket radio wiring harness diagram

Obtain the correct vehicle-specific harness adapter Search by vehicle make, model, model year, and factory head unit type. Confirm the adapter retains all functions needed: power, speakers, illumination, and — if required — steering wheel controls and reverse camera trigger. A wrong adapter may have incorrect pin assignments for a specific model year variant.
Lay out both harnesses side by side and identify each wire Before connecting anything, lay the head unit's pigtail harness alongside the vehicle adapter harness. Use the head unit installation manual and the adapter's included instruction sheet to confirm the function of each wire on both sides. Mark pairs with tape labels if it helps. The adapter's power wires connect to matching-function wires on the head unit harness.
Connect power wires first Join chassis earth (black to black), switched 12 V ACC (red to red), and constant 12 V battery (yellow to yellow). Use insulated butt crimp connectors or solder plus heatshrink for each join. Verify each connection is mechanically sound and insulated before proceeding. These three connections are the minimum required for the head unit to operate.
Connect the speaker wires Join each of the eight speaker wires from the head unit harness to the corresponding wires on the vehicle adapter: front left + and -, front right + and -, rear left + and -, rear right + and -. Maintain correct polarity — crossing a speaker positive and negative reverses the speaker phase, which reduces bass and causes cancellation when two speakers reproduce the same content.
Connect accessory function wires Connect the illumination wire (orange or orange/white) to the corresponding illumination output on the vehicle adapter. Connect the blue remote wire to the vehicle's power antenna wire or amplifier remote input. If a parking brake input wire is present on the head unit, connect it to the correct vehicle wire (or to earth if video lockout bypass is not required — follow local laws on video-in-motion restrictions).
Verify all connections before plugging in Inspect every crimp or solder joint visually. Tug each wire to confirm the joint is secure. Confirm no bare conductors are exposed. Wrap any exposed joins with self-amalgamating tape or apply heatshrink where accessible. Verify speaker negative wires are not touching any chassis metal.
Plug adapter into vehicle factory connector Plug the vehicle-specific adapter directly into the factory harness connector until it clicks or seats fully. Plug the head unit ISO-A and ISO-B connectors into the corresponding sockets on the other end of the adapter. Reconnect the vehicle battery, power on the head unit, and perform a full functional test.

Specifications

ISO-A connector keying	Trapezoidal body, 8 pins, 2-row
ISO-B connector keying	Rectangular body, 8 pins, 2-row
Constant 12 V wire colour (ISO head unit harness)	Yellow
Switched ACC wire colour (ISO head unit harness)	Red
Earth/ground wire colour (ISO head unit harness)	Black
Front left speaker + / - (ISO)	White / White-Black
Front right speaker + / - (ISO)	Grey / Grey-Black
Rear left speaker + / - (ISO)	Green / Green-Black
Rear right speaker + / - (ISO)	Purple / Purple-Black

Safety warnings

Disconnect the vehicle battery negative terminal before making any wiring connections. Working with the battery connected risks short circuits, blown fuses, and in some vehicles, accidental airbag deployment near the steering column.
The constant 12 V (yellow) wire is live at all times. Ensure it is fused within 300 mm of the battery connection point or at the vehicle harness adapter. An unfused constant-power wire that shorts to chassis can start a fire.
Never connect speaker negative wires to chassis ground. The bridged amplifier output stage in the head unit will be damaged immediately by this connection.
Do not attempt to modify airbag or supplemental restraint system (SRS) wiring near the steering column without following the vehicle manufacturer's specific airbag disabling procedure. Accidental deployment causes severe injury.
Verify all connections are fully insulated and no bare conductors are exposed before reinstating the battery. A short circuit in a wiring harness inside a closed dash panel can smoulder undetected.

Tools needed

Digital multimeter (identifying wire functions, verifying voltages)
Automotive crimp tool and insulated butt connectors
Wire strippers (0.5–2.5 mm² range)
Trim removal pry tools (plastic)
Small flat-blade screwdriver (for connector lock tabs)
Self-amalgamating tape or heatshrink and heat gun

Common mistakes

Purchasing a harness adapter for the wrong model year — a single model may have used two different factory connector types across its production run, and the adapter for the earlier year will not fit the later vehicle.
Connecting the illumination wire to a constant 12 V source instead of the switched vehicle lighting circuit, keeping the display permanently dim.
Joining wires of different gauges in a butt connector sized for only one gauge, resulting in a loose connection that causes intermittent faults.
Routing the speaker or power wires alongside a potential interference source (ignition wires, ABS wiring) without shielding, causing audible noise through the speakers.
Assuming the adapter's wire colours match the ISO standard — the vehicle-side adapter uses the vehicle manufacturer's colours, not ISO colours. Always follow the adapter's instruction sheet.
Not connecting the earth wire securely to a true chassis earth point on the vehicle body — a poor earth causes buzzing, noise, and incorrect display brightness.

Troubleshooting

Radio powers on but one speaker is silent: Cause: Open connection on the affected speaker positive or negative wire Fix: Identify the silent channel. Disconnect and use a multimeter to measure continuity from the head unit speaker output terminal through the harness to the vehicle speaker. An open circuit in the speaker wire or a poorly made crimp is the most common cause. Re-crimp or re-solder the faulty joint.
All audio is distorted or buzzing: Cause: Poor chassis earth connection on the head unit harness Fix: Locate the black earth wire connection. Clean the chassis earth point down to bare metal, reconnect with a ring terminal and bolt, and tighten securely. A high-resistance earth causes voltage fluctuations that produce distortion and interference through all audio channels.
Display does not dim when vehicle lights are on: Cause: Illumination wire not connected or connected to a wrong source Fix: With the vehicle lights on, measure voltage on the vehicle adapter's illumination wire. Should be approximately 12 V. If 12 V is present but display does not dim, verify the head unit's illumination input wire is connected. If 0 V, trace the vehicle adapter illumination wire to the factory harness pin.
Steering wheel controls do not work: Cause: Steering wheel control interface module absent or incorrectly programmed Fix: Confirm the correct vehicle-specific SWC interface module is installed. Follow the module's programming procedure to map each button to the corresponding head unit command. Many SWC modules require a one-time learning sequence with the head unit to store button assignments.

Frequently asked questions

Are ISO colour codes the same on all aftermarket head units?

The ISO 10487 colour codes for the head unit's own pigtail harness are followed by most major aftermarket head unit manufacturers, but are not universally mandatory. Always verify against the head unit's installation manual before connecting. Vehicle-side adapter harnesses use the vehicle manufacturer's own colour codes, which differ entirely from ISO.

What is the difference between ISO-A and ISO-B connectors?

ISO-A (connector A) is the power and accessory block — it carries the constant 12 V supply, switched ignition supply, ground, illumination, and optional signal inputs. ISO-B (connector B) is the speaker block — it carries the four speaker pairs (positive and negative for each of front left, front right, rear left, rear right). The two blocks are different shapes and cannot be swapped.

What should I do if my vehicle does not have an ISO connector?

Older vehicles and some Japanese vehicles use proprietary multi-pin connectors rather than ISO. Vehicle-specific harness adapters are widely available for common vehicles. If no adapter exists, carefully identify each wire in the factory harness using a vehicle wiring diagram and multimeter, then connect each identified wire to the corresponding function on the head unit harness using automotive-grade connectors.

Why does my new head unit have two yellow wires?

Some head units provide a main memory positive (B+ yellow) and a secondary memory wire (also yellow) for different internal memory functions. In most installations both are connected to a constant 12 V source. Check the head unit's installation manual — some units distinguish between main battery and clock memory supplies and both must have constant 12 V for full memory retention.

What is the illumination wire and do I need to connect it?

The illumination wire (typically orange or orange/white, ISO-A pin 3) receives 12 V when the vehicle's parking lights or headlights are switched on. The head unit uses this signal to dim its display for night driving. It is not essential for the head unit to function, but leaving it disconnected means the display will always operate at full brightness, which can be distracting at night.
