Backing Up a Trailer: Turning Directions Explained with Diagrams

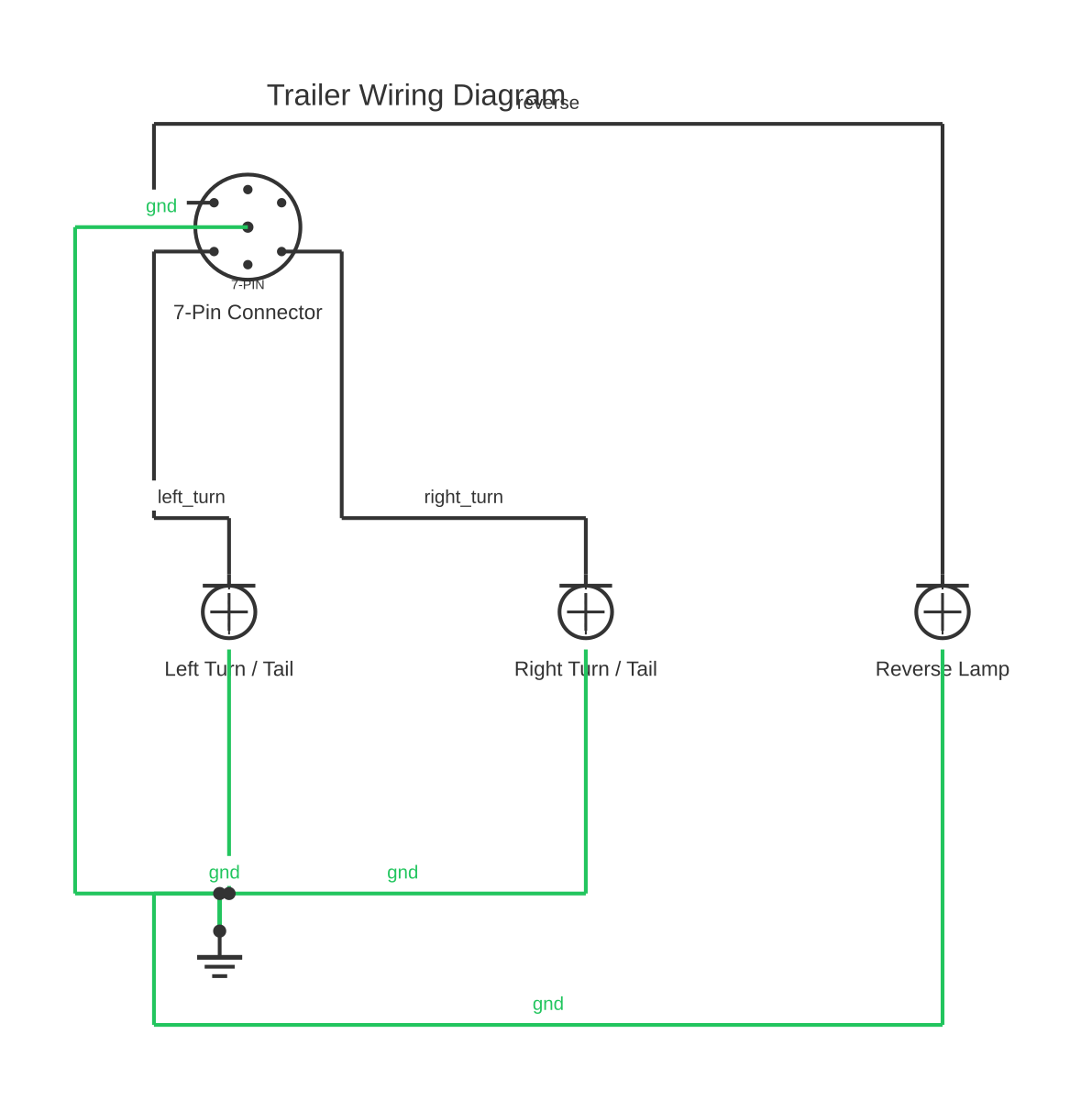

This is a free printable backing up a trailer diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand exactly how trailer steering works in reverse, why the trailer moves opposite to your steering wheel, and how to use reference points to place a trailer accurately.
Reversing a trailer is a skill that catches out drivers precisely because trailer behaviour in reverse is counterintuitive. When moving forward, a trailer tracks behind the tow vehicle naturally. In reverse, the geometry inverts: the trailer pivot point (the coupling or fifth wheel) is ahead of the trailer's axle, which means steering left causes the trailer tail to swing right, and steering right causes the tail to swing left. This is the fundamental reversal that diagram-based training visualises.
The simplest mental model is to think about the bottom of your steering wheel, not the top. If you move the bottom of the steering wheel to the left, the trailer moves left. If you move the bottom to the right, the trailer moves right. This 'bottom of wheel' reference is a reliable shortcut used by experienced heavy vehicle drivers and truckers worldwide.
In diagram form, a trailer reversing situation is typically shown as a top-down (bird's-eye) view. The tow vehicle is represented by a rectangle with a directional arrow, the trailer by a second rectangle behind it, connected at the coupling point. Arrows indicate the direction of tow vehicle steering input and the resulting trailer arc. Reversal sequences are shown step by step: initial setup angle, steering correction to place the trailer on the desired arc, then counter-steering the tow vehicle to straighten once the trailer is on line.
There are three core manoeuvres covered by most reversing diagrams: straight-line reversing (the hardest to sustain because any deviation amplifies quickly), offset reversing (reversing to the left or right from a straight starting position), and 90-degree reversing into a bay or gateway. Each requires a slightly different initial approach angle.
The key physical variable is drawbar length. A short drawbar (or a fifth-wheel coupling) responds very quickly to steering inputs — small corrections are needed but the trailer snaps into a jackknife quickly. A long drawbar gives more response time and is generally more forgiving for learners. Diagram-based guides should always note the drawbar length assumption they are illustrating.
How to wire backing up a trailer diagram
- Set up the initial approach Position the tow vehicle in a straight line with the target (bay, driveway, or slot) slightly offset to one side. For a reversing-left manoeuvre, approach with the tow vehicle offset to the right of the straight-line centreline. This gives you the initial angle needed to swing the trailer toward the target without needing extreme early steering.
- Identify your reference points Before reversing, identify fixed visual reference points: the target bay line, a wall edge, a cone, or a marked line. Know which mirror shows your trailer's progress toward the target and which shows the gap on the opposite side. Adjust mirrors if necessary.
- Begin reversing slowly and steer to place the trailer on the arc Reverse slowly — walking pace or slower. To swing the trailer left, turn the bottom of the steering wheel to the left (or equivalently, turn the top of the wheel right). Apply steering gradually; do not make large, sudden inputs. The trailer will begin to arc in the desired direction.
- Monitor the trailer angle continuously Watch both mirrors continuously. As the trailer approaches the desired arc or alignment angle, begin straightening the tow vehicle to prevent over-correction. The goal is to have the trailer tracking onto the target line while the tow vehicle is still correctable.
- Counter-steer to straighten the rig Once the trailer is pointing in the desired direction, steer the tow vehicle to follow the trailer and straighten the rig. This requires steering the tow vehicle in the same direction as the trailer's path. Continue reversing slowly until the trailer is in position.
- Pull forward and reset if you lose the angle If the angle becomes too acute (approaching jackknife), stop immediately and pull forward to straighten the rig. Attempting to steer out of an extreme jackknife angle often makes it worse. Resetting is not a failure — it is standard technique and all professional drivers use it.
- Stop, apply the trailer brake or wheel chocks, and confirm position Once in position, apply the parking brake and place wheel chocks at the trailer wheels. Disconnect the reversing signal and confirm the trailer is correctly positioned before proceeding to load, unload, or disconnect.
Specifications
| Optimal reversing speed | Walking pace (approximately 3–5 km/h) or slower |
|---|---|
| Maximum safe jackknife angle (approximate) | Less than 90 degrees between tow vehicle and trailer centrelines |
| Standard tow ball diameter (common) | 50 mm (verify trailer coupling socket size before towing) |
| Trailer plug standard (Australia/NZ/South Africa) | 7-pin flat (AS 4735) |
| Trailer plug standard (Europe/UK) | 13-pin round (ISO 11446) or 7-pin round (ISO 1724) |
| Safety chain cross pattern | Crossed under drawbar to form a cradle if coupling fails |
Safety warnings
- Never exceed the tow vehicle's manufacturer-specified towing capacity or tow ball download limit. Overloading causes trailer sway, loss of steering control, and structural failure.
- Always attach safety chains correctly — crossed under the drawbar — before moving. Safety chains are the last line of prevention if the coupling fails.
- Ensure all trailer lights (brake, indicators, tail) are functioning before reversing on a public road. A non-functioning brake light on a trailer is an offence in most jurisdictions and a serious safety hazard.
- Use a spotter when reversing in areas where pedestrians, children, or obstacles may be in the blind zone behind the trailer. A reversing camera does not replace a human spotter in complex environments.
- Apply wheel chocks before disconnecting a parked trailer, particularly on any gradient. A trailer without a tow vehicle connected and without chocks can roll freely.
Tools needed
- Correctly rated tow bar fitted to the tow vehicle
- Trailer coupling lock/hitch pin
- Torque wrench (for tow ball nut — torque to manufacturer specification)
- Multimeter or trailer light tester (to verify wiring connection)
- Wheel chocks
- Measuring tape (to verify coupling height clearance)
- Reversing camera (strongly recommended)
Common mistakes
- Steering too aggressively when the trailer begins to deviate, causing over-correction that worsens the angle rather than correcting it.
- Trying to steer out of an extreme jackknife angle instead of pulling forward to reset — this almost always makes the jackknife worse.
- Watching only one mirror while reversing, missing deviation on the other side until it is too late to correct smoothly.
- Starting the reversing manoeuvre from the wrong initial approach angle, requiring extreme steering early in the manoeuvre that predisposes jackknifing.
- Reversing too fast — speed amplifies deviation and reduces correction time. Trailer reversing should always be done at walking pace or slower.
- Neglecting to adjust mirrors before reversing so the full trailer length is visible on both sides.
Troubleshooting
- Trailer keeps swinging too wide in one direction
- Cause: Initial approach angle is wrong for the target, or steering corrections are being applied too late. Fix: Pull forward, reset to a better initial approach angle, and begin applying small steering corrections earlier in the manoeuvre. Use a spotter to give earlier feedback on trailer position.
- Trailer consistently jackknifes before reaching the target
- Cause: Steering inputs are too large, or reversing speed is too high, reducing time available to correct the angle. Fix: Reduce speed to walking pace. Apply smaller, more gradual steering inputs. Use a reference point system to judge the trailer angle earlier and begin counter-steering before the angle becomes extreme.
- Rig straightens before the trailer reaches the target
- Cause: Counter-steering (straightening the tow vehicle) was applied too early, losing the trailer's arc before it reached the target direction. Fix: Allow the trailer to arc further toward the target before straightening. Establish a specific reference point — a mirror view alignment — that tells you exactly when to begin counter-steering for your particular rig geometry.
Frequently asked questions
Why does the trailer go the opposite direction to where I steer?
When reversing, the coupling point is ahead of the trailer axle. Turning the tow vehicle to the left rotates the coupling to the right relative to the trailer, pushing the trailer tail to the right. This is the geometric inversion that makes trailer reversing feel backwards. The 'bottom of the steering wheel' mental model corrects for this intuitively.
What is jackknifing and how do I avoid it?
Jackknifing occurs when the angle between the tow vehicle and trailer exceeds roughly 90 degrees during reversing, creating a sharp fold at the coupling that cannot be corrected by steering alone. Avoid it by making small, gradual steering corrections, stopping and pulling forward to reset the angle if it becomes too acute, and never allowing the trailer to swing past perpendicular to the tow vehicle.
Should I use my mirrors or look over my shoulder when reversing a trailer?
Use both, but mirrors are generally more effective for trailer reversing because they show the trailer sides and the relationship between the trailer and tow vehicle. Adjust your mirrors before reversing so you can see the full length of the trailer on each side. A spotter standing at the trailer rear is the safest option in tight situations.
How does drawbar length affect trailer reversing?
A shorter drawbar (distance from coupling to trailer front) means the trailer responds more rapidly and sharply to steering inputs, making jackknifing more likely with aggressive steering. A longer drawbar gives a slower, more gradual trailer response, allowing more time to correct. Diagrams should specify drawbar length assumptions as the technique varies significantly.
What is the 'reference point' technique for reversing into a bay?
A reference point is a fixed visual marker — a post, a bay line, or the trailer corner — that you align to your mirror view to judge the trailer's position. Experienced drivers develop specific reference points for their setup: for example, 'when the trailer's rear left corner aligns with the bay line in my left mirror, I have the angle I need to complete the turn.' These reference points are rig-specific and take practice to establish.
