Borehole Pump Control Box Wiring Diagram

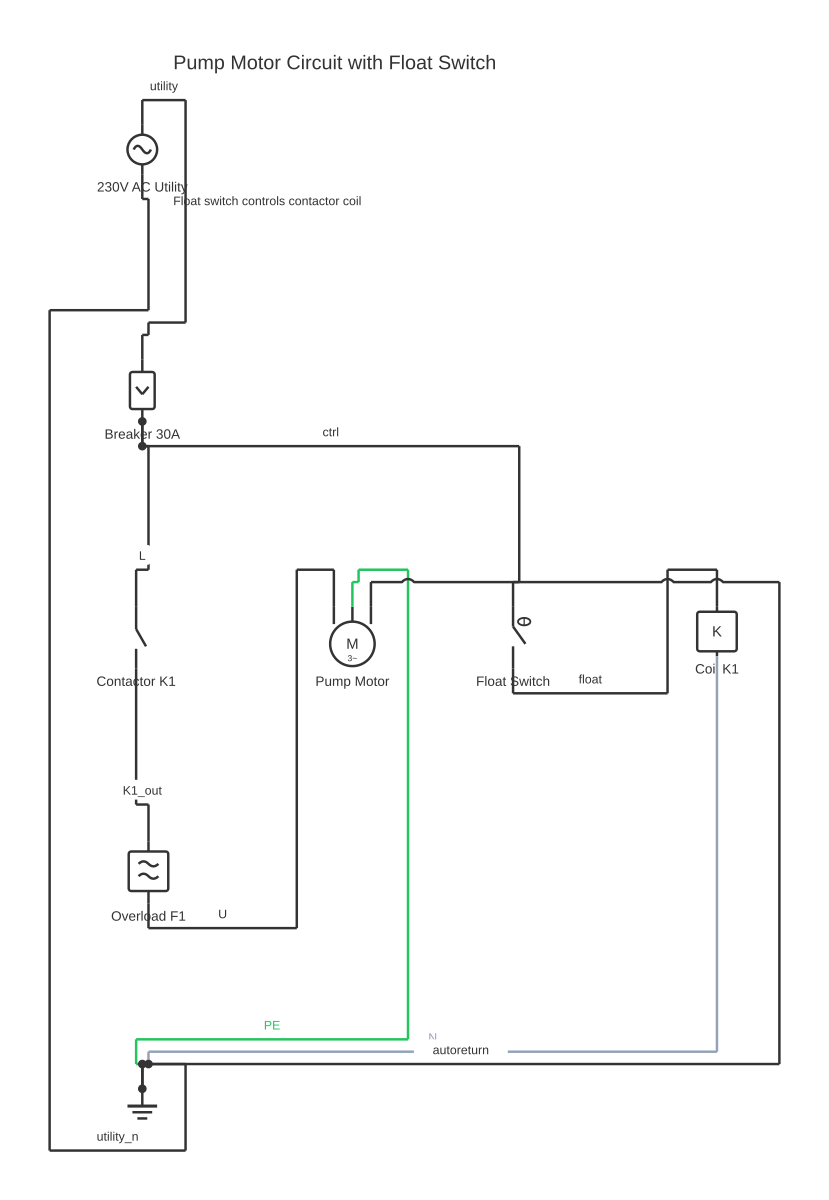

Borehole Pump Control Box Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable borehole pump control box wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A borehole pump control box houses the start capacitor, run capacitor, and overload relay for a 3-wire single-phase submersible pump — correct wiring prevents motor burnout and ensures reliable starting.

A submersible borehole pump installed in a 3-wire configuration is one of the most common rural and suburban water supply arrangements. Understanding why the control box exists — and what each component inside it does — is essential before touching any wiring.

Single-phase induction motors cannot self-start because a single AC phase produces a pulsating magnetic field, not a rotating one. The start winding, which is electrically offset from the main winding inside the motor, creates the phase shift needed to produce an initial rotating field. A start capacitor provides additional phase displacement at the moment of starting, boosting starting torque. Once the motor reaches roughly 75% of its synchronous speed, a centrifugal switch (or relay) disconnects the start capacitor.

In a 3-wire submersible pump arrangement, the control box is installed at the surface — not in the borehole — because the centrifugal switch cannot be used in a sealed submersible motor. Instead, the control box uses a current-sensitive relay (also called a potential relay or current relay, depending on design) to detect when the motor has accelerated sufficiently, and then drops the start capacitor out of circuit. The run capacitor remains permanently in circuit to maintain the phase-split and improve power factor during normal running.

The three wires from the pump motor are labelled: - **Line (L or common):** the common winding terminal, shared between main and start windings. - **Run (R):** the main running winding terminal. - **Start (S or Aux):** the start/auxiliary winding terminal.

The control box wiring connects the incoming single-phase supply (L1 and L2/Neutral), routes it through the overload relay for overcurrent protection, then to the motor terminals in the correct configuration.

A 2-wire pump (pump with internal thermal protection and run capacitor built in) does not use a surface control box with a start relay. Mistaking a 2-wire pump for a 3-wire pump and connecting a control box will damage the motor.

This diagram is a generic educational reference. Always follow the pump manufacturer's wiring instructions and comply with the electrical installation code of your jurisdiction.

How to wire borehole pump control box wiring diagram

Isolate and verify the power supply is dead Switch off the circuit breaker feeding the control box. Lock out the breaker if possible. Verify with a voltage tester at the control box terminals that no voltage is present on all conductors before opening the enclosure.
Identify pump motor wire colours and labels Locate the motor wiring specification on the pump nameplate or in the installation manual. Common labelling is Common (often black or yellow), Run (often red), Start (often yellow or blue). Do not assume wire colours — verify against the pump documentation.
Connect motor leads to control box terminals Control boxes have clearly labelled terminals: L (line/common), R (run), S (start). Connect the pump's Common wire to the L terminal, the Run wire to the R terminal, and the Start wire to the S terminal. Torque terminal screws to the specified value — loose connections cause arcing and heat.
Connect the incoming supply to the control box Connect line (hot) and neutral (or L2 for split-phase) to the input terminals. The overload relay is normally wired in series with the line conductor inside the control box. Verify the supply voltage matches the motor nameplate voltage rating.
Set the overload relay Set the overload relay trip current to the motor's full-load ampere (FLA) rating shown on the nameplate. For manual-reset overloads, confirm the reset button is accessible. For auto-reset types, note that they will restart automatically after cooling — this can be a safety concern.
Restore power and test Close the control box, restore the circuit breaker, and start the pump. Clamp a current meter on one of the motor supply conductors. Starting current should be several times the FLA for a fraction of a second, then drop to near nameplate FLA within 1–3 seconds. Extended high current indicates a starting fault.
Verify water delivery and check running current Confirm water flow at the outlet. Measure running current and compare to the nameplate FLA. Current significantly above FLA indicates a mechanical fault; significantly below may indicate a worn impeller or air lock. Record the running current as a baseline for future maintenance comparisons.

Specifications

Supply voltage (typical, single-phase)	220–240 V AC, 50/60 Hz
Motor wire count (3-wire configuration)	3 (Common, Run, Start) plus earth/ground
Start capacitor tolerance	±10% of rated capacitance
Run capacitor voltage rating (minimum)	370 V AC (for 230 V AC supply)
Overload relay setting	100–115% of motor nameplate full-load amperes
Enclosure ingress protection (outdoor installation)	IP54 minimum; IP65 recommended
Insulation resistance (new motor, minimum)	≥ 1 MΩ at 500 V DC between winding and casing

Safety warnings

Mains voltage (typically 220–240 V AC) is present in the control box during operation. Always isolate and verify dead before opening the enclosure. Lock out the upstream circuit breaker where practicable. Comply with IEC 60364, BS 7671, NEC Article 680, or your local installation code — borehole pump installations near water sources may require RCD/GFCI protection.
Capacitors store a charge that can persist after the power is switched off. Discharge start and run capacitors through a 10 kΩ, 5 W resistor before handling. An undischarged start capacitor can deliver a dangerous or fatal shock.
Never connect a 3-wire control box to a 2-wire pump motor, or vice versa. Incorrect connection will immediately burn out the motor windings. Verify pump type from the nameplate before wiring.
Dry-running a submersible pump even briefly can destroy the motor's water-cooled windings. Install a low-pressure or flow switch to cut power if water supply is lost. Never run the pump against a closed outlet valve for extended periods.
All field wiring to and from the control box should be carried out by a licensed electrician in accordance with the electrical installation regulations of your country.

Tools needed

Non-contact voltage tester
Digital multimeter with capacitance measurement function
Clamp-type ammeter
Insulated screwdrivers (flat and cross-head)
Cable stripping tool
Torque screwdriver (for terminal connections)
Discharge resistor (10 kΩ, 5 W) for capacitor discharge
Cable gland spanner / adjustable wrench

Common mistakes

Connecting the Run and Start motor wires in reverse (R to S terminal and S to R terminal), causing the start relay to never drop out and leaving the start capacitor permanently energised — which destroys the start capacitor within minutes.
Using a run capacitor rated for DC voltage (marked 'VDC') instead of AC voltage (marked 'VAC'). DC-rated capacitors will fail destructively when connected across AC mains.
Setting the overload relay to the circuit breaker rating instead of the motor nameplate FLA, providing no meaningful overload protection to the motor windings.
Installing the control box in a location that floods or is not weatherproofed, allowing condensation or water ingress to degrade connections and cause ground faults.
Failing to re-test running current after a repair, missing a degraded motor condition that will cause another failure within weeks.
Assuming a failed overload trip was a nuisance trip and simply resetting it without investigating the root cause — this is the most common reason for repeated motor burnout.

Troubleshooting

Motor hums but does not start; overload trips after a few seconds: Cause: Failed start capacitor or failed start relay — motor cannot accelerate past starting point so locked-rotor current persists until the overload trips Fix: Discharge and test the start capacitor with a capacitance meter. Replace if outside tolerance. Also verify the start relay contacts are closing on start-up using a multimeter in continuity mode with power off and the relay energised manually.
Pump runs but draws current significantly above nameplate FLA: Cause: Worn or sand-clogged impeller increasing hydraulic load, low supply voltage forcing higher current, or a partially shorted motor winding Fix: Measure supply voltage at the control box input under load. If voltage is within ±10% of nameplate, check for impeller blockage by pulling the pump (if possible). Measure winding resistance and insulation resistance (megger test) to check winding condition.
Overload relay trips repeatedly after a few hours of operation: Cause: Thermal overload due to elevated ambient temperature around the control box, high supply voltage, partially blocked pump, or the motor winding insulation has degraded and is allowing partial shorts Fix: Shade the control box if ambient temperature exceeds its rating. Verify supply voltage. Check running current against FLA. Perform an insulation resistance test (500 V DC megger) between each winding and the pump casing; resistance should be above 1 MΩ.

Frequently asked questions

What is the difference between a 2-wire and 3-wire submersible pump?

A 2-wire pump has its start/run capacitor and thermal protection built into the motor housing; only two power conductors run to the surface. A 3-wire pump brings the start winding out separately as a third conductor, requiring a surface control box with an external start relay and capacitors. Three-wire designs are generally more reliable because the start relay is replaceable at the surface.

Can I use the wrong size start capacitor in the control box?

No. An undersized start capacitor reduces starting torque, causing the motor to hum, fail to start, and overheat rapidly. An oversized capacitor increases starting current and can damage the start relay. Always replace with the exact capacitance and voltage rating specified by the pump manufacturer.

Why does my borehole pump trip the overload relay immediately on starting?

Immediate trip on starting usually indicates a seized impeller (sand-locked pump), a failed start capacitor (motor cannot accelerate so locked-rotor current persists), motor winding short, or the overload relay set below the motor's starting current. Check capacitor with a capacitance meter before disassembling the pump.

How do I test the start capacitor without removing the pump?

Disconnect power and discharge the capacitor across a 10 kΩ resistor. Measure capacitance with a digital multimeter in capacitance mode. A failed capacitor reads open circuit, near-zero, or far outside its rated value (typically ±10% tolerance). Short-circuit capacitors may read correctly at DC test voltage but fail under AC line voltage.

What causes a borehole pump motor to burn out repeatedly?

The most common causes are dry-running (borehole depleted), low or high supply voltage outside the motor's ±10% tolerance, an incorrectly sized or failed start/run capacitor, a blocked impeller causing sustained high current, and water temperature above the motor's rating. Install a dry-run protection device and voltage monitoring relay.
