1.5 Hp Submersible Pump Starter Wiring Diagram — Editable Wiring Diagram
This is a free printable 1.5 hp submersible pump starter wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
This editable 1.5 hp submersible pump starter wiring diagram reference is generated from the displayed electrical graph, not from a generic article outline. The current drawing contains 8 components and 10 routed connections, including 1 × Breaker 30A (Breaker), 1 × Contactor K1 (normally-open contactor contact), 1 × Overload F1 (thermal overload), 1 × Pump Motor (three-phase motor) and 1 × Float Switch (Float Switch). Use it to inspect the shown topology, then confirm ratings and terminal assignments against the equipment documentation for your installation.
Diagram checks and scope
- Components
- 8
- Wired connections
- 10
- Automated check
- Automated pin, route, source, and topology checks passed; this is not a safety certification.
What this 1.5 Hp Submersible Pump Starter Wiring Diagram drawing contains. The rendered example uses 1 × Breaker 30A (Breaker), 1 × Contactor K1 (normally-open contactor contact), 1 × Overload F1 (thermal overload), 1 × Pump Motor (three-phase motor), 1 × Float Switch (Float Switch), 1 × Coil K1 (contactor coil), 1 × circuit reference and 1 × 230V AC Utility (AC voltage source). Control circuits must keep command logic, coil supply, auxiliary contacts and load switching roles distinct. The component names in the list below come from the editable canvas, while the wire summary comes from the saved start and end terminals. This makes the written explanation auditable against the image instead of presenting an unrelated stock circuit.

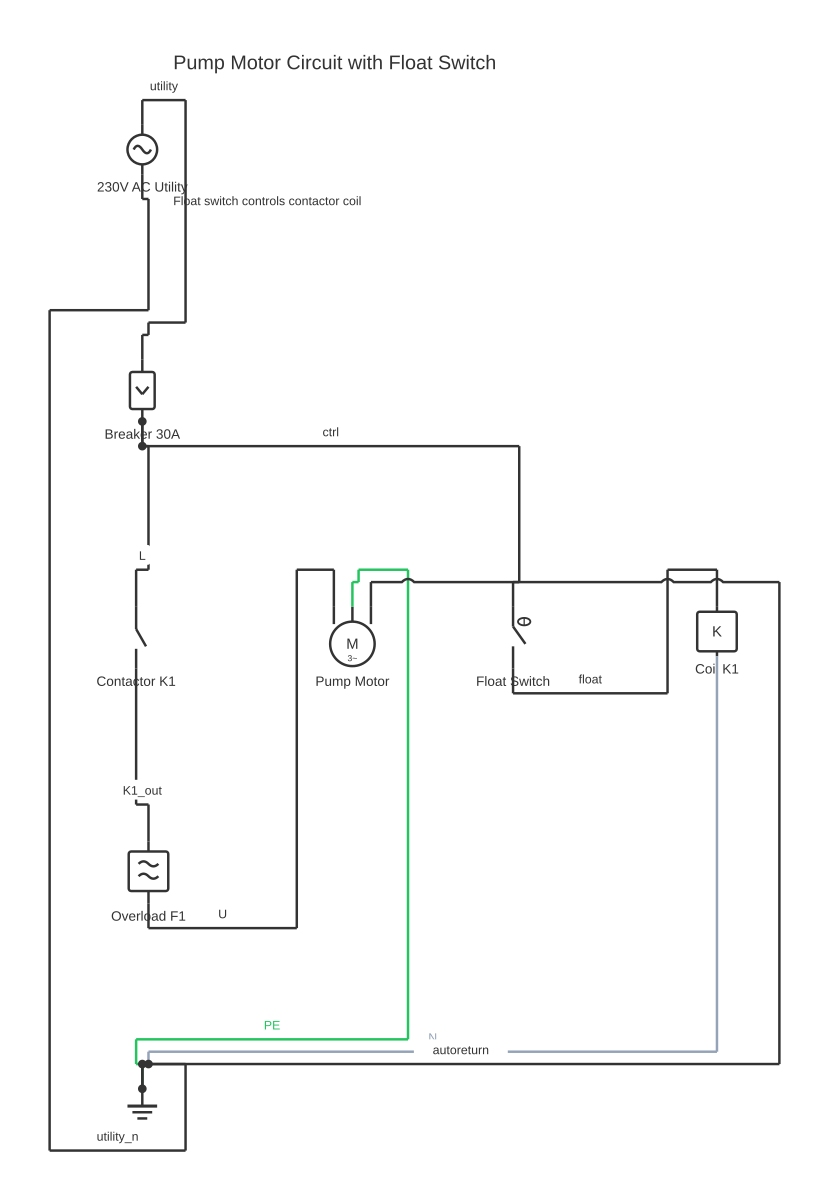

Reading the stored graph from terminal to terminal gives this sequence: 1. Breaker 30A load terminal connects to Contactor K1 in terminal on the L net. 2. Contactor K1 out terminal connects to Overload F1 in terminal on the K1_out net. 3. Overload F1 out terminal connects to Pump Motor u terminal on the U net. 4. Breaker 30A load terminal connects to Float Switch in terminal on the ctrl net. 5. Float Switch out terminal connects to Coil K1 a1 terminal on the float net. 6. Coil K1 a2 terminal connects to circuit reference gnd terminal on the N net. 7. Pump Motor v terminal connects to circuit reference gnd terminal on the PE net. 8. 230V AC Utility pos terminal connects to Breaker 30A line terminal on the utility net. 9. 230V AC Utility neg terminal connects to circuit reference gnd terminal on the utility_n net. 10. Pump Motor w terminal connects to circuit reference gnd terminal on the autoreturn net. Its named nets are “L”, “K1_out”, “U”, “ctrl”, “float”, “N”, “PE” and “utility”. A line joining two terminals records electrical continuity in this reference; visual proximity alone does not create a connection. Junctions, bridges and terminal labels therefore matter when the drawing is edited or exported.
Read the control path from its supply and protective device through each permissive or command contact to the coil, then trace linked power contacts separately. A normally-open or normally-closed state describes the de-energized device unless the drawing explicitly says otherwise. In this particular graph, the first visible path is Breaker 30A load terminal connects to Contactor K1 in terminal on the L net., Contactor K1 out terminal connects to Overload F1 in terminal on the K1_out net., Overload F1 out terminal connects to Pump Motor u terminal on the U net. and Breaker 30A load terminal connects to Float Switch in terminal on the ctrl net.. Follow the remaining rows in the connection table before changing a symbol or moving a conductor, because a neat layout is not evidence that a terminal function is correct.
Confirm coil voltage, contact utilization category, overload contact state, interlocks and stop-chain behavior. Matching a coil tag to every linked contact is essential before the sequence can be simulated or released. Automated validation checks that component IDs and terminal IDs exist, routes terminate on pins, the graph has a recognized source, and the saved topology has no blocking structural fault. It does not determine conductor size, protective-device rating, fault current, insulation class, environmental suitability or compliance with local rules. Those decisions require project values and the current primary documentation.
How to wire 1.5 hp submersible pump starter wiring diagram
- Read the 1.5 Hp Submersible Pump Starter Wiring Diagram source path For this 1.5 hp submersible pump starter wiring diagram, begin at Breaker 30A (Breaker) and trace every stored terminal pair toward the load or output; do not infer continuity from lines that merely cross.
- Match every terminal name Compare the 1.5 Hp Submersible Pump Starter Wiring Diagram terminal labels shown in the connection table with the current device or standard documentation before assigning real conductors.
- Set project-specific ratings Replace placeholder values in the 1.5 hp submersible pump starter wiring diagram with verified voltage, current, protection, conductor and environmental data for the actual installation.
- Run the electrical checks again After editing Contactor K1 (normally-open contactor contact) or any route, validate the graph and inspect every reported open terminal, source fault, collision and disconnected island.
- Release a controlled copy Export the revised 1.5 Hp Submersible Pump Starter Wiring Diagram drawing only after a competent reviewer has compared it with the bill of materials, manufacturer documents and applicable rules.
Specifications
| Topic | 1.5 Hp Submersible Pump Starter Wiring Diagram |
|---|---|
| Components shown | 8 |
| Routed connections | 10 |
| Named nets | L, K1_out, U, ctrl, float, N, PE, utility, utility_n, autoreturn |
| Verification scope | Stored pins, routes, source path and graph topology |
Safety warnings
- Isolate every supply feeding the control and power sections; a stopped coil does not prove the load side is dead.
- Verify protective devices, interlocks and stop functions independently before energizing a contactor or motor circuit.
Tools needed
- The current manufacturer datasheet, connector schedule or applicable standard for every real device
- A suitable meter and proving method for the voltage class being worked on
- The editor validation report and a controlled terminal or wire schedule
Common mistakes
- Treating the 1.5 hp submersible pump starter wiring diagram illustration as proof of a manufacturer pinout or conductor rating when those values are not encoded in the graph.
- Connecting by component position or wire colour instead of checking the named terminals in the 1.5 Hp Submersible Pump Starter Wiring Diagram connection path.
- Using a power-contact terminal as a coil or auxiliary terminal, or omitting the de-energized contact state from the control review.
Troubleshooting
- The 1.5 Hp Submersible Pump Starter Wiring Diagram path appears open
- Cause: A route ends on the wrong pin, a terminal was renamed, or a required return path is absent. Fix: Trace the connection rows in order, restore the documented terminal mapping, and run validation again.
- The edited drawing passes visually but validation fails
- Cause: A conductor may stop off-pin, cross a component body, create a source short or leave a disconnected island. Fix: Open each blocking finding, correct the referenced component or route, then re-run the topology check before export.
- The real equipment behaves differently
- Cause: The stored reference does not match the exact model, revision, supply or contact state. Fix: De-energize safely, return to the current primary documentation, and revise the symbol terminals and values before further testing.
Frequently asked questions
What exactly is verified on this 1.5 hp submersible pump starter wiring diagram?
The saved 1.5 Hp Submersible Pump Starter Wiring Diagram graph is checked for known components and terminals, pin-snapped routes, a recognizable source path and blocking topology defects. Exact equipment ratings and manufacturer assignments are outside that automated scope.
Which components are actually shown in this 1.5 Hp Submersible Pump Starter Wiring Diagram diagram?
The current editable graph contains 1 × Breaker 30A (Breaker), 1 × Contactor K1 (normally-open contactor contact), 1 × Overload F1 (thermal overload), 1 × Pump Motor (three-phase motor), 1 × Float Switch (Float Switch), 1 × Coil K1 (contactor coil), 1 × circuit reference and 1 × 230V AC Utility (AC voltage source). The bill of materials on this page is derived from those saved symbols rather than a generic shopping list.
How are the 1.5 hp submersible pump starter wiring diagram connections documented?
The graph contains 10 terminal-to-terminal links. The first path shown is Breaker 30A load terminal connects to Contactor K1 in terminal on the L net.
Can I use the drawing as an installation instruction?
Use it as an editable reference and review aid. Verify the exact equipment documentation, ratings, protection, conductor selection and local requirements before construction or release.
Sources and verification
Review status: Not independently reviewed. Automated topology checks confirm stored terminals and routes, not the correctness of manufacturer pin assignments, ratings, regional codes, or installation decisions. Verify those claims against the current primary documentation before use.
