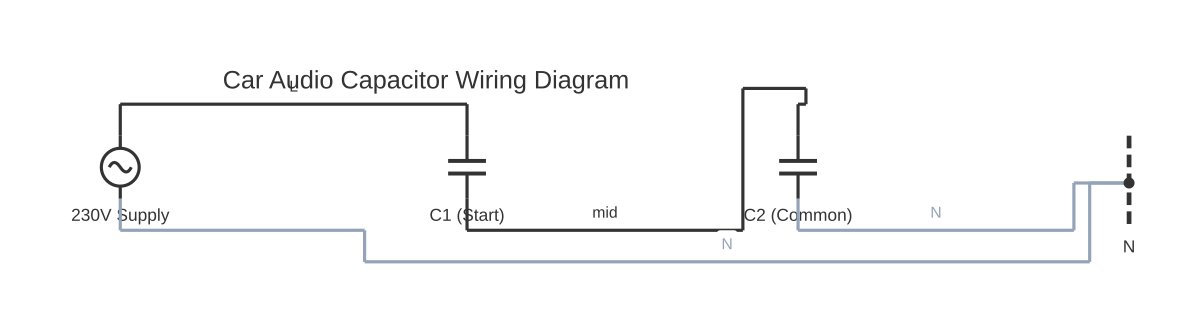

Car Audio Capacitor Wiring Diagram
This is a free printable car audio capacitor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Learn how to wire a car audio stiffening capacitor correctly — including pre-charge procedure, fusing, parallel connection to the amplifier, and safe disconnection steps.
A car audio stiffening capacitor (often called a 'power cap' or 'stiffening cap') is a large-value electrolytic or hybrid capacitor, typically rated between 0.5 F and 5 F, connected in parallel with the 12 V DC supply at the amplifier. Its function is to supply instantaneous high-current bursts during loud bass transients that the vehicle's battery and alternator cannot deliver fast enough through the vehicle's wiring resistance.
The capacitor does not replace the battery or alternator and does not add power to the system. It acts as a local energy reservoir, stabilising the supply rail voltage during brief, high-current peaks, reducing the 'dimming headlights' effect common in high-power installations.
Wiring configuration: The capacitor is connected directly in parallel with the amplifier's +12 V and ground terminals — positive terminal to the amplifier's positive supply bus, negative terminal to the same chassis ground point as the amplifier. Mounting location should be as close as possible to the amplifier to minimise wiring inductance; long leads between the capacitor and the amplifier reduce its effectiveness.
Pre-charge procedure: Large electrolytic capacitors are initially uncharged and present a near-short-circuit to the supply when first connected. Connecting an uncharged capacitor directly to the vehicle battery will cause a large inrush current that can weld relay contacts, blow fuses, or damage the capacitor's internal structure. Always pre-charge through a resistor (typically 100–1000 Ω, 5–25 W) by connecting the resistor in series with the positive lead for 30–60 seconds before making the final direct connection.
Fusing: Fit an appropriately rated fuse in the positive lead between the battery and the capacitor, matched to the combined fusing of the amplifiers and the capacitor circuit. Never omit this fuse — a shorted capacitor can deliver enormous fault currents.
Safety: Disconnect the vehicle battery before making any connections. Always pre-charge before connecting. Treat a charged capacitor with the same respect as a live battery — it stores significant energy.
How to wire car audio capacitor wiring diagram
- Disconnect the vehicle battery before starting Remove the negative terminal clamp from the battery first, then the positive. This eliminates the risk of short-circuit sparks during wiring work. Secure the clamp away from the battery post to prevent accidental reconnection.
- Choose the mounting location Mount the capacitor as close as physically possible to the amplifier — ideally within 300 mm. Longer positive and ground leads add inductance, which reduces the capacitor's ability to supply fast transient current. Ensure the chosen location can support the capacitor's weight (large caps can weigh 1–2 kg) and is not exposed to excessive heat or vibration.
- Run and fuse the positive supply lead Run an appropriately sized positive cable from the battery positive terminal (or existing distribution block) to the capacitor's positive terminal. Fit a fuse holder with the correct-rated fuse in the positive cable, positioned within 450 mm of the battery or power source. Ensure this fuse rating covers the capacitor and all amplifiers it serves.
- Connect the ground lead Connect the capacitor's negative terminal to the vehicle chassis using a short, heavy-gauge ground cable at the same chassis bolt used for the amplifier ground. Using separate chassis ground points creates a ground loop. Clean the chassis contact point to bare metal and use a star washer to ensure a low-resistance connection.
- Pre-charge the capacitor before final connection With the battery reconnected (positive clamp on first, then negative), connect a pre-charge resistor (100–1000 Ω, minimum 10 W) in series with the positive supply lead to the capacitor. Allow 30–60 seconds for the capacitor voltage to stabilise at near battery voltage. Verify voltage with a multimeter across the capacitor terminals — it should read within 1 V of battery voltage.
- Make the final direct connection Once the capacitor is fully pre-charged, bypass or remove the pre-charge resistor and make the final low-resistance direct connection of the positive lead to the capacitor's positive terminal. Ensure all terminal hardware is tight and no bare conductors are exposed.
- Test the installation under load Power on the head unit and amplifier(s). Play audio at progressively higher volumes, including bass-heavy content. Observe that headlight dimming has reduced or been eliminated. Measure voltage at the amplifier supply terminals with a multimeter to verify that supply rail sag is within acceptable limits (no lower than approximately 11.5 V at maximum volume).
Specifications
| Typical capacitance range | 0.5 F to 5 F (500 000 µF to 5 000 000 µF) |
|---|---|
| Rated voltage (for 12 V vehicle systems) | Minimum 16 V DC; 20 V DC typical for adequate margin above 14.4 V charging voltage |
| Connection topology | Parallel with amplifier DC supply terminals; as close to amplifier as physically possible |
| Pre-charge resistor value | 100 Ω to 1000 Ω, 10–25 W wirewound; pre-charge time 30–60 seconds |
| Positive supply cable gauge (typical) | 4 AWG (25 mm²) minimum; match to amplifier wiring gauge |
| Maximum distance from amplifier (to preserve effectiveness) | Ideally under 300 mm; do not exceed 600 mm of total positive and negative lead length |
Safety warnings
- Always disconnect the vehicle battery (negative terminal first) before making any connections in the car audio power circuit. Reconnect positive terminal first, then negative, only after all wiring is complete and secured.
- Never connect an uncharged large-value capacitor directly to the battery without pre-charging through a series resistor. The resulting inrush current can cause arcing, welded contacts, blown fuses, or capacitor failure.
- A fully charged capacitor stores significant electrical energy and will deliver a dangerous shock or cause severe burns if its terminals are short-circuited. Always discharge the capacitor through a resistor before disconnecting or servicing the circuit.
- Fit an appropriately rated fuse in the positive supply lead within 450 mm of the power source. Without this fuse, a wiring fault or capacitor short can result in uncontrolled current flow sufficient to start a vehicle fire.
- Ensure all terminal connections are mechanically secure and that no bare conductors are exposed or able to contact vehicle bodywork. Loose connections at high-current terminals cause resistance heating, arcing, and insulation damage.
Tools needed
- Multimeter (DC voltage measurement up to 20 V)
- Hydraulic or ratchet cable crimping tool for ring terminals
- Wire strippers rated for large-gauge cable (4 AWG / 25 mm²)
- Spanners and socket set for terminal bolts and chassis ground bolt
- Heat gun for shrinking heat-shrink insulation on crimped terminals
- Drill and appropriate bit for chassis ground bolt hole (if required)
- Cable ties and loom for cable management
Common mistakes
- Connecting the capacitor positive terminal to the output side of the amplifier's individual fuse, rather than to the supply bus — the capacitor must be on the supply side to be effective.
- Using separate chassis ground points for the capacitor and the amplifier, creating a ground loop that adds noise and reduces the effectiveness of the capacitor.
- Skipping the pre-charge procedure and connecting an uncharged capacitor directly to the battery, causing a large inrush current arc that can weld the fuse holder contacts or destroy the capacitor.
- Mounting the capacitor far from the amplifier with long connecting leads — the inductance of long wires makes the capacitor unable to respond fast enough to supply transient current, negating its benefit.
- Selecting a capacitor with a voltage rating equal to the nominal 12 V supply, without margin — battery voltage rises to 14.4 V or higher during charging, and must remain within the capacitor's rated voltage at all times.
Troubleshooting
- Fuse blows immediately when connecting the capacitor
- Cause: Capacitor was connected without pre-charging, causing inrush current to exceed fuse rating; or a wiring short circuit exists Fix: Disconnect the circuit and inspect all wiring for short circuits. Once confirmed clear, use the pre-charge resistor procedure to bring the capacitor to full charge before making the final direct connection. Replace the blown fuse with the correct rating only after confirming no short circuit is present.
- Capacitor does not charge (voltage remains at zero)
- Cause: Open circuit in the positive supply lead, failed fuse, or capacitor internal open circuit Fix: With the pre-charge resistor in circuit, measure voltage at each point in the positive chain: battery terminal, fuse output, pre-charge resistor input and output, then capacitor positive terminal. The first point where voltage is absent indicates the open circuit. Replace blown fuses; repair open conductors.
- Headlight dimming persists despite capacitor installation
- Cause: Capacitor is too small for the amplifier load, mounted too far from the amplifier, or the actual problem is insufficient alternator output rather than voltage sag caused by wiring resistance Fix: Measure battery/rail voltage at the amplifier supply terminals under full-load bass. If voltage is above 12 V, the capacitor is functioning correctly and the dimming has another cause. If below 11.5 V, consider a higher-capacity alternator upgrade. Verify capacitor leads are as short as possible.
Frequently asked questions
Where exactly does the stiffening capacitor connect in the circuit?
The capacitor connects in parallel with the amplifier's DC supply terminals: positive terminal to the positive supply bus (same node as the amplifier's +12 V input, after the amplifier's fuse), and negative terminal to the same chassis ground point as the amplifier. Mount the capacitor physically as close to the amplifier as possible to minimise lead inductance.
Why must I pre-charge the capacitor before connecting it?
An uncharged capacitor looks like a short circuit the instant it is connected to a voltage source. Without pre-charging, the inrush current from the battery can be hundreds or thousands of amperes, sufficient to weld relay contacts, vaporise thin wire, or destroy the capacitor's internal foil and electrolyte. Pre-charging through a series resistor limits this inrush current to a safe level.
What resistor should I use for pre-charging?
A resistor in the range of 100 Ω to 1000 Ω rated at 10–25 W is commonly used. Connect it in series with the positive lead between the battery and the capacitor and allow 30–60 seconds for the capacitor voltage to rise to within about 1 V of the battery voltage. Then bypass or remove the resistor and make the final direct connection.
Will a stiffening capacitor fix my alternator whine or ground loop noise?
No. A stiffening capacitor addresses voltage sag under bass transients, not electrical noise. Alternator whine and ground loop hum are caused by poor grounding, inadequate ground paths, or common-impedance coupling between audio and power circuits. Fix those issues with proper star grounding and dedicated audio ground runs before adding a capacitor.
Is a stiffening capacitor safe to leave connected when the vehicle is parked?
Yes, a correctly wired capacitor on the amplifier's remote-triggered supply or directly on the always-on 12 V bus is safe when parked, as the amplifier's own quiescent current drain dominates. However, a capacitor charged to 12–14 V stores significant energy and must be treated with caution during any service work — always discharge it through a resistor before working on the circuit.
