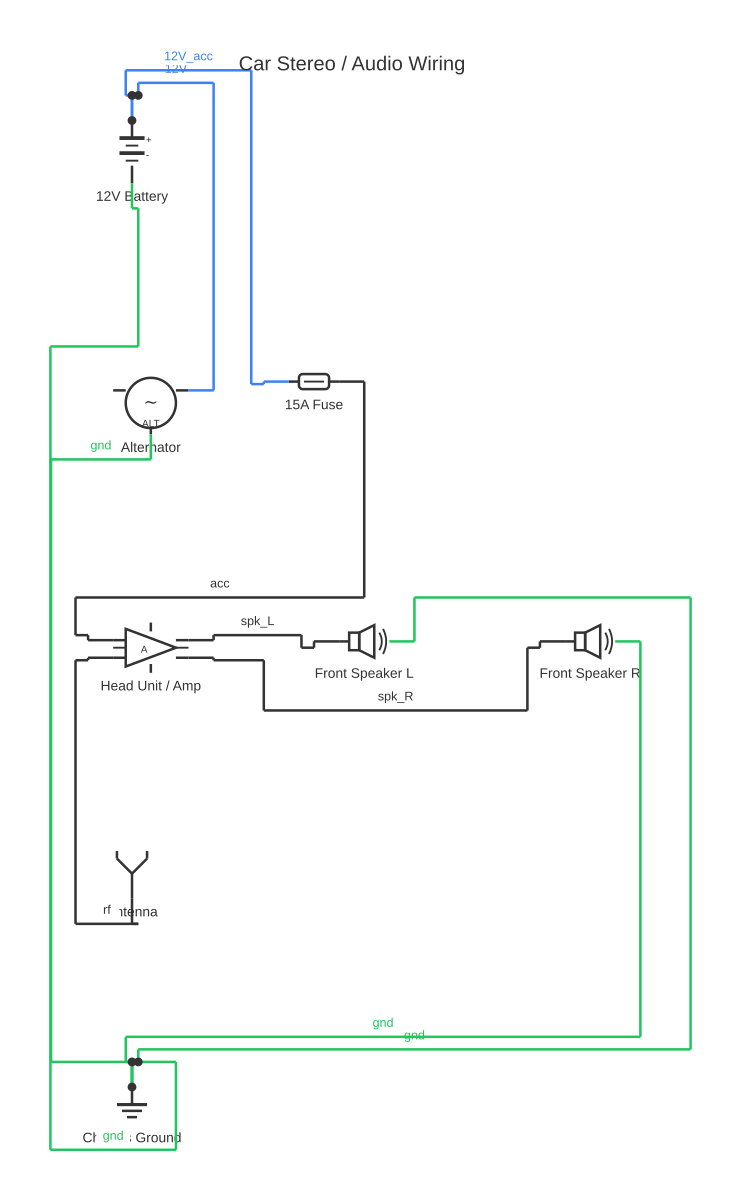

Car Audio Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable car audio wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A car audio wiring diagram maps the power, ground, signal, and speaker connections between a head unit, amplifier, and speakers — ensuring clean sound, correct impedance matching, and protection of all components.

A car audio system is a series of interconnected subsystems: the head unit (source), signal cables (RCA or speaker-level), one or more amplifiers, passive or active crossovers, and speakers (including subwoofers). A properly drawn wiring diagram addresses each subsystem and the relationships between them — not just where wires go, but why they are routed and sized as they are.

The power architecture is the foundation. The amplifier's main power wire — typically 4 AWG to 0 AWG (25–50 mm²) depending on power rating — runs from the battery positive through an inline fuse mounted within 300 mm of the battery to the amplifier's BATT terminal. A fuse of identical or lower rating protects this cable. The amplifier ground wire is the same gauge and runs from the amplifier's GND terminal to a clean, unpainted metal body point as short as possible — ground wire length should ideally be under 500 mm. Poor ground is the single most common cause of amplifier noise, instability, and failure.

The remote turn-on wire is a thin wire (typically 18–22 AWG) that carries 12 V from the head unit's remote output terminal to the amplifier's REM or REMOTE terminal. When the head unit powers on, it sends 12 V on this wire, which wakes the amplifier. Without this wire, the amplifier does not activate. If the head unit lacks a remote output, the wire can connect to an ignition-switched 12 V source via a relay.

The signal path — RCA cables — carries the line-level audio signal from the head unit's preamp outputs to the amplifier's inputs. RCA cables must be routed away from power cables to prevent induced noise. Crossing at right angles is acceptable; running parallel alongside a power cable is not. The amplifier converts the line-level signal to a high-current speaker-level output.

Speaker wiring from the amplifier to each speaker must match the amplifier's stable impedance specification. Running two 4-ohm speakers in parallel on a single amplifier channel creates a 2-ohm load. Most amplifiers are stable at 2 ohms but confirm before wiring — an impedance below the amplifier's minimum will overheat and destroy the output stage.

How to wire car audio wiring diagram

Plan the system before buying any wire Draw or sketch the full system: head unit location, amplifier mounting position, speaker locations, and subwoofer enclosure. Calculate cable runs to determine lengths needed. Plan the power cable route from the battery through the firewall to the amplifier — identify the firewall grommet that will be used. Confirm the amplifier's power, ground, remote, RCA, and speaker terminal specifications before choosing cable gauges.
Run the power cable from battery to amplifier Mount the inline fuse holder within 300 mm of the battery positive terminal before running any cable. Route the power cable through the firewall via an existing grommet, or drill a new hole and fit a rubber grommet to protect the cable insulation. Route along the floor, away from the signal cables on the opposite side of the vehicle if possible. Secure with cable clamps every 300–500 mm.
Ground the amplifier Select a chassis ground point close to the amplifier — ideally within 500 mm. Remove the bolt, clean paint and corrosion from the contact area down to bare metal, fit a ring terminal crimped to the ground cable, replace the bolt, and torque firmly. Do not use painted or rusted surfaces. A dedicated ground point is preferable to a shared bolt with other grounds.
Run the remote turn-on wire Route a length of 18–20 AWG wire from the head unit's remote output terminal (labelled REM, REMOTE, or CONT) along the same path as the signal cables (not the power cable) to the amplifier's remote terminal. If the head unit lacks a remote terminal, connect to an ignition-switched 12 V source or fit a relay controlled by an accessory circuit.
Route RCA signal cables from head unit to amplifier Run shielded RCA cables from the head unit preamp outputs along the opposite side of the vehicle from the power cable — typically passenger side for signal, driver side for power. Cross power cables at right angles if unavoidable. Use quality shielded RCA cables and do not coil excess length near the amplifier or head unit.
Connect speaker wiring from amplifier to speakers Run speaker wire from each amplifier output channel to each speaker location. Maintain correct polarity: connect the amplifier positive output terminal to the speaker's positive terminal and amplifier negative to speaker negative consistently. Reversed polarity on one speaker in a front stereo pair causes acoustic cancellation in the overlap area. Label or colour-code speaker wires during installation.
Configure gains and test the system Set the head unit bass and treble controls to flat. Set the amplifier gain, crossover, and bass boost to their minimum settings. Connect all wiring. Power the system and play music, increasing head unit volume progressively while checking for distortion or clipping. Adjust the amplifier gain as described in the FAQ. Set the crossover frequency to match each speaker's capability. Check that all speakers are working correctly and in phase.

Specifications

Inline fuse location	Within 300 mm of battery positive terminal
Maximum amplifier ground wire length (recommended)	500 mm from amplifier to chassis ground point
Typical head unit preamp output voltage	2–8 V RMS (higher output reduces amplifier gain needed and improves noise performance)
Remote turn-on wire voltage	12 V DC from head unit remote output
Typical vehicle supply voltage at amplifier with engine running	13.8–14.4 V DC
RCA cable routing clearance from power cables (minimum recommended)	200 mm separation where parallel runs are unavoidable
Speaker wire polarity convention	Positive terminal marked with ridge, stripe, or + symbol; maintain consistent polarity across all speakers
Amplifier efficiency (typical class AB)	50–70% at rated power; class D approximately 80–90%

Safety warnings

Always disconnect the vehicle battery negative terminal before making any connections to the car audio system. The amplifier's power and ground cables carry voltages and currents capable of causing severe burns and fire if shorted.
Install the inline fuse within 300 mm of the battery positive terminal — this is the most important protection in the entire system. Without this fuse, a short circuit anywhere in the power cable run can start a fire in the vehicle.
Ensure the power cable cannot contact any moving components (steering column, throttle cables, door hinges) or hot surfaces (exhaust, heater pipes). Chafed insulation causing a short circuit in a high-current cable will cause a fire rapidly.
Do not exceed the amplifier's rated minimum speaker impedance. Operating an amplifier into an impedance load below its rated minimum causes overheating and can destroy the output transistors — and in extreme cases cause a fire in an enclosed installation.
Ground all chassis-mounted components at a common point where possible. Multiple separate ground points at different locations can create ground potential differences that introduce noise and can under some fault conditions carry unexpected currents.

Tools needed

Digital multimeter (DC voltage, AC voltage for checking gain/distortion, resistance)
Wire stripper rated for 0 AWG to 20 AWG range
Ratchet crimping tool (for ring terminals and butt connectors)
Drill and step bits (for firewall grommet hole if required)
Fish tape or cable routing rod
Trim removal tools (plastic pry levers)
Cable ties and adhesive cable mounts
Heat gun (for heat-shrink on terminal connections)

Common mistakes

Routing RCA signal cables parallel to and in contact with the main power cable, inducing alternator whine and electrical noise directly into the audio signal path.
Grounding the amplifier to a painted surface or a body bolt with inadequate metal-to-metal contact, causing ground-induced noise and reduced amplifier performance.
Setting the amplifier gain too high to compensate for a low head unit volume, resulting in amplified distortion from the head unit being fed into the speakers at high power — this causes speaker damage, not just bad sound.
Wiring two speakers in parallel at an impedance below the amplifier's rated minimum, causing overheating and potentially damaging the amplifier.
Forgetting the remote turn-on wire connection, then assuming the amplifier is faulty when it does not power on.
Running too small a gauge ground cable compared to the power cable — the ground carries the same current as the positive cable, and a restriction in the ground causes identical problems to a restriction in the positive feed.

Troubleshooting

Alternator whine audible through the speakers: Cause: Ground loop or ground potential difference between head unit and amplifier, or RCA cables routed alongside power cables Fix: Verify both head unit and amplifier ground to the same chassis reference point. Inspect RCA cable routing and move away from power cables. Try a ground loop isolator on the RCA signal path as a diagnostic step.
Amplifier protection light on — no audio output: Cause: Speaker impedance too low (below amplifier minimum), short circuit in speaker wiring, or overheating Fix: Disconnect all speakers from amplifier outputs and reset. If protection clears, reconnect speakers one at a time to identify the short or low-impedance condition. Check all speaker terminals and wire insulation for short circuits.
One channel has lower output than the other: Cause: Gain mismatch between channels, faulty RCA cable on one channel, or speaker polarity reversed on that channel Fix: Swap the left and right RCA cables at the amplifier and re-test. If the problem moves with the cable, the RCA cable or head unit output is at fault. If the problem stays on the same amplifier channel, the amplifier or gain setting on that channel is the issue.
Amplifier runs hot and shuts down under load: Cause: Insufficient ventilation, speaker impedance at or below minimum, or gain set too high causing clipping and excessive dissipation Fix: Ensure adequate airflow around the amplifier. Verify speaker impedance is at or above the amplifier minimum. Reduce the gain setting and re-test. If overheating continues with correct load and gain, the amplifier may have an internal fault.

Frequently asked questions

Why does my amplifier produce a whine or hum that changes with engine speed?

Alternator whine is caused by the amplifier and head unit sharing a ground reference that includes the alternator's output ripple. This occurs when the amplifier ground is connected to a point that is electrically distant from the head unit ground, or when the vehicle's body ground path is compromised. Common fixes: move the amplifier ground to a shorter path to the battery negative, verify the head unit ground is on the same chassis reference, and add a noise filter or ground loop isolator on the RCA signal path.

What gauge power and ground cable does my amplifier need?

Cable gauge depends on the amplifier's maximum current draw, which is approximately (RMS power output / supply voltage) / efficiency. A 1 000 W RMS amplifier at 14.4 V with 70% efficiency draws approximately 100 A. At 100 A, 0 AWG (50 mm²) cable is appropriate for runs up to approximately 4–5 metres. The amplifier manufacturer's power and ground terminal labelling and the included specification sheet should specify a recommended minimum cable gauge.

Can I connect multiple amplifiers to the same power and ground cables?

Yes, using a distribution block. Run a single large-gauge power cable from the battery through a fuse to a distribution block, then individual cables — each with their own inline fuse — to each amplifier. Use a separate ground distribution block connected to the chassis with a single heavy cable. This approach is cleaner and more reliable than daisy-chaining amplifiers.

What is the purpose of the high-level (speaker-level) input on an amplifier?

High-level inputs allow an amplifier to accept the speaker-level output from a factory head unit that does not have RCA preamp outputs. The amplifier's high-level input circuit attenuates the speaker signal and may include a built-in line output converter (LOC). Signal quality is generally inferior to an RCA connection from a dedicated preamp output, and the input is more susceptible to noise from the factory head unit's internal amplifier.

How do I set the amplifier gain correctly?

Gain (sensitivity) matching the amplifier input level to the head unit output level — it is not a volume control. Set the head unit volume to approximately 75–80% of maximum (the point just before distortion begins), then adjust the amplifier gain so the amplifier's output is clean and undistorted. Using a multimeter in AC voltage mode or an oscilloscope on the speaker terminals is the accurate method — adjusting by ear is approximate only and risks setting the gain too high, which clips the signal and damages speakers.
