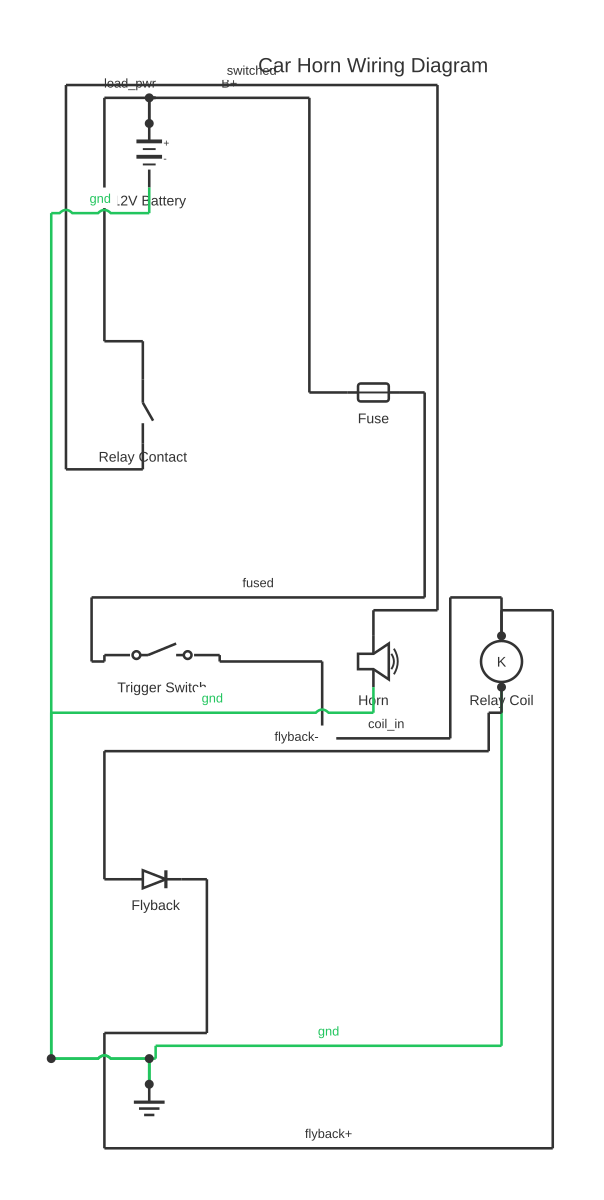

Car Horn Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable car horn wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A car horn circuit uses a relay to switch high current through the horn, protecting the steering-column button from arcing — understanding this layout prevents stuck horns and failed repairs.

The car horn is one of the few components on a vehicle that is a legally mandated safety device. In most jurisdictions, a working horn is required for roadworthiness. Yet it is also one of the most commonly misunderstood circuits in automotive electrical troubleshooting.

A typical car horn draws 3–8 A at 12 V. While a horn button in the steering wheel could theoretically switch that current directly, running high current through the clock spring (the rotating electrical connector inside the steering column) accelerates wear on that expensive component. More importantly, the horn circuit in most vehicles is wired through the horn relay, which isolates the high-current path from the low-current button signal.

The circuit has four nodes:

1. **Battery positive → fuse → relay terminal 30 (common).** This is the always-live supply to the relay's switch contact. The fuse (typically 15–20 A) protects this feed. 2. **Relay terminal 87 (normally open) → horn terminals.** When the relay energises, this path closes and supplies current through the horn(s). Dual-horn setups wire both horns in parallel across this feed. 3. **Relay terminal 86 (coil +) → fused ignition supply or battery.** The relay coil one end is powered. 4. **Relay terminal 85 (coil −) → horn button → chassis ground.** The horn button is on the ground side of the relay coil. When pressed, it completes the coil circuit, energising the relay. This means the horn sounds even without ignition on in most vehicles.

The horn itself is an electromagnetic device. A diaphragm is attracted to an electromagnet when current flows. As the diaphragm moves, it opens a set of internal contacts, which breaks the current, allowing the diaphragm to spring back, re-closing the contacts. This oscillation produces the audible tone. Adjustable horns have a small screw to tune this resonance and adjust volume and pitch.

Dual-horn setups use two horns of different pitches (high and low tone) wired in parallel, driven by the same relay.

This diagram is a generic educational reference. Wiring routing and relay terminal numbering may differ between vehicle makes and models; always consult the vehicle-specific service manual.

A car horn relay wiring diagram shows how a small-current horn button circuit (typically through the steering wheel clock spring) is used to trigger a relay, which then switches full battery current directly to the horn or horns. This relay approach is essential when upgrading to high-current aftermarket air horns or dual-tone horns, because the factory horn button circuit is rated for only a few amps and would be damaged by the higher draw. The diagram includes the relay coil powered by the horn button signal, a 30 A fuse on the relay's switched output, short heavy-gauge wiring from the battery to the horn, and a solid chassis earth at the horn bracket. You can draw your car horn relay wiring diagram free in the online editor.

How to wire car horn wiring diagram

Disconnect the battery negative terminal Before handling any automotive wiring, disconnect the negative battery terminal first. This eliminates the risk of shorting the always-live fused horn supply against the vehicle body during installation.
Locate or mount the horn relay Factory relay location is typically in the engine-bay fuse and relay box. For an aftermarket installation, mount the relay on a metal surface close to the battery using a relay holder or DIN rail mount. Proximity to the battery shortens the high-current run.
Wire relay terminal 30 to battery positive via a fuse Run a wire (minimum 14 AWG) from the battery positive terminal through an in-line fuse holder (fuse rating per horn draw, typically 15–20 A) to relay terminal 30. This is the always-live supply.
Wire relay terminal 87 to the horn positive terminal Connect relay terminal 87 to the positive terminal(s) of the horn(s). For dual horns in parallel, join both positive terminals together and wire them to terminal 87. Keep this wire as short as possible.
Earth the horn body and relay terminal 30 return Connect the horn body (negative terminal) to a clean chassis ground point. Horns often have two terminals — positive and negative — or one terminal plus body-earth. Ensure the earth connection is to bare metal, not a painted surface.
Wire the relay coil to the horn button Connect relay terminal 86 to a switched 12 V source (or battery positive if always-on horn operation is desired). Connect relay terminal 85 to the horn button wire from the steering column. The button's other side connects to chassis ground.
Reconnect the battery and test Reconnect the battery negative terminal. Press the horn button and verify the horn sounds. Verify the relay clicks audibly when the button is pressed and releases cleanly when released. Check for any continuous honking after releasing the button — if present, inspect for a stuck relay or earthing fault.

Specifications

Nominal supply voltage	12 V DC
Typical horn current draw	3–8 A per horn at 12 V
Relay coil voltage	12 V DC
Relay contact current rating (minimum)	20 A for single horn; 30 A for dual horn
Fuse rating (typical)	15–20 A blade type
Horn sound level (typical, at 2 m)	100–115 dB(A)
Wire gauge — high current path (relay to horn)	14 AWG minimum

Safety warnings

Always disconnect the battery negative terminal before working on any automotive electrical circuit. Even a momentary short across the battery terminals can cause severe burns, cable fires, or an explosion of hydrogen gas from the battery.
The horn circuit feed from the battery is always live, regardless of ignition position. The in-line fuse is the only protection for this wire against a short circuit. Never omit the fuse or replace it with a higher rating than specified.
Do not wire the horn feed directly from the ignition switch or fuse panel via a small-gauge wire. Horn current draw can exceed the rating of accessory circuits. Use a relay and run a dedicated wire from the battery.
Sounding a vehicle horn unnecessarily in urban areas is a traffic offence in most jurisdictions. Verify horn functionality in a safe location and at appropriate times.

Tools needed

Digital multimeter
Wire stripper and crimper
In-line fuse holder and appropriate fuses
Electrical tape and heat-shrink tubing
Soldering iron (optional, for permanent splices)
Drill and step drill bit (if new mounting hole required)
Ring spanner or socket set (for earth bolt)
Cable ties for harness dressing

Common mistakes

Connecting the horn button on the positive side of the relay coil rather than the ground side, which puts full battery voltage on the clock spring and increases the risk of damage to the steering column wiring.
Earthing the horn to a painted surface — corrosion under the paint creates a high-resistance joint that reduces horn volume and can cause intermittent operation.
Using a relay rated at less than the horn's peak inrush current, causing the relay contacts to arc and weld, producing a stuck-on horn.
Running the horn's high-current supply from the fuse box via an undersized wire rather than directly from the battery through a properly rated fuse.
Omitting the relay entirely on a dual-horn upgrade, routing several amps through the original clock spring and horn button, which are not designed for that duty.

Troubleshooting

Horn does not sound when button is pressed: Cause: Open circuit in one of four possible paths: fuse blown, relay coil not energised, relay contacts not closing, or horn itself failed Fix: Check fuse first. Then probe relay terminal 86 for 12 V when button is pressed. If 12 V present, the relay coil should pull in — listen for a click. Probe terminal 87 for 12 V with button pressed. If 87 has voltage but horn is silent, the horn is open-circuit or not earthed correctly.
Horn sounds continuously without button pressed: Cause: Relay contacts welded shut, or horn button shorted to ground Fix: Unplug the relay. If horn stops, replace relay (contacts are welded). If horn continues with relay removed, the horn is receiving direct supply via a wiring short — trace the high-current supply wire for insulation damage.
Horn is weak or distorted in tone: Cause: Poor earth connection, low supply voltage due to undersized wiring or corroded connector, or the horn diaphragm is cracked Fix: Measure voltage directly at the horn terminals while it is sounding. Voltage below 11.5 V under load indicates a resistance problem in the supply or earth path. Inspect and clean all connections. If voltage is correct and tone is still poor, the horn diaphragm or resonator disc is damaged — replace the horn.

Frequently asked questions

Why does a car horn circuit use a relay instead of wiring the button directly?

The horn draws up to 8 A, and routing that current through the clock spring in the steering column would accelerate wear on that part. The relay lets a low-current signal from the button switch a high-current path through the horn, protecting the steering column wiring and improving reliability.

My horn sounds continuously even without pressing the button — what is wrong?

Either the relay has stuck contacts (internally welded), or the horn button is shorted to ground. To test: unplug the relay. If the horn stops, the relay contacts are welded — replace the relay. If the horn still sounds with the relay removed, the horn is receiving direct power from a wiring fault, not through the relay.

Can I add an aftermarket horn to a vehicle without a relay?

Only if the horn draws less than the current the factory button circuit is rated for, and the clock spring has sufficient current capacity. Most aftermarket horns (especially air horns or dual-tone sets) draw 5–15 A, which exceeds what the steering column circuit is designed for. Always fit a relay when upgrading horns.

What fuse rating should I use for a horn circuit?

Fuse rating should be matched to the wire gauge used, not just the horn current draw. A typical horn circuit uses 15–20 A, with wiring of at least 18 AWG for low-current control and 14 AWG or larger for the high-current relay-to-horn feed. The fuse must blow before the wire overheats — so use the next standard rating above calculated maximum circuit current.

My new horn is quieter than the old one — how do I adjust it?

Most electromagnetic horn diaphragms have an adjustment screw accessible from the rear of the horn body. Turning it changes the air gap between the diaphragm and the electromagnet core, affecting resonance, pitch, and volume. Turn in small increments (eighth of a turn) with the horn powered until the loudest or desired tone is achieved.

How do you wire a horn relay in a car?

Connect relay pin 86 to a switched ignition 12 V source or the existing horn button output wire, and relay pin 85 to chassis ground. Run a fused heavy-gauge wire (typically 14–12 AWG, fused at 20–30 A) from the battery positive terminal or a nearby fused distribution point to relay pin 30. Relay pin 87 feeds the positive terminal of the horn(s); the horn's negative terminal bolts to a clean chassis earth point. When the horn button is pressed, the low-current signal energises the coil, closing the contacts and delivering full battery voltage directly to the horns. This protects the clock spring and factory wiring from carrying the horn's full current.
