Dimmer Switch Wiring Diagram

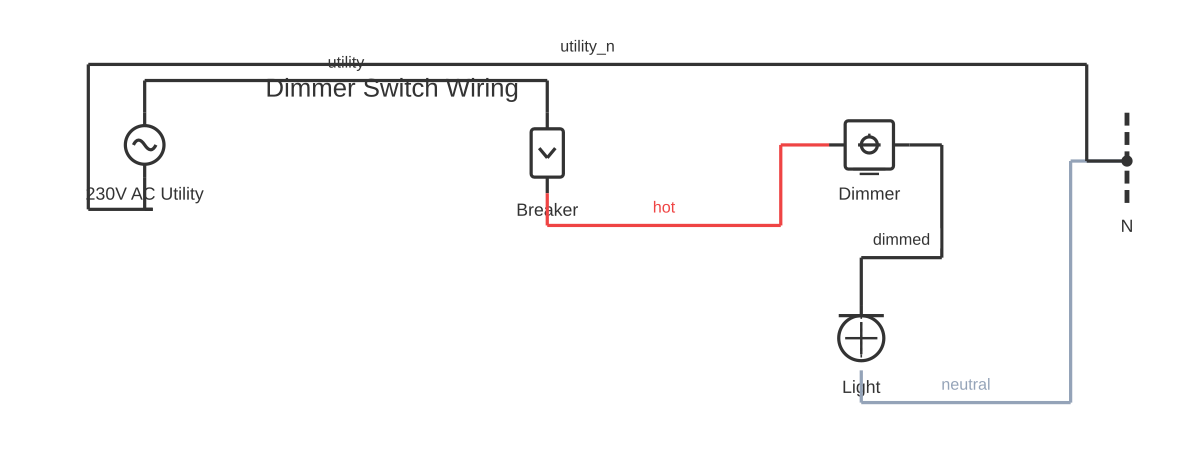

This is a free printable dimmer switch diagram: download the diagram as SVG or open it and print to paper or PDF.
A dimmer switch wiring diagram shows how to connect a TRIAC- or leading-edge-based dimmer into a lighting circuit to provide variable brightness control — with correct load matching being critical to prevent flicker, overheating, and damage.
Dimmer switches control light intensity by rapidly interrupting the mains AC waveform. The most common type uses a TRIAC (a bidirectional semiconductor) that is triggered at a variable point in each AC half-cycle. By firing the TRIAC later in the cycle (phase-cut dimming), less energy reaches the lamp and brightness decreases.
Leading-edge (LE) dimmers cut the front of the AC waveform and are traditional, cheap, and suited to resistive loads (incandescent, halogen). Trailing-edge (TE) dimmers cut the rear of the waveform and are better suited to capacitive or low-impedance electronic loads (LED drivers, low-voltage transformers). Most modern LED-rated dimmers are trailing-edge.
Terminal configurations: - 1-way dimmer (replaces a standard single-pole switch): Two terminals — Live In (L) and Switched Live (L1 or SL). The neutral is not connected at the switch in a standard UK/Australian wiring system. In NEC-compliant (US) installations, a neutral conductor is increasingly required at the switch box for smart and LED dimmers. - 2-way (UK: two-way) dimmer circuit: A dimmer replaces one of two light switches wired in a two-way arrangement. Only one location can be a dimmer; the other must be a plain two-way switch. Intermediate (3-way/4-way) positions between them cannot be dimmers.
Load compatibility is critical: Using an incandescent dimmer with LED lamps causes flickering, buzzing, reduced dimming range, and can damage the dimmer or the driver inside the LED fitting. Always check the dimmer manufacturer's compatibility list and observe minimum and maximum load ratings.
Neutral requirements: Some smart dimmers and trailing-edge dimmers require a neutral at the switch to power their electronics. In older wiring where only a switch-drop cable is present (no neutral at the switch box), a no-neutral dimmer variant must be selected.
How to wire dimmer switch diagram
- Isolate the circuit at the consumer unit (fuseboard) Switch off and lock the correct circuit breaker or remove the fuse. Use a voltage tester at the existing switch to confirm all conductors are dead before removing the faceplate.
- Remove the existing switch and identify the conductors Photograph the existing wiring before disconnecting. Identify the Line (Live in), Switched Live (L1), and any earth conductors. In UK wiring, the blue or black conductor acting as switched live must be sleeved brown to indicate it is not a neutral.
- Check load and dimmer compatibility Confirm the total lamp wattage is within the dimmer's minimum and maximum load ratings. Verify the lamp type (LED, CFL, halogen, incandescent) is on the dimmer's approved list.
- Connect Line (Live) to the dimmer L terminal The incoming Line conductor connects to the terminal marked L or Line. Secure firmly in the terminal block — a loose live conductor is a fire and shock risk.
- Connect Switched Live to the L1 terminal The conductor going to the light fitting's live terminal connects to the dimmer's L1 or SL output terminal. This is the conductor whose voltage the dimmer chops to control brightness.
- Connect the earth conductor Connect the circuit protective conductor (CPC) to the dimmer's earth terminal and to the metal back box if applicable. Most dimmers require an earth connection for functional and safety reasons.
- Fit the dimmer and restore power, then adjust the minimum trim Carefully fold conductors into the back box and fit the dimmer faceplate. Restore power, test dimming range, and if the dimmer has an accessible minimum load trim potentiometer, adjust it until the lamp extinguishes cleanly at the lowest setting without flickering.
Specifications
| Operating voltage | 230 V AC (IEC regions); 120 V AC (North America) |
|---|---|
| Dimming method (traditional) | Leading-edge (TRIAC) phase cut |
| Dimming method (LED-preferred) | Trailing-edge (MOSFET) phase cut |
| Typical maximum load | 250 W–600 W (resistive); 100 W–250 W (LED) |
| Typical minimum load | 10 W–40 W (varies by model) |
| Neutral required | Not required for traditional dimmers; required for most smart/wireless dimmers |
| Applicable standard (UK) | BS 7671 (IET Wiring Regulations) |
| Applicable standard (US) | NEC / NFPA 70, Article 404 |
Safety warnings
- Electrical installation work must be carried out by a qualified electrician or competent person and notified to the relevant building control authority as required by local regulations (BS 7671, NEC, AS/NZS 3000, etc.). Always verify whether the work constitutes notifiable work in your jurisdiction.
- Always isolate the circuit at the consumer unit and verify dead with a voltage tester before touching any wiring — mains voltage is lethal.
- Never use a dimmer switch on inductive loads such as motor-driven fans or standard fluorescent tube fittings unless the dimmer is specifically rated and approved for that load type.
- Overloading a dimmer switch causes internal overheating, which can damage the device, start a fire, or cause severe burns. Never connect a load exceeding the dimmer's maximum rated wattage.
- This diagram is illustrative and reference-only. All fixed electrical installation work must comply with the wiring regulations applicable in your country.
Tools needed
- Non-contact or two-pole voltage tester (CAT II rated minimum)
- Insulated flathead and Phillips screwdrivers
- Wire strippers
- Electrician's pliers
- Sleeving for re-coloured conductors
- Small flathead screwdriver (for terminal adjustments)
Common mistakes
- Using a leading-edge (TRIAC) dimmer with modern LED downlights, causing persistent flicker and buzzing.
- Exceeding the dimmer's maximum load rating by adding more lamps to the circuit without rechecking the total wattage.
- Connecting the neutral wire to a dimmer that does not have a neutral terminal, leaving a live conductor floating inside the back box.
- Failing to earth the dimmer switch or metal back box.
- Installing a dimmer on a non-dimmable lamp or driver — this does not dim the light but does overheat the driver, reducing its life dramatically.
- Ignoring the minimum load rating, which causes the dimmer to behave erratically at the low end of its range.
Troubleshooting
- Light flickers at low dimming level
- Cause: Dimmer minimum load trim not adjusted, or incompatible dimmer/LED combination. Fix: If the dimmer has an adjustment screw or potentiometer, increase the minimum trim slightly. If flickering persists across the full range, verify the LED fitting is on the dimmer's approved compatibility list and replace if necessary.
- Dimmer becomes very hot during use
- Cause: Total load exceeds the dimmer's watt rating, or the dimmer is derating due to being ganged with others in the same back box. Fix: Measure total lamp wattage and compare to the dimmer's rating. Check for a derating requirement if multiple dimmers are in the same enclosure. Reduce the load or upgrade to a higher-rated dimmer.
- Light stays on at full brightness regardless of slider or rotary position
- Cause: Internal TRIAC has failed short-circuit, or wiring error (load connected directly across line). Fix: Isolate the circuit. Check that the load is wired to the switched output (L1), not directly across Line and Neutral. If wiring is correct, the dimmer module has failed and must be replaced.
- Light will not turn off completely
- Cause: Capacitive coupling through the dimmer's snubber circuit passes enough current to keep an LED lamp faintly illuminated (ghost lighting). Fix: Fit a load correction capacitor (sometimes called a leading-edge filter module) across the lamp terminals, or replace the LED fitting with one that has a lower standby power characteristic.
Frequently asked questions
Why does my LED light flicker on a dimmer switch?
Flicker usually means the dimmer type does not match the LED driver's requirements. Leading-edge (TRIAC) dimmers cause flicker with many LED drivers designed for trailing-edge signals. The fix is to use a dimmer the LED manufacturer has approved, or to check and adjust the dimmer's minimum load trim potentiometer if one is fitted.
Do I need to connect the neutral wire to a dimmer switch?
Traditional dimmers in UK and Australian wiring do not use the neutral at the switch — only the switched live and line are connected. However, smart dimmers, many trailing-edge LED dimmers, and all US code-compliant installations under NEC 404.2(C) require a neutral conductor at the switch box.
Can I use any dimmer switch with LED bulbs?
No. LED lamps contain electronic drivers that are sensitive to the dimming waveform. You must use a dimmer that is specifically rated and tested for LED loads. Always verify the LED and dimmer combination using the dimmer manufacturer's approved lamp list before installation.
What is the maximum load I can put on a dimmer switch?
Dimmer switches have both a maximum and a minimum load rating, often stated in watts. A common residential dimmer is rated 400 W or 600 W maximum. Derating applies when multiple dimmers are ganged in the same back box — check the manufacturer's derating table and never exceed the stated maximum.
Can I install a dimmer in a two-way switching circuit?
Yes, but only one of the two switch locations can be a dimmer. The other must remain a standard two-way switch. The dimmer replaces the first switch position; the second position uses a conventional two-way switch. You cannot fit a dimmer at both ends of the same two-way circuit.
