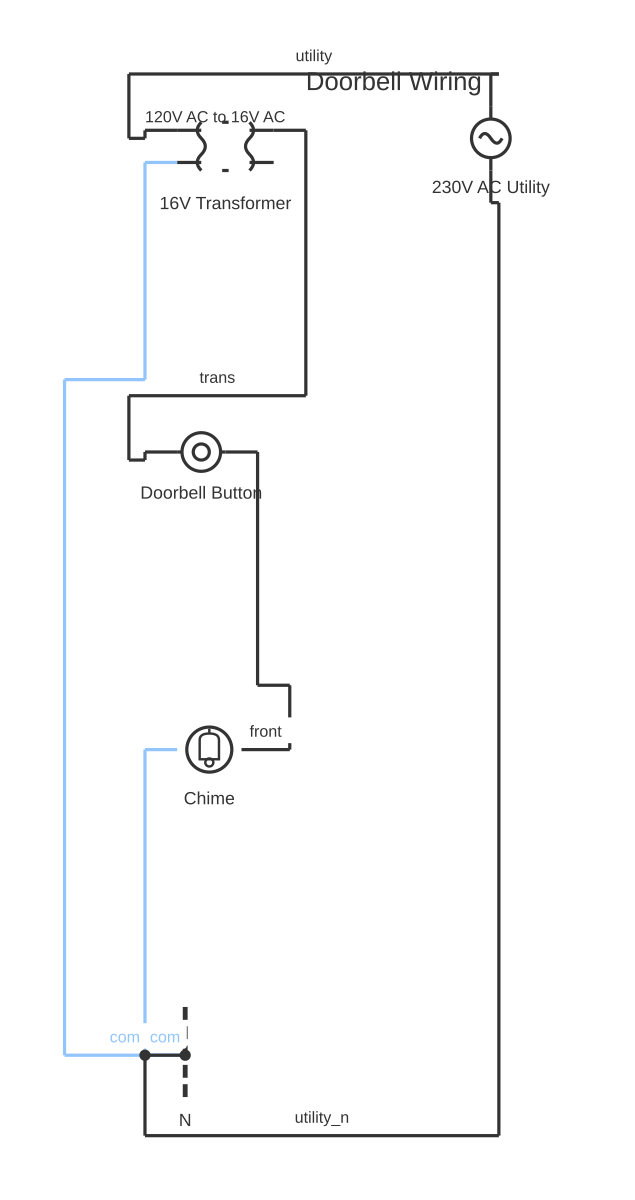

Doorbell Transformer Wiring Diagram — circuit diagram showing component connections16V TransformerDoorbell ButtonChime230V AC UtilityDoorbell Wiring120V AC to 16V AC
Doorbell Transformer Wiring Diagram: How a Doorbell Transformer and Chime Circuit Works — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable doorbell transformer wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A practical reference for understanding and wiring a conventional doorbell transformer, push-button, and chime circuit, covering transformer selection, low-voltage connections, and common fault diagnosis.

A conventional wired doorbell system is a low-voltage circuit consisting of three main components: a step-down transformer that reduces the mains supply voltage to a safe low voltage (typically 8 V, 12 V, or 16 V AC), a push-button switch at the door, and a chime or buzzer unit inside the building.

The transformer is the mains-side component and is the only part of the system that presents a shock hazard. It connects directly to the mains supply — either hardwired from a junction box, from a lighting circuit, or from a dedicated circuit — and must be installed by a qualified electrician in accordance with applicable wiring regulations. The transformer's secondary winding produces low-voltage AC output that is safe for the remainder of the circuit.

On the low-voltage side, the secondary output terminals (often labelled with the voltage output, e.g., '16V', and a 'Trans' or common terminal) connect via two-core bell wire to both the chime unit and the push-button. The circuit works as follows: one secondary terminal connects to the 'Trans' terminal on the chime. A wire from the 'Trans' terminal (or the other secondary terminal, depending on chime design) runs to one terminal of the push-button at the door. The other push-button terminal connects back to the remaining 'Front' or 'Rear' terminal on the chime. When the push-button is pressed, it completes the circuit, allowing current to flow through the chime's solenoid, striking the tone bar.

Two-button systems (front door and rear door) use two push-buttons wired from separate terminals on the chime ('Front' and 'Rear'), which actuate different notes or sequences on the chime.

Note that smart video doorbell devices have different — and often higher — power requirements than conventional chimes. Many smart doorbells require 16–24 V AC at 30–40 VA or higher. Always check the smart doorbell manufacturer's transformer requirements before using or retaining an existing transformer.

All mains-side work must be carried out by a qualified electrician. This page is a generic educational reference only.

How to wire doorbell transformer wiring diagram

  1. Identify and verify the transformer location Locate the doorbell transformer. Trace the bell wire from the chime unit back through the wall to the transformer location. Before touching the transformer, use a non-contact voltage tester on the mains-side terminals and adjacent wiring — these carry full mains voltage. Do not work on the primary side without isolating and locking out the supply circuit.
  2. Isolate the mains supply to the transformer Switch off the circuit breaker that supplies the transformer's primary winding. Lock out the breaker and apply a danger tag. Verify the supply is dead with a calibrated multimeter at the transformer primary terminals before touching any wiring.
  3. Connect the transformer primary (mains side) This step must be performed by a qualified electrician. Connect the transformer primary terminals to the mains supply: live (brown) to one primary terminal, neutral (blue) to the other, and earth (green/yellow) to the transformer body earth terminal where provided. The transformer must be mounted securely to a surface or junction box with all primary wiring enclosed. Do not leave primary terminals exposed.
  4. Connect the transformer secondary to the chime Run two-core bell wire from the transformer secondary terminals to the chime unit. Connect one secondary terminal (typically labelled with the output voltage, e.g., '16V') to the 'Trans' terminal on the chime. The second secondary terminal (common) connects to the same node as the chime's 'Trans' terminal — or directly to the common wire that also feeds the push-button circuit, depending on the chime wiring diagram.
  5. Wire the push-button Run two-core bell wire from the chime unit 'Front' terminal to one terminal of the doorbell push-button at the front door. Run a return wire from the other push-button terminal back to the transformer secondary common. Press the button and verify continuity between the two push-button terminals — it should show a short circuit when pressed and open circuit when released.
  6. Restore power and test Restore the circuit breaker. Use a multimeter set to AC volts to measure the secondary output voltage at the transformer terminals — confirm it matches the transformer's rated output (e.g., 16 V AC ± 10%). Press the push-button and verify the chime sounds. If using a two-button system, test both front and rear buttons and confirm each produces the correct tone or sequence.

Specifications

Typical secondary voltage options8 V AC, 10 V AC, 12 V AC, 16 V AC — must match chime rating
Typical VA rating (conventional chime)5–10 VA (sufficient for conventional electromechanical chimes)
Typical VA rating (smart video doorbell)30–40 VA minimum — verify in smart doorbell manufacturer's specification
Bell wire specification0.5 mm² two-core low-voltage; for secondary (low-voltage) circuit only
Push-button IP rating (outdoor)IP44 minimum (sheltered); IP65 for exposed locations
Primary supply voltage230 V AC, 50 Hz (UK/Europe) or 120 V AC, 60 Hz (North America) — transformer-specific
Applicable standard (primary wiring, UK)BS 7671 (IET Wiring Regulations), current edition
Secondary circuit classification (UK)SELV (Separated Extra Low Voltage) if transformer provides adequate isolation — verify with transformer specification

Safety warnings

Tools needed

Common mistakes

Troubleshooting

Doorbell does not ring when button is pressed
Cause: Open circuit in the bell wire run, corroded push-button contacts, failed chime solenoid, transformer not powered, or transformer output voltage too low Fix: Measure secondary voltage at the transformer terminals — should match rated output. If zero, check primary supply. If secondary voltage is present, disconnect the bell wire at the transformer and measure voltage at the push-button terminals — if present, the wire run is intact. Press the button and measure voltage at the chime Front terminal — if no voltage when pressed, the fault is the push-button or the wire to it. If voltage is present at the chime but no sound, the chime solenoid or striker is faulty.
Doorbell rings continuously without button being pressed
Cause: Push-button stuck in closed position (corroded or seized mechanism), or short circuit in the bell wire run (two conductors touching) Fix: Disconnect one wire at the push-button. If ringing stops, the push-button contacts are welded or the button mechanism is seized — replace the button. If ringing continues, disconnect one wire at the chime 'Front' terminal. If ringing stops, the bell wire run has a short circuit — inspect the run for damaged insulation, staple penetrations, or pinch points.
Smart video doorbell reboots repeatedly
Cause: Transformer VA rating insufficient for the smart doorbell's power demand — the doorbell depletes the transformer's output capacity, causing voltage drop and reboot Fix: Measure the AC voltage at the doorbell's input terminals under load (with the doorbell powered). A significant drop from the transformer's rated output (more than 2–3 V) indicates the transformer is undersized. Replace with a transformer that meets the smart doorbell manufacturer's VA specification.
Chime sounds weakly or produces a dull thud instead of a clear tone
Cause: Transformer secondary voltage too low for the chime rating, corroded or sticky chime striker mechanism, or weak chime solenoid Fix: Measure secondary voltage and verify it matches the chime's rated input voltage. Clean and inspect the chime striker mechanism — dust and old lubricant can dampen the tone bar strike. If voltage and mechanism are correct, the chime solenoid or tone bar may be worn and the chime unit requires replacement.

Frequently asked questions

What voltage does a doorbell transformer typically output?

Most conventional doorbell transformers output 8 V, 10 V, 12 V, or 16 V AC on the secondary side. The correct voltage depends on the chime or doorbell unit — always match the transformer output to the chime's rated input voltage. Smart video doorbells typically require 16–24 V AC at significantly higher VA ratings than conventional chimes.

Where is the doorbell transformer typically located?

In residential installations, the doorbell transformer is often mounted in or near the main consumer unit (electrical panel), attached to a junction box on a lighting circuit, or located in a utility room or attic. In older homes it may be tucked away in a cupboard near the front door. If you cannot locate it, follow the two-core bell wire from the chime back to the transformer.

Why does my doorbell chime ring continuously?

Continuous ringing usually indicates the push-button is stuck in the pressed position — either because the button mechanism has corroded and seized, or because the wiring at the button has short-circuited (the two wires making contact). Remove and inspect the button. Disconnect one wire at the button and the chime should stop ringing — if it does not, the short circuit is elsewhere in the wire run.

Can I wire a smart video doorbell to an existing conventional doorbell transformer?

Sometimes, but not always. Smart video doorbells typically require 16 V AC minimum and 30–40 VA or more. Many older transformers are rated at only 5–10 VA, which is insufficient for a smart doorbell and will cause the smart doorbell to malfunction, reboot frequently, or fail to charge its internal capacitor. Check the smart doorbell's specifications and replace the transformer if the VA rating is insufficient.

Is bell wire the same as electrical cable?

No. Bell wire (typically 0.5 mm² twin-core, non-earthed) is rated for low-voltage low-current applications and must only be used on the secondary (low-voltage) side of the transformer. It must never be used for mains wiring. The mains-side connections to the transformer primary must use appropriately rated mains cable installed in accordance with the applicable wiring standard.
