ECU Wiring Diagram: Understanding Engine Control Unit Signal Categories and Connections
This is a free printable ecu diagram: download the diagram as SVG or open it and print to paper or PDF.

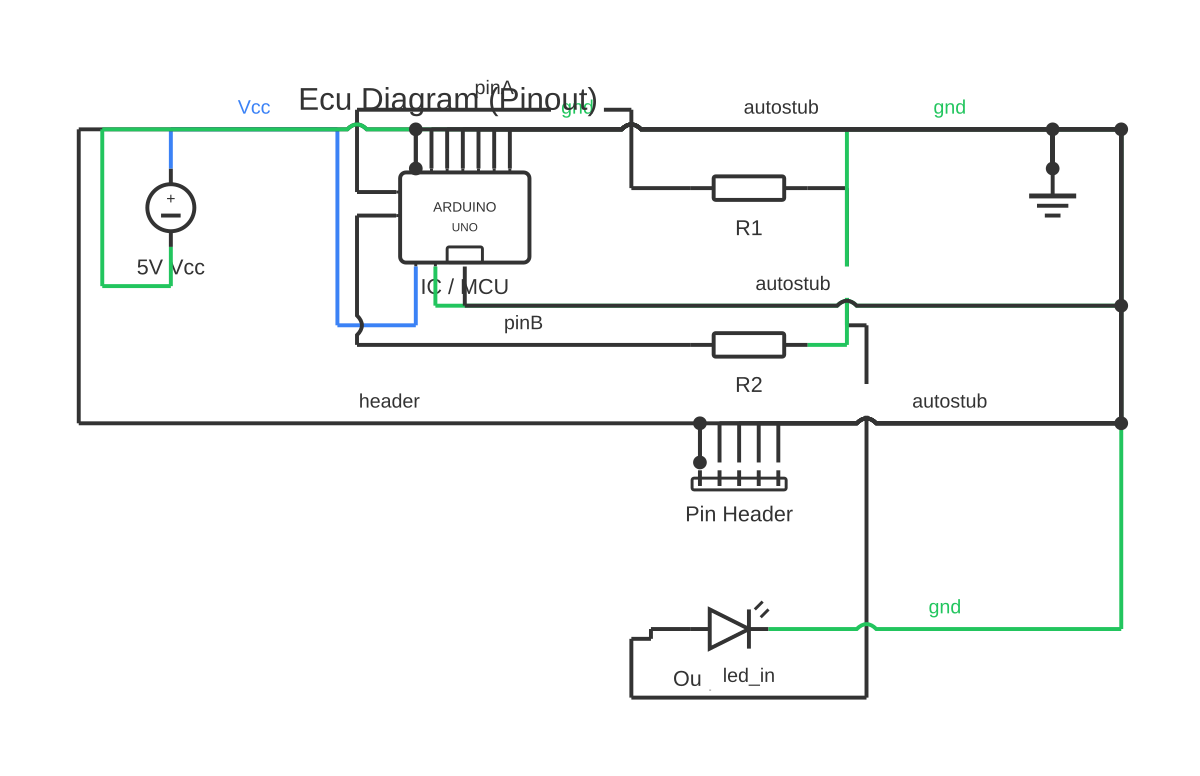

An ECU wiring diagram illustrates the categories of signals entering and leaving the engine control unit — sensor inputs, actuator outputs, power, ground, and network buses — as a reference for diagnosis and understanding.
The Engine Control Unit (ECU), also called the Engine Control Module (ECM) or Powertrain Control Module (PCM), is the primary electronic control unit governing fuel injection, ignition timing, emissions control, and ancillary engine functions in modern vehicles. It processes data from numerous sensors, executes control algorithms, and drives actuators to regulate engine operation within programmed parameters.
ECU wiring is vehicle-specific. No generic pinout is valid across manufacturers or even across different models from the same manufacturer. Always consult the vehicle-specific workshop manual and wiring diagram for the exact pin assignments of any ECU under service. The following describes the categories of connections present on most ECUs as a general educational reference — not as a substitute for vehicle-specific documentation.
Power and ground connections: The ECU receives a direct battery positive feed (typically via a main relay that the ECU itself controls) and an ignition-switched positive. Multiple dedicated ground (earth) connections are essential — typically several separate ground pins connecting to the engine block and body earth. High-resistance grounds are a major source of ECU malfunction and sensor signal errors. All ECU ground pins must have low-resistance paths to the battery negative.
Sensor inputs: ECU inputs include analogue signals (e.g. coolant temperature, intake air temperature, throttle position — typically 0–5 V DC referenced to sensor ground), frequency inputs (e.g. crankshaft and camshaft position sensors — variable reluctance or Hall-effect), and digital switching inputs (e.g. vehicle speed sensor, brake switch). The ECU supplies a regulated 5 V reference voltage to resistive sensors via dedicated 5V reference (VREF) pins; this reference must not be loaded by incorrect connections.
Actuator outputs: Outputs include injector drivers (high-side or low-side), ignition coil drivers, idle air control valve, variable valve timing solenoids, EGR valve, fuel pump relay, and EVAP purge solenoid. Most outputs are low-side drivers (switching the negative side of the load to earth). Connecting an actuator output directly to battery voltage without a load will damage the ECU driver transistor.
Network communications: Most modern ECUs communicate over CAN bus (Controller Area Network), often with a high-speed CAN (typically 500 kbps) for powertrain and a medium-speed CAN for body systems. Some vehicles also use LIN bus, K-Line (ISO 9141), or other protocols. The OBD-II diagnostic connector (SAE J1962) provides access to these networks.
How to wire ecu diagram
- Obtain the vehicle-specific wiring diagram before touching any ECU wiring Access the OEM workshop manual or a reputable automotive wiring database using the vehicle's VIN. The ECU connector pinout, wire colours, signal types, and expected values are all vehicle-specific. Any diagnostic or repair work on ECU wiring should begin with this documentation, not with a generic diagram.
- Verify ECU power and ground circuits first Using a digital multimeter, verify that battery voltage is present at the ECU main power pins with the ignition on. Measure the voltage drop across each ECU ground circuit (between the ECU ground pin and the battery negative terminal) with the engine running — drop must be less than 0.1 V on any ground circuit. High-resistance grounds cause the majority of ECU-related faults.
- Measure the 5 V reference output at sensor connectors With the ignition on and the suspect sensor connector disconnected, measure voltage between the VREF pin and SGND pin at the harness connector. It should read 4.8–5.2 V DC. If the reference is absent or low, check for a short to ground on the VREF circuit (caused by a damaged sensor or wiring). A shorted VREF will pull down the reference for all sensors sharing that reference pin.
- Back-probe — do not pierce wire insulation When measuring signals at ECU connectors, use appropriate back-probing pins or breakout box adaptors that insert alongside the existing terminal without piercing the insulation. Piercing wire insulation creates corrosion entry points that cause intermittent faults. Never probe ECU pins with an oversized probe that could spread or damage the female terminal contacts.
- Use a scan tool to cross-reference live data with measured values Compare the values measured directly at the ECU or sensor connector with the values displayed by the scan tool on the OBD-II port. Discrepancies between the measured signal and the displayed value indicate a signal processing or bus communication fault. Matching values confirm the sensor signal is reaching the ECU correctly.
- Document all findings and replaced components Record the fault codes present before and after repair, the measurements taken, and any components replaced. Many ECU-related faults are intermittent — documentation allows the next technician or the vehicle owner to understand the history of the fault and the work performed.
Specifications
| ECU supply voltage (operational range, typical) | 9–16 V DC (nominal 12–14.4 V DC) |
|---|---|
| 5 V sensor reference (VREF) voltage | 4.8–5.2 V DC (measured at sensor harness connector VREF pin) |
| Sensor ground (SGND) to battery negative (expected voltage drop) | Less than 0.1 V DC with engine running |
| CAN bus network (high-speed powertrain CAN) | 500 kbps data rate; CAN H approx. 3.5 V, CAN L approx. 1.5 V during dominant bit; 2.5 V each at recessive (ISO 11898) |
| OBD-II connector type | 16-pin, SAE J1962 Type A (12 V vehicles); Type B (24 V vehicles) |
| Injector driver type (typical) | Low-side switching (ECU pulls injector negative to ground); high-impedance injectors 12–16 ohm, low-impedance 2–3 ohm (with peak-and-hold driver) |
| Applicable diagnostic standards | OBD-II (SAE J1979, USA); EOBD (Euro 6, EU); ISO 15031 (international) |
Safety warnings
- Never connect test equipment to ECU pins without a vehicle-specific wiring diagram confirming signal type and expected voltage range. Some ECU terminals carry 12 V outputs or grounds; others carry 5 V references that will be damaged by 12 V contact. Applying voltage to an output pin or grounding an input pin can permanently destroy the ECU driver or input circuit.
- Always disconnect the battery negative terminal before removing or reconnecting ECU connectors. Some ECU variants retain power through multiple circuits and can sustain damage from electrostatic discharge or incorrect connector alignment during hot-swap conditions.
- ECU connector pins are precision-machined contacts with tight tolerances. Use only correctly sized back-probe pins or OEM service tools. Forcing an oversized test probe into a terminal cavity will permanently spread the female contact and cause an intermittent connection fault that is difficult to diagnose subsequently.
- Airbag (SRS) system wiring is often routed in the same harness as ECU wiring. Identify and avoid SRS wiring (typically yellow or yellow/stripe insulation) when probing the harness. Accidental deployment of an airbag during diagnostics can cause severe injury. Consult SRS service procedures before working near airbag components.
- Do not clear ECU fault codes before recording them. Fault codes are diagnostic evidence. Codes that do not return after clearing confirm an intermittent historic fault. Codes that return immediately confirm an active fault. Clearing codes before recording them removes this diagnostic information.
Tools needed
- Vehicle-specific OEM workshop manual and wiring diagram (mandatory — non-negotiable)
- Digital multimeter with DC voltage, resistance, frequency, and duty-cycle functions
- Automotive oscilloscope (2 or 4-channel)
- OBD-II scan tool with live data and bi-directional actuator test capability
- Breakout box or ECU connector back-probe adaptor kit
- Terminal extraction tools (matched to connector type)
- Electrical contact cleaner (for cleaning corroded connector pins)
- Isopropyl alcohol (90% or higher, for cleaning ECU PCB if opened)
Common mistakes
- Using a generic ECU pinout diagram instead of the vehicle-specific wiring diagram. There is no universal ECU pinout. Using incorrect pin identification risks ECU damage and creates misdiagnosed faults.
- Piercing wire insulation to back-probe ECU circuits. Pierced insulation allows moisture ingress, which causes corrosion and intermittent open-circuit faults — exactly the category of fault that is most difficult to diagnose. Always use blunt back-probe pins or a breakout box.
- Measuring voltage at an ECU output pin while the output is connected to its actuator load, then comparing the result to the expected source voltage. ECU output pins are designed to drive a load; measuring them unloaded or loaded will give different voltage readings. Understand the circuit topology before interpreting measurements.
- Replacing the ECU without first verifying the power supply and ground circuits. An ECU installed into a vehicle with a faulty ground circuit or voltage supply will fail in the same way as the original unit. Always verify supply quality before ECU replacement.
- Clearing fault codes without documenting them first, then being unable to identify which codes were stored when diagnosing the issue.
- Assuming a fault code identifies the faulty component. Fault codes identify the circuit or parameter that is out of range, not necessarily the component that caused it. A P0102 (MAF sensor low input) may indicate a faulty MAF sensor, a wiring fault, a vacuum leak, or an ECU input fault — not automatically a failed MAF sensor.
Troubleshooting
- ECU does not communicate with scan tool
- Cause: No power or ground to ECU, blown main relay fuse, damaged OBD-II port, or a faulty CAN bus network Fix: Verify battery voltage and the main ECU relay. Check OBD-II port pin 16 (battery positive) and pin 4 or 5 (chassis and signal ground) for the correct voltages. Measure CAN High and CAN Low bus voltage at the OBD-II port (should be approximately 2.5 V each with ignition on, no messages) and CAN differential voltage during communication (approximately 1.5–2.0 V between CAN H and CAN L). Inspect for a shorted or open CAN bus network.
- Multiple sensor fault codes set simultaneously
- Cause: ECU 5 V reference (VREF) circuit shorted to ground by a damaged sensor or harness, or ECU ground circuit with high resistance Fix: Measure the 5 V reference at the harness connector of each sensor sharing that VREF pin, with the sensor disconnected. If the reference returns to 5 V when one specific sensor is disconnected, that sensor is shorting the reference internally. If all VREF circuits read low regardless, measure ECU ground quality — a high-resistance ground raises the ECU's internal reference point and affects all sensor readings.
- Engine cranks but does not start; no injector pulse confirmed with noid light
- Cause: ECU not entering engine run mode due to missing crank position signal, failed main relay, absence of security (immobiliser) release, or ECU not powered Fix: Confirm the main relay is energised and supplying the ECU. Verify the crankshaft position sensor signal with an oscilloscope during cranking — the CKP signal is required before the ECU will enable injection. Check for an immobiliser fault code. Verify the ECU has correct power and ground supply voltage during cranking (battery voltage may drop; minimum typically around 9 V required for ECU operation).
- Engine runs but one sensor reads implausible fixed value at all conditions
- Cause: Open circuit in sensor signal wire or sensor ground, causing the ECU to read the wire's pull-up or pull-down voltage as a fixed value Fix: Back-probe the sensor signal pin at the ECU connector (or at the breakout box). Compare the measured voltage with scan tool live data. If both agree on an implausible value, the fault is in the wiring or sensor. Disconnect the sensor connector — if the signal reading changes to a clearly different implausible value (often the ECU pull-up voltage), the signal wire to the sensor is open-circuit. If it does not change, the ECU input circuit may be faulty.
Frequently asked questions
Can I use a generic ECU pinout diagram from the internet?
No. ECU pinouts are vehicle-specific and vary between manufacturers, model years, engine variants, and trim levels. Using a generic or incorrect pinout risks damaging sensors, actuators, the ECU itself, or creating a fire hazard. Always obtain the wiring diagram specific to the vehicle by VIN from the manufacturer's workshop information system or a reputable automotive data provider.
What is a sensor ground and why is it different from chassis ground?
The ECU provides dedicated sensor ground pins (SGND) that serve as the reference for all analogue sensor signals. These grounds are internally isolated from chassis ground within the ECU to prevent electrical noise from injectors, motors, and other high-current devices corrupting the 0–5 V sensor signal reference. Connecting sensors to chassis ground instead of the ECU sensor ground pin will cause inaccurate sensor readings.
What voltage does the ECU supply to sensors?
Most ECUs supply a regulated 5 V DC reference voltage (VREF) to resistive sensors such as the throttle position sensor, manifold absolute pressure sensor, and pedal position sensor. This 5 V reference must not be shorted to ground or overloaded. Some ECUs also supply a 12 V reference for specific sensors. Always verify against the vehicle-specific wiring diagram.
What is CAN bus and how does it relate to the ECU wiring diagram?
CAN bus (Controller Area Network) is a two-wire differential serial communication network that allows the ECU to exchange data with other control modules (transmission, ABS, instrument cluster, etc.) without a direct wiring connection for each signal. The two CAN wires (CAN High and CAN Low) are present on the ECU connector and connect to the vehicle's CAN network. Termination resistors (typically 120 ohms) are fitted at each end of the bus.
My ECU has been water-damaged — is it repairable?
Water damage repair is specialised work requiring disassembly of the ECU housing, cleaning of the PCB with isopropyl alcohol, inspection for corrosion on component leads and connector pins, and often replacement of corroded components. Success depends on the extent of corrosion and whether the board was powered while wet (which causes electrolytic corrosion). This is a task for a specialist ECU repair technician, not a field repair.
